Picofly AIO Thread

[lightninjay]

okay, thanks! other question, can nintendo ban my console playing online legit games (bougth or phisical) or just being connected to internet? should i keep the internet off most of the time to avoid it? thanks

Ill pass a few photos when the aliexpress parts come hahaha

Those kinds of questions are not typically fielded here, as they relate to piracy, but since you specifically asked about legit games, if you are not loading atmosphere, a custom firmware designed to modify game files and OS systems, then you will not be banned. Loading a hardware mod into your console, and then booting to the Original Firmware will not get you banned. Booting into Custom Firmware, then connecting to nintendo servers after loading mods is how you get banned on the console (not your account, just the console that is hacked).



[koselillo]

Those kinds of questions are not typically fielded here, as they relate to piracy, but since you specifically asked about legit games, if you are not loading atmosphere, a custom firmware designed to modify game files and OS systems, then you will not be banned. Loading a hardware mod into your console, and then booting to the Original Firmware will not get you banned. Booting into Custom Firmware, then connecting to nintendo servers after loading mods is how you get banned on the console (not your account, just the console that is hacked).

okay, ill keep in mind those recommendations, for now i was only making sure not to get ban hahahah, thank you so much!



[lightninjay]

New update to the guide, V.6 just dropped

https://gbatemp.net/download/a-definitive-picofly-install-guide.37968/



[ypeeLs]

Correct.
You need the >1k resistor between Gate and Source (GND) so in case the Gate does not close correctly the resistor will draw the power and close it.

Post automatically merged: May 20, 2023

Looks great.
Did you replace the resistors yourself or did you manage to get a revised model with correct 47r?

I replaced them, 0201 is a bitch



[lightninjay]

New update to the guide, V.6.1 just dropped

https://gbatemp.net/download/a-definitive-picofly-install-guide.37968/



[Danook28]

Pico fly firmware 2.73 plz



[lightninjay]

Pico fly firmware 2.73 plz

Only because you said "plz"

https://gbatemp.net/threads/picofly-a-hwfly-switch-modchip.622701/page-78#post-10090767

Download the guide for crying outloud, that exact link is IN THE GUIDE.



[Danook28]

Only because you said "plz"

https://gbatemp.net/threads/picofly-a-hwfly-switch-modchip.622701/page-78#post-10090767

Download the guide for crying outloud, that exact link is IN THE GUIDE.

After add firmware to chip.. Bule lite then 4 time blinking yellow. That program...!



[lightninjay]

After add firmware to chip.. Bule lite then 4 time blinking yellow. That program...!

once again, read the guide.



[ppeach]

Correct.
You need the >1k resistor between Gate and Source (GND) so in case the Gate does not close correctly the resistor will draw the power and close it.

Post automatically merged: May 20, 2023

Thank you.



[Adran_Marit]

Oh God why did the updates pop up over the weekend XD



[agus]

can i get a picture. what about the pi pico (green rp2040) cut so it's smaller



[lightninjay]

can i get a picture. what about the pi pico (green rp2040) cut so it's smaller

Check Rehius' post here

https://gbatemp.net/threads/picofly-a-hwfly-switch-modchip.622701/page-78#post-10090767



[bilalhassan341]

can you explain. What does this mean?

Post automatically merged: May 20, 2023

can you explain. What does this mean?

According to Rehius: The second major feature is CPU downvoltage. This might be useful when your MOSFET (or the wire) is not strong enough for the glitch. (do you remember the case where you press "RESET" on the rp2040 when joycon logo appears to make it working? that's it, system lowers CPU voltage)
Therefore you can solder two additional wires to the chip so it could lower the CPU voltage making the glitch easier. This is optional! only if you really need.


Edit: My switch also has the stubborn cpu using 2 mosfet but still require to press the reset button but these two point solve this issue. If your switch don't require to press reset button you can miss these points.



[nico77]

According to Rehius: The second major feature is CPU downvoltage. This might be useful when your MOSFET (or the wire) is not strong enough for the glitch. (do you remember the case where you press "RESET" on the rp2040 when joycon logo appears to make it working? that's it, system lowers CPU voltage)
Therefore you can solder two additional wires to the chip so it could lower the CPU voltage making the glitch easier. This is optional! only if you really need.


Edit: My switch also has the stubborn cpu using 2 mosfet but still require to press the reset button but these two point solve this issue. If your switch don't require to press reset button you can miss these points.

for lite

where that 2 point located ??

i cant find those point ? on the mobo? lite



[lightninjay]

for lite

where that 2 point located ??

i cant find those point ? on the mobo? lite

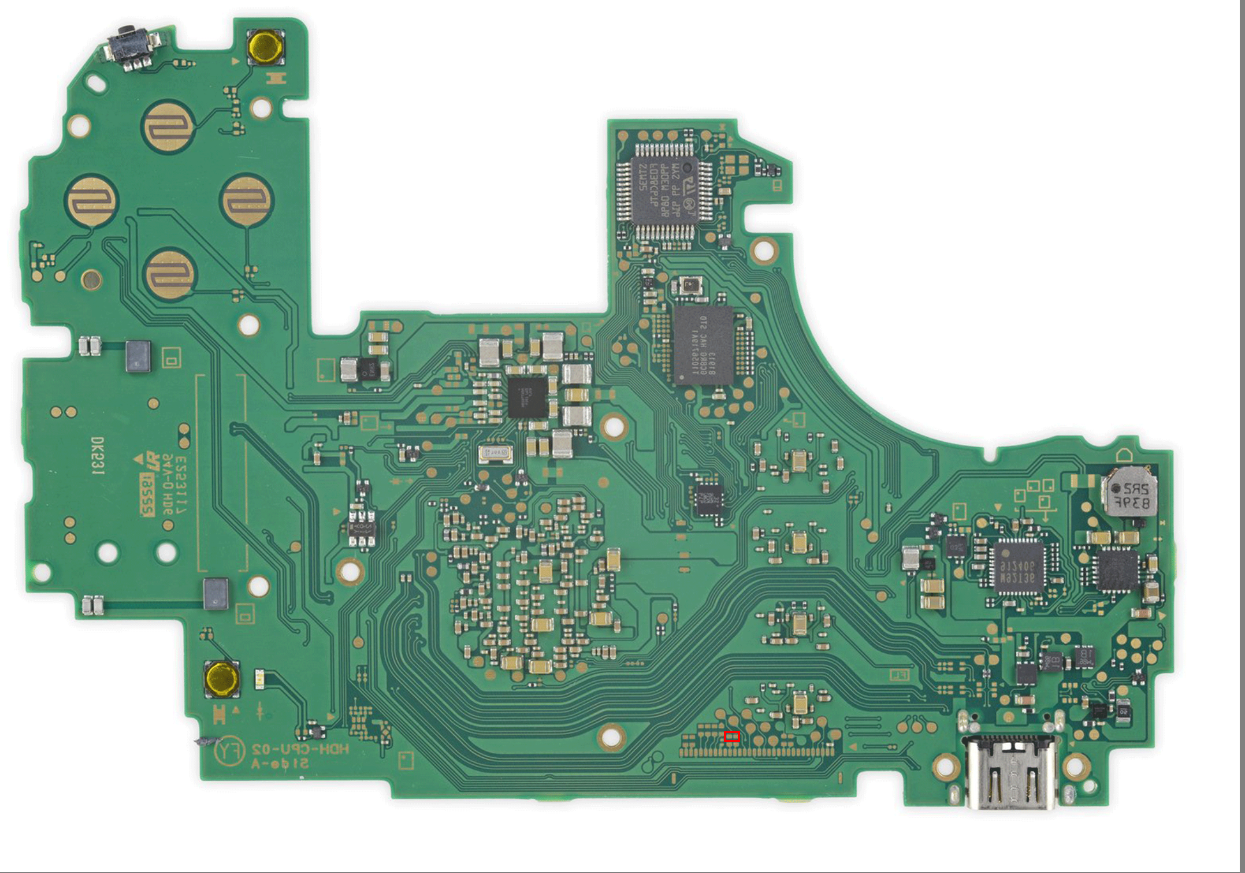

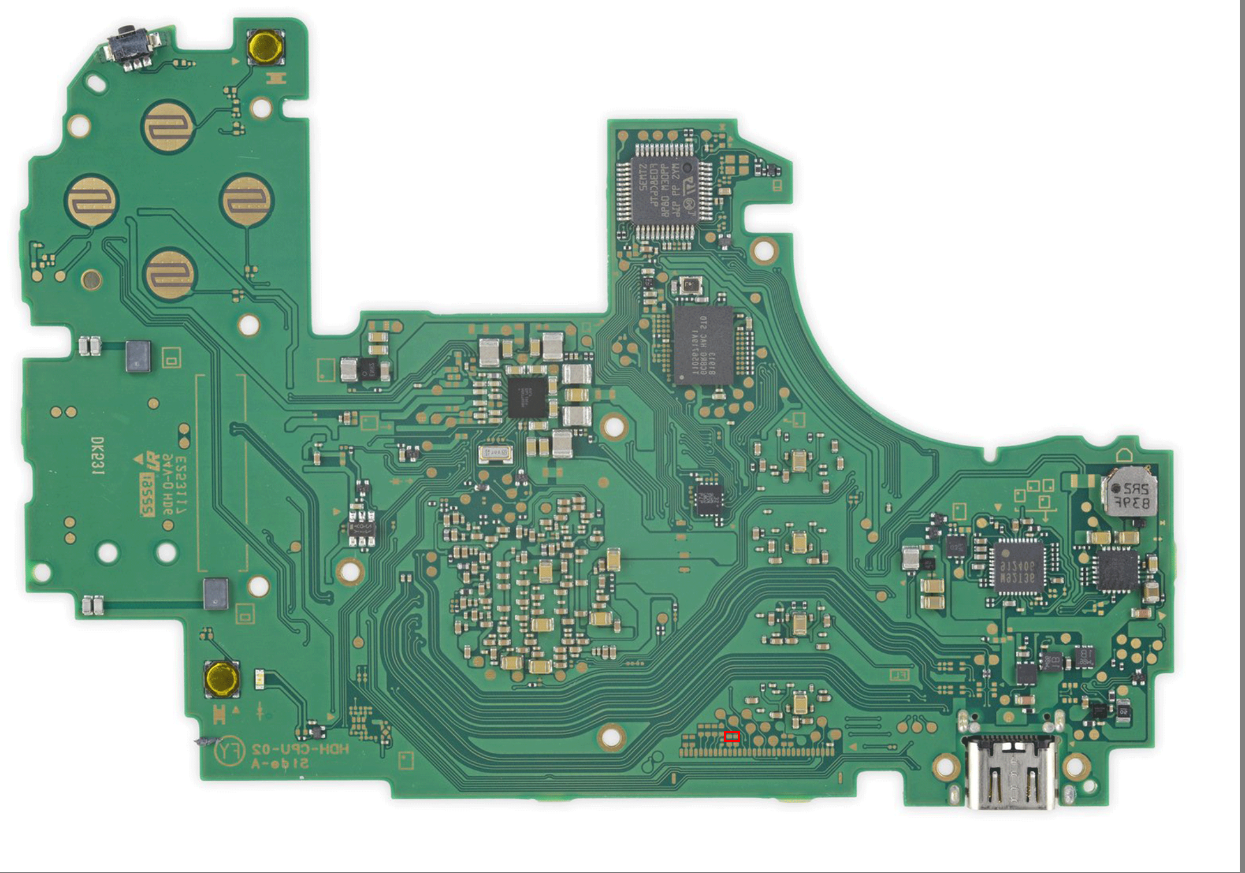

Back side of the board, inside the red square noted here. DO NOT ASK ME WHICH POINT IS WHICH, READ THE GUIDE.



[jkyoho]

View attachment 373043
Back side of the board, inside the red square noted here. DO NOT ASK ME WHICH POINT IS WHICH, READ THE GUIDE.

https://gbatemp.net/threads/picofly-a-hwfly-switch-modchip.622701/post-10090767



[lightninjay]

Wrong location.
Post in thread 'Picofly - a HWFLY switch modchip' https://gbatemp.net/threads/picofly-a-hwfly-switch-modchip.622701/post-10090767

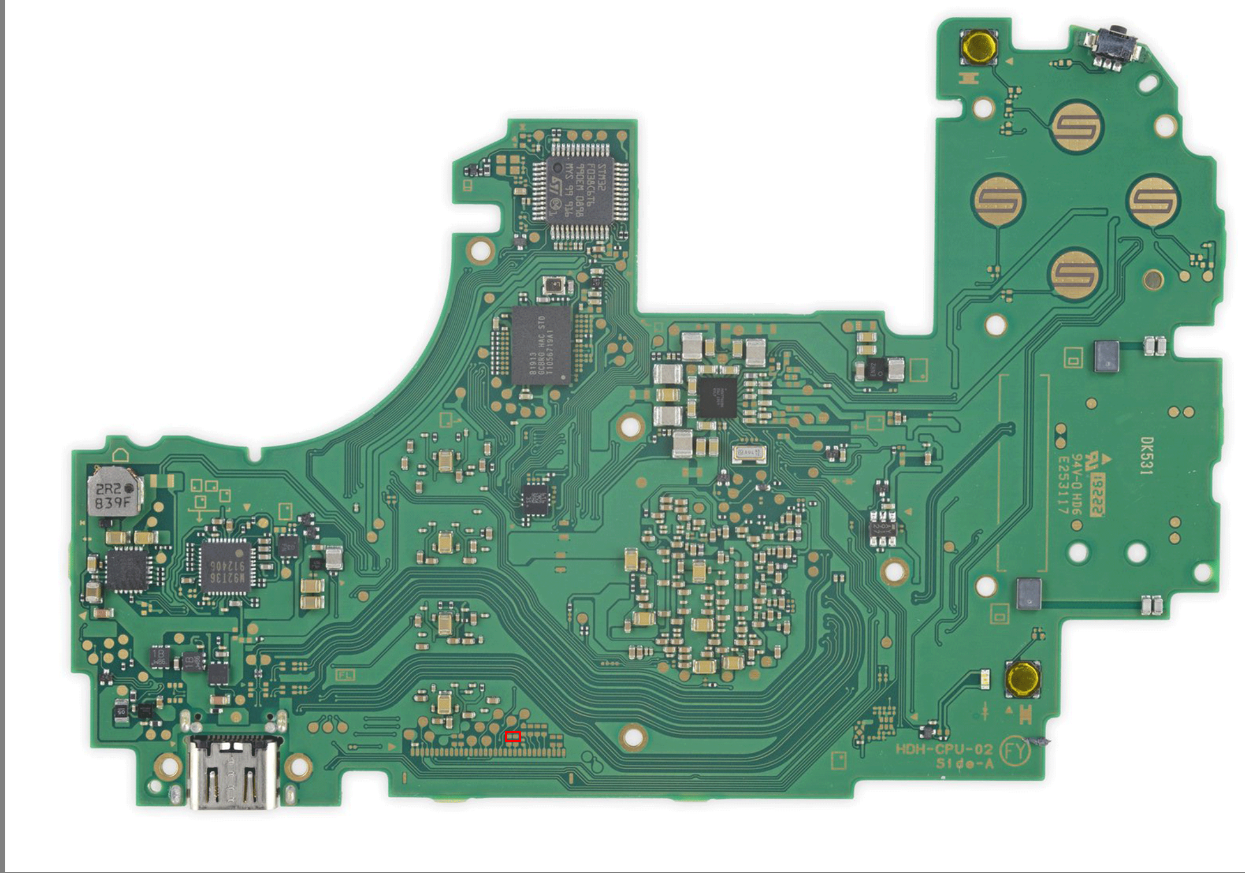

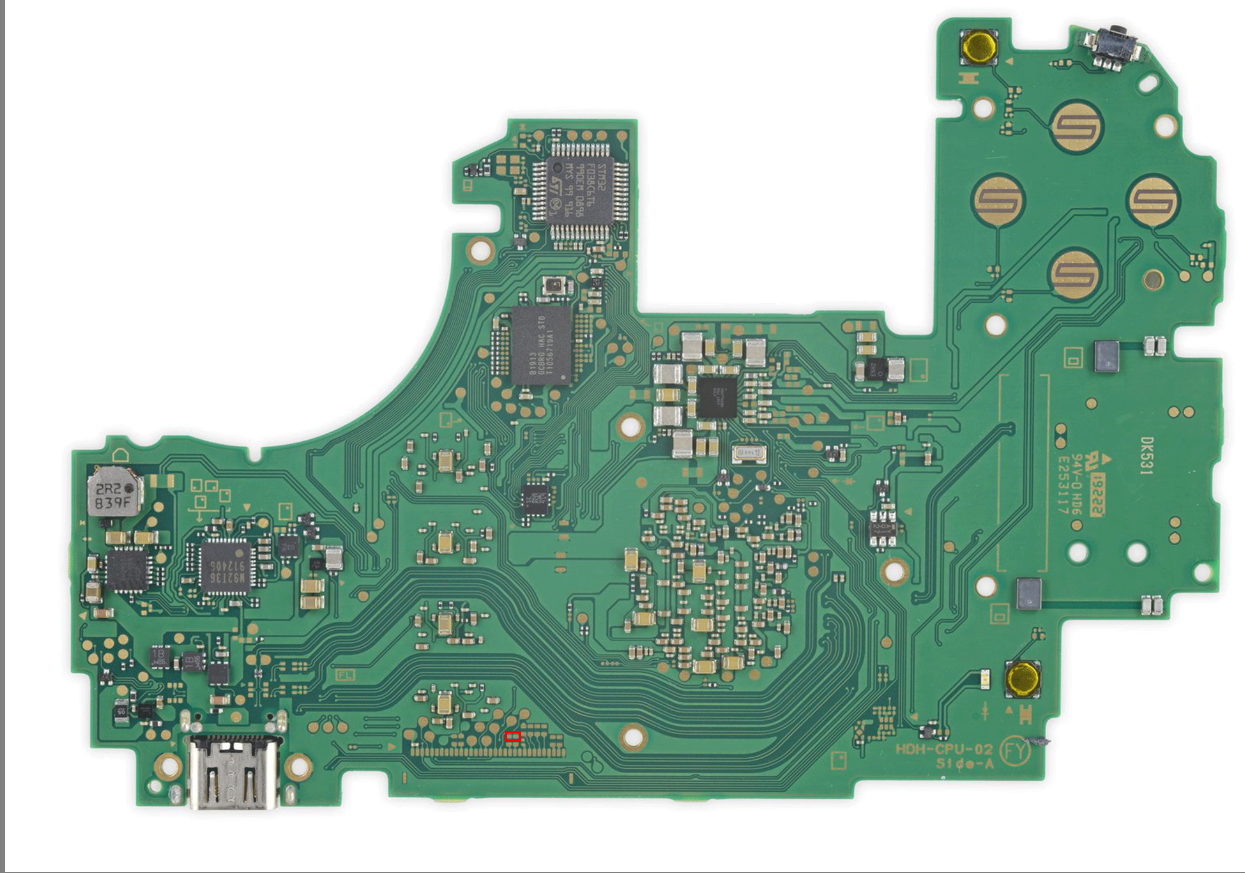

Pardon me, but that is the EXACT location, it is just mirrored due to Balika mirroring the photo.



[jkyoho]

Pardon me, but that is the EXACT location, it is just mirrored due to Balika mirroring the photo.View attachment 373052

You are absolutely right, didn't realize the post was mirrored



[cicci084]

Hi guys,
I missed the latest news. I'll read the guide soon.

Meanwhile, extra resistor on the mosfet are needed only with new firmwares?

In my previous installations do I have to add?
