Hacking Hardware Picofly - a HWFLY switch modchip

[abal1000x]

.



[Kiuxn]

I could be wrong, but did he bridge 25 and ground instead of 24 and 25?

Post automatically merged: May 9, 2023

I could be wrong, but did he bridge 25 and ground instead of 24-25?

Yes, across 25-ground

Post automatically merged: May 9, 2023

Try removing the resistors. RPTiny already has resistors on those lines

Post automatically merged: May 9, 2023

Try removing the resistors. RPTiny already has resistors on those lines

What? Is this a coincidence?



[ahmedkoko]

Hi can help please i installed pico on v1 nintendo switch i boot to hekate and when i install emmummc give me emmc issue check your emmc is intialazed in slow mode but it enebled after that but atmospher cant lunch give me error can help plz



[QuiTim]

Yes, across 25-ground

Post automatically merged: May 9, 2023

Post automatically merged: May 9, 2023

What? Is this a coincidence?

No, it is like that by design.
I guess they are following PicoFly development and they decided to make this board.
There is a post earlier in this thread where Rehius pointed out that the Tiny already has resistors on the 3 data lines
Edit: Found it here



[Danook28]

Thank you ma man you finaly my nintendo switch show on dock tv. It was bad fulty 2 pin on lcd conector. Thank you help and save switch from bad Repair by misteaks. God bless you ma man...im super happy for tv dock...



[fox87]

Hey guys,
Finally got my hands on all the Materials. It was a tricky job to do this tiny solder work. when i was finished i got a blue LED followed by a turquoise one so i wenn over the ribbon connector again. My technique dienst really seem to work good with that connection. I tried and tried. Now there is a change. When i power on the switch i get a never ending blinking blue LED like you see on the video. Cant find a clue what thats supposed to mean

Any ideas?



[abal1000x]

Hey guys,
Finally got my hands on all the Materials. It was a tricky job to do this tiny solder work. when i was finished i got a blue LED followed by a turquoise one so i wenn over the ribbon connector again. My technique dienst really seem to work good with that connection. I tried and tried. Now there is a change. When i power on the switch i get a never ending blinking blue LED like you see on the video. Cant find a clue what thats supposed to mean

Any ideas?

Hopefully @rehius help.

Try check the CMD/CLK/D0 pin. Or maybe just increase the resistance value to reduce the noise. I guess after glitch the code will check activity from the CMD line and D0 line.



[nico77]

i manage to resolder the point... and clean them.
im planning to change the wire to 0.2mm
try boot, success boot to ofw.(im making sure the point not broken, can boot normal without problem,)

after that i close the surface using UV mask paint, to the non point. so i can solder the important point later...
for now im waiting the paint dry
using some cheap nail uv lamp
(kinda annoying it automatic off after 60s :v)

btw my smartphone camera quality is pretty bad... hard to focus on close up micro T T

i make sure not close the D0, CMD , CLK and RST



[abal1000x]

Its Out Of Topic (OOT), but those uv led wavelength, not even near UVC. Its slightly below violet like 400um, which is the border between UVA and violet. I have playing around with uv and uv sensor. There are no real led could aproach UVC range, but still work for that resin.

I prefer buy gas lamp based uv light source, such as those phillips uv lamp made in poland (which usually used on aquarium). I could also use it to kill virus and bactery at least.



[nico77]

Its Out Of Topic (OOT), but those uv led wavelength, not even near UVC. Its slightly below violet like 400um, which is the border between UVA and violet. I have playing around with uv and uv sensor. There are no real led could aproach UVC range, but still work for that resin.

I prefer buy gas lamp based uv light source, such as those phillips uv lamp made in poland (which usually used on aquarium). I could also use it to kill virus and bactery at least.

i cant spend more expensive one(theres a UV lamp main for electro stuff, but i cant afford)
theres other like flash light UV, but need 3 AAA battery to power.
so im getting this one (using micro usb to power).
if you can afford the pro one, better get the pro one... faster to dry. good heat light


i have test the uv paint on paper, dry with this nail uv lamp...
it work, dry

the only annoying part, it off every 60sec :V
i need to turn it on couple times.(actually pretty annoying)
thats it



*update
i test and touch the paint...
it dried already



[abal1000x]

i cant spend more expensive one(theres a UV lamp main for electro stuff, but i cant afford)
theres other like flash light UV, but need 3 AAA battery to power.
so im getting this one (using micro usb to power).
if you can afford the pro one, better get the pro one... faster to dry. good heat light


i have test the uv paint on paper, dry with this nail uv lamp...
it work, dry

the only annoying part, it off every 60sec :V
i need to turn it on couple times.(actually pretty annoying)
thats it



*update
i test and touch the paint...
it dried already

Those uv lamp which marketed as electronic utility is kind of overrated. Not worth the price. Rather buy uv flashlight for covid (or that nail uv), its way cheaper



[Makc16384]

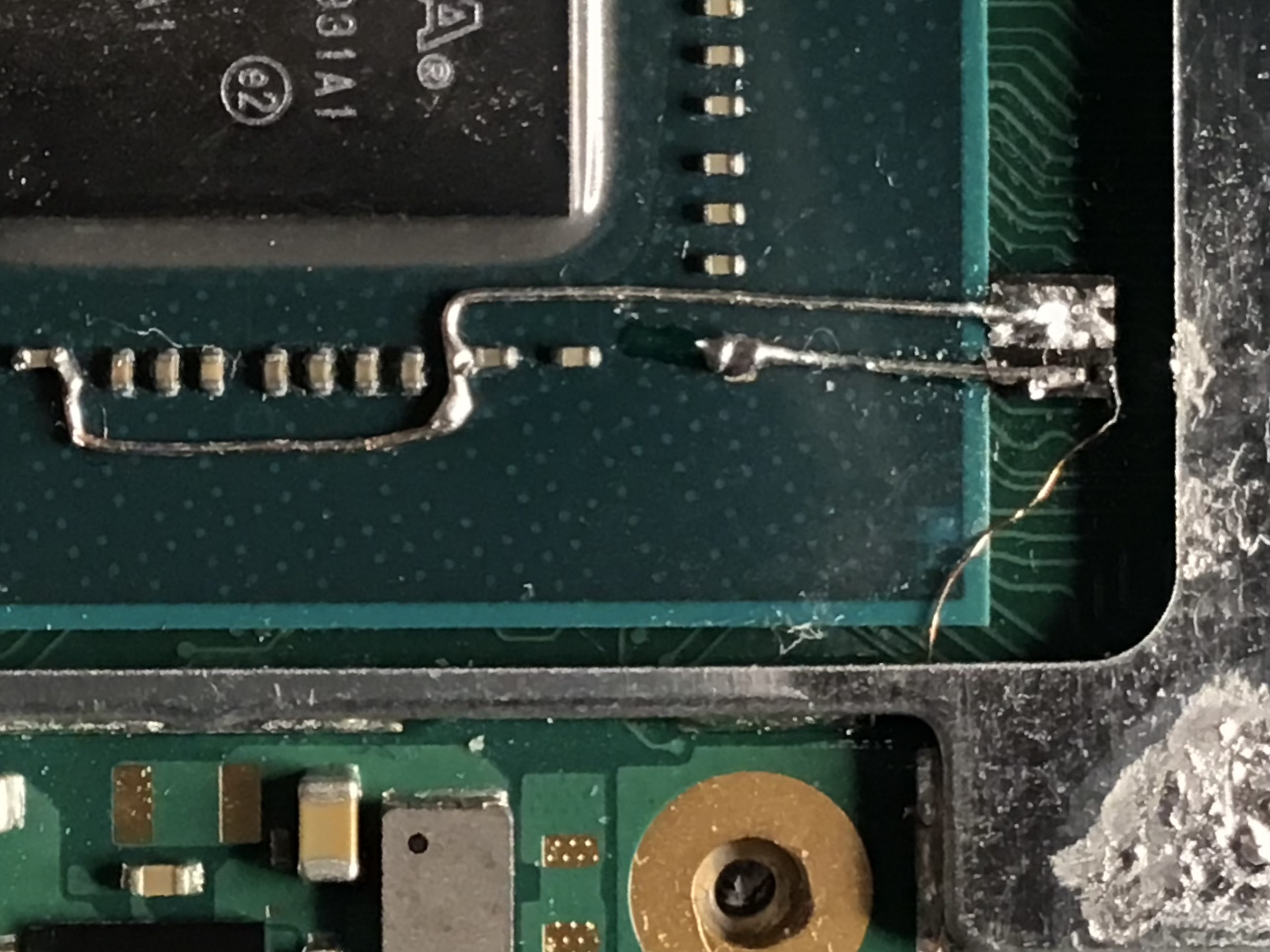

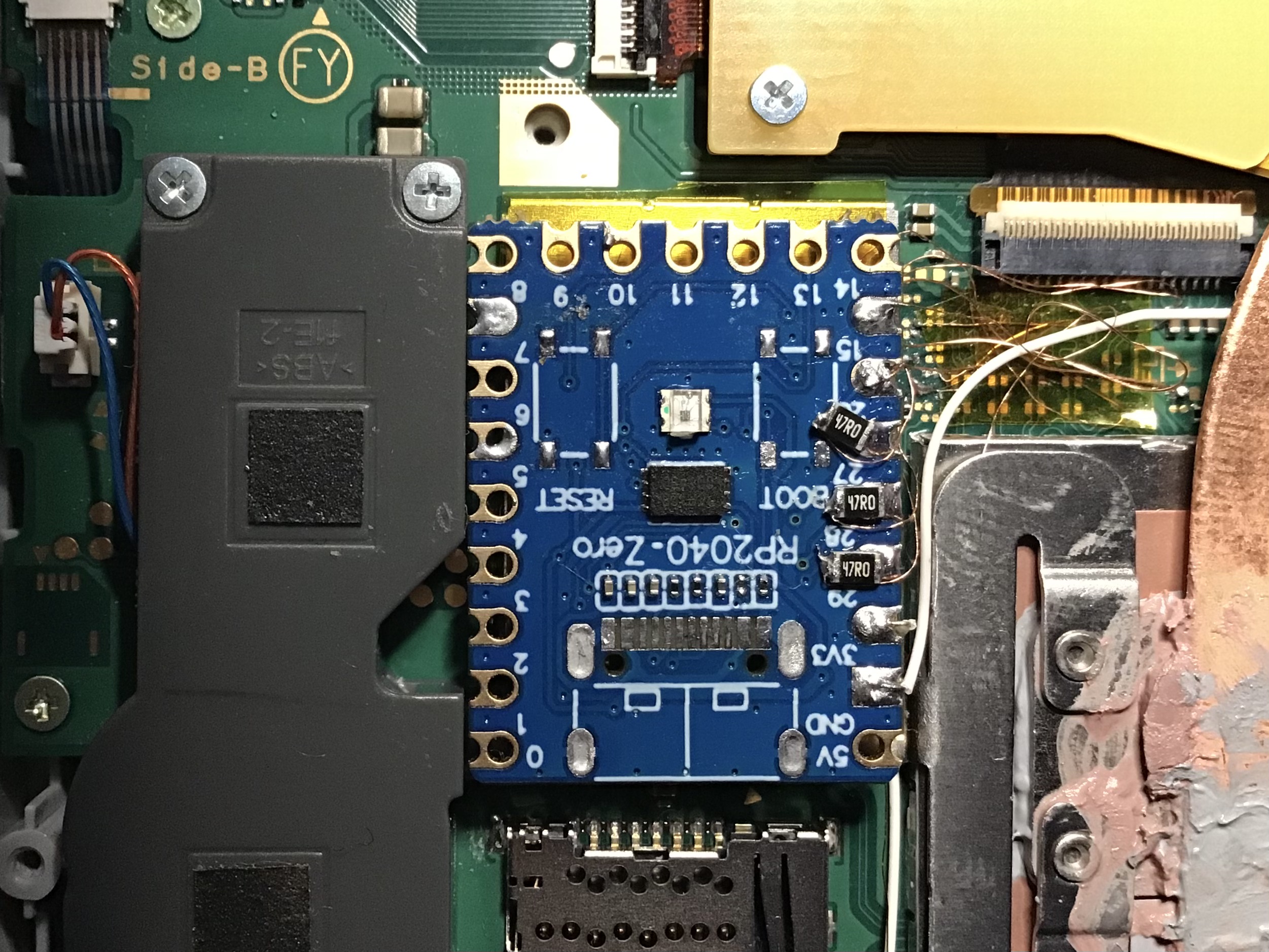

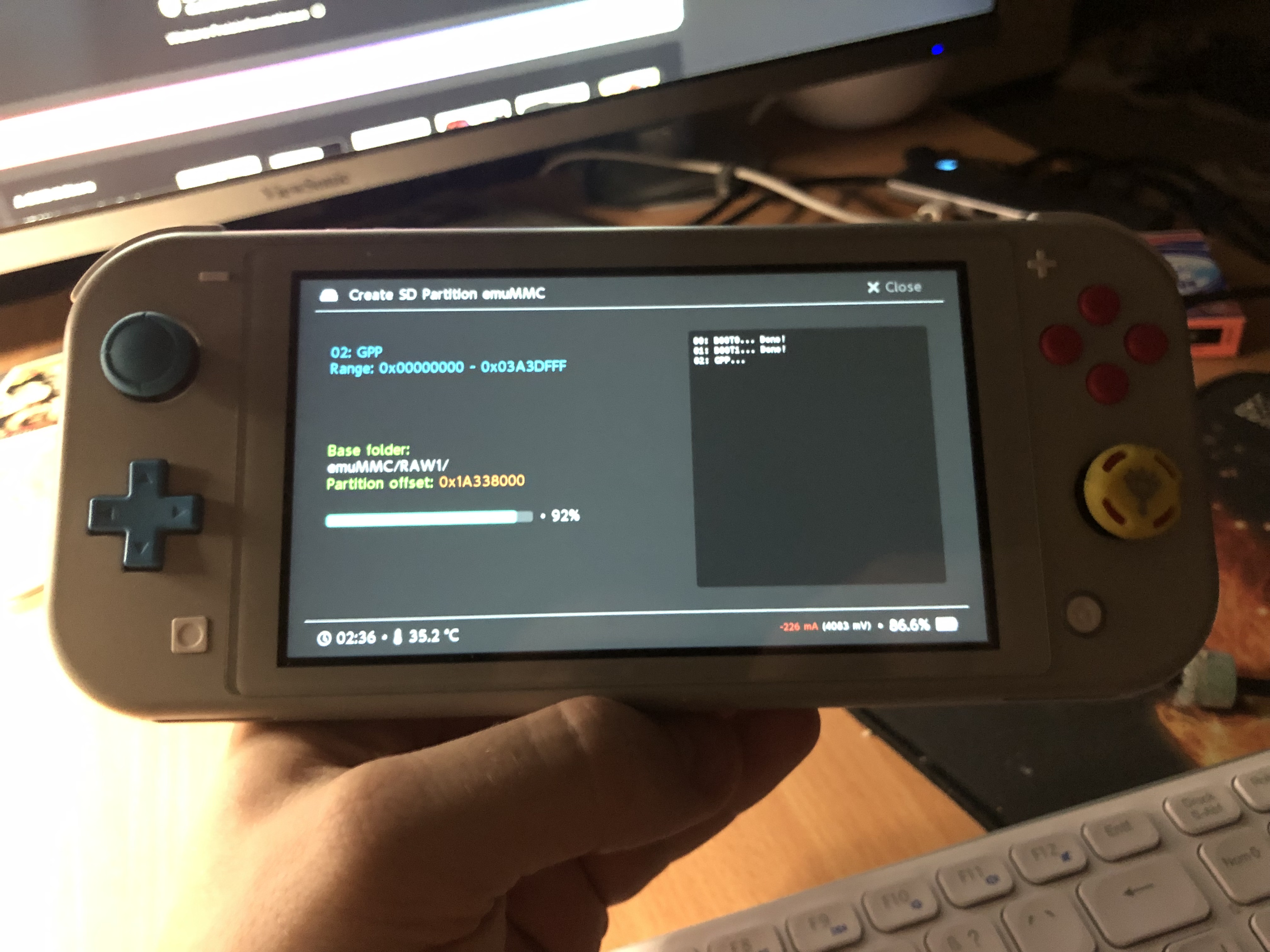

Аnother successful install, Switch Lite. MOSFET IRFHS8342TRPBF from AliExpress. connected to the caps with AWG30 wire. I didn't use UV Mask.



[Phantomas77]

Its Out Of Topic (OOT), but those uv led wavelength, not even near UVC. Its slightly below violet like 400um, which is the border between UVA and violet. I have playing around with uv and uv sensor. There are no real led could aproach UVC range, but still work for that resin.

I prefer buy gas lamp based uv light source, such as those phillips uv lamp made in poland (which usually used on aquarium). I could also use it to kill virus and bactery at least.

Well, this worked fine for me



[nico77]

Those uv lamp which marketed as electronic utility is kind of overrated. Not worth the price. Rather buy uv flashlight for covid, its way cheaper (or that nail uv)

this one

Spoiler: RELIFE RL-014A

hehehehe
this one i wanted last time...
but for now im glad i dont spend too much money
on cheapy uv nail lampy~
lol

i wasted my money more on other parts + shipment
daem shipment cost more compare the little stuff(mosfet,resistors, uv paint, flux,etc) we bought
cuz im buy from different seller for each parts.....



[Phantomas77]

i cant spend more expensive one(theres a UV lamp main for electro stuff, but i cant afford)
theres other like flash light UV, but need 3 AAA battery to power.
so im getting this one (using micro usb to power).
if you can afford the pro one, better get the pro one... faster to dry. good heat light


i have test the uv paint on paper, dry with this nail uv lamp...
it work, dry

the only annoying part, it off every 60sec :V
i need to turn it on couple times.(actually pretty annoying)
thats it



*update
i test and touch the paint...
it dried already

Jokes apart, you can use something like this.



[abal1000x]

Jokes apart, you can use something like this.

View attachment 370151

That nail uv cost less than $1. It use the same uv led, with those fancy uv lamp. Don't know how china produce it. The price is insanely cheap.



[nico77]

Jokes apart, you can use something like this.

View attachment 370151

similar price to brand re life

compare to nail uv lamp price
you can get prob 6-7 uv nail lamp LOL
so cheap



[Phantomas77]

That nail uv cost less than $1. It use the same uv led, with those fancy uv lamp. Don't know how china produce it. The price is insanely cheap.

And is the curing time similar between those?



[abal1000x]

And is the curing time similar between those?

Should be similar. Same purposes, cure uv resin, in nail paint form.



[lightninjay]

I still don't know why people aren't buying cheap UV laser pointers for these jobs... it cures the resin in literal seconds
