skhynix works fine with picofly and pemanent dat0How is your skHynix eMMC doing on the mod ?
I heard skHynix eMMC on OLED may have BOOT0/1 corruption, just curious.skhynix works fine with picofly and pemanent dat0
There are new type of adapter dat 0 not need to reflow emmc chip at all on aliexpress same it on video.
let me guess flashed 2.5X firmware without unlock ?Just tried to boot EmuMMC CFW and it says "A fatal error occured when running Fusée. Package1 seems corrupt!"
Also Warmboot says "Unknown pkg1 version. HOS version not supported"
What can I do now?
i installed it on 3 oled with skhynix and havent had a issueI heard skHynix eMMC on OLED may have BOOT0/1 corruption, just curious.
There are new type of adapter dat 0 not need to reflow emmc chip at all on aliexpress same it on video.
No. 2.66 and 2.67let me guess flashed 2.5X firmware without unlock ?
Can't you just heat the chip up after the ankor is inserted? Wouldn't it also do a bind then?They have been around for a while now, and they are actually 4 anchor points, I guess sthetix made a mistake in the video.
They work great, until they don't. If you use your switch in dock most of the time then usualy there is no problem. But if you use it in handheld and you play alot of Dark Souls then, after a while you might have a problem. Heat and shaking will take their toll in the long run.
How long hot air time for you to remove the eMMC usually?i installed it on 3 oled with skhynix and havent had a issue
i go slowly 60sec with 100 60 sec 200 60 sec 250 if thats not enough i slowley turn it up till the emmc moves when i give it a notch and then i take it outHow long hot air time for you to remove the eMMC usually?
yeah u can do that but alot of the times u will have issues with cracking solderballs as far as i heardCan't you just heat the chip up after the ankor is inserted? Wouldn't it also do a bind then?
That's what sthetix uses to do, tin the dat0 adapter with lowmelt and then heat the chip after inserting the adapter but he found out that this mix of different alloy solders caused cracks in the solder joint over time and he stopped doind that.Can't you just heat the chip up after the ankor is inserted? Wouldn't it also do a bind then?
WHAT FW?A little observation from me:
2019 switch lite with samsung emmc: glitch time 1-5 seconds
2019 switch lite with samsung emmc: glitch time 1-5 seconds
2021 switch lite with toshiba emmc: glitch time 5-30 seconds
2019 switch lite with samsung emmc: glitch time 1-5 seconds
what mosfet and resistor combination on the Toshiba one?2.67 on all of them
what mosfet and resistor combination on the Toshiba one?

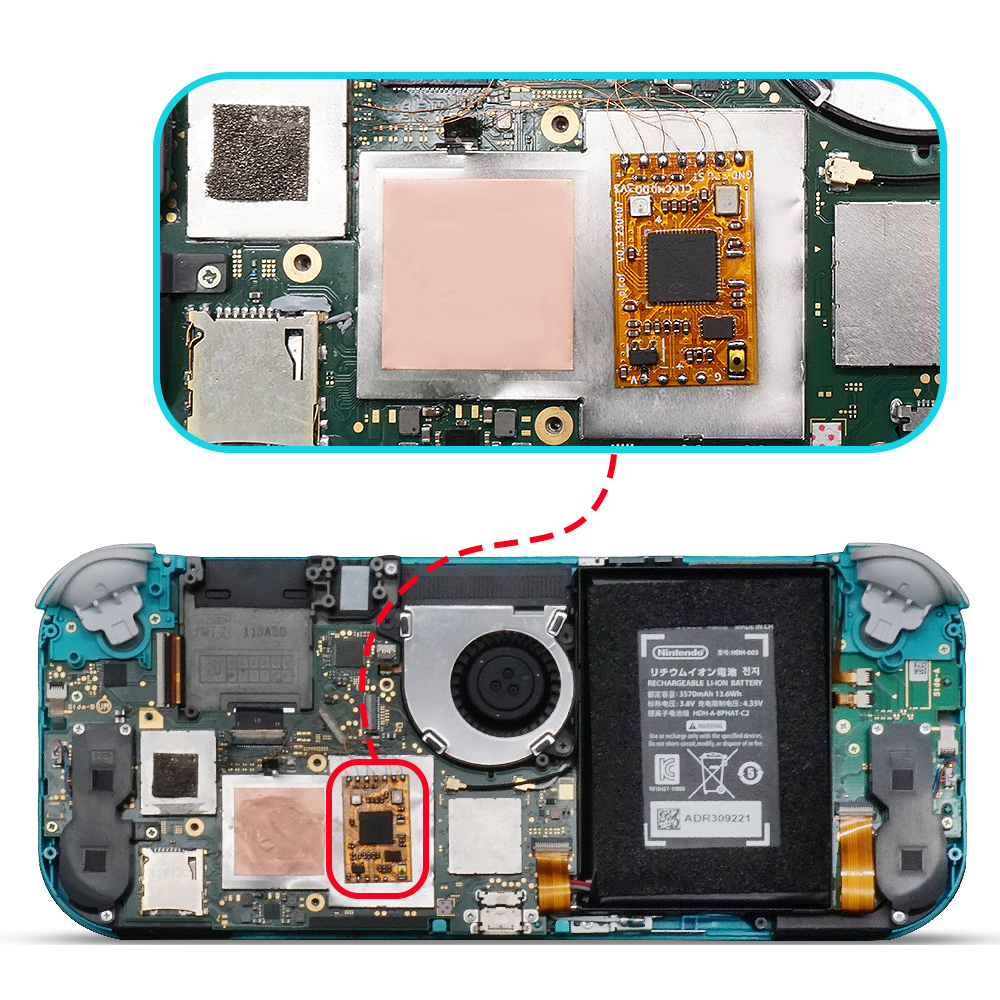

That would be awesome if the SOT-23 3.3V regulator replaced with DQN/X2SON package like TLV74333PDQNRThe ultra-thin rp2040 pico board everything is working properly,Open source link
View attachment 367406View attachment 367408
you have a photo?the "standard" irfhs8342 connected to single cap with 0.25mm wires and 3x 47ohm 0805 for cmd/clk/dat0. all 4 installs done the same way
