Hacking Hardware Picofly - a HWFLY switch modchip

[handsom_tomato]

Before the full stock, I saw that it was normal, not F, but later it became F...

My v2 is filled with F in SBK, but there are no issues such as being unable to boot into OFW.



[Arakon]

Hello guys.
A little question
V1 Flex could work for v2 consoles? Any schematics or image for that?
Thanks in advance.

Enviado desde mi 2107113SG mediante Tapatalk

Not well. The caps are arranged vertically on the v1, horizontally on the v2, so the solder pads are in the wrong spots.



[SylverReZ]

You'd be better off getting a custom PCB done without having to solder them on the board and short something out.



[handsom_tomato]

It's normal that hekate shows sbk as FFF... on mariko.
You need to use 'partial overwrite attack' to dump sbk on mariko, but no reason to do that.

I would like to quote this response.
For people whose SBKs are filled in F.



[aramirez0425]

I cut the end and solder to the resistor as well. much simpler



[darviral]

Lite w/ 2 mosfet



[Smiles]

Thanks to all who put in so much work. I have a question for those brilliant minds. Should I be using the v2.6 firmware from the GitHub? If I install that it will run hekate immediately?



[aramirez0425]

Got a pic of it ?



[Smiles]

Sorry accidental double post. I suppose I could expand on my previous question. Once hekate is installed with 2.6fw then I can run any home brew from the sd?



[linuxares]

Thank you to all who put in so much work. I would like to know if I should be using v2.6 of the firmware from gethub? Will just installing this firmware to the pico allow hekate to run?

Use the latest. 2.61



[JoTiK]

Does 2.61 need unlock.uf2 ?



[linuxares]

Does 2.61 need unlock.uf2 ?

no



[JoTiK]

Thanks



[tactical-waffle]

hey since it says hwfly in the title can i just use guides oriented to the hwfly chip



[Smiles]

Use the latest. 2.61

Thank you



[JoTiK]

As far as I know

hey since it says hwfly in the title can i just use guides oriented to the hwfly chip

Yes once the picofly is setup there is no difference except bugs maybe



[tactical-waffle]

As far as I know

Yes once the picofly is setup there is no difference except bugs maybe

ty



[tigermark2020]

Not well. The caps are arranged vertically on the v1, horizontally on the v2, so the solder pads are in the wrong spots.

its not terrible if you hav one lying around



[FreeLander]

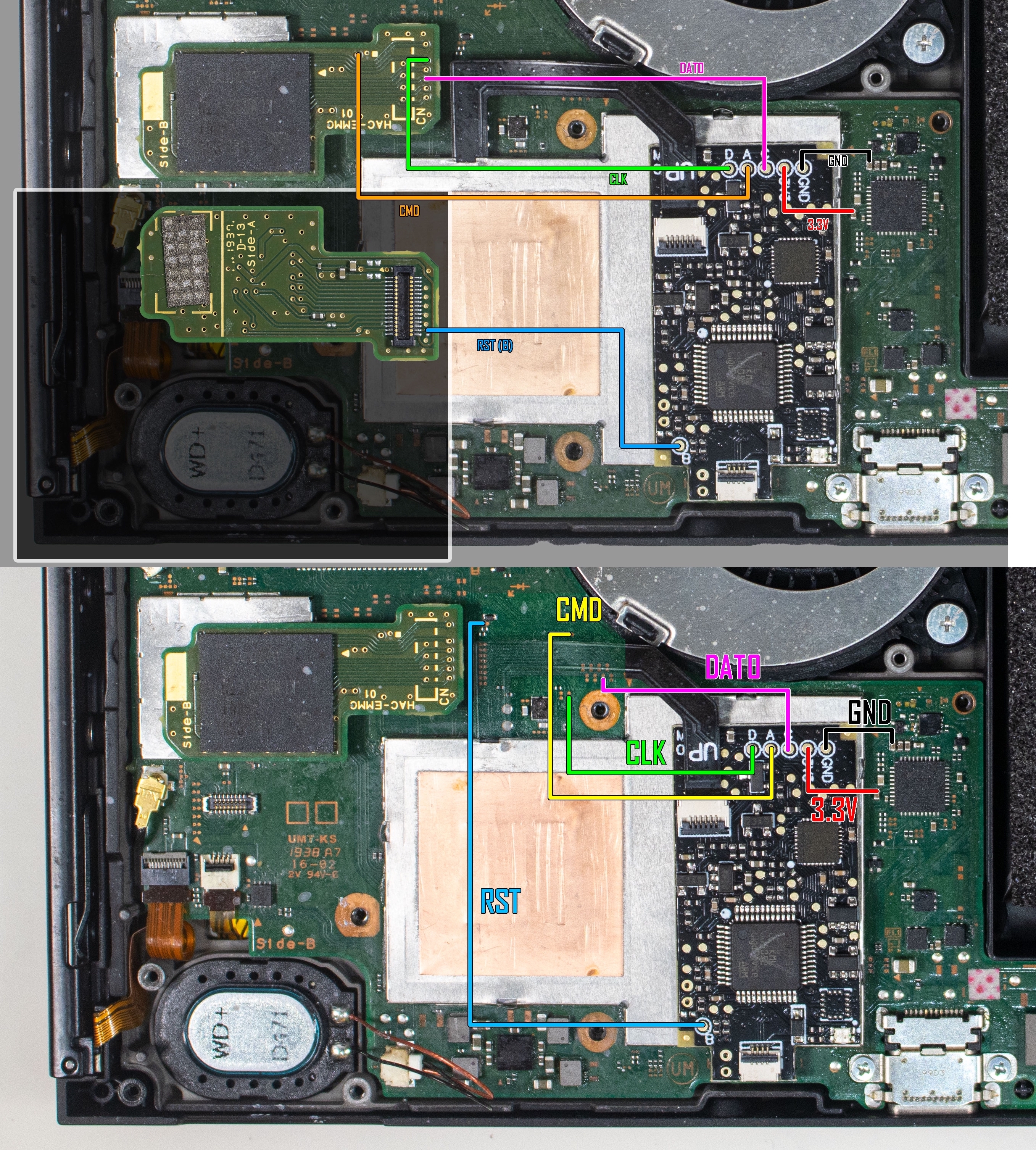

Hello. Quick question: Are the solder points for V2 the same as V1 for Picofly? pic below



[Smiles]

I too would like to know, ai have a switch with the red box in assuming a v2 Mariko. Non oled. I could not find a list or pics of the points on the various versions of switch
