Hacking Hardware Picofly - a HWFLY switch modchip

[overson]

Updating only was implemented in 2.6 and up. 2.5 can't update from the toolbox.

Thanks, I understand



[Dee87]

thank you for your reply, but i haven't installed it in the switch yet, i was asking about the led light when flash drop the uf2 file into the rp2040, i want to make sure it flashed properly before removing the usb and the button . It doesn't show any led light when I flash, only blue -> purple light when I press reset button

set rgb mode se if it gives u a color then , then u need to work with reversed colors if u have a issue afaik for now.

it sounded to me u have it already installed and are asking why it shows blue then purple that means u have a emmc issue

eather u install it like it is right know and then see if u have issues or not if not everything good if yes ull probally have to work with reversed colors to find the issue



[Abbacus]

When installing into a switch oled, do we only need the cpu flex cable, resistors, and the soldered points? Or is there anything else required?



[abal1000x]

When installing into a switch oled, do we only need the cpu flex cable, resistors, and the soldered points? Or is there anything else required?

cpu flex cable with mosfets, because i found some sell without mosfets. I believe you also need memory flex cable to insert the Dat0 line



[linuxares]

When installing into a switch oled, do we only need the cpu flex cable, resistors, and the soldered points? Or is there anything else required?

the chip itself



[Abbacus]

cpu flex cable with mosfets, because i found some sell without mosfets. I believe you also need memory flex cable to insert the Dat0 line

Ahh okay, might just install on the lite instead, don’t really wanna screw up installing the memory flex cable

Post automatically merged: Apr 10, 2023

the chip itself

I assumed that was obvious



[linuxares]

I assumed that was obvious

It was an open goal. I had to take it



[PantsWithLazers]

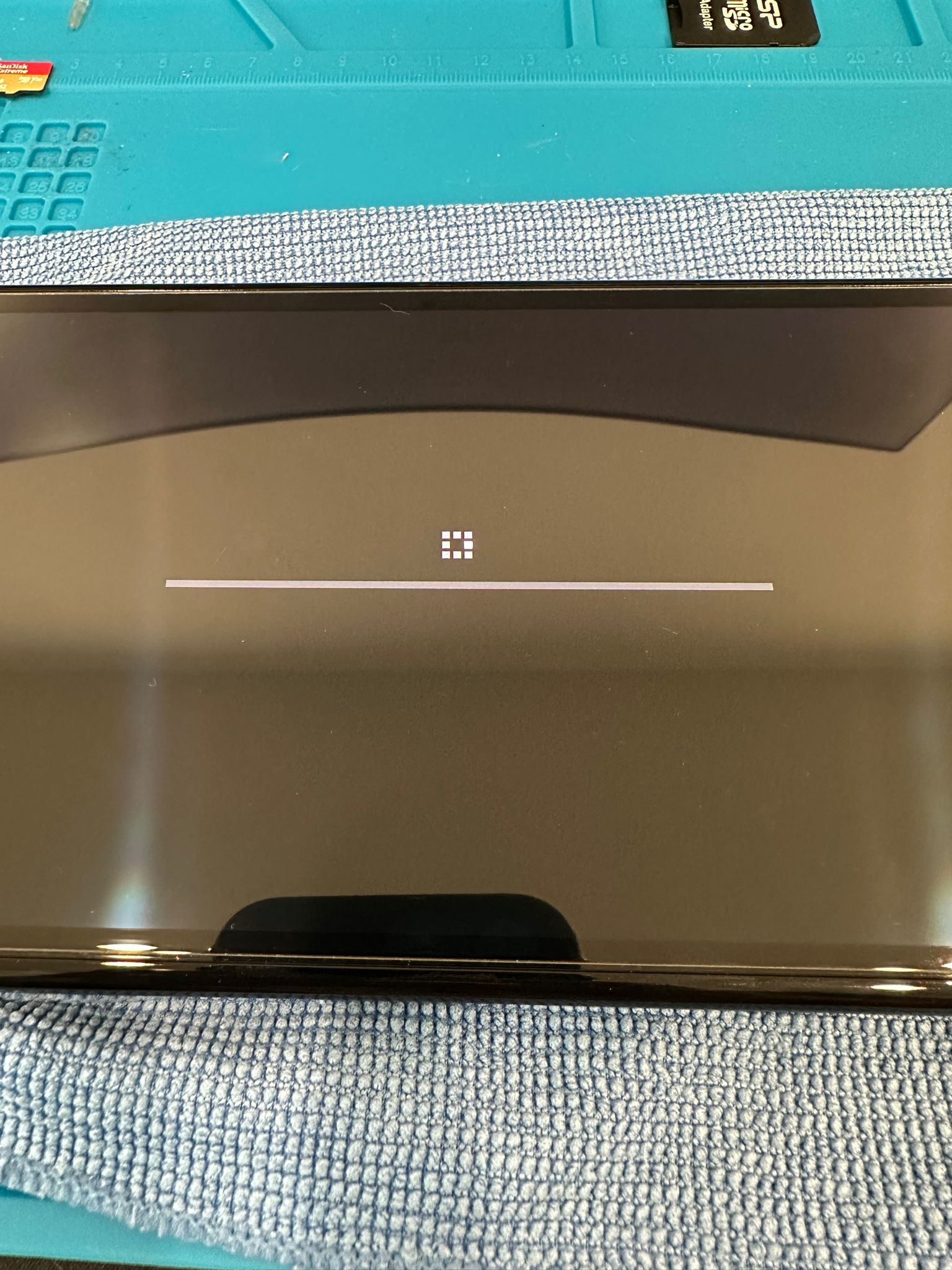

Picofly on an OLED, I can run Hekate and Emummc, but when I go to Hekate > Reboot > OFW, it shows the Nintendo logo, and then this boot screen, then reboots back to Hekate. Anyone see this before?



[RexSonic]

Picofly on an OLED, I can run Hekate and Emummc, but when I go to Hekate > Reboot > OFW, it shows the Nintendo logo, and then this boot screen, then reboots back to Hekate. Anyone see this before?

Seems to be a common issue



[overson]

ClickMe

Everythign u need to know about switch modding

O，no.After the full stock, I still couldn't get into OFW. Unfortunately, even SBK turned into F.



[PantsWithLazers]

Seems to be a common issue

currently no fix?



[abal1000x]

currently no fix?

some said 2.5fw does not have this issue.
from https://rentry.org/MarikoEmuNAND seems warmboot error fix could boot into ofw.



[handsom_tomato]

O，no.After the full stock, I still couldn't get into OFW. Unfortunately, even SBK turned into F.

This state is normal for V2 Mariko ffffffffffffffffff



[Dee87]

This state is normal for V2 Mariko ffffffffffffffffff

not its not i have v2 with rp2040 fw 2.61 and no issue



[FreeLander]

My 5v-converted USB-C for Picofly mid-installation needs.



[overson]

not its not i have v2 with rp2040 fw 2.61 and no issue

Before the full stock, I saw that it was normal, not F, but later it became F...



[PantsWithLazers]

some said 2.5fw does not have this issue.
from https://rentry.org/MarikoEmuNAND seems warmboot error fix could boot into ofw.

thank you abal1000x! warmboot fixed it.



[macspeed09]

Picofly on an OLED, I can run Hekate and Emummc, but when I go to Hekate > Reboot > OFW, it shows the Nintendo logo, and then this boot screen, then reboots back to Hekate. Anyone see this before?

Same here, playing bravely default II then it freezes and then reboot just after atmosphere logo it turns that way. The RO2040 is at 2.6, could it be fixed by flashing the chip back to 2.5?



[linuxares]

I don't get it. How can a modchip that ONLY have something to do with the boot process something to do with the Switch games afterwards? Is it because the system is unstable after the glitch process?



[vampitech]

Hello guys.
A little question
V1 Flex could work for v2 consoles? Any schematics or image for that?
Thanks in advance.

Enviado desde mi 2107113SG mediante Tapatalk
