i see it but i dont know where to put the files



[l7777]

Someone need to build a special shield that can make you keep the buttons

Just need some switches like these:
https://www.mouser.com/ProductDetai...oswitch/2425753-2?qs=amGC7iS6iy/a1V1RQp1Sww==



[ngoanrazor]

What name of core flex cable lite?



[deeps]

I think you haven't seen this full topic since page 1

Fantastic response. I actually have. The resistor being mentioned is 20K Ohm as in 20000, and it's normally not needed. Just like rehius said above. Please stop spreading misinformation.



[SorataVP69]

I'm pretty sure that is Red signal on the inversed LED (green after USB write), you should solder the RGB mode jumper.

the firmware from the top of this page might help you. (oh, from the previous page now)

hello, I was finally able to boot the chip, check the soldering and that's it, but now I wanted to test OFW, check that the connection between the points and the pico fly have 47ohm resistance. I don't know what else I could check pkg1 decryption failed bek is missing



[JackFrostSMT]

hello, I was finally able to boot the chip, check the soldering and that's it, but now I wanted to test OFW, check that the connection between the points and the pico fly have 47ohm resistance. I don't know what else I could check pkg1 decryption failed bek is missing

Did you flash the unlock firmware?



[SQc04]

Just need some switches like these:
https://www.mouser.com/ProductDetail/TE-Connectivity-Alcoswitch/2425753-2?qs=amGC7iS6iy/a1V1RQp1Sww==

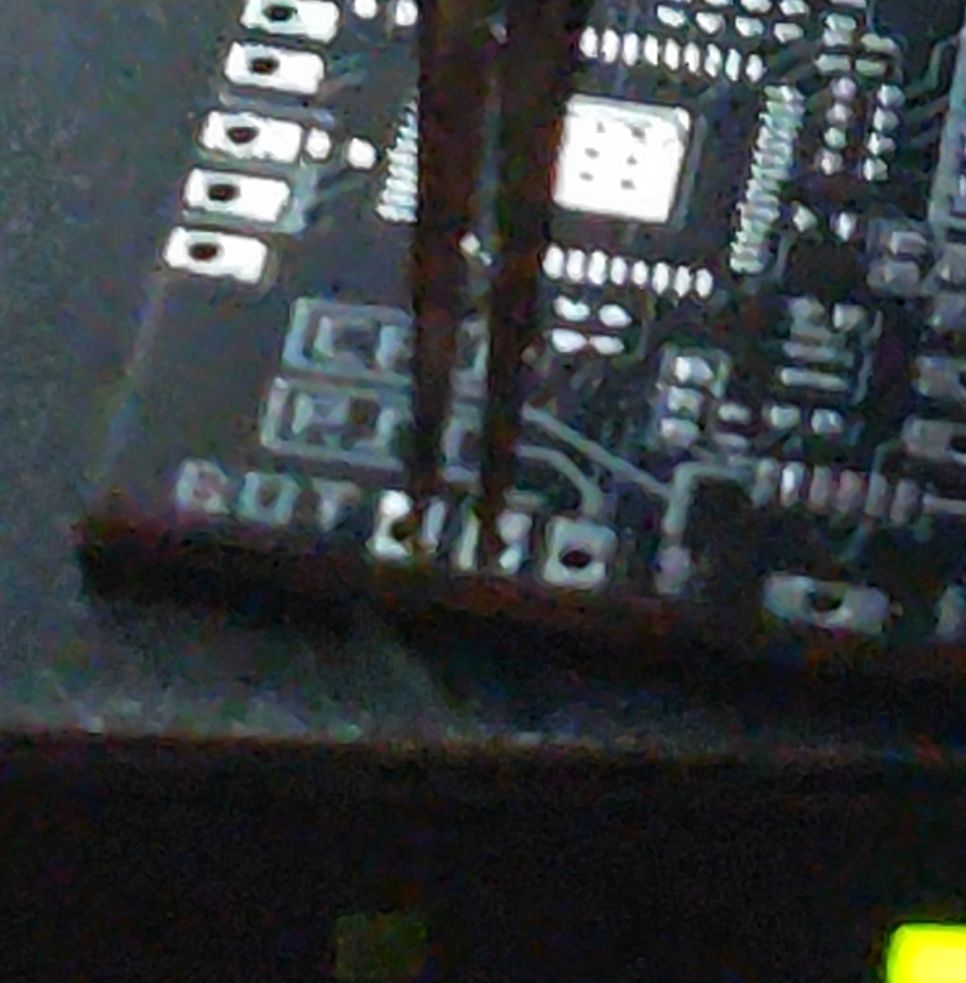

I think it's a little better to leave two pads and connect them with tweezers



[SorataVP69]

Did you flash the unlock firmware?

Yes, i flash 2.5 fix Toshiba and unlock



[DKAngel]

Very bad install but I'll clean up if i can get it working

everything just looks burnt :/



[danielchord]

Hi guys, I have a question. is it possible to replace the IRFHS8342TRPBF mosfet with something else? I can't find it in my area. also, does anyone have a schematic for the nintendo switch lite?



[SQc04]

大家好，我有一个问题。是否可以用其他东西替换 IRFHS8342TRPBF MOSFET？我在我所在的地区找不到它。另外，有没有人有Nintendo Switch Lite的原理图？

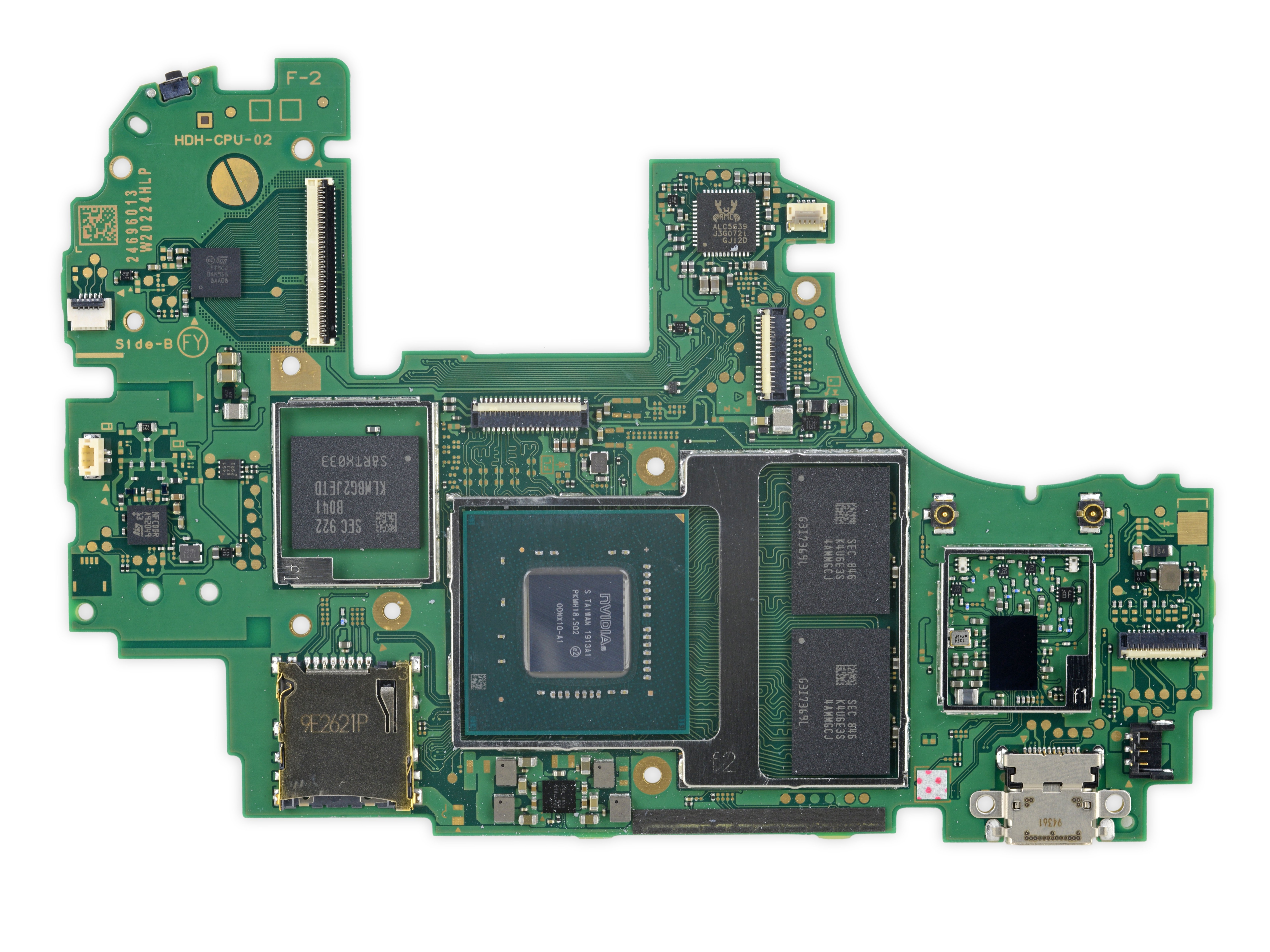

View attachment switchlite2.jpg



[danielchord]

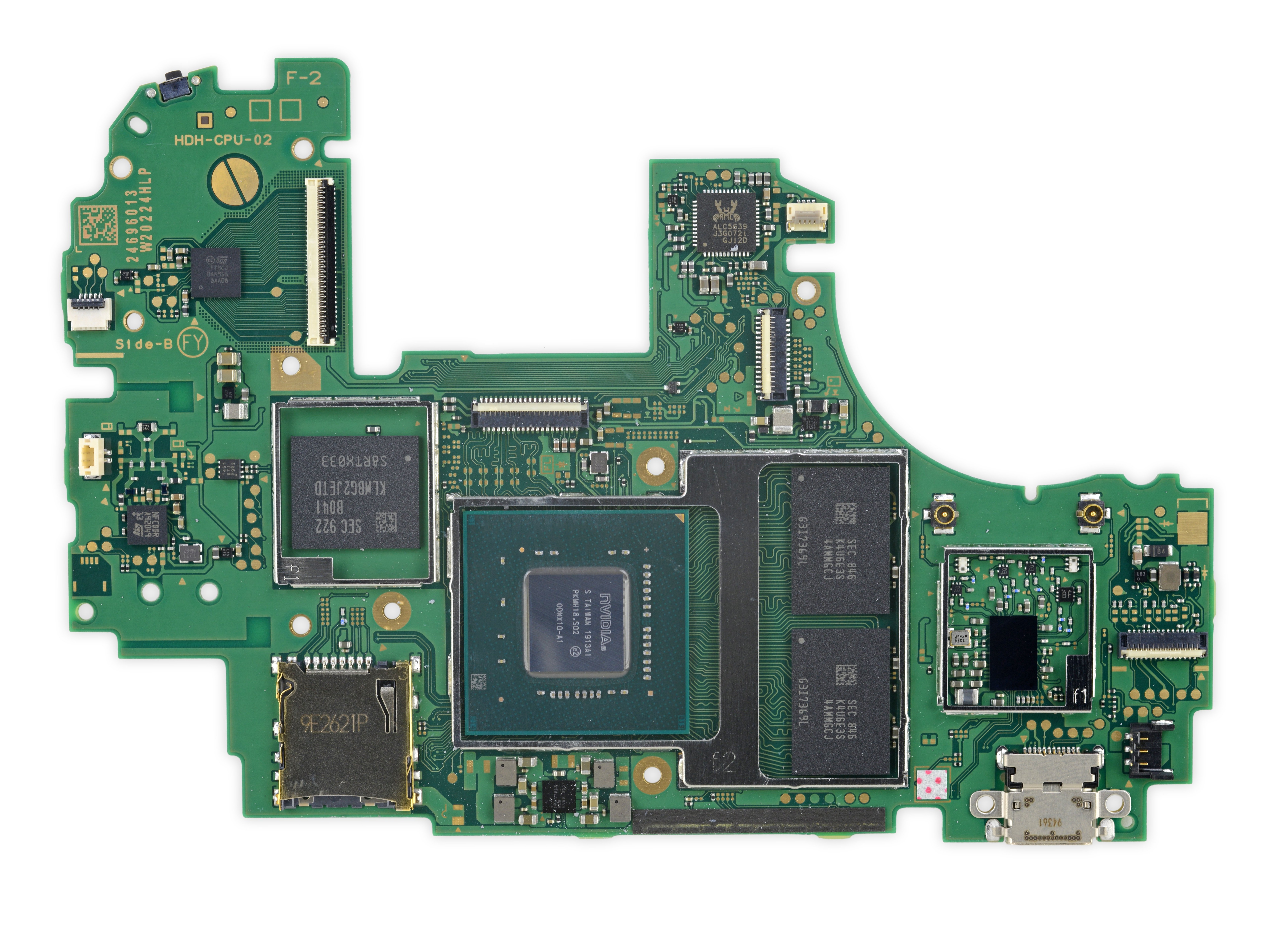

View attachment 361746

yes but not see the pin in this image



[impeeza]

Hi guys, I have a question. is it possible to replace the IRFHS8342TRPBF mosfet with something else? I can't find it in my area. also, does anyone have a schematic for the nintendo switch lite?

yes booth answers are on past post.



[SQc04]

yes but not see the pin in this image



[danielchord]

yes booth answers are on past post.

please help me to find, 170 pages of post!! haha



[Hayato213]

please help me to find, 170 pages of post!! haha

Page 166.



[JackFrostSMT]

everything just looks burnt :/

thats flux that is cleaned up now and will be cleaned again when i resolder things



[rskL]

Been looking about but this thread is kinda all over the place. 30awg wire seems to be the most used? Of 34awg? Some people I've seen say 34 isn't enough for power?
So should I just get some 30awg and do everything with it?



[l7777]

I think it's a little better to leave two pads and connect them with tweezersView attachment 361745

Yes it will absolutely work, but he asked for buttons.



[rskL]

I'd like to thank everyone for leading me into a false sense of hope posting blown up pics of components and me think "AHH they don't look to small, I might be alright soldering this myself"
Everything's bloody tiny! 😂

Hopefully the resistors are the correct ones
