Hardware Hardmodding a OLD 2ds, solder pad broken, fixable?

Der_Blockbuster

Well-Known Member
OP
Member
Joined
Mar 2, 2016
Messages
878
Trophies
0
Age
24
XP
2,886
Country
Germany
Hello, it's mr I suck at soldering here.
Jokes aside.
I wanna make a nand backup of my 2DS.
I soldered every point needed and it was looking good :).
Sadly one wire (the one from me CMD) got caged and then ripped the whole golden contact pad out.
Theres still something under it which looks like copper, but no matter how much flux and solder i put on it, the solder won't stick.
Sometime I get it to hold a bit, but the very sliiightest push rips it out again, which makes it impossible to attach the screen ribbons.
Is there a workaround?
Here are some pics, I don't need you to rate my solder skills.


The Real Jdbye

*is birb*
Member
Joined
Mar 17, 2010
Messages
23,210
Trophies
4
Location
Space
XP
13,736
Country
Norway
Hello, it's mr I suck at soldering here.
Jokes aside.
I wanna make a nand backup of my 2DS.
I soldered every point needed and it was looking good :).
Sadly one wire (the one from me CMD) got caged and then ripped the whole golden contact pad out.
Theres still something under it which looks like copper, but no matter how much flux and solder i put on it, the solder won't stick.
Sometime I get it to hold a bit, but the very sliiightest push rips it out again, which makes it impossible to attach the screen ribbons.
Is there a workaround?

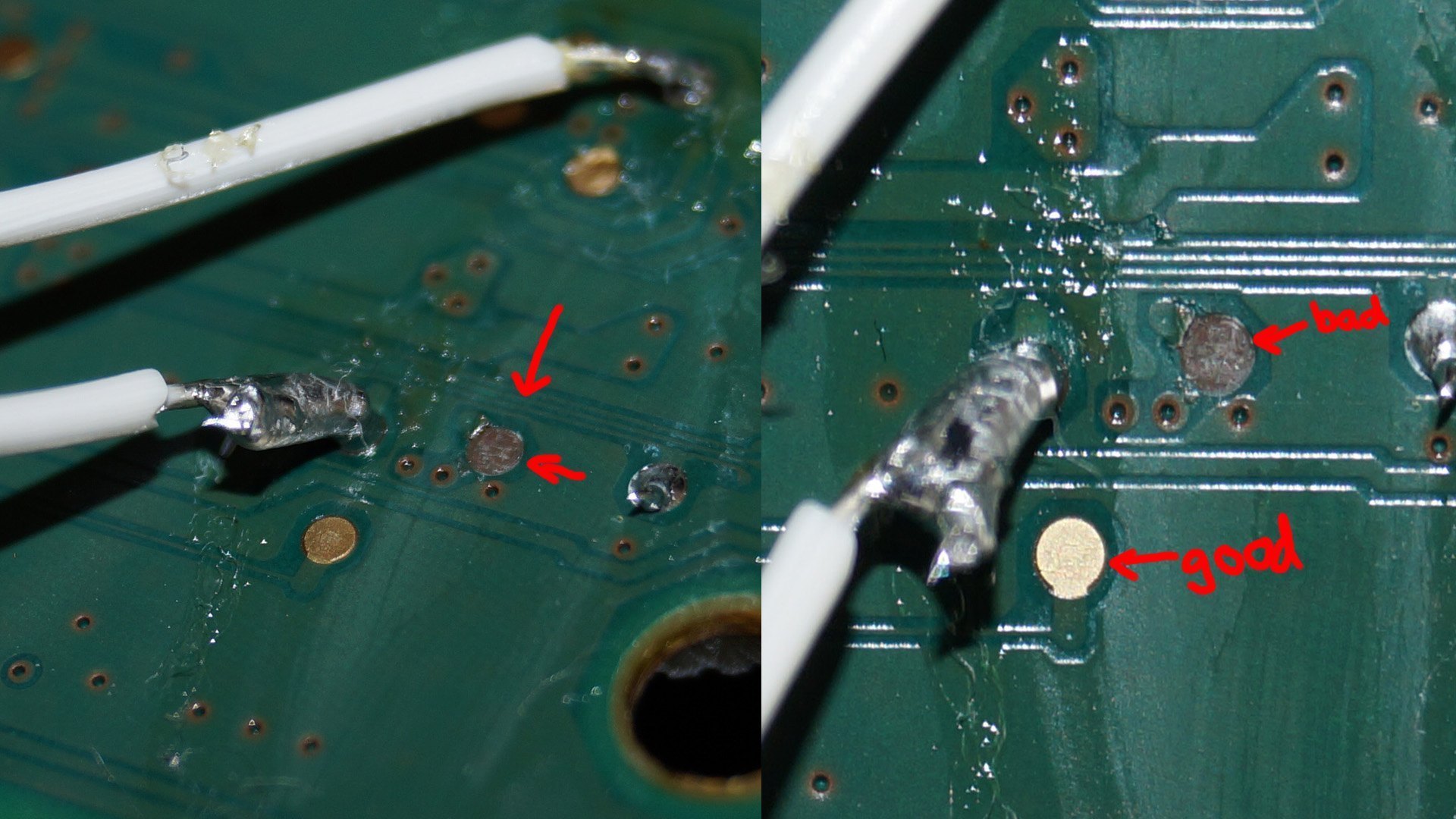

Here are some pics, I don't need you to rate my solder skills.View attachment 117303
You can make a NAND backup with A9LH/B9S or ntrboot.


osaka35

Instructional Designer
Global Moderator
Joined
Nov 20, 2009
Messages
3,735
Trophies
2
Location
Silent Hill
XP
5,921
Country
United States
Solder into place best you can, then hotglue a dab on top once you're sure there's a connection. Or tape. I prefer hotglue since it's less likely to come off.


CMDreamer

Well-Known Member
Member
Joined
Oct 29, 2014
Messages
1,663
Trophies
1
Age
38
XP
3,426
Country
Mexico

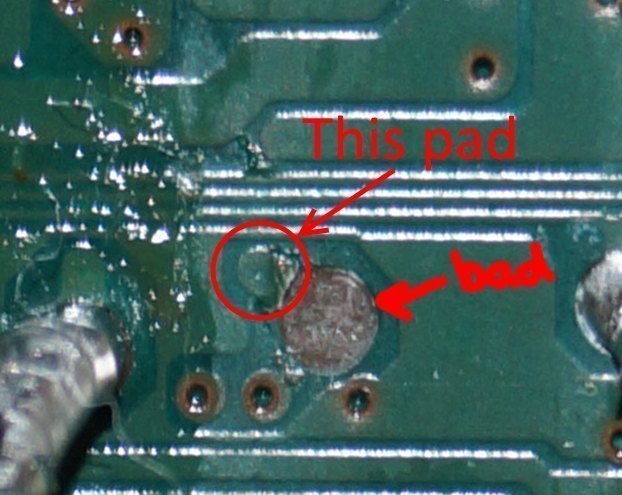

There's a smaller pad on the top left from it, you could risk damaging more the motherboard by trying to solder on it and then apply some hot glue so the cable won't move too much.

As I can see, you're applying too much solder, and that means you're applying too much heat too. Try reducing both. Also, reduce the length of the exposed wire you solder to avoid short circuits, and it would move less.

You should practice with a broken PCB.

Last edited by CMDreamer,
  • Like
Reactions: osaka35

Der_Blockbuster

Well-Known Member
OP
Member
Joined
Mar 2, 2016
Messages
878
Trophies
0
Age
24
XP
2,886
Country
Germany
There's a smaller pad on the top left from it, you could risk damaging more the motherboard by trying to solder on it and then apply some hot glue so the cable won't move too much.

As I can see, you're applying too much solder, and that means you're applying too much heat too. Try reducing both. Also, reduce the length of the exposed wire you solder to avoid short circuits, and it would move less.

You should practice with a broken PCB.
Oh okay. Where exaxtly?
The little golden circles with a hole


CMDreamer

Well-Known Member
Member
Joined
Oct 29, 2014
Messages
1,663
Trophies
1
Age
38
XP
3,426
Country
Mexico
Oh okay cool :)
Do you have some knowledge in this ?
Can you explain me why I can't solder to the area under it?
What material is it?

I can do microsoldering... LOOOOL!!! XD

No, seriously, I do electronics repair as a hobby and to earn some money. I repair smartphones, tablets, desktops, laptops, netbooks, game consoles (portables too), audio devices (not that much).

The material underneat the pads is... no, even better, visit this link, you won't stop reading or a while, believe me:



Der_Blockbuster

Well-Known Member
OP
Member
Joined
Mar 2, 2016
Messages
878
Trophies
0
Age
24
XP
2,886
Country
Germany
Okay now I've read it through ^_^
I always wanted to understand how pcb's are done.
As far as i understand, these golden conact pads (which i've destroyed) are glued on that. The thing under it which doesnt accept my solder is just the copper...right? But i still dont understand why it doesnt work?
Do I have to remove the Oxidation or something?
Do I have to scrape it a bit?


Der_Blockbuster

Well-Known Member
OP
Member
Joined
Mar 2, 2016
Messages
878
Trophies
0
Age
24
XP
2,886
Country
Germany
Okay now I've read it through ^_^
I always wanted to understand how pcb's are done.
As far as i understand, these golden conact pads (which i've destroyed) are glued on that. The thing under it which doesnt accept my solder is just the copper...right? But i still dont understand why it doesnt work?
Do I have to remove the Oxidation or something?
Do I have to scrape it a bit?
-IGNORE- Accidently double posted

Last edited by Der_Blockbuster,
