Ez Flash Omega arrived

Discussion in 'GBA - Flashing Hardware and Software' started by Ocarey1327, Apr 16, 2018.

  1. Ocarey1327
    OP

    Ocarey1327 Member

    Newcomer
    11
    0
    Apr 2, 2018
    United Kingdom
    My omega arrived today and like the reform it doesn't fit in my DS lite has anyone got a fix?

  2. FAST6191

    FAST6191 Techromancer

    pip Reporter
    24,785
    10,892
    Nov 21, 2005
    United Kingdom
    Mine came with a couple of shell segments, one of the traditional size GBA slot and another for the DS lite dust cover size. Did yours not?

  3. Ocarey1327
    OP

    Ocarey1327 Member

    Newcomer
    11
    0
    Apr 2, 2018
    United Kingdom
    Yes but it wont fit in the ds lite in either shell

  4. Localhorst86

    Localhorst86 GBAtemp Maniac

    Member
    1,196
    664
    Jul 17, 2014
    Germany
    Nintendo works for my dad
    I think his issue is the insertion force. The EZ-Flash Reform required a lot of force to get it into the cartridge Slot of the GBA and DS. My guess is, OP has the same problem with the Omega.

    While the omega still requires more "force" to get it in than a regular card, it's noticably better than the reform for me.

    @Ocarey1327 maybe this works for the omega as well:

    https://gbatemp.net/threads/ez-flash-reform-fix-for-high-insertion-force.497020/

  5. Ocarey1327
    OP

    Ocarey1327 Member

    Newcomer
    11
    0
    Apr 2, 2018
    United Kingdom
    I saw this thread but i dont understand what he made smaller?

  6. The Real Jdbye

    The Real Jdbye Always Remember 30/07/08

    Member
    GBAtemp Patron
    The Real Jdbye is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    13,905
    6,431
    Mar 17, 2010
    Norway
    Alola
    He trimmed the plastic around the screw hole.

  7. Localhorst86

    Localhorst86 GBAtemp Maniac

    Member
    1,196
    664
    Jul 17, 2014
    Germany
    Nintendo works for my dad
    Behold my paint powerpoint skillz (not to scale):
    before after.png

    when looking sideways onto the shell you'll see this standoff. The red part goes through the hole in the PCB and the board itself rests on the green part. For the reform, I cut away from the green part so the PCB sits lower in the card.

    Last edited by Localhorst86, Apr 16, 2018
  8. BORTZ

    BORTZ Tired of being the good guy

    Supervisor
    GBAtemp Patron
    BORTZ is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    12,058
    15,718
    Dec 2, 2007
    United States
    Pittsburgh
    Its kinda crap that a company so well entrenched with the GBA/DS market would make a cart that doesn't fit, even with adjustment shells.

    slaphappygamer likes this.
  9. Ocarey1327
    OP

    Ocarey1327 Member

    Newcomer
    11
    0
    Apr 2, 2018
    United Kingdom
    Thats helpful but now my board sits on angle after cutting away the top part of the standoff

  10. Localhorst86

    Localhorst86 GBAtemp Maniac

    Member
    1,196
    664
    Jul 17, 2014
    Germany
    Nintendo works for my dad
    did you cut off the part I marked red?!

    Last edited by Localhorst86, Apr 16, 2018
  11. Ocarey1327
    OP

    Ocarey1327 Member

    Newcomer
    11
    0
    Apr 2, 2018
    United Kingdom
    No just the green part in order to make the top part longer

  12. Localhorst86

    Localhorst86 GBAtemp Maniac

    Member
    1,196
    664
    Jul 17, 2014
    Germany
    Nintendo works for my dad
    This did aleviate the insertion force issue for me on the EZ-Flash Reform. What angle does your board have now? is it angled backwards/forwards or left/right?

  13. Ocarey1327
    OP

    Ocarey1327 Member

    Newcomer
    11
    0
    Apr 2, 2018
    United Kingdom
    It would be much easier if i could take a picture but the camera on my phone is not working. ill try my best to explain.

    look at the cart so your looking where the pins are the board is angled like this

    The right side of the cart is where it usually is a little high and the other is lower heres a diagram i hope this is understandable... The box on the image is the cart the other smaller line is the cart and the angle it is on


    Attached Files:

    • gg.png
      File size:
      482.8 KB
      Views:
      31
  14. Localhorst86

    Localhorst86 GBAtemp Maniac

    Member
    1,196
    664
    Jul 17, 2014
    Germany
    Nintendo works for my dad
    hard to say what else you could try, sorry

  15. EZ-Flash2

    EZ-Flash2 Official EZ-FLASH Stuff

    Member
    110
    194
    Jul 16, 2003
    China

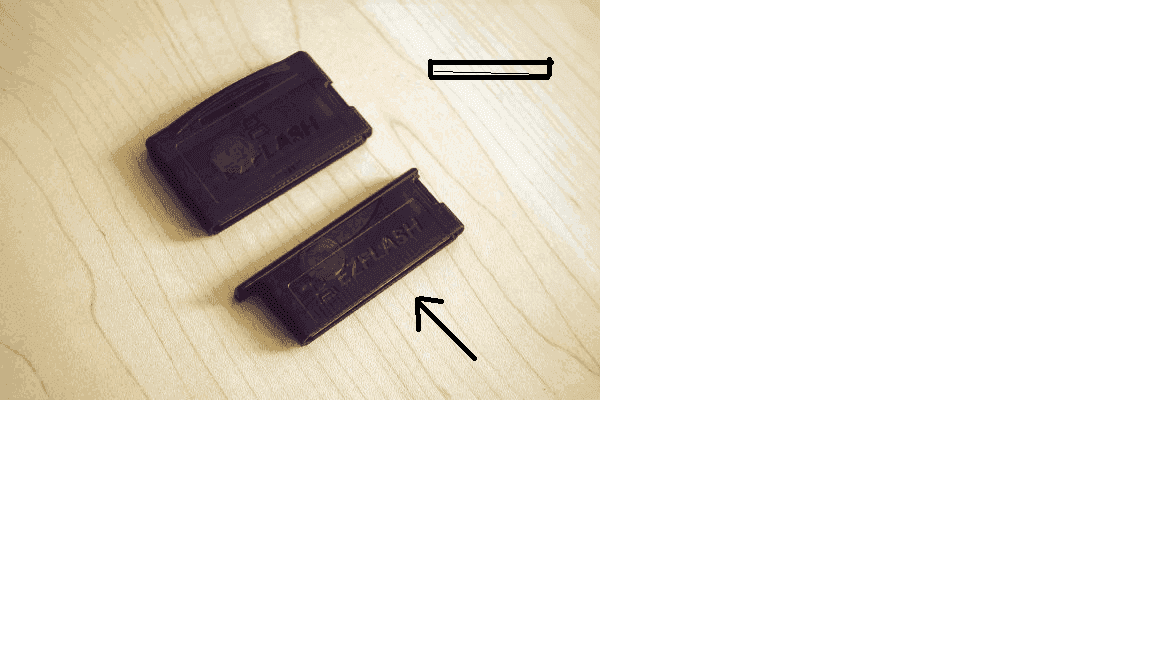

    here is the picture http://www.ezflash.cn/omegacase.jpg

    one of our dealer mixed the reform case into omega package by mistaken, if you got an omega with a lite case looks like the upper one in the picture, please contact the dealer(no matter which one, if the package was sent from Hong Kong or China,they are clones of the mistaken dealer) for a correct omega replacement case for free. Yes, free charge and free shipping.

    Last edited by EZ-Flash2, Apr 16, 2018
    cearp and Zense like this.
  16. Ocarey1327
    OP

    Ocarey1327 Member

    Newcomer
    11
    0
    Apr 2, 2018
    United Kingdom
    Okay great! I purchased from Axiogame will they send me out the replacement lite shell?

  17. EZ-Flash2

    EZ-Flash2 Official EZ-FLASH Stuff

    Member
    110
    194
    Jul 16, 2003
    China
    Yes,contact them and ask a replacement case. attach your case picture if possible, they'll know what to do.

  18. Localhorst86

    Localhorst86 GBAtemp Maniac

    Member
    1,196
    664
    Jul 17, 2014
    Germany
    Nintendo works for my dad
    That's interesting to know. Gonna check mine later when I am at home.

    Also: how can your card already have been cloned? Are cloners already this fast? Is there some way to recognize these clones?

  19. EZ-Flash2

    EZ-Flash2 Official EZ-FLASH Stuff

    Member
    110
    194
    Jul 16, 2003
    China

    I mean the dealers are clone, they are indeed one.

    Localhorst86 likes this.
  20. Localhorst86

    Localhorst86 GBAtemp Maniac

    Member
    1,196
    664
    Jul 17, 2014
    Germany
    Nintendo works for my dad
    Ah i see. I just checked my shell and I, indeed, received a wrong DS-Lite front plate thingy. Contacted my dealer, hope they'll be able to send me the new shell.

    Thanks for the heads up.
