    @Wierd_w
    hi can u share how to build doggle on zsun?

  2. Wierd_w

    OP Wierd_w GBAtemp Fan
    Member

    Joined:
    May 12, 2018
    Messages:
    406
    Country:
    United States
    I really need to update the first post of this thread.

    My new test candidate zsun arrived only yesterday. I am in the process of building packages again. Sadly, I am also preparing for a much needed vacation at this time.

    I would actively recommend that people either flash one of the "with battery" variants of the A5V11 hardware, or program and solder together one of those trinket/feather kits in the meantime. The zsun will require hardware modifications that require almost superhuman soldering skills. I have a plan of action on how to proceed, but am way behind the others at this point.

    My objective with starting this thread (get at least one DIY dongle working) has been met-- We have working prototypes of several unique designs. I would encourage those who have developed prototypes to post nice, clean how-to posts of their own, so that people who arent interested in the actual hardware hacking aspects of dongle developent and just want to get to having a dongle of their own can quickly get to it without wading through 15+ pages.

  3. yakuma

    yakuma Advanced Member
    Newcomer

    Joined:
    Dec 27, 2007
    Messages:
    71
    Country:
    Indonesia
    ok thanks for the respon.
    i already read but from the cost is chep if i use zsun. if use trinker m0 is expensive.

  4. Sodapopcan

    Sodapopcan Member
    Newcomer

    Joined:
    Jan 3, 2018
    Messages:
    19
    Country:
    United States
    Well if anyone’s interested I managed to hook a ps4 controller battery into the trinket and it worked like a charm. My controller was broke already so it was a perfect fit.

  5. Joxley192

    Joxley192 Advanced Member
    Newcomer

    Joined:
    Feb 22, 2018
    Messages:
    75
    Country:
    United Kingdom
    I did the same but with a joy con battery and thinking about putting the trinket m0 inside my switch

  6. Sodapopcan

    Sodapopcan Member
    Newcomer

    Joined:
    Jan 3, 2018
    Messages:
    19
    Country:
    United States
    that's a good one. thinking about it i probably could have used the charge grip battery...

  7. Wierd_w

    OP Wierd_w GBAtemp Fan
    Member

    Joined:
    May 12, 2018
    Messages:
    406
    Country:
    United States
    The A5V11 hardware is like, 7$.

    Contains a battery already, comes in an injection molded housing already, and is completely solderless. Just needs a custom firmware flashed onto it, and a pigtail cable.

    Poketrekker likes this.
  8. M-O-B

    M-O-B GBAtemp Regular
    Member

    Joined:
    Jun 23, 2018
    Messages:
    281
    Country:
    United Kingdom
    I used the trinket m0 which works a treat, however now I want to try and build another one using the trinket m0 but this time instead off soldering the data+ & data- wires to the micro usb port on the trinkets, I after using a Usb 3 1 Type C Male Connector To Micro Usb Male Adapter.

    but all I can find are these two versions.

    Usb 3.1 Type C Male To Micro Usb 2.0 Female Adapter

    Micro USB Male to Usb 3 1 Type C Female Data Adapter

    i could always remove the micro usb female port from the Usb 3.1 Type C Male To Micro Usb 2.0 Female Adapter and replace it with a micro usb port.

    but I was hoping someone may have come across the Type C Male Connector To Micro Usb Male Adapter to save me the hassle of soldering.

    this is my version 1, could do with a slightly smaller battery but it will do till I find other bits to do a version 2 of it.



    something like in the image below. dongle v2.jpg

    Last edited by M-O-B, Jun 23, 2018
    clank and TotalJustice like this.
  9. Poketrekker

    Poketrekker Member
    Newcomer

    Joined:
    Mar 3, 2016
    Messages:
    28
    Country:
    Have you got it working? I flashed @jcrorxp bin file but now there is no Wifi and when I connected it via ethernet I am unable to ssh/telnet into it...

    I followed this guide: https://wiki.openwrt.org/toh/unbranded/a5-v11
    The English (QualComm) Factory Firmware part and I flashed the firmware and used
    u-boot 256.

    Last edited by Poketrekker, Jun 23, 2018
  10. Wierd_w

    OP Wierd_w GBAtemp Fan
    Member

    Joined:
    May 12, 2018
    Messages:
    406
    Country:
    United States
    You might need to get a 3.3v usb UART cable, and attach to the serial header pads. The serial console will give you a root shell even if SSH/Telnet is not running. This is what jcrorxp is referring to when he says he connected a TTY. These cables are an indispensable item when doing embedded device hacking. They are well worth the investment.

    This cable would be adequate.
    https://www.adafruit.com/product/954

    Usually, the device will default to something like 192.168.0.1 on a fresh lede/openwrt install, and will listen on telnet until you set a root password. Then SSH will be enabled. I have been waiting (oh, have I been waiting! Damn slow boats from china!! *shakes fist angrily*) "patiently" for my A5V11 with battery for some time, and it has still not arrived in the mail. It is not quite june yet, but it is entirely possible that it will take that long to get here. Regardless, if faced with the situation you are citing, I would put my wired network interface into that private subnet with a statically assigned IP-- say, something like 192.168.0.10 or something--- and then try to telnet to 192.168.0.1. If that failed, I would attach header pins to the ground, TX, and RX pins on the device, and attach a 3.3v serial UART, and grab the serial console.

    Last edited by Wierd_w, Jun 23, 2018
    DayVeeBoi and Poketrekker like this.
  11. Poketrekker

    Poketrekker Member
    Newcomer

    Joined:
    Mar 3, 2016
    Messages:
    28
    Country:
  12. Wierd_w

    OP Wierd_w GBAtemp Fan
    Member

    Joined:
    May 12, 2018
    Messages:
    406
    Country:
    United States

    Yes, it should display the fusee-gelee rocket ship and some debug info with the default payload, if I read correctly. It is possible that it is not getting the correct vendor ID from your NX, and thus not triggering. You would need serial console to check that if you cannot get root shell.

    Also, I am leery of that cable being the correct level voltage. It *NEEDS* to be 3.3v levels. TTL is usually 5v levels. It would nuke the router if you connected a 5v serial interface.

    Last edited by Wierd_w, Jun 23, 2018
  13. Poketrekker

    Poketrekker Member
    Newcomer

    Joined:
    Mar 3, 2016
    Messages:
    28
    Country:
    Yeah I thought it came with the default fusee payload but I am not getting anything so something is definitely wrong...I guess I will just have to wait for the UART cable.

    Is the one I posted above decent or would this one suit better?

    https://www.aliexpress.com/item/10P...-CP2104-STC-PRGMR-Than-CP2102/1865455799.html

    Edit: Yeah I noticed it didn't have 3.3v this one does seem to have it though...

    Thanks for the help :)

    Last edited by Poketrekker, Jun 23, 2018
  14. sweetlilmre

    sweetlilmre Member
    Newcomer

    Joined:
    Aug 15, 2010
    Messages:
    43
    Country:

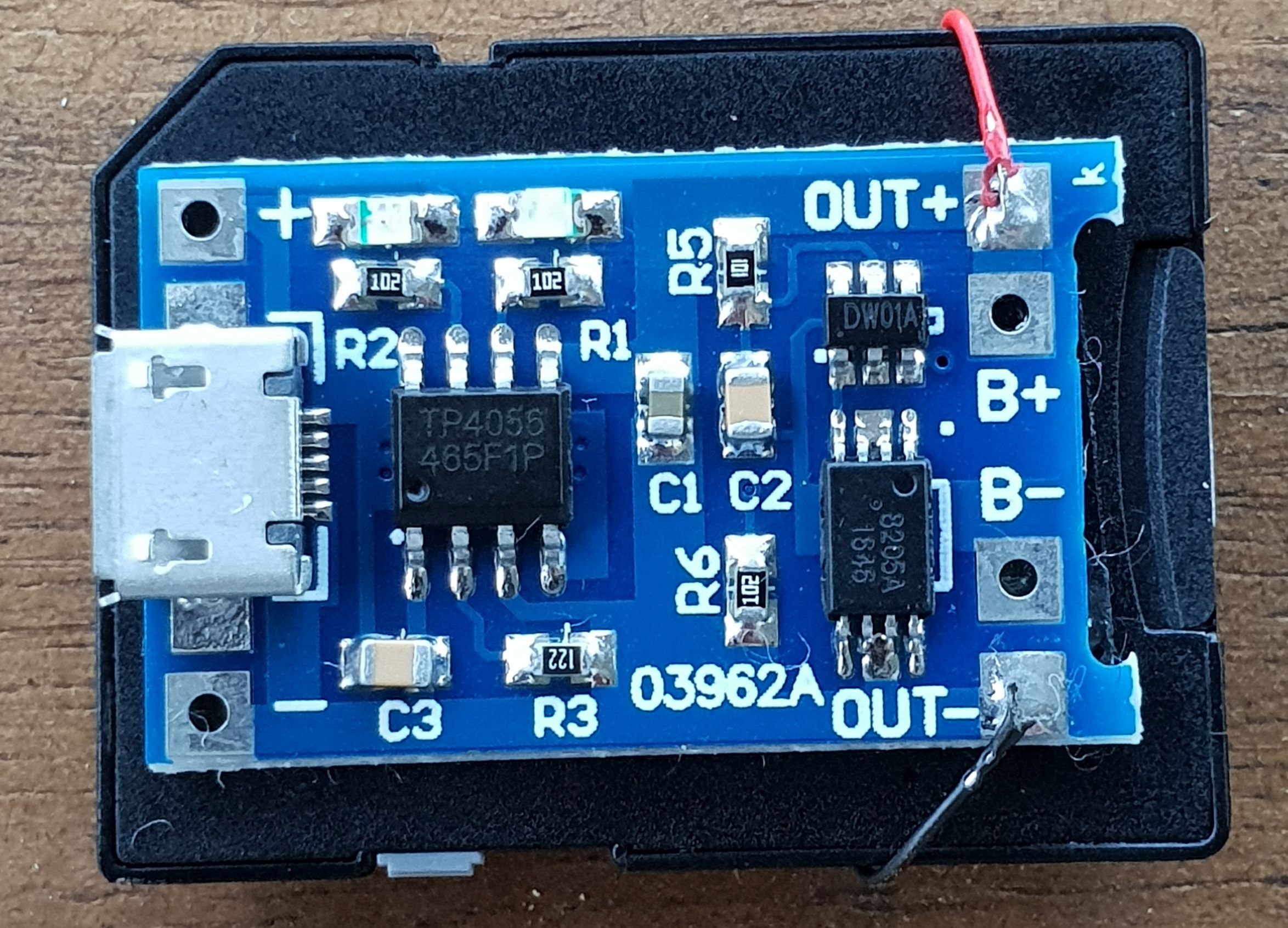

    Here is my trinket based payload delivery system.
    Basically a micro to full size SD Card adapter sandwiched between the trinket and the charger, I'm calling it a Hackwich :)
    20180623_154041.jpg 20180623_154052.jpg

    -(e)

  15. Wierd_w

    OP Wierd_w GBAtemp Fan
    Member

    Joined:
    May 12, 2018
    Messages:
    406
    Country:
    United States
    The second one outright states that it uses 3.3v on the RX and TX lines, so it will work. DO NOT CONNECT +5V wire!! Only ground, TX, and RX!!

  16. PsychoRabbit

    PsychoRabbit Advanced Member
    Newcomer

    Joined:
    Nov 25, 2016
    Messages:
    50
    Country:
    Argentina
    I'm waiting for some components to be shipped to do the same Type-C male to Micro USB male adapter.
    I couldn't come with one in my search, so I'm going to do a soldered version.
    But found these adapters that can be a workaround for a non-soldering version.


    Options:

    1 Micro Usb to USB A converter like https://aliexpress.com/item/12pcs-O...le-to-Female-Connector-May24/32880831945.html
    connected to one Type-C to USB A OTG adapter https://aliexpress.com/item/Type-C-...S8-Note8-Android-Phone-May24/32879698758.html


    Or this triple adapter https://es.aliexpress.com/item/USB-...-Xiaomi-Huawei-Android-May24/32878181736.html

  17. M-O-B

    M-O-B GBAtemp Regular
    Member

    Joined:
    Jun 23, 2018
    Messages:
    281
    Country:
    United Kingdom
    I just ordered some micro usb male and micro male to type c female adapter, to test out if all goes to plan then I'll get some type c male to replace the type c female with.

  18. Rainbowfied Pokemaster

    Newcomer

    Joined:
    Jun 28, 2016
    Messages:
    47
    Country:
    United States
    So I got this router: http://s.aliexpress.com/mMfaQFZB

    I flashed the firmware on it but when I connect it to the battery and then the Switch in rcm, nothing happens.

  19. Wierd_w

    OP Wierd_w GBAtemp Fan
    Member

    Joined:
    May 12, 2018
    Messages:
    406
    Country:
    United States
    Do you have ssh to the unit? I am interested in the output of dmesg after plugging in the NX.

  20. Rainbowfied Pokemaster

    Newcomer

    Joined:
    Jun 28, 2016
    Messages:
    47
    Country:
    United States
    How can I do that?
