Hacking Build your own dongle (Research and development thread)

[Ninoh-FOX]

Can I use the microUSB that come bundled into the board?

Enviado de meu SM-G935F usando Tapatalk

Without problem, I only maked the integrate usb c for make more small the dongle.



[DeoNaught]

Yes, that works fine, or make a microusb to ucb c cable (I maked one)

This it is the structure circuit.

That battery and battery charger aren't the same you are using right? because the current would be too much for the battery, and the battery will expand badly if you do it with regular use.



[Ninoh-FOX]

That battery and battery charger aren't the same you are using right? because the current would be too much for the battery, and the battery will expand badly if you do it with regular use.

It is the same type. The only diferent it that my battery is of the 500 mah. The picture it is a battery 3,7v (same) but only 150 mah (for drones) too more small in size.



[DeoNaught]

It is the same type. The only diferent it that my battery is of the 500 mah.

Is the Current and stuff within the limits?



[Don Jon]

Wii found de wae

fixed.



[simplepsyduck]

So, Team Xecuter showcased there dongle.



[Wierd_w]

So, Team Xecuter showcased there dongle.

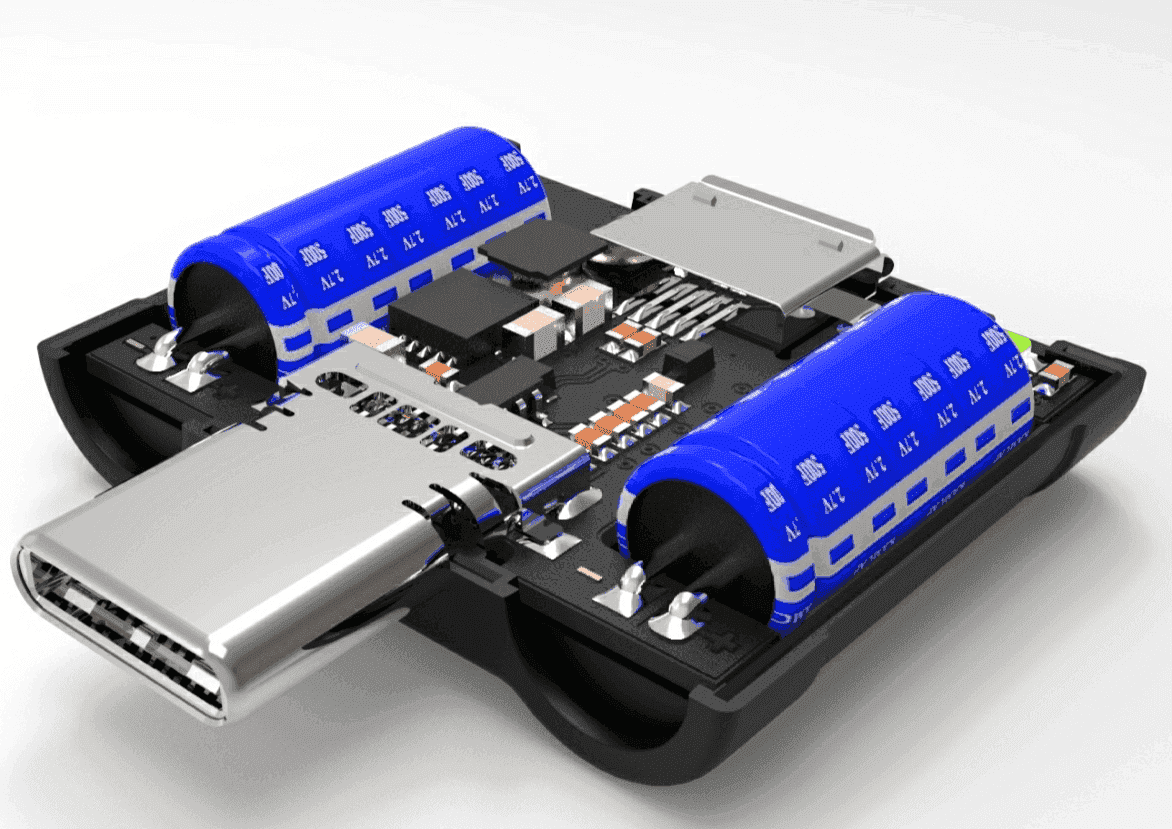

View attachment 127266

Well lookie there.

Looks like 2 fat lytic caps, possibly an atmega, a wire-wound transformer, and some glue logic.



[Xandroz]

So, Team Xecuter showcased there dongle.

View attachment 127266

give it a couple of days and it will be on aliexpress and taobao and you will flash the payloads you want.
would be funny if this happens and gets out before xecuters does



[Wierd_w]

On second thought, it might be a 14 pin PIC.

Or maybe..

hard to tell with that smd ceramic cap in the way.



[Ninoh-FOX]

Is the Current and stuff within the limits?

Yeah, think that when you charger the console, you are input 5v, this only output 3,5~4v, aah, and if you solder usb pinout in bat pinout, you can make "autorcm", only conected the dongle and push vol+



[jj56185]

On second thought, it might be a 14 pin PIC.

Or maybe..

hard to tell with that smd ceramic cap in the way.

At first, the dongle's type-C was in OTG mode. then charge the capacitance.
then the dongle became HOST mode , do something like Ninoh-FOX 's SAMD21



[Wierd_w]

At first, the dongle's type-C was in OTG mode. then charge the capacitance.
then the dongle became HOST mode , do something like Ninoh-FOX 's SAMD21

Agreed, it needs Host mode, which the PIC16 series does not do out of the box. TX could well have written a host mode stack for it though, if that is what they used.
Pure speculation at this point.

I agree, if we were to make an inexpensive clone, we should spec something with an already mature USB host implementation.



[sweetlilmre]

So, Team Xecuter showcased there dongle.

View attachment 127266

A render is one thing, it'll be a lot more interesting when someone cracks it open and takes some hires shots!

-(e)



[frange41]

@Ninoh-FOX great job again (EOL )



[studio1b]

wondering about this.
I have a Netgear R6250 , that is flashed with advanced tomato
the router has a usb 3.0 how nice would it be to just connect usb to the router and payload away.
I also have a pi1 model b and a pi3 model b+
but i think it would pretty neat if i could just have a wire on my desk for the switch connected to a router



[Xandroz]

my guess we will see the dongol on aliexpress even before its release



[Wierd_w]

A render is one thing, it'll be a lot more interesting when someone cracks it open and takes some hires shots!

-(e)

Quite so. Assuming TX has not etched off the numbers on their chips, we could know exactly what is inside. Still, looks li

my guess we will see the dongol on aliexpress even before its release

Probably. I really dont see a whole lot in there that is special or magical.



[Xandroz]

Quite so. Assuming TX has not etched off the numbers on their chips, we could know exactly what is inside. Still, looks li


Probably. I really dont see a whole lot in there that is special or magical.

neither do i, and i think mass production will make it cheaper.
also been seeing hints that a hacked version of osx is gonna be leaked on 4th june, looks like some reviewer is pissed of



[garyopa]

also been seeing hints that a hacked version of osx is gonna be leaked on 4th june, looks like some reviewer is pissed of

Its very tough to hack and leak something on the 4th of June, when no one has it yet in their hands, as any reviewers are most likely not going to get theirs until around the 12th a few days before the 15th.



[Xandroz]

Its very tough to hack and leak something on the 4th of June, when no one has it yet in their hands, as any reviewers are most likely not going to get theirs until around the 12th a few days before the 15th.

ill keep waiting for a mod chip honestly gary, thats the real deal instead of all the fuss with Fusee Geleee.

just boot and let the mod chip do its work.
xecuter supposdly announced way back there is a solder and solderless solution.
so i hope we will get a chip soon.

who ever comes with a chip im supporting honesly
