Hardware A flashing LED that changes color according to the processing speed (OLD 3DS 2011)

NikoTheNekoKawaii

New Member
OP
Newbie
Joined
Oct 2, 2019
Messages
1
Trophies
0
Age
19
XP
29
Country
Brazil
Hello, can anyone tell me if the old Nintendo 3DS processor has the fixed frequency or it decreases? I need this information because I want to make an aesthetic modification. I want to put a blinking LED that changes color according to the processor speed, and it wouldn't be nice if the LED was flashing at a fixed speed.
(It would also be very nice if someone knew which pin of which component I have to test in order to measure speed)

(Also, I want to change the 3DS buttons for transparent buttons and put flashing leds according to the beat of the music, but this I already know how to do)

  • Like
Reactions: KiiWii

Alexander1970

XP not matters.
Member
Joined
Nov 8, 2018
Messages
14,741
Trophies
3
Age
52
Location
Austria
XP
2,147
Country
Austria
Hello, can anyone tell me if the old Nintendo 3DS processor has the fixed frequency or it decreases? I need this information because I want to make an aesthetic modification. I want to put a blinking LED that changes color according to the processor speed, and it wouldn't be nice if the LED was flashing at a fixed speed.
(It would also be very nice if someone knew which pin of which component I have to test in order to measure speed)

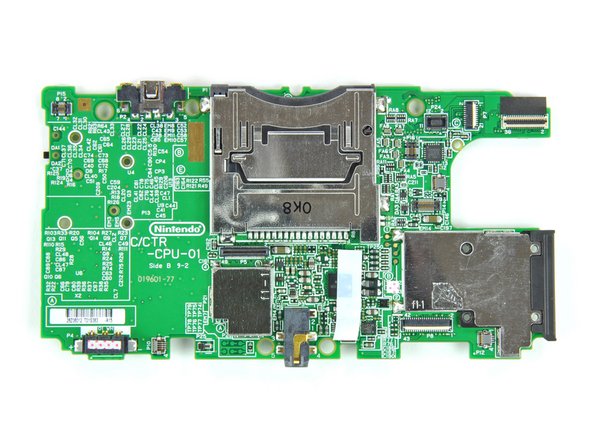

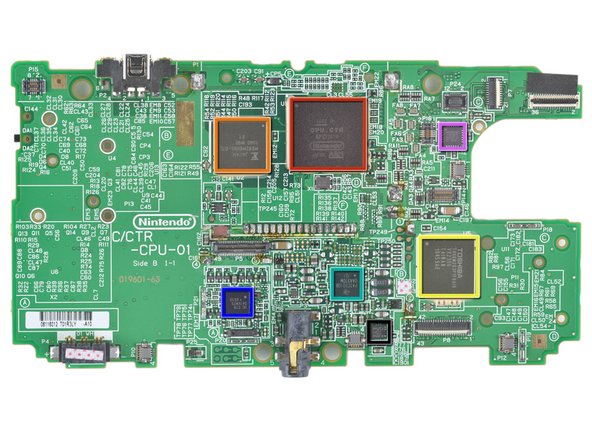

(Also, I want to change the 3DS buttons for transparent buttons and put flashing leds according to the beat of the music, but this I already know how to do)View attachment 181371 View attachment 181372

Hello.:)

A little Background and maybe helpful Information for your Project:

http://3dbrew.org/wiki/Hardware#Specifications

https://www.eurogamer.net/articles/digitalfoundry-2016-nintendo-3ds-vs-new-3ds-face-off

https://gbatemp.net/threads/nintendo-3ds-cpu-speed-and-details-number-of-cores.312235/

Thank you.:)

D

Deleted User

Guest
I think that would be cool except it would be is the SD card is being read
