Thread Status:
Not open for further replies.
  1. MewtwoFanz

    OP MewtwoFanz Member
    Newcomer

    Joined:
    Dec 12, 2017
    Messages:
    22
    Country:
    United States

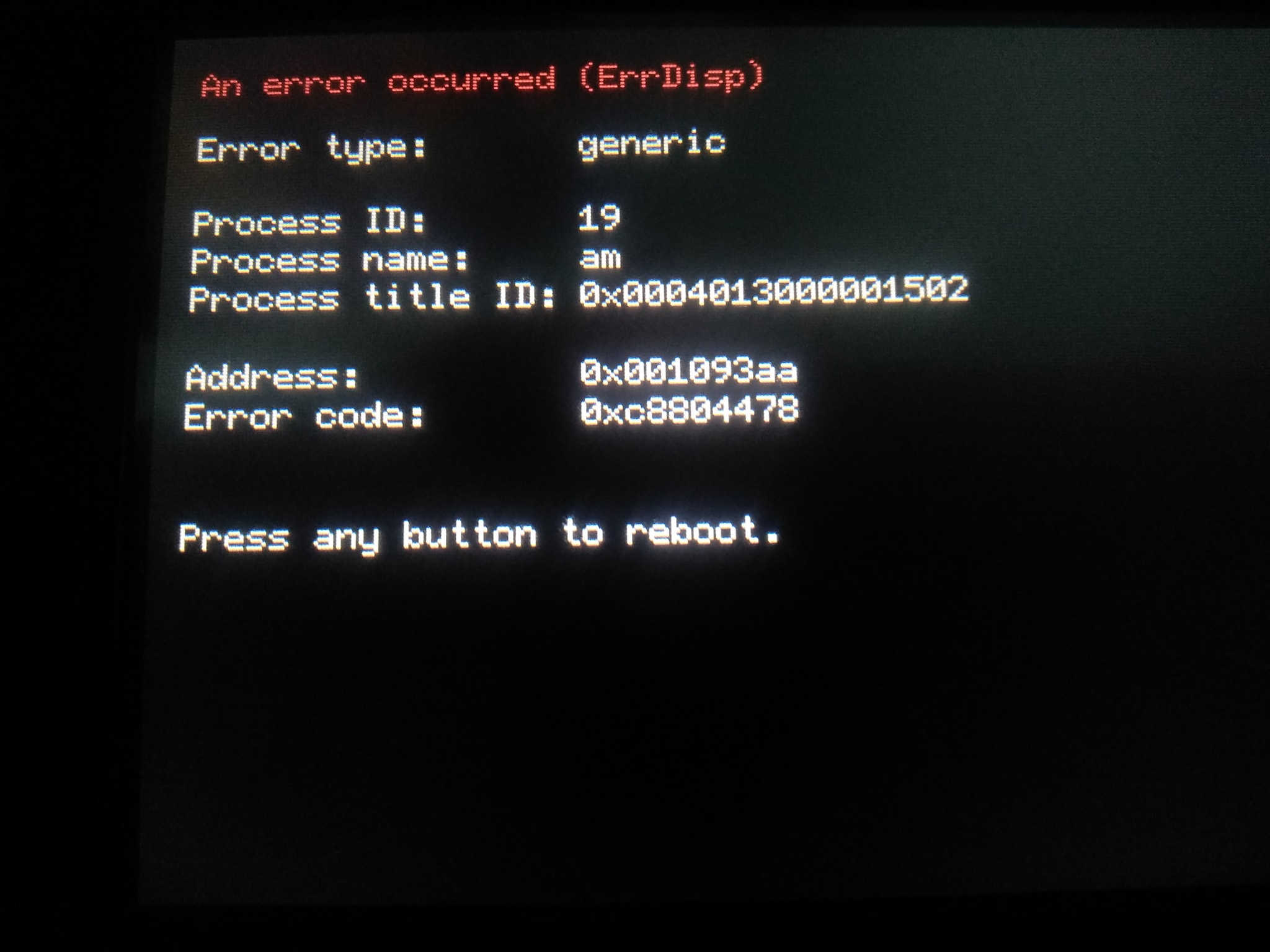

    Hi, I have a n3DS running 11.9 CFW, but there's a problem I've been having for awhile. whenever I try to update a game, download a game off the eshop, or a 3ds theme off the theme shop , I get an error saying this:

    IMG_20190125_104638271.jpg IMG_20190125_104638271.jpg

    this only happens when I try to download and install anything official, but it doesn't happen when when I install something unofficial or hacked, like a .cia file.

    Can anyone help me?

  2. TurdPooCharger

    Member

    Joined:
    Jan 1, 2018
    Messages:
    7,292
    Country:
    United States
    1. Take a spare SD card and copy everything off it onto a computer.
      • Minimum size of 4 GB. Smaller is bigger for quicker testing.
    2. Reformat the card in FAT32 + 32 KB cluster size with Windows File Explorer or guiformat (if bigger than 32 GB).
    3. Full Write + Verify the empty card with H2testw. No skipping this step!
    4. If the card passes without error, delete the *.h2w test files.
      • A failed card must be replaced. Doing so requires going back to step 1 or 2.
    5. Build a super bare minimum test CFW setup. Download Luma3DS v9.1 and put the boot.firm on the card root.
      • Do not use any other files or put back your main setup at this moment.
    6. Insert the SD card into the 3DS, hold (Select) button to access Luma3DS v9.1 configuration, and select (x) Show NAND or user string in System Settings.
    7. Boot to HOME Menu and enter the Nintendo eShop. Download a single free title update.
      • Choose something small. Here are several options:
        • Siesta Fiesta Update v1.0
        • Link-a-Pix Color Update v1.01
        • Go! Go! Kokopolo Update v1.1
    This test will check if there is something wrong with the 3DS firmware. Is it or is it not capable of downloading an official title update when the SD card setup is not at fault?

    Last edited by TurdPooCharger, Jan 25, 2019
    JueLuo likes this.
  3. nemofio

    nemofio Newbie
    Newcomer

    Joined:
    Sep 24, 2018
    Messages:
    5
    Country:
    Ireland
    TurdPooCharger I got the same error. However, this only happens when I try to play my Sushi Striker cartridge. I can play all my other games without a problem, I can also play download games from e-shop and games that I download .cia. I don`t have any problem with my Luma. So, my 3ds is American and my Sushi Striker cartridge is European.

  4. TurdPooCharger

    Member

    Joined:
    Jan 1, 2018
    Messages:
    7,292
    Country:
    United States
    1. Create a CIA version of your Sushi Striker (EUR) cart game.
    2. Install this CIA onto HOME Menu using FBI.
    3. If the CIA version also displays an error, try using Luma3DS Locale Emulation.
      • With SD card inserted, turn on the system and hold (SELECT) to access Luma3DS v9.1 configuration.
        • (x) Enable game patching
      • sdmc:/luma/titles/00040000001C1D00/locale.txt
      • For the written text in locale.txt,
        • Code:
          EUR EN
    4. If you somehow manage to get the CIA working, see if the cart version works too.
    In the scenario the above doesn't work, consider acquiring a digital copy of this game elsewhere like at one of those [...] sites (no asking where).

    JueLuo and nemofio like this.
  5. nemofio

    nemofio Newbie
    Newcomer

    Joined:
    Sep 24, 2018
    Messages:
    5
    Country:
    Ireland
    TurdPooCharger, I tried the 1 and 2, but it didn't work. I am trying to use Locale Emulation, but I have problem because I don't know how to do it. I am trying to figure out by myself. If I can make the game works, I will tell you. Thank you

  6. MewtwoFanz

    OP MewtwoFanz Member
    Newcomer

    Joined:
    Dec 12, 2017
    Messages:
    22
    Country:
    United States
    TurdPooCharger,

    I followed the instructions you gave me, but i'm still getting the same error. any suggestions?

  7. nemofio

    nemofio Newbie
    Newcomer

    Joined:
    Sep 24, 2018
    Messages:
    5
    Country:
    Ireland
    HEY TurdPooCharger, it worked!!! THANK YOU FOR YOUR HELP!

    TurdPooCharger likes this.
  8. TurdPooCharger

    Member

    Joined:
    Jan 1, 2018
    Messages:
    7,292
    Country:
    United States
    Some of these steps may not apply to you if you do not have certain types of games. Back up your game progress data for extra piece of mind.

    Using your main SD card that has all your titles,
    1. Back up the saves + extdata for all 3DS games using Checkpoint or JKSM.
    2. Back up the saves for all GBA VC games:
    3. Back up the DSiWare games and saves:
      • GodMode9 → [S:] SYSNAND VIRTUALtwln.binCopy to 0:/gm9/out.

    On the separate, spare SD card:

    4. Create a test custom firmware setup using the starter kit found here.
    5. For extra precaution, back up the current SysNAND:
    • GodMode9 → (HOME) button → Scripts... → NANDManager → <X> Backup SysNAND → etc.
    6. Back up the tickets, title, and import *.db files. These will be needed for later injection.
    • GodMode9 → (HOME) button → Scripts... → GM9Megascript → Dump Options System File Dump Options Dump ticket.db → etc.
    • Repeat the process for title.db and import.db.
    ***

    Option A
    If you have a backed up SysNAND *.bin image that should have been created when you first installed custom firmware, haven't performed a Format System Memory or System Transfer between the time it was hacked and now, and it has a 3DS firmware version older than 11.9.0-42:

    7A. Put this SysNAND image on your spare SD card:
    • sdmc:/gm9/out/######_XX########_sysnand_000.bin
    • sdmc:/gm9/out/######_XX########_sysnand_000.bin.sha (not required but recommended)
    • This is not the one created in step 5.
    8A. Restore the state of the 3DS firmware to when it was first hacked:
    • GodMode9 → 0:/.../######_XX########_sysnand_000.binNAND image options... → Restore SysNAND (safe) → etc.
    9A. Update the 3DS firmware to 11.9.0-42 using either:
    • Recovery Mode
    • System Settings → Other Settings → System Update
    10A. Attempt downloading a free game update in Nintendo eShop such as [post #2, step 7].
    • If you succeed, go to step 11; if the problem persist, go to Option B.
    ***

    Option B
    If you do not have a previously created SysNAND *.bin, that image does not meet the criteria in Option A, or the test download in step 10A did not work,

    7B. Attempt 3DS firmware repair by downgrading with the 11.5 CTRTransfer using GodMode9.
    • Match the region and old/new series that is on your system. Assuming USA n(2/3)DS(XL):
      • sdmc:/gm9/out/11.5.0-38U_ctrtransfer_n3ds.bin
      • sdmc:/gm9/out/11.5.0-38U_ctrtransfer_n3ds.bin.sha
    8B. Update the 3DS firmware back to 11.9.0-42.
    9B. Press (UP), (UP), (DOWN), (DOWN), (LEFT), (RIGHT), (LEFT), (RIGHT), (B), (A).
    • This step is filler, but do this anyway for good luck.
    10B. (Re)attempt downloading a free game update in Nintendo eShop.
    • If you succeed, go to step 11; if the problem persist, go to Option C.
    ***

    Option C
    If the test download did not work in step 10B,

    7C. Attempt 3DS firmware repair by downgrading with the 11.5 CTRTransfer using Decrypt9WIP.
    • smdc:/files9/11.5.0-38U_ctrtransfer_n3ds.bin
    • smdc:/files9/11.5.0-38U_ctrtransfer_n3ds.bin.sha
    • Decrypt9WIP → SysNAND Options → CTRTransfer... → Auto CTRNAND Transfer → button combo → 11.5.0-38U_ctrtransfer_n3ds.bin → etc.
    8C. Update the 3DS firmware back to 11.9.0-42.
    9C. Do a barrel roll! Press (L) or (R) twice.
    • If you do a real life barrel roll, not with your n3DS in hand.
    10C. (Re)-(Re)attempt downloading a free game update in Nintendo eShop.
    • I ain't got anything left if downloading is still broken. With that said, go to step 11.
    ***

    Still using the spare SD card,

    11. Inject or add back the tickets, title, and import *.db files.
    • GodMode9 → (HOME) button → Scripts... → GM9Megascript → Inject Options → Inject ticket.db → <A> yes XX########_ticket_00.db<A> yes button combo etc.
    • Repeat the process for title.db.

    Due to this GM9 script missing the option to inject the import.db,

    12. 0:/gm9/out/XX########_import_00.db hold (R)-shoulder and press (X). Rename this file as import.db.
    • (LEFT) / (RIGHT) d-pad = scroll the ^ symbol side-to-side
    • (UP) / (DOWN) d-pad = change the letter
    • (X) = delete a character or space
    • (Y) = add a space
    • (B) = cancel the edits
    • (A) = save the edits
    13. Press (Y) once on import.db to [CLIPBOARD] select it.
    • If a mistake is made in CLIPBOARD selection, press (SELECT) to reset.
    14. Back out with (B) button. Go into the [1:] SYSNAND CTRNAND/dbs directory.
    15. Press (Y) → Copy path(s)<A> yes → button combo → Overwrite file(s)<A> yes.
    16. Back out with (B) button.

    17. While hovering on (highlighting white) [1:] SYSNAND CTRNAND, hold (R)-shoulder and press (A) → Fix CMACs for drive<A> yes → button combo → <A> yes → button combo → <A> to continue → <A> yes.

    18. Switch back to using the main SD card.
    ***

    (Conditional) if there are DSiWare games and saves that require restoration:

    19. GodMode9 → 0:/gm9/out/twln.binMount as FAT image.
    20. While in the 7:/ directory, hold (L) shoulder and press (RIGHT) d-pad to highlight select everything in yellow.

    21. Press (Y) once to [CLIPBOARD] select everything. Press (B) button to back out.
    • If a mistake is made in CLIPBOARD selection, press (SELECT) to reset.
    22. Go into the [2:] SYSNAND TWLN directory, hold (L) shoulder and press (RIGHT) d-pad to highlight select everything in yellow.

    23. Press (X) → <A> yes → <A> yes → button combo → <A> yes.
    • This will delete everything currently in the [2:] SYSNAND TWLN.
    24. With the files from twln.bin still CLIPBOARD selected, press (Y) → Copy path(s) → <A> yes → button combo → <A> yes.
    • This will copy & paste (or restore) the previous DSiWare library.
    ***

    25. (Optional) For tickets that weren't restored in step 11, use faketik.
    26. (Re)-(Re)-(Re)attempt downloading a free game update in Nintendo eShop.
    27. Assuming everything checks out and nothing is amiss, make a new (clean) SysNAND *.bin image.​

  9. Nicedays4ever

    Nicedays4ever Newbie
    Newcomer

    Joined:
    Apr 14, 2019
    Messages:
    2
    Country:
    Hong Kong
    TurdPooCharger Plz can u help me ?

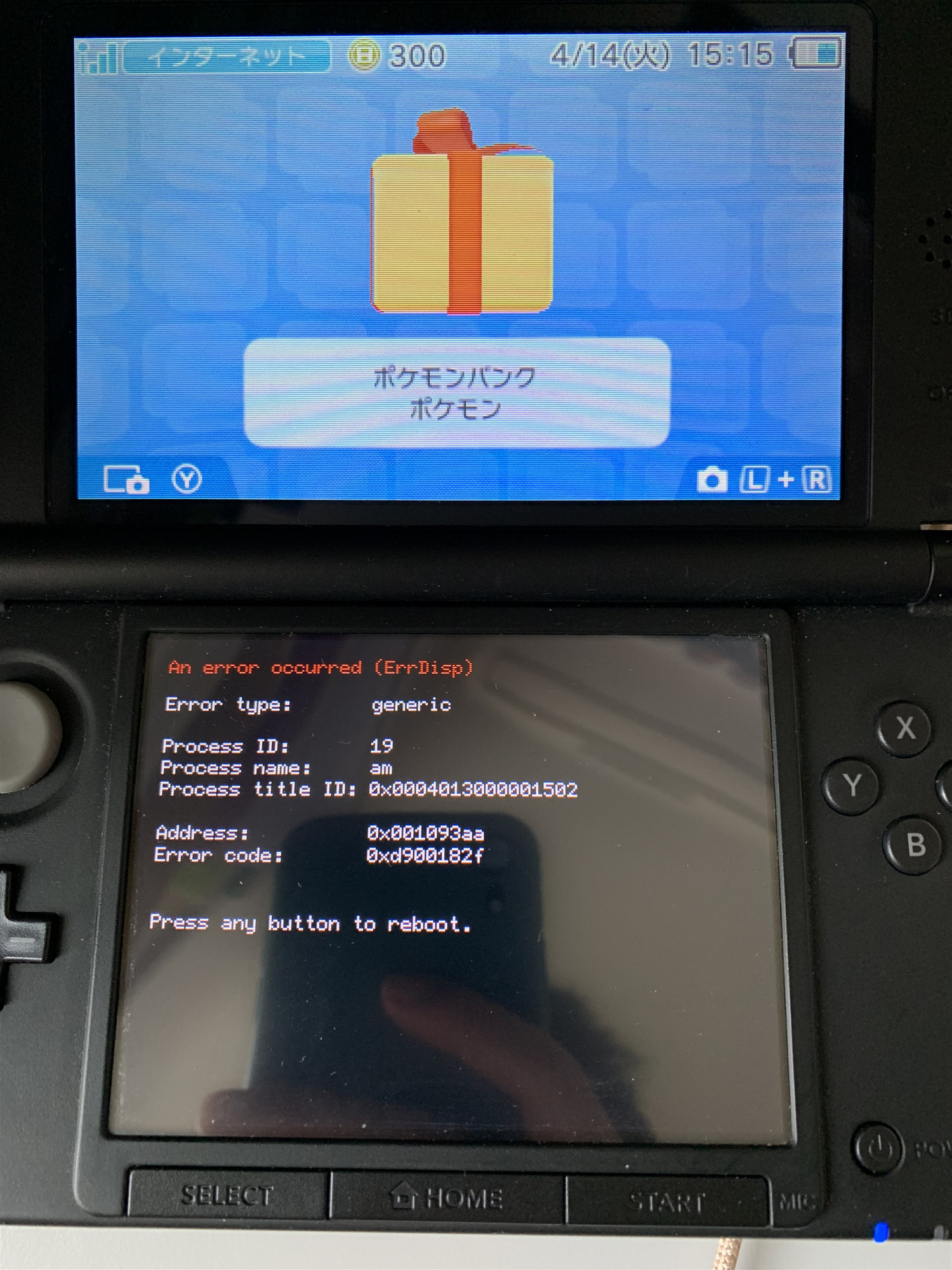

    i ve met the same problem: when downloading the game it appears. BUT there is a question that if i reformat the sd card my whole documents is cleaned up ,so after checking out with H2test, how do i restore my b9s documents? Is simply pasting of copy into SD card feasible ?


    Attached Files:

    • ggg.jpg
      File size:
      1 MB
      Views:
      1,227
    • ggg.jpg
      File size:
      1 MB
      Views:
      936
  10. TurdPooCharger

    Member

    Joined:
    Jan 1, 2018
    Messages:
    7,292
    Country:
    United States
    Judging by your UK flag flair and JPN firmware, was your o3DSXL originally EUR but region changed to JPN?

  11. Nicedays4ever

    Nicedays4ever Newbie
    Newcomer

    Joined:
    Apr 14, 2019
    Messages:
    2
    Country:
    Hong Kong
    TurdPooCharger, it's an original japanese one .

    Last edited by Nicedays4ever, Apr 15, 2019
  12. TurdPooCharger

    Member

    Joined:
    Jan 1, 2018
    Messages:
    7,292
    Country:
    United States
    Follow in order the troubleshooting steps found in posts 2, 4, and 8 *. Copying files off an SD card and putting them back on will not affect or remove sighax/boot9strap custom firmware.

    * For post 8, if you happen to reach Option C, substitute Decrypt9WIP CTRtransfer instead with gm9 script CTRTransfer (Type D9).

    Also check against this SeedDB list for games that require additional decryption. Here's a reference post for info about importing seed.

    ~~~~~~

    Typical 3ds software debugging checklist.
    1. Battery trick to reset RAM.
    2. Copy your SD card setup to computer.
    3. SD card reformat and write & read hardware testing.
    4. Add back your setup to the card and/or use a reference CFW files setup.
    5. Update the trifecta boot9strap/fastboot3ds, godmode9, and luma3ds CFW setup on both SD card and CTRNAND.
    6. Repair the 3DS firmware with a combination of restoring sysnand, CTRTransfer(s), and/or updating to latest version through Recovery Mode or System Settings.
    7. Back up game saves + extdata with Checkpoint or JKSM. Backup GBA VC and DSiWare saves in Godmode9.
    8. Verify the CIA files are good in GodMode9 if they're not installed yet.
    9. Install CIA files. Import their seeds if required.
    10. Restore game saves + extdata. Restore tickets with faketik app if games are missing on HOME Menu.
    11. For out of region games, use Luma3DS Locale Emulation game patching.

  13. pascsion
    This message by pascsion has been removed from public view by VinsCool, May 4, 2020, Reason: spamming and hijacking thread.
    May 4, 2020
  14. Hello12323

    Hello12323 Newbie
    Newcomer

    Joined:
    Nov 28, 2020
    Messages:
    1
    Country:
    United States
    Maybe delete all your 3ds games or format it?

  15. TurdPooCharger

    Member

    Joined:
    Jan 1, 2018
    Messages:
    7,292
    Country:
    United States
  16. Pando

    Pando Member
    Newcomer

    Joined:
    Jan 31, 2021
    Messages:
    12
    Country:
    Philippines

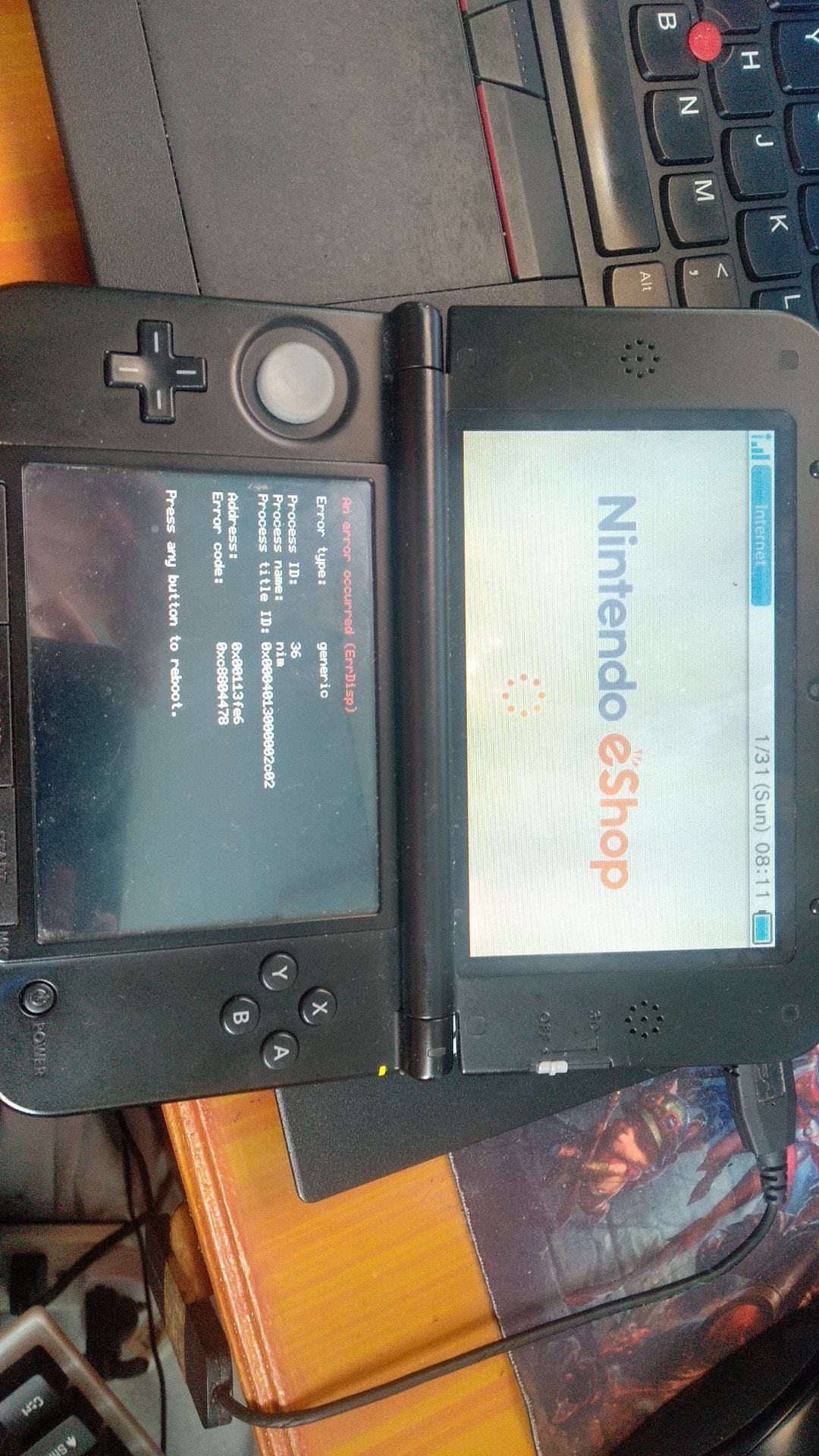

    I tried to follow this steps when I got to the Nintendo Eshop I am still getting the same errors. Sorry I'm new at using 3DS console but my 3DS is running Luma 10.2.1. Hope someone can help me. Thanks

    EDIT* This is my h2w test results

    Test finished without errors.
    You can now delete the test files *.h2w or verify them again.
    Writing speed: 5.08 MByte/s
    Reading speed: 16.3 MByte/s
    H2testw v1.4


    Attached Files:

    Last edited by Pando, Jan 31, 2021
  17. fmkid

    fmkid Just another GBATemp's random guy
    Member

    Joined:
    Apr 23, 2015
    Messages:
    1,914
    Country:
    Colombia
    About this:
    [​IMG]
    Perharps same error occurs when you just turn on the WiFi connection (and no error while you turn it off)? If yes, then it could be a WiFi card hardware disconnection or failure

    Last edited by fmkid, Jan 31, 2021
  18. sounreal

    sounreal Member
    Newcomer

    Joined:
    Mar 12, 2010
    Messages:
    12
    Country:
    United States
    My 2DS started doing this after I took it apart. I think i put in a bad wifi card. I have not changed it out for another one yet.

  19. Pando

    Pando Member
    Newcomer

    Joined:
    Jan 31, 2021
    Messages:
    12
    Country:
    Philippines
    I'll try to turn off the wifi and see if that error will be there. Now I'm facing another issue I'm not seeing the homebrew apps and CIA installed apps after testing my SD card. I think I'm lost now hahahaha..

  20. lone_wolf323

    lone_wolf323 GBAtemp Psycho!
    Member

    Joined:
    May 27, 2011
    Messages:
    4,017
    Country:
    Canada
    did you do the hwtest with a fully empty card?

  21. Pando

    Pando Member
    Newcomer

    Joined:
    Jan 31, 2021
    Messages:
    12
    Country:
    Philippines
    Yes I did I made a backup on my PC
