WIP [Trinket] [Rebug] [Others] SWITCHBOOT_UF2 / FUSEE_UF2 modchip software

Discussion in 'Switch - Backup Loaders & Modchips' started by mattytrog, Dec 18, 2018.

  1. mattytrog
    OP

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    Try v1 of Fusee-UF2. Thats barebones.

    — Posts automatically merged - Please don't double post! —

    https://github.com/mattytrog/Fusee-UF2/blob/master/Fusee-UF2-V1_UF2/TRINKET_REBUG_FUSEE_UF2_V1.UF2

    iCEQB likes this.
  2. iCEQB

    iCEQB GBAtemp Advanced Fan

    Member
    8
    Nov 2, 2013
    United States
    That's nuts, thank you!

    This is information that needs to be added to OP :wub:

  3. eliasrs

    eliasrs Member

    Newcomer
    1
    Oct 14, 2019
    Norway
    @mattytrog
    Working great now! Think it was a bad usb-c connection.

    Any way to power the trinket from usb-c plug on the switch?
    Using external buttoncell right now.

  4. mattytrog
    OP

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    Sadly not. in RCM, no power to mean anything is output. Apart from uA from the USB signal lines.

    — Posts automatically merged - Please don't double post! —

    There is v2 as well. Have a play see which one you like.

  5. eliasrs

    eliasrs Member

    Newcomer
    1
    Oct 14, 2019
    Norway
    Damn. Oh well, guessing the buttoncell with last a long time since the trinket is powered so shortly each time.

    Maybe possible to use the usb-c port as a power switch, so it doesn't need to manually be powered on/off each time?

  6. iCEQB

    iCEQB GBAtemp Advanced Fan

    Member
    8
    Nov 2, 2013
    United States
    Can you give a me quick rundown, what the differences are for v1, v2, v3?

    I beleive I read somewhere that v1 for example does indeed have this USB Strap functionality.

  7. mattytrog
    OP

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    Honestly? I can't remember!

    I do remember that v1 only looked for payload.bin.

    Nothing else. No payload1.bin or anything.

    I'll look through the source see if it jogs my memory

  8. iCEQB

    iCEQB GBAtemp Advanced Fan

    Member
    8
    Nov 2, 2013
    United States
    That would be awesome, because I believe a lot more people are just looking for a way to just run one payload and let t he rest be handled by it (for example Hekate).

  9. mattytrog
    OP

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    It's always been there. I had to much time on my hands.

  10. Sparacis

    Sparacis Member

    Newcomer
    1
    Mar 23, 2019
    United States
    Maybe I am being really dumb here, but I have the same issue. If I boot with no SD card I load up switchboot 1.5 DOS menu with Hekate 5.0.2. But with the SD card in I load up the touch interface of 5.0.1.

    I don't have any payload.bin's that are overriding anything in the root of the SD and nothing saved to my INI and I am running the latest version of Kosmos. I have 0 idea where this is booting from.

    Any help is appreciated.

  11. mattytrog
    OP

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    It is nyx.bin.

    In /bootloader/sys on SD.

    If running switchboot, hold both Vol buttons to bypass it. Or rename it/delete it if you don't require it

    Sparacis likes this.
  12. Sparacis

    Sparacis Member

    Newcomer
    1
    Mar 23, 2019
    United States
    This sir is why you are the man!

    Thank you!

    mattytrog likes this.
  13. consolex

    consolex GBAtemp Regular

    Member
    3
    Feb 22, 2016
    France
  14. 50CalCoffee

    50CalCoffee Newbie

    Newcomer
    1
    Nov 3, 2019
    United Kingdom
    *a wild newb appears*
    /edit
    Found all my answers on the internal modchip post

    Ordering a rcmx86

    Last edited by 50CalCoffee, Nov 4, 2019
  15. XxShalevElimelechxX

    XxShalevElimelechxX GBAtemp Fan

    Member
    6
    Mar 30, 2016
    Israel
    Hi there, I soldered a trinket m0 for my friend's switch and when vol+ strap is soldered the vol+ button itself is acting as a vol-, vol- isn't functional and when I press launch without a microsd card inserted the "couldn't init microsd card" error message is being displayed all across the screen and softlocks the device. I didn't short anything while soldering, I even tried to solder the strap to the ribbon with the buttons instead the make sure it isn't my soldering and setup the trinket from scratch. Can anyone help? I'm clueless.

  16. Joseph111

    Joseph111 Member

    Newcomer
    1
    Oct 9, 2019
    United Kingdom
    I keep getting my device isn't recognised on windows after connecting my Switch to the PC. But when I disconnect both the USB cables on the trinkets (traces 2 and 3) via desoldering them then I can connect the cable to the pc and everything works. Does this mean, I wouldn't be able to usb install stuff. I usually use nxmtp you see to connect my switch to the pc, but since those wires are connected I can't and when I remove them, I can use nxmtp to explore my switch content and usb install stuff. Is this normal? Here's what I disconnect to get everything working normally.
    Green Joy-Con D-Pad Shells for Nintendo Switch

  17. mattytrog
    OP

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    1) Is the Trinket flashed OK?

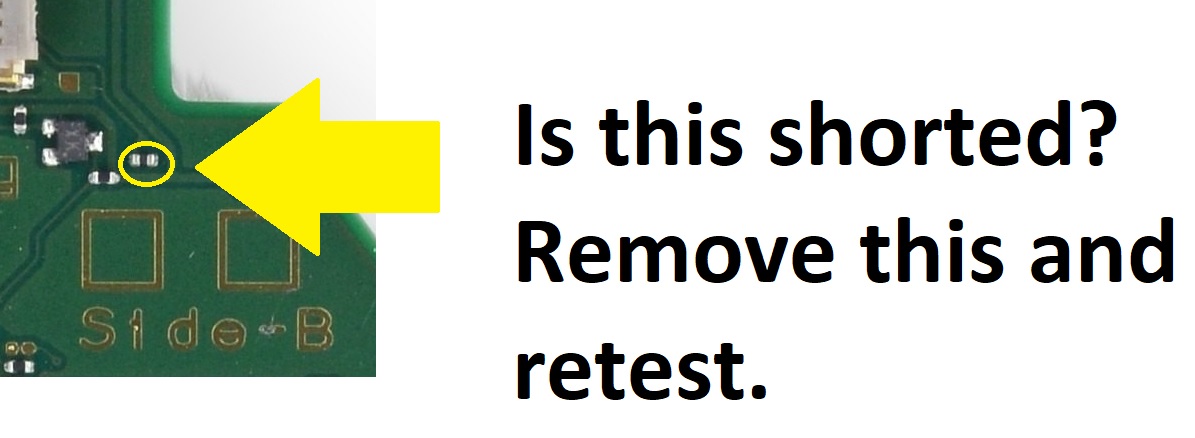

    2) There is a capacitor... Shunt capacitor. Gives the "discrete" voltage somewhere to go if current too high. Makes the pressing action nice and smooth. A bit like a condenser on a car ignition system. If it fails, it shorts GPIO to GND, leading to a "constantly pressed" condition. Doesn`t happen often during installs. Replace with something like a 100nF 6.3v 0201.

    This could be shorted.

    Remove and retest console. If vol buttons now work, then replace this.

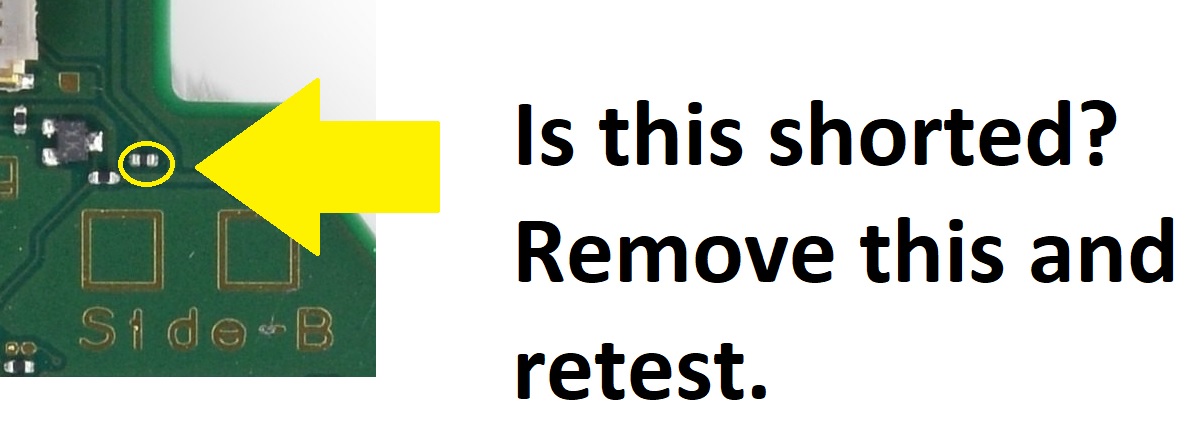

    volup_cap.

    — Posts automatically merged - Please don't double post! —

    It will conflict if trying to update Trinket.

    Use the samd_21_update payload in OP. Send that payload - console will appear dead. Double-press RESET, plug into USB. Trinketboot or whatever should pop up.

    Last edited by mattytrog, Nov 6, 2019
  18. Joseph111

    Joseph111 Member

    Newcomer
    1
    Oct 9, 2019
    United Kingdom
    Alright I will try this. Thank you and I will get back to you sir

    mattytrog likes this.
  19. XxShalevElimelechxX

    XxShalevElimelechxX GBAtemp Fan

    Member
    6
    Mar 30, 2016
    Israel
    I flashed the trinket like 5 times so I don't think anything's wrong with it. I'll check the cap when I arrive home and report back, thanks!

  20. Joseph111

    Joseph111 Member

    Newcomer
    1
    Oct 9, 2019
    United Kingdom
    Unfortunately, the moment I just connect the Switch to the PC it just brings up device is not recognised. Another guy on here, said he was experiencing the same problem on a thread I created. I don't know whether it's an issue with Windows or just the D- and D+ pads, once I desolder them off everything is fine and when they're connected I get the issues.
