Switch OLED teardown V1/V2

Shrapn

Member
Newcomer
Joined
Dec 21, 2018
Messages
16
Trophies
0
Age
35
XP
80
Country
United States
New OLED specific chip from AliExpress installed successfully. Not recommended for quick and easy installs. The flex PCB for the CPU bends too much, puts a bit of pressure on the CPU resistors in my opinion, but it's strong enough to hold, I'm not worried. The flex PCB up top is just garbage...takes ALOT of time to get it right, I even cut off part of it and manually wired 3.3v and ground.

TLDR: This new OLED model is poorly designed, but works. Be prepared to put in extra time to install it properly.

Hopefully this helps you out if you get this revision :)
Thanks for your pictures. I'm currently doing this install but have a question. The flex cable at the top, why are there two D points? The one near the top I understand comes from the DAT0 adapter on the backside, what is the purpose of the other D point?


sean222

Well-Known Member
Newcomer
Joined
Sep 7, 2007
Messages
81
Trophies
0
XP
498
Country
Canada
Thanks for your pictures. I'm currently doing this install but have a question. The flex cable at the top, why are there two D points? The one near the top I understand comes from the DAT0 adapter on the backside, what is the purpose of the other D point?
They labeled it wrong. The upper D point is actually C. It connects to the DAT0 eMMC point. :)


sean222

Well-Known Member
Newcomer
Joined
Sep 7, 2007
Messages
81
Trophies
0
XP
498
Country
Canada
Hey all,

OLED switch with OLED chip (same as Sean222) What does a blue/purple light mean on the chip immediately after powering it on?
You have the SD with payload.bin plugged in?
Check the CPU solder points (two of them) just check the connector on the right side bottom of the chip and probe for continuity of two points (since there are two points on CPU) with a multimeter.


ViOTeK

Member
Newcomer
Joined
Dec 31, 2021
Messages
20
Trophies
0
Age
40
XP
79
Country
Canada
My bad, getting a bit ahead of myself. Had watched that video just a while ago, but not quite that far through, as I've run into a problem.. I don't seem to get passed the yellow blinking LED "training" stage. Is this the "infinite glitching" they are referring to? Unfortunately my chip also just jumps to a red LED when connected to the USB cable. Any thoughts would be appreciated.

Edit: Also, I've tried disconnected the CPU ribbon cable, that causes instant red light. Also disconnected the ribbon and power cables, and the system turned on normally, so there are no massive shorts happening. Diode values seem decent.


TheUnknownOne

Well-Known Member
Newcomer
Joined
May 29, 2021
Messages
78
Trophies
0
Age
35
XP
199
Country
United States
My bad, getting a bit ahead of myself. Had watched that video just a while ago, but not quite that far through, as I've run into a problem.. I don't seem to get passed the yellow blinking LED "training" stage. Is this the "infinite glitching" they are referring to? Unfortunately my chip also just jumps to a red LED when connected to the USB cable. Any thoughts would be appreciated.

Edit: Also, I've tried disconnected the CPU ribbon cable, that causes instant red light. Also disconnected the ribbon and power cables, and the system turned on normally, so there are no massive shorts happening. Diode values seem decent.
If you disconnect all the wires and connect the chip to your computer are you still getting red or yellow?

I had an issue with it taking over 10 minutes to do the learning thing. This came down to me not having a good connection on either SP1/SP2 so I just resoldered them and touched up the CLK point and all was well.


ViOTeK

Member
Newcomer
Joined
Dec 31, 2021
Messages
20
Trophies
0
Age
40
XP
79
Country
Canada
They all seem to be reading decently except potentially the RST, getting conflicting results on searching this value. Should it read a diode value? Some say no. I don't seem to get anything even directly from the board, and that was one of the easier wires to get attached.

Edit: Tried disconnecting the RST point from the chip, no change in behavior. Not sure what the RST point does exactly...

Last edited by ViOTeK,

TheUnknownOne

Well-Known Member
Newcomer
Joined
May 29, 2021
Messages
78
Trophies
0
Age
35
XP
199
Country
United States
They all seem to be reading decently except potentially the RST, getting conflicting results on searching this value. Should it read a diode value? Some say no. I don't seem to get anything even directly from the board, and that was one of the easier wires to get attached.

Edit: Tried disconnecting the RST point from the chip, no change in behavior. Not sure what the RST point does exactly...
Like I said, remove your chip from the console and plug into PC, do you get a red or yellow LED, if yellow, flash the latest fw. If it's red or anything else you probably have a bad or bricked chip


TheUnknownOne

Well-Known Member
Newcomer
Joined
May 29, 2021
Messages
78
Trophies
0
Age
35
XP
199
Country
United States
Since I don't have a board in front of me, would anyone be able to probe around on the board and find a spot where vol + and vol - would link up? I've had to reset my chip a couple times due to infinite glitching, linking the reset points to vol + and - may be a good idea, hold both on startup and it resets... assuming this would work.


ViOTeK

Member
Newcomer
Joined
Dec 31, 2021
Messages
20
Trophies
0
Age
40
XP
79
Country
Canada
Like I said, remove your chip from the console and plug into PC, do you get a red or yellow LED, if yellow, flash the latest fw. If it's red or anything else you probably have a bad or bricked chip
Just tried, no go, still get a red light, after a quick single blue/purple blip.

Before that I also tried checking the cpu connections, one wasn't the greatest looking, re-did that, but no effect either.

Checking the other connections currently but they look pretty good, curious on my diode readings however as they are all a bit higher then in the video guide:

DAT0 = 970
CLK = 975
CMD = 965
RST = nothing with black on ground, reversing the polarity I see 455?
Edit: The above RST reading is right on the boards solder point, so maybe it's my meter, will check again tomorrow.
3.3v = 1142
GND = 0

Can anyone comment? Also, this is using an ancient crappy multimeter.. I'll be picking up a better one tomorrow and re-check.

About time to check out for the night, just glad it's not bricked, yet. :evil:


de9ed

Well-Known Member
Member
Joined
Oct 22, 2020
Messages
250
Trophies
0
Age
28
XP
712
Country
Canada
Just tried, no go, still get a red light, after a quick single blue/purple blip.

Before that I also tried checking the cpu connections, one wasn't the greatest looking, re-did that, but no effect either.

Checking the other connections currently but they look pretty good, curious on my diode readings however as they are all a bit higher then in the video guide:

DAT0 = 970
CLK = 975
CMD = 965
RST = nothing with black on ground, reversing the polarity I see 455?
Edit: The above RST reading is right on the boards solder point, so maybe it's my meter, will check again tomorrow.
3.3v = 1142
GND = 0

Can anyone comment? Also, this is using an ancient crappy multimeter.. I'll be picking up a better one tomorrow and re-check.

About time to check out for the night, just glad it's not bricked, yet. :evil:
your rst definitely has issue, rest looks ok.

  • Like
Reactions: lufeig

Modzvilleusa

Well-Known Member
Newcomer
Joined
Apr 17, 2019
Messages
47
Trophies
0
Age
53
Website
youtube.com
XP
450
Country
United States
It's this one. I cut off part of the flex PCB (the U shaped one) because it goes over a chip to reach the 3.3v/ground, thus it goes up in the air. After I cut it, that PCB flex piece lays FLAT :) Much more secure. If you don't let it lay flat, then you don't have to manually wire 3.3v and ground, as it will go through that flex pcb and plug into the top of the chip.

Without the USB debug port it's not easily flashable. You'll probably have to solder wires to the chip pins to flash it...

@Modzvilleusa does alot of installs, he's good. He also believes this version is poorly designed :D
Thanks duder, Yeah I'm working on an updated oled install vid right now going over the various happenings in the Oled scene, (new chips, hwfly lite psa ect)
Don't be fooled by the slick appearance of the dual flex cable. Everything about these chips is shittier than the other chips with the debug port.
Cpu cable is jank, dat0 adapter should be thrown in the trash and boot times are the worst.
It also can't be updated / flashed unlike the other variant. Just avoid this revision entirely and use the oled chip with the debug port / test pads to solder to.

  • Like
Reactions: sean222

TheUnknownOne

Well-Known Member
Newcomer
Joined
May 29, 2021
Messages
78
Trophies
0
Age
35
XP
199
Country
United States
Just tried, no go, still get a red light, after a quick single blue/purple blip.

Before that I also tried checking the cpu connections, one wasn't the greatest looking, re-did that, but no effect either.

Checking the other connections currently but they look pretty good, curious on my diode readings however as they are all a bit higher then in the video guide:

DAT0 = 970
CLK = 975
CMD = 965
RST = nothing with black on ground, reversing the polarity I see 455?
Edit: The above RST reading is right on the boards solder point, so maybe it's my meter, will check again tomorrow.
3.3v = 1142
GND = 0

Can anyone comment? Also, this is using an ancient crappy multimeter.. I'll be picking up a better one tomorrow and re-check.

About time to check out for the night, just glad it's not bricked, yet. :evil:
Sounds like a bad chip. Assuming it's the 6 wire chip it should be yellow


note9

Member
Newcomer
Joined
Sep 13, 2020
Messages
23
Trophies
0
Age
44
XP
141
Country
United Kingdom
Hello, just received my OLED chips and when connecting to the PC one goes straight to RED led and the other Yellow led.

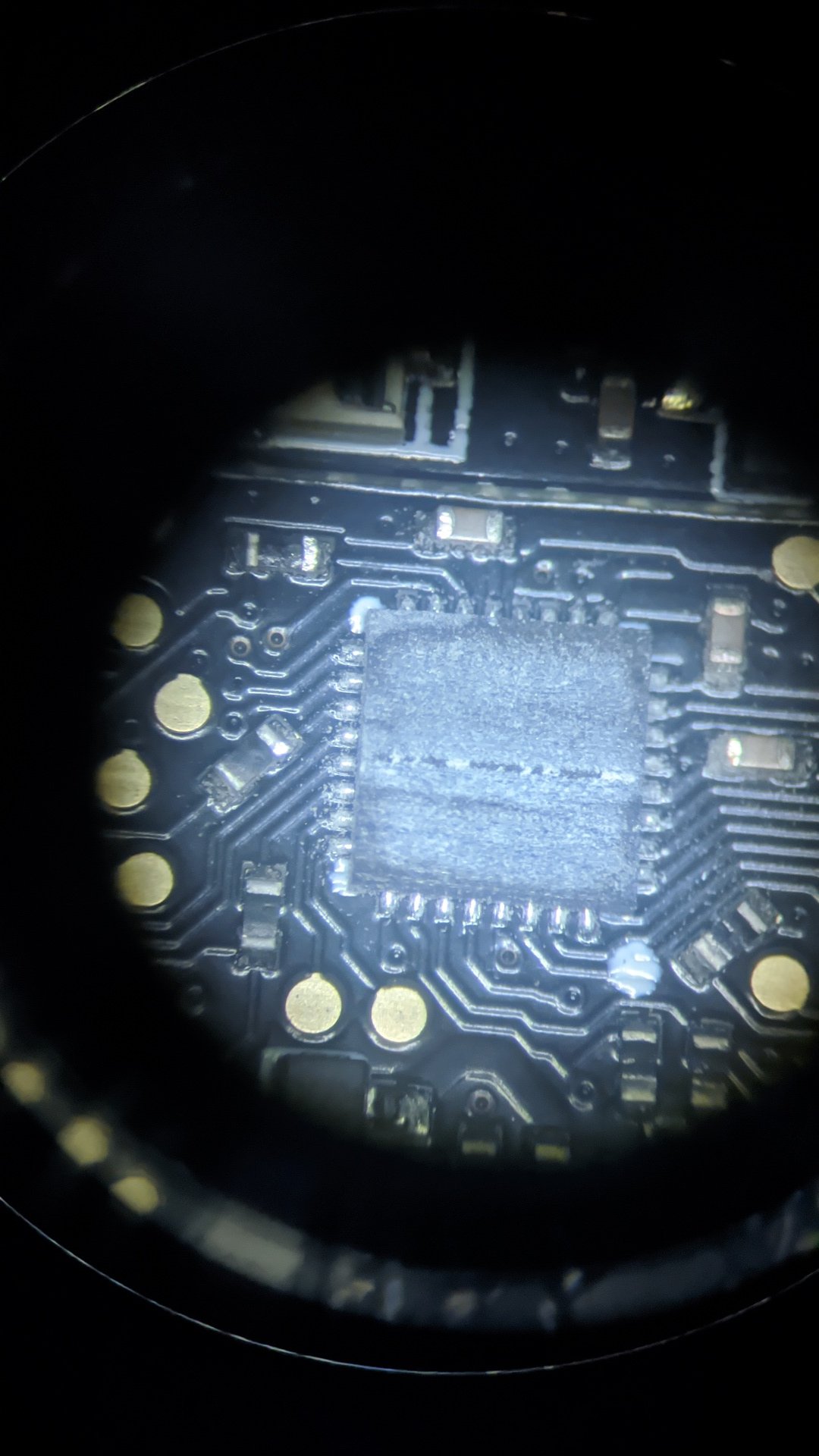

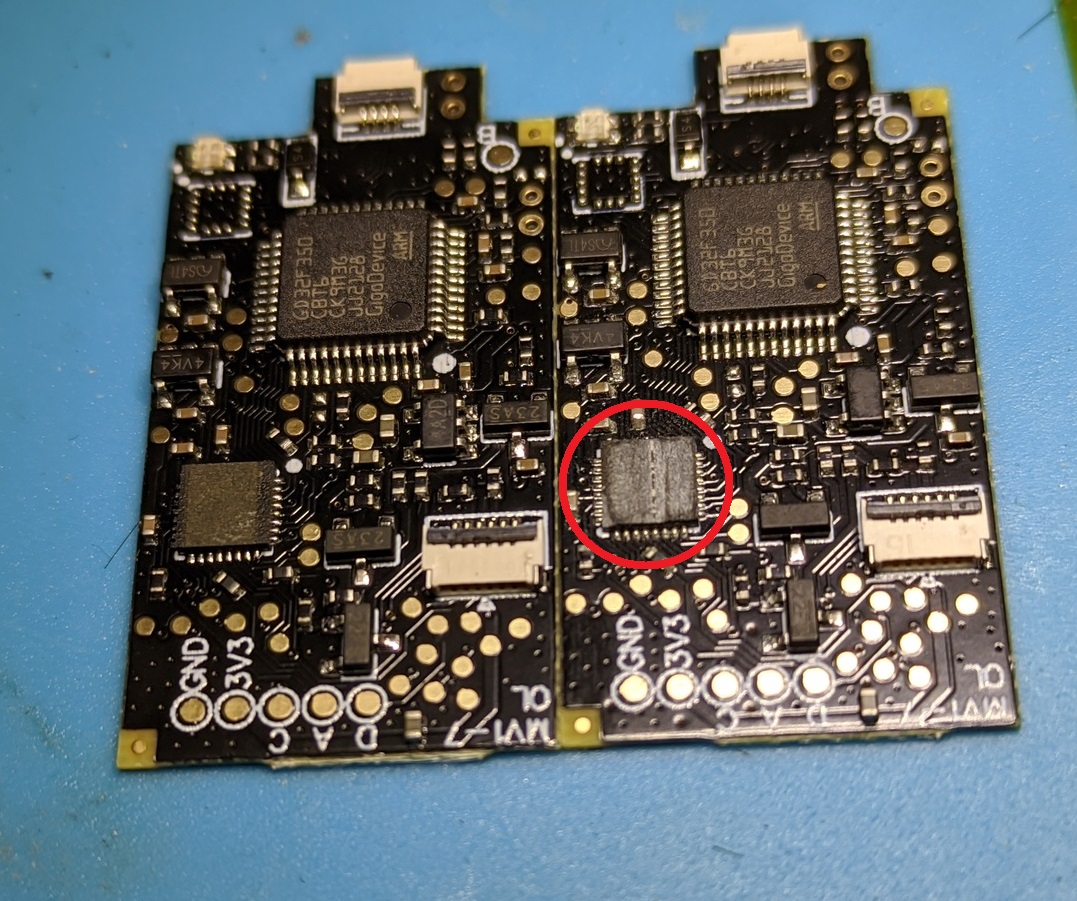

the one with that goes straight to Red has a groove on one of the chips like its been dremeled.

I'm assuming its dead? what about the Yellow led one? should it not be Green or only when it's installed?

still waiting for my OLED Switch to arrive.


Attachments

  • 2.jpg
    189.3 KB · Views: 15
  • oled groove.jpg
    oled groove.jpg
    405.2 KB · Views: 20
