Switch OLED teardown V1/V2

[mvmiranda]

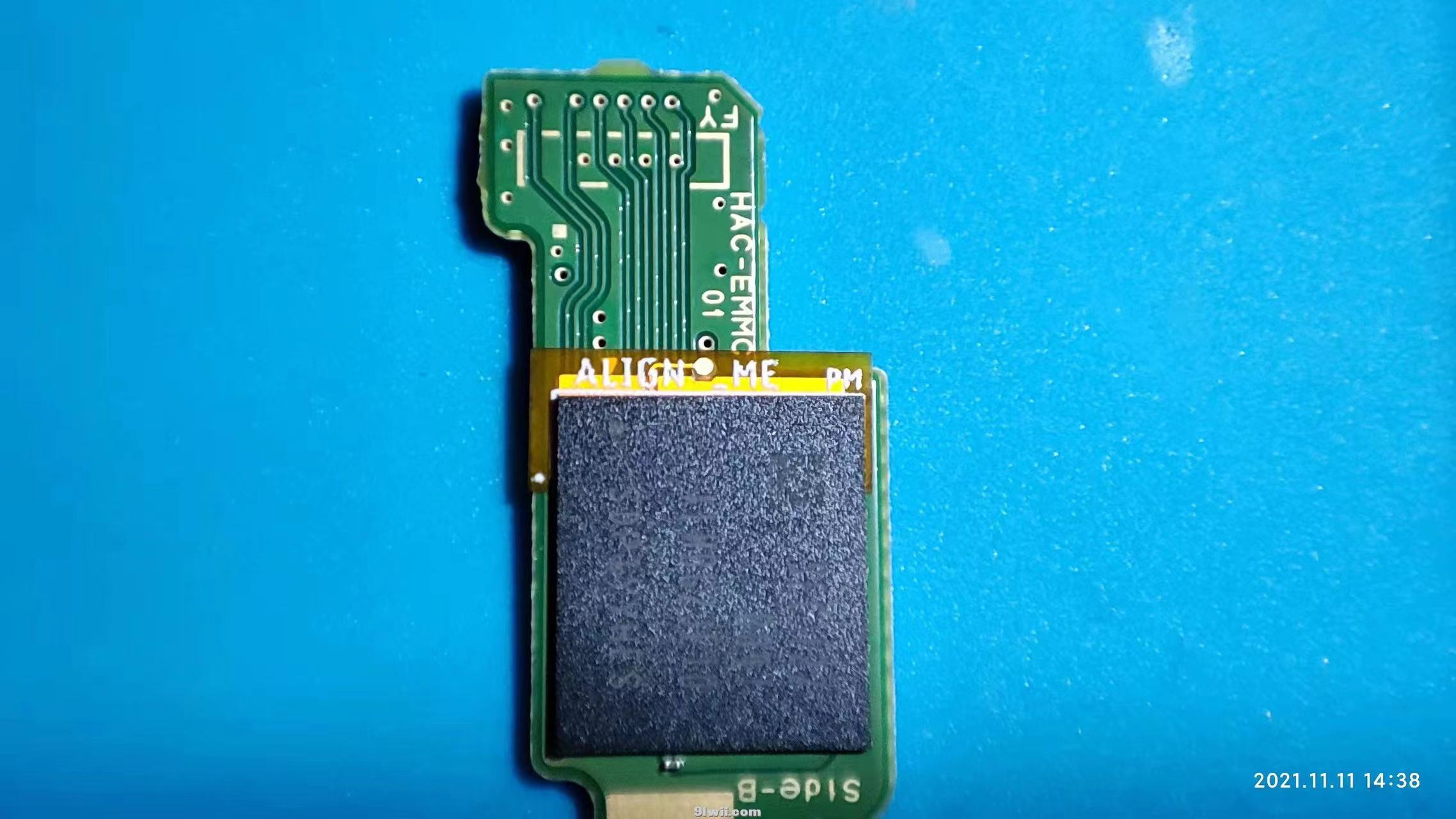

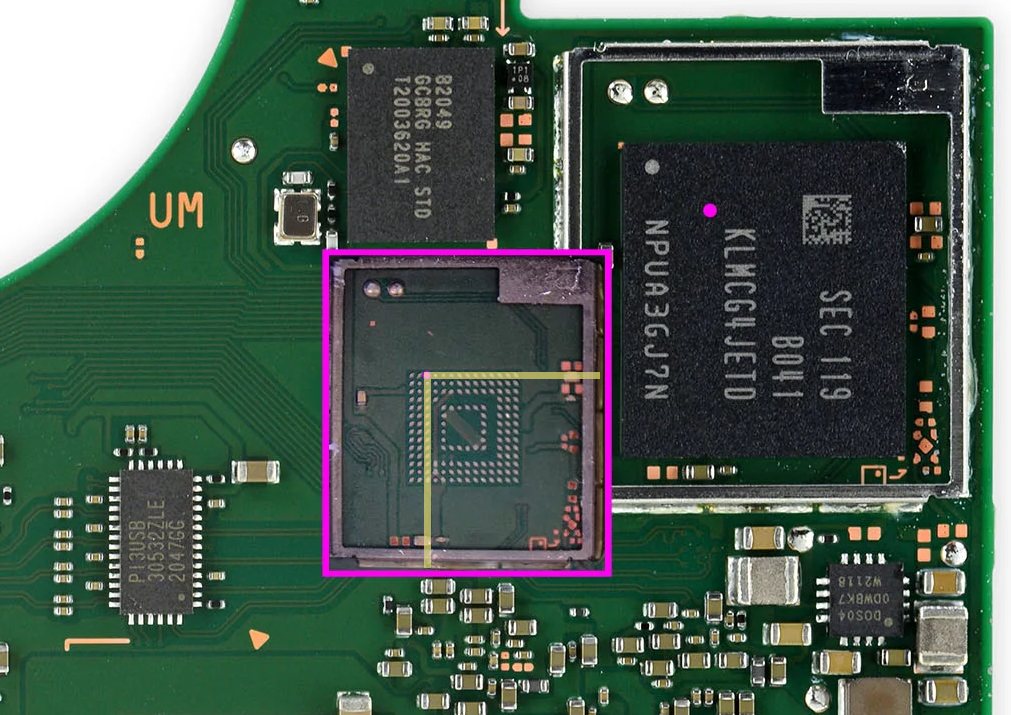

DAT0 ball is on the intersection of two “imaginary lines”: one aligned to the right border of the capacitor found on the bottom of this pic, another aligned to the border of the pad found on the right

It makes even more sense when you look at the board with the eMMC removed!



[HellsBoyz]

I got the info from myself. I did use an adapter, didn't search for an alt point, just didn't use the pcbway one.

Can you share us the adapter you used? Was it DIY stuff?



[vailon_yg]

Already got a D0 adaptor from China online shop.
It's work as expected and perfect.



[hippy dave]

Already got a D0 adaptor from China online shop.
It's work as expected and perfect.
View attachment 284492View attachment 284493View attachment 284494View attachment 284495

Which shop?



[vailon_yg]

Which shop?

You can find it in below link:
m.tb.cn with /h.fhEKs0T

I‘m not sure I can post the site here or not...



[HellsBoyz]

Where did you find your Lite chip?



[vailon_yg]

Where did you find your Lite chip?

It was installed in my switch lite, and I just uninstall it and bought 2 new cables from online shop.



[HellsBoyz]

It was installed in my switch lite, and I just uninstall it and bought 2 new cables from online shop.

I see. Tough move. The lite chip is hard to find nowadays...



[susi91]



[peteruk]

that's so frigging good man!



[susi91]

that's so frigging good man!

Yeah, that adapter is a blessing for OLED owners (while I prefer the v1 Switches) and the video is very good too (not from me).



[yakuma]

whre can buy that fleksibke



[mvmiranda]

Shoot!
Mine will take an eternity to arrive here!



[grubgrub]

Which modchip would you recommend?
The SX core or SX lite or th HWFLY versions?



[mvmiranda]

Which modchip would you recommend?
The SX core or SX lite or th HWFLY versions?

Well, honestly HWFLY works "the same" as SX and, since getting a SX has becoming more and more difficult, to say the least, go for the HWFLY.
Now, as for Core or Lite, Lite for sure.
It has a smaller footprint and seems to work better, as we've seen some folks saying the Core has some "issues" with the DAT line having to be disconnected every boot or something like this.



[HellsBoyz]

Well, honestly HWFLY works "the same" as SX and, since getting a SX has becoming more and more difficult, to say the least, go for the HWFLY.
Now, as for Core or Lite, Lite for sure.
It has a smaller footprint and seems to work better, as we've seen some folks saying the Core has some "issues" with the DAT line having to be disconnected every boot or something like this.

Sthelix confirmed that we don't have to. Just connect it permanently.



[FR0ZN]

Sthelix confirmed that we don't have to. Just connect it permanently.

Where did he confirm this?



[HellsBoyz]

Where did he confirm this?

On his twitter. He posted the schematics of core on Oled. I asked him myself.



[HenryMin]

Just ordered mine too



[izy]

On his twitter. He posted the schematics of core on Oled. I asked him myself.

Well yeah connecting it permanently is a thing

The problem is the hwfly core is buggy glitching the oled
So dat0 needs disconnected sometimes it's an old glitch they fixed in the original sx prior to release.

Sx shouldn't have it and neither does hwfly lite because they the clone makers were cheaping out hard and the hwfly lite had issues that needed fix that original didn't have but they fixed their own cheapness.

Also hwfly uses spacecraft 1.0 and can't be flashed to a higher version so gl




Also don't listen to stethix he literally adlibs other people's info into shitty guides.

Other videos he's done which have magically disappeared include

How to dual boot sxos and atmosphere but the atmosphere boots to sysnand.
And a magical tweet / message to the spacecraft Dev because he decided to flash his sxcore a stupid amount of times with spacecraft bricking his chip.




Also you don't need to really cut away to fit the qsb to nand. It can flex and has to go deep.
If anything just remove the flat piece in corner
