That's a bit high but it should work fine, you'll just get slow speeds on your card reader
That's a bit high but it should work fine, you'll just get slow speeds on your card reader
What ohm reading do you get if you have a bridged connection?
Cant get a reading just know it gets one cant keep it connected long enough and its only a cheap one jumps about and shit.
Oh I thought you meant a one ohm reading lol just as long as you have a reading you're good in this case
in the following video, i wish he didn't bloody speed it up would have more helpful.
if you skip to 7 minutes. it looks like he applies tinning flux to the pads and tins the wire and then just heats up the pad and sticks it that way really quickly. Though is that what hes doing i cant see him pre tinning any pads. Looks like hes using chunky wires as well.
I've worked out now well with your past help as well how the ohm crap works. One of the connections came off last night as it sucked. The two that are on there solidly. Im getting an ohm reading of 9.20 on one and 8.80 on the other. Also getting a ohm reading on pads that have nothing on them around 9.20. I imagine if you have a bridged connection of some some sort you wont get a reading?
To test the pad i grounded the positive and then just put the neg on a pad that had nothing on it, i think thats right. So it would seem the pads are good.
The 30 awg cable looks really bloody tine single strand can barely see it not looking forward to it at all.
Last edited by mijuu,

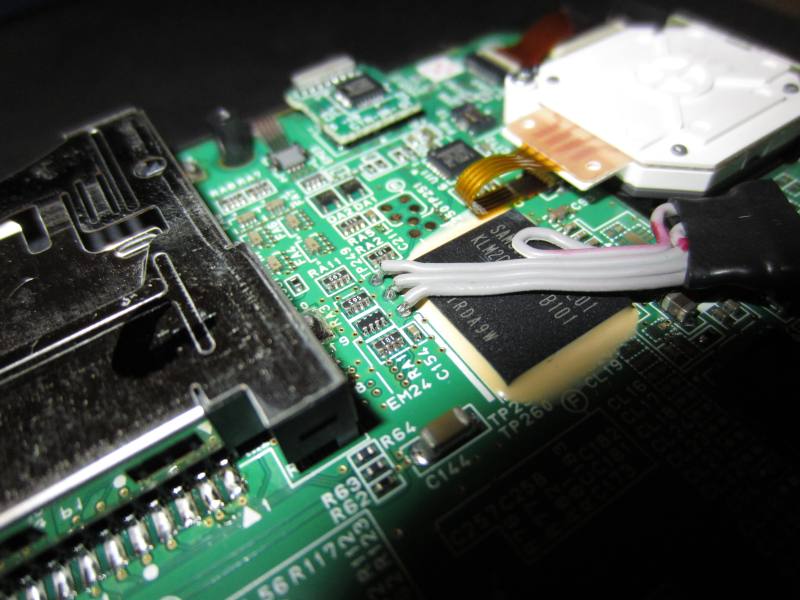

Yeah that video is crappy, i saw that forever ago... I really recommend some 40 wire IDE cable for this mod honestly...
As you can see it's good sized but not too big and makes a nice solid connection without much risk of too much leverage from flex
Well you aren't exactly doing it right... Basically you want from the pad to the end of the wire which will tell you if it's connected properly or not
https://www.mediafire.com/watch/za6e56acb8b7wlh/VID_20151022_125221.mp4
There's a video I made showing me soldering a pad up close, also it should be the lowest value on the meter
There's a video I made showing me soldering a pad up close, also it should be the lowest value on the meter
Thats sound man, helpful. Thats a meaty head your using compared to mine.
--------------------- MERGED ---------------------------
on one of my pads im getting 01.5-01.7 dunno if thats any good. Done a continuity test there are no bridges.
however to get that reading you have keep the needles completely still or it jumps around. How much solder do you apply to your iron before hand? I was worried about putting to much on and making a mess and thats why i went in with a brushed iron beforehand.
I could use two strands of my 80 cable for now for the last one.
--------------------- MERGED ---------------------------
Could i shove this in to the sd reader as is without casing it back up?
Attachments
Last edited by mijuu,
Sorry to the SD card one... You can just use one strand of 80 wire on it just fine, but 2 might help with data transfer rate
