1. Jamie Jenkins

    OP Jamie Jenkins Member
    Newcomer

    Joined:
    Dec 7, 2015
    Messages:
    37
    Country:
    United States
    IMG_20191214_230310.jpg IMG_20191215_215501.jpg IMG_20191215_223019.jpg IMG_20191215_222530.jpg

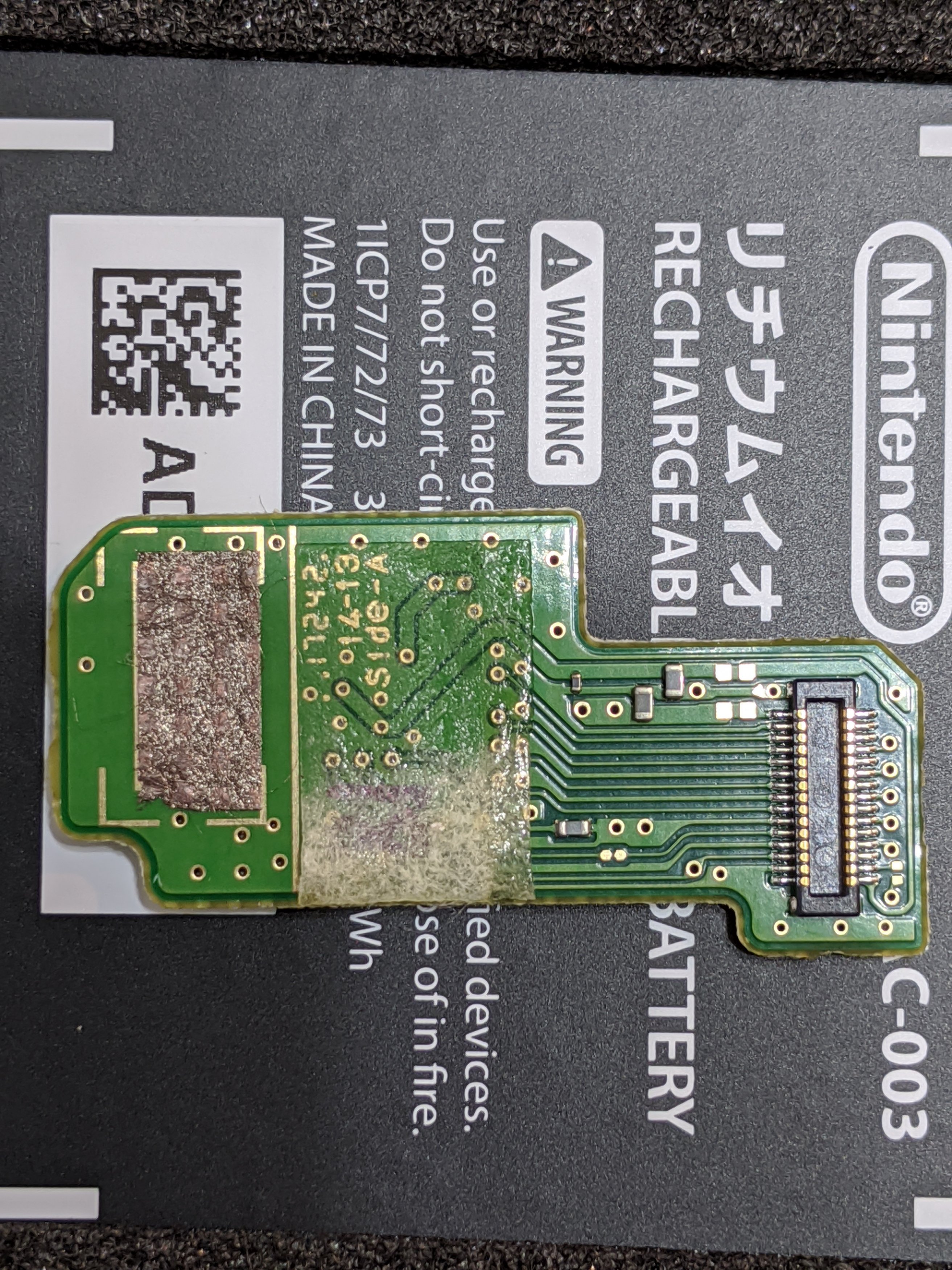

    Okay, so when I try to view the emmc info, it will either tell me, Failed to init emmc or the screen will freeze. I opened it up and removed the emmc module and took a look at the zif socket and all of the pins look good to me. I am attaching a picture of it and the connector for the SD card reader. I reseated it and ensured it had a good connection and put it back together but had the same results.
    When I try to do anything with memloader including mounting emmc, it always says Failed to mount SD card. I attached a pic of that too.
    I do have a full backup of the NAND and want to try to restore it but don't know how I can do it without memloader working.

    Also when loading LockpickRCM payload, I am unable to dump the keys as I get errors for the SD card. I am also attaching a pic of that.
    IMG_20191214_230310.jpg IMG_20191215_215501.jpg IMG_20191215_223019.jpg IMG_20191215_222530.jpg
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: Dec 16, 2019
  2. Canna

    Canna Bad Ass Poisonous Mushroom
    Member

    Joined:
    Jul 14, 2018
    Messages:
    1,308
    Country:
    United States
    last 4 images did not post ?

    Can we get some assistance please > @mattytrog @CTCaer
    Hardware failure ? emmc failed ?

    Jamie Jenkins likes this.
  3. Jamie Jenkins

    OP Jamie Jenkins Member
    Newcomer

    Joined:
    Dec 7, 2015
    Messages:
    37
    Country:
    United States
    Yeah, the last 4 pics are the same as the others. For some reason, I was unable to remove them.

    Last edited: Dec 16, 2019
  4. mattytrog

    mattytrog You don`t want to listen to anything I say.
    Member

    Joined:
    Apr 27, 2018
    Messages:
    3,664
    Country:
    United Kingdom
    Need some better pics of board. Ideally around SD btb connector and about an inch all the way round it.

    Canna likes this.
  5. Canna

    Canna Bad Ass Poisonous Mushroom
    Member

    Joined:
    Jul 14, 2018
    Messages:
    1,308
    Country:
    United States
    His Emmc will not boot now for some reason showing errors,Also.

  6. mattytrog

    mattytrog You don`t want to listen to anything I say.
    Member

    Joined:
    Apr 27, 2018
    Messages:
    3,664
    Country:
    United Kingdom
    Hmmm... Not a clue till we see some pics.

    1.8v line / 3v line could have a short.

    What errors?

  7. Canna

    Canna Bad Ass Poisonous Mushroom
    Member

    Joined:
    Jul 14, 2018
    Messages:
    1,308
    Country:
    United States
    Failed to enit Emmc and no longer boots into ofw, after freeze playing luigi mansion..
    Sd card freezes switch hekate wont load with sd card installed. (Blackscreen.)
    Memloader no go for either sd card or emmc.

    Last edited: Dec 16, 2019
  8. mattytrog

    mattytrog You don`t want to listen to anything I say.
    Member

    Joined:
    Apr 27, 2018
    Messages:
    3,664
    Country:
    United Kingdom
    Ok... What error on memloader? Exact numbers

  9. Canna

    Canna Bad Ass Poisonous Mushroom
    Member

    Joined:
    Jul 14, 2018
    Messages:
    1,308
    Country:
    United States
    All info in posts by op screenshots etc...

  10. mattytrog

    mattytrog You don`t want to listen to anything I say.
    Member

    Joined:
    Apr 27, 2018
    Messages:
    3,664
    Country:
    United Kingdom
    Seems like power loss somewhere to me.

    Any charging problems?
    You know what I'm going to say don't you lol.

    I'd rule out ram faults at this stage. But just a hunch, something is causing the 1.8v line to drop like a sack of shit. Could be emmc itself, could be anything.

    Any mods done to console? Any chips fitted or anything?

  11. Canna

    Canna Bad Ass Poisonous Mushroom
    Member

    Joined:
    Jul 14, 2018
    Messages:
    1,308
    Country:
    United States
    @Jamie Jenkins Upto you and the expert now boss,

    mattytrog likes this.
  12. mattytrog

    mattytrog You don`t want to listen to anything I say.
    Member

    Joined:
    Apr 27, 2018
    Messages:
    3,664
    Country:
    United Kingdom
    Who's the effin expert? Not bloody me!

    Jamie Jenkins and Canna like this.
  13. Jamie Jenkins

    OP Jamie Jenkins Member
    Newcomer

    Joined:
    Dec 7, 2015
    Messages:
    37
    Country:
    United States
    Hey mattytrog, thanks for looking into this for me. No mods have been done to the console. The first time it was opened was the other day when I replaced the SD card reader. I also have not had any charging problems except for not getting a green light anymore when plugging in the power/placing in the dock, which started when I first posted about the issue.

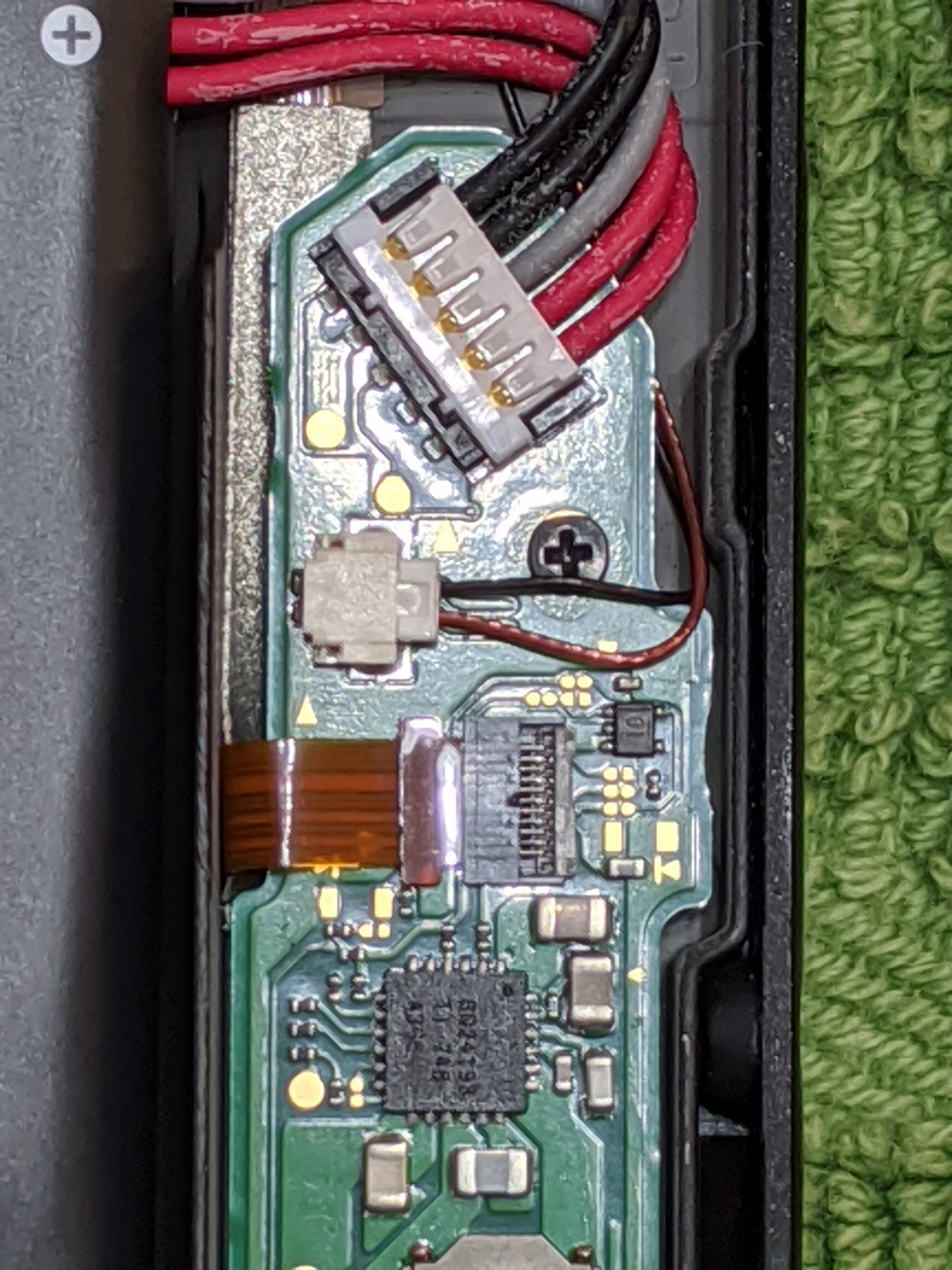

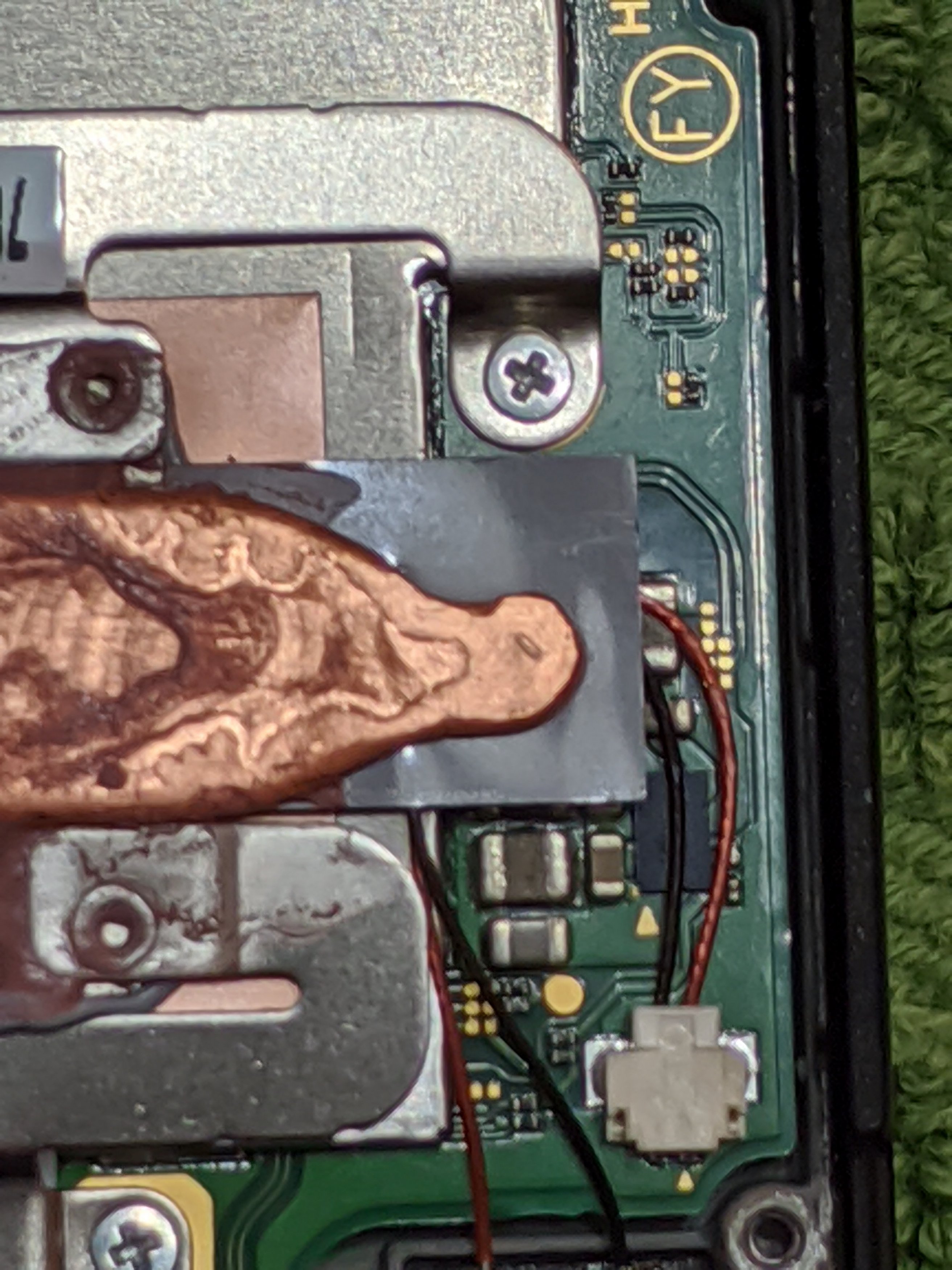

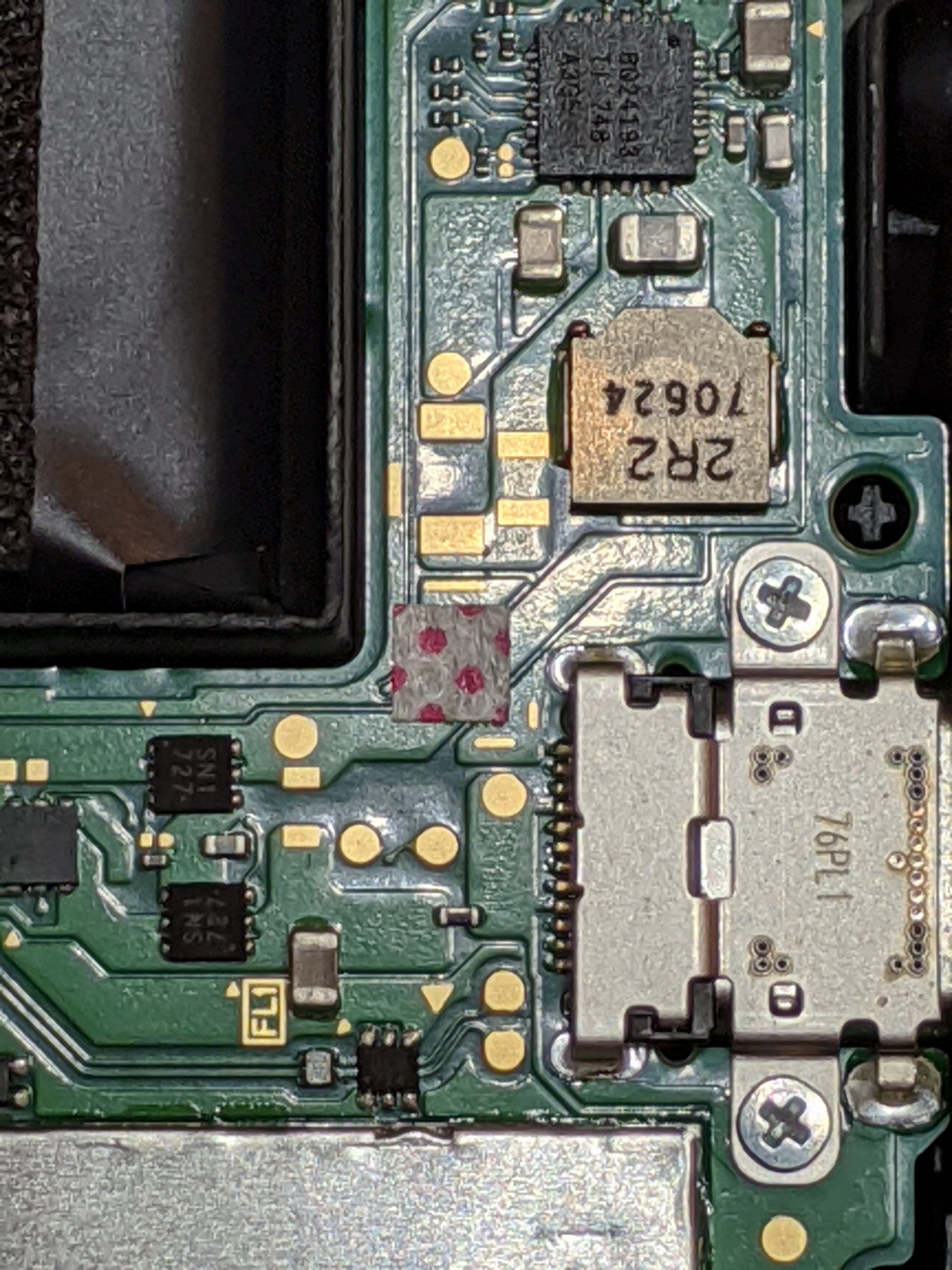

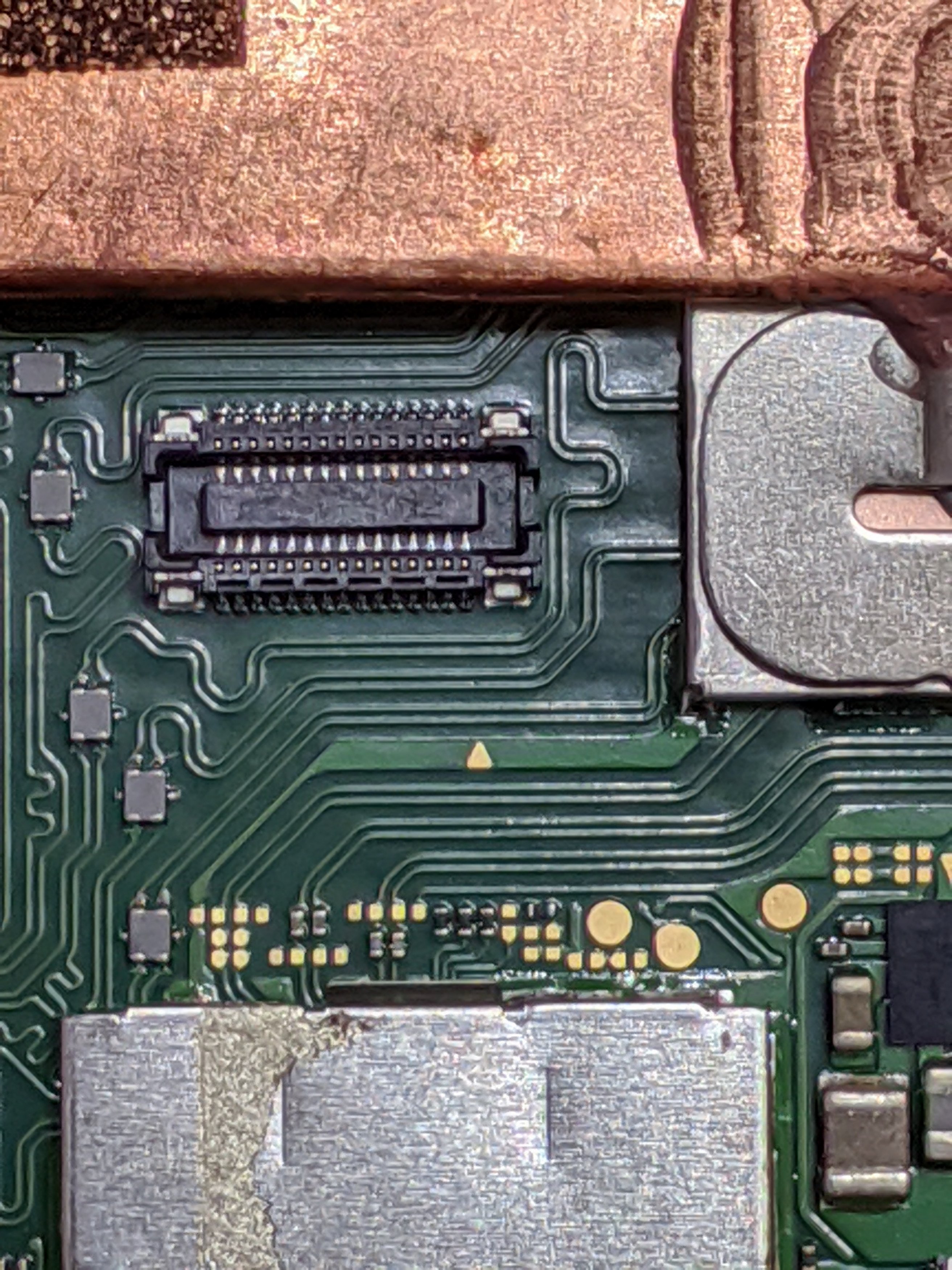

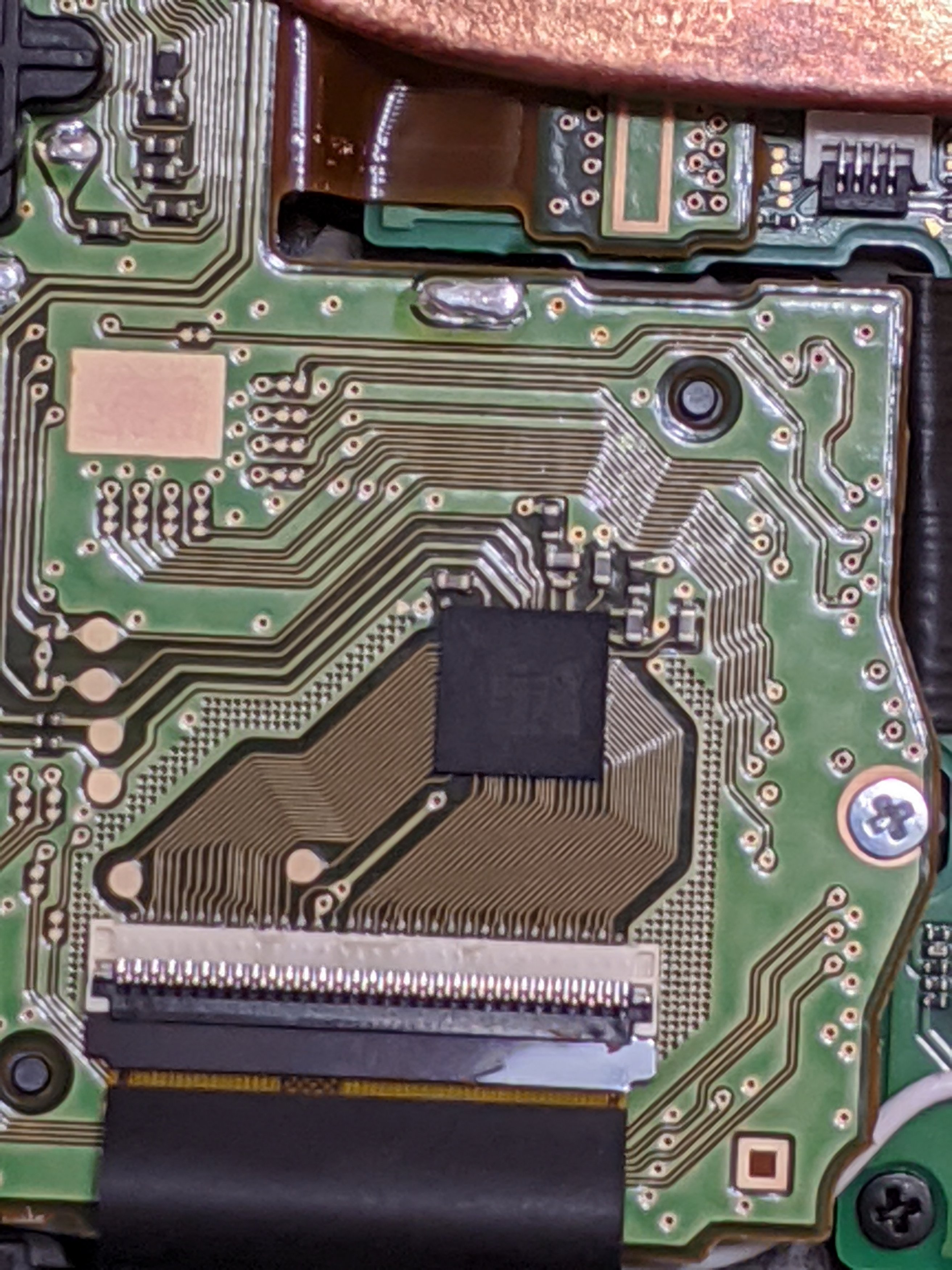

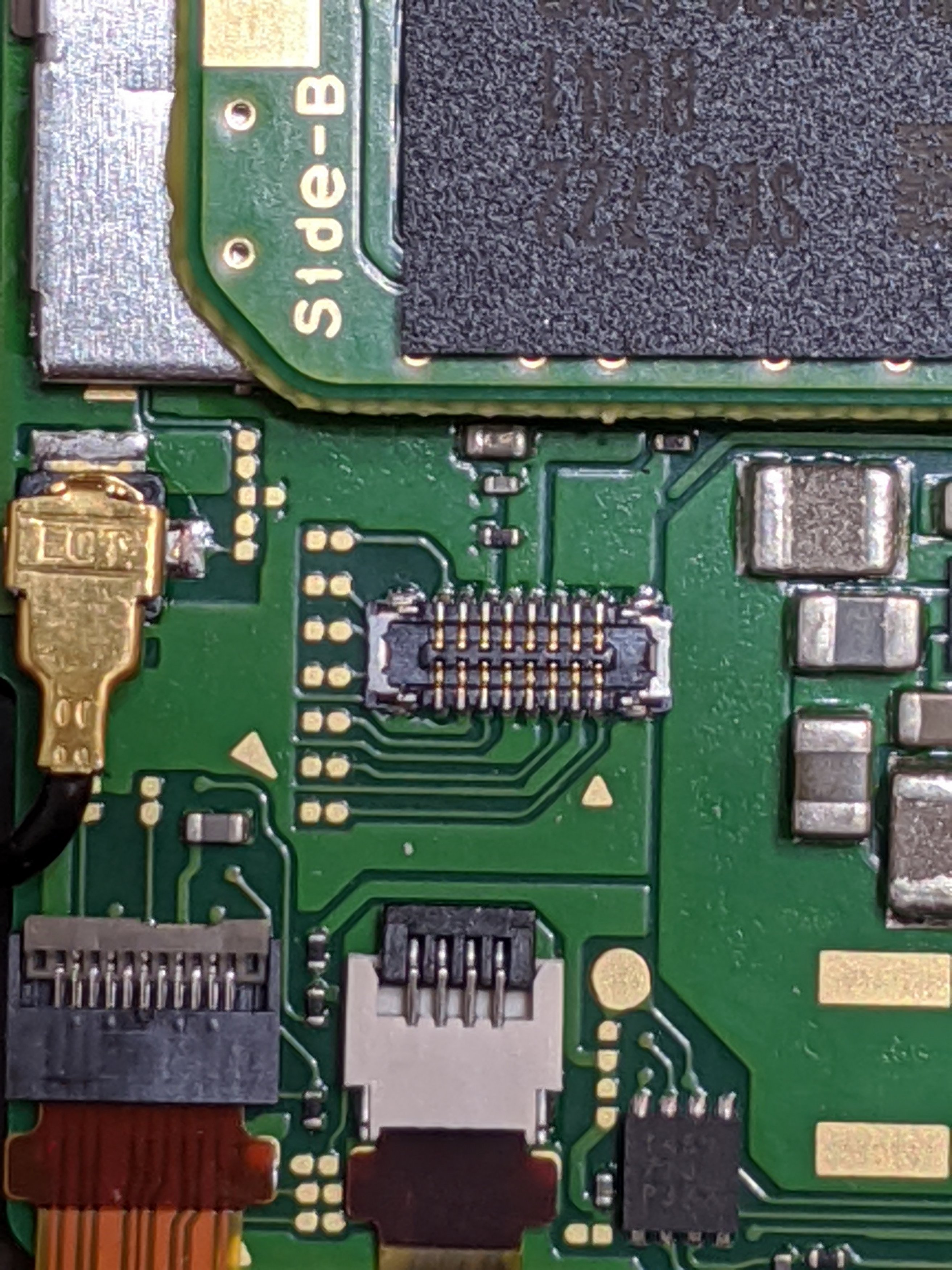

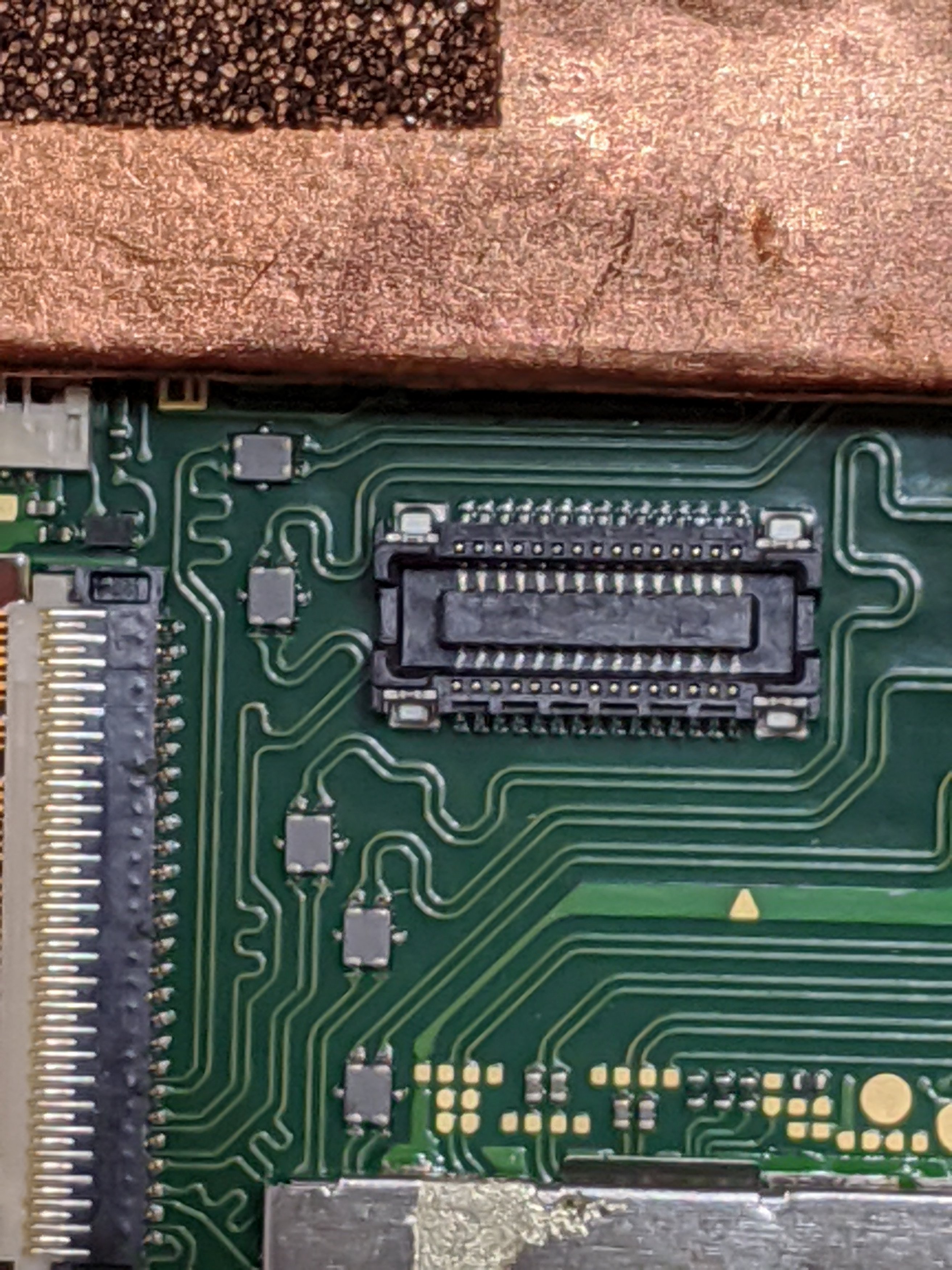

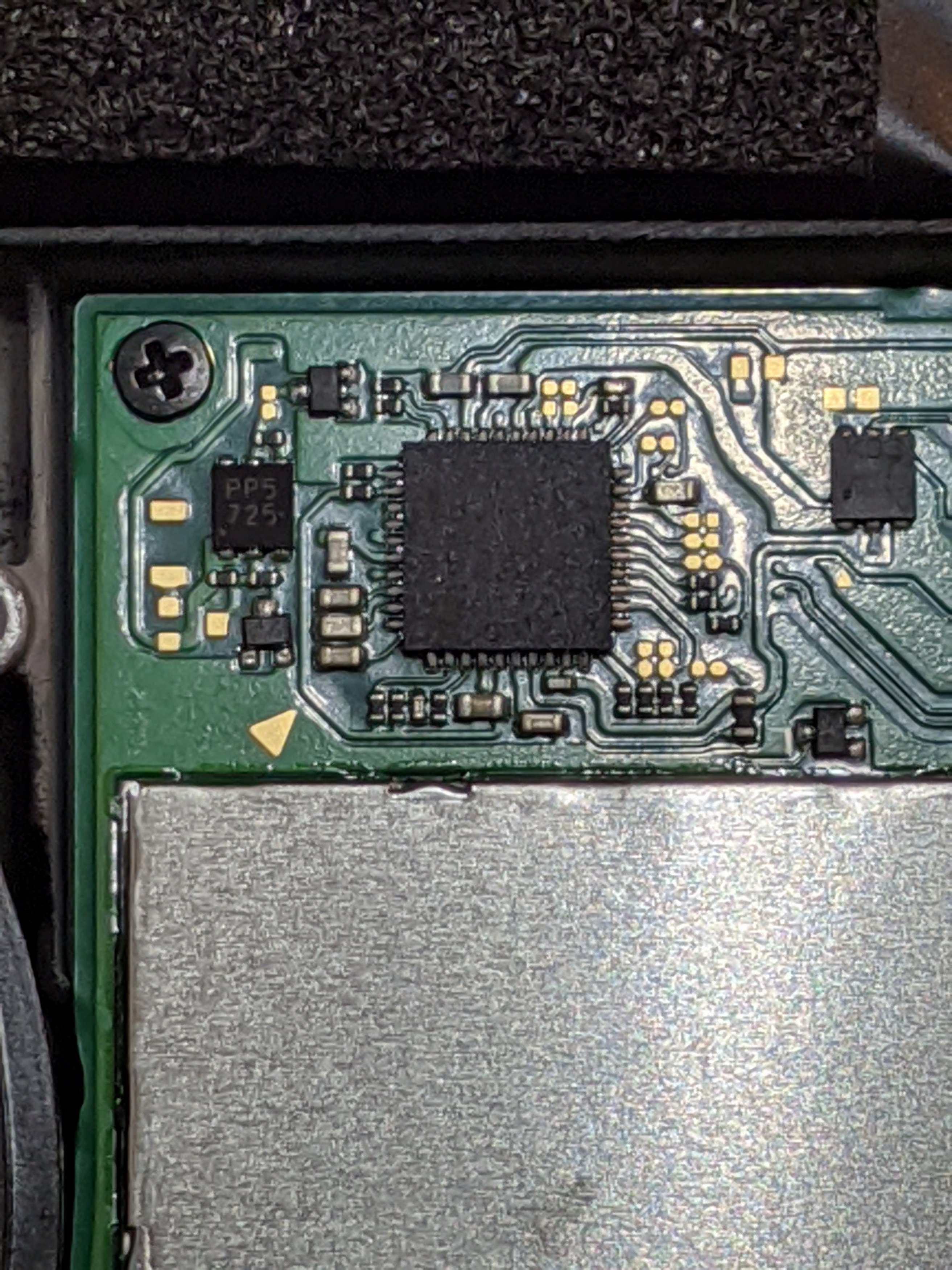

    I am attaching some pictures, I just moved around the motherboard, and the emmc module. Hopefully these will suffice. If not, please let me know and thanks again.
    IMG_20191216_191949.jpg IMG_20191216_192144.jpg IMG_20191216_192222.jpg IMG_20191216_192305.jpg IMG_20191216_192349.jpg IMG_20191216_192402.jpg IMG_20191216_192414.jpg IMG_20191216_192527.jpg IMG_20191216_192644.jpg

    Something I forgot to mention throughout this but, I always have "Warning: Sleep mode library is missing!" in Hekate. Not sure if that is anything of significance or not.

    — Posts automatically merged - Please don't double post! —

    Thanks for your help so far!

    Last edited: Dec 17, 2019
  14. Canna

    Canna Bad Ass Poisonous Mushroom
    Member

    Joined:
    Jul 14, 2018
    Messages:
    1,308
    Country:
    United States
    Your welcome, wish id of known about the no green light before the mention of sd card lol.. I think matty's right a short or blown cap probably, matty will help track it down, your gonna need a multi-meter budd

    Jamie Jenkins likes this.
  15. Jamie Jenkins

    OP Jamie Jenkins Member
    Newcomer

    Joined:
    Dec 7, 2015
    Messages:
    37
    Country:
    United States
    My apologies, I didn't realize that would have anything to do with it. I saw the failed to init SD and assumed that was the problem and didn't even think about the charging light.

  16. Qihua

    Qihua Newbie
    Newcomer

    Joined:
    Dec 18, 2019
    Messages:
    3
    Country:
    China
    RAM damage

  17. Jamie Jenkins

    OP Jamie Jenkins Member
    Newcomer

    Joined:
    Dec 7, 2015
    Messages:
    37
    Country:
    United States
    How did you figure that to be the issue and is there a way I can fix that if it is that?

  18. Qihua

    Qihua Newbie
    Newcomer

    Joined:
    Dec 18, 2019
    Messages:
    3
    Country:
    China
    I have a lot of motherboards that are as faulty as you. I think the RAM itself is bad. Next I will replace the RAM test.

  19. Jamie Jenkins

    OP Jamie Jenkins Member
    Newcomer

    Joined:
    Dec 7, 2015
    Messages:
    37
    Country:
    United States
    @mattytrog No rush or anything but I was wondering if you had a chance to look at the pics I posted of the motherboard yet?

  20. mattytrog

    mattytrog You don`t want to listen to anything I say.
    Member

    Joined:
    Apr 27, 2018
    Messages:
    3,664
    Country:
    United Kingdom
    I`m looking at your picture of memloader.

    Is that a "matrix" background that you have added? Or has it come on by itself?
