Picofly AIO Thread

[Adran_Marit]

Sir I'm going to have my hwfly modchipped oled replaced by picofly. will I have to worry.. is there anything I need to tell the technician?

That they will need to add 47 ohm 0805 smd resistors, remove the usb, 3.3v regulator and buttons after programming the chip.

Honestly I'd just keep the hwfly



[michaelventigan]

That they will need to add 47 ohm 0805 smd resistors, remove the usb, 3.3v regulator and buttons after programming the chip.

Honestly I'd just keep the hwfly

I’m specifically looking to avoid the hassle of having to “readjust” the dat0 adapter for the Hwfly every now and then just so my OLED boots up to LED colour green vs ( orange/yellow or red colour…sometimes and not booting to Hekate….can u please point me to a link or keywords to search that in the topic here in gbatemp…please anyone?



[BlownUpTurtle]

Sir I'm going to have my hwfly modchipped oled replaced by picofly. will I have to worry.. is there anything I need to tell the technician?

If there are no issues with the current install, why would you replace it?

Post automatically merged: Mar 23, 2023

I’m specifically looking to avoid the hassle of having to “readjust” the dat0 adapter for the Hwfly every now and then just so my OLED boots up to LED colour green vs ( orange/yellow or red colour…sometimes and not booting to Hekate….can u please point me to a link or keywords to search that in the topic here in gbatemp…please anyone?

Ok, just seen this, I would say this is probably more of an issue with the install than the chip, I’d get a different tech to take a look over it



[michaelventigan]

Because it is 10usd cheaper here and I’m relying on picofly being more stable than HWFLY…pls help



[Adran_Marit]

I’m specifically looking to avoid the hassle of having to “readjust” the dat0 adapter for the Hwfly every now and then just so my OLED boots up to LED colour green vs ( orange/yellow or red colour…sometimes and not booting to Hekate….can u please point me to a link or keywords to search that in the topic here in gbatemp…please anyone?

But the picofly also needs the dat0 adaptor on oled.

You would literally have thw same issue of needing to readjust it, if you currently have to readjust it



[BigHorse420]

The image section is a bit confusing without context, especially the mosfet part. I would suggest splitting it into a section about the rp2040 pinout, one about the connection points per console and one about the mosfet. Making clear that you can either use the CPU flex cable or manually attach a mosfet (with configurations for mariko and erista). The requirements also mention you can use a mosfet and/or the CPU flex but using both is not possible, and for the OLED you need the dat0 adapter, that could be mentioned in the requirements. Otherwise great start.

Post automatically merged: Mar 23, 2023

I would also put flynnsmt4 second in the credits, he put in a crazy amount of effort and knowledge to decrypt the firmware. We wouldn't have it without him.



[Adran_Marit]

The image section is a bit confusing without context, especially the mosfet part. I would suggest splitting it into a section about the rp2040 pinout, one about the connection points per console and one about the mosfet. Making clear that you can either use the CPU flex cable or manually attach a mosfet (with configurations for mariko and erista). The requirements also mention you can use a mosfet and/or the CPU flex but using both is not possible, and for the OLED you need the dat0 adapter, that could be mentioned in the requirements. Otherwise great start.

Post automatically merged: Mar 23, 2023

I would also put flynnsmt4 second in the credits, he put in a crazy amount of effort and knowledge to decrypt the firmware. We wouldn't have it without him.

I should have time tomorrow or over the weekend to edit it down more and make it more compressive



[DKAngel]

https://www.aliexpress.com/item/328...id=2023032306323817026001527224870009922518_1

is this what we are looking for in the resistors, and it is the 47k or 47R ones?
does anyone have a link tot he flex cable for the lite?
just trying to get a list all of ali, and see how much it is lol
and has anyone installed one with pics using the flex cable?



[jkyoho]

https://www.aliexpress.com/item/32858225842.html?spm=a2g0o.productlist.main.1.edda200cxFJVTs&algo_pvid=3e6b21db-eb43-4742-a32c-f94ef7cfe5c2&aem_p4p_detail=2023032306323817026001527224870009922518&algo_exp_id=3e6b21db-eb43-4742-a32c-f94ef7cfe5c2-0&pdp_ext_f={"sku_id":"65342762295"}&pdp_npi=3@dis!AUD!0.89!0.62!!!!!@211bd4cd16795783589432414d0745!65342762295!sea!AU!857127311&curPageLogUid=3JmH6aCk0KzP&ad_pvid=2023032306323817026001527224870009922518_1&ad_pvid=2023032306323817026001527224870009922518_1

is this what we are looking for in the resistors, and it is the 47k or 47R ones?
does anyone have a link tot he flex cable for the lite?
just trying to get a list all of ali, and see how much it is lol
and has anyone installed one with pics using the flex cable?

47R, 47 OHM



[linuxares]

https://gbatemp.net/threads/picofly-a-hwfly-switch-modchip.622701/post-10090767

Here if you guys want the current recommend mosfet and resistors. Its basically the info that @Adran_Marit try to collect and make easier to find said info in one collection



[DKAngel]

https://gbatemp.net/threads/picofly-a-hwfly-switch-modchip.622701/post-10090767

Here if you guys want the current recommend mosfet and resistors. Its basically the info that @Adran_Marit try to collect and make easier to find said info in one collection

just its not very clear

• 47-50 ohm resistors - SMD 08085 or smaller isnt it easier to write it as a SMD 0805 47R Resistor
• Mosfet (IRFSH8342 MOSFET) Is actually IRFHS8342
• And which hwfly cpu flex cable? and how is it actually installed with the flex cable and not the mosfet?
• soz just trying to build myself a list of stuffs to possibly have a play



[l7777]

I’m specifically looking to avoid the hassle of having to “readjust” the dat0 adapter for the Hwfly every now and then just so my OLED boots up to LED colour green vs ( orange/yellow or red colour…sometimes and not booting to Hekate….can u please point me to a link or keywords to search that in the topic here in gbatemp…please anyone?

Because it is 10usd cheaper here and I’m relying on picofly being more stable than HWFLY…pls help

You're missing the point, replacing HWFLY with picofly uses IDENTICAL points on the Switch. If you have a DAT0 problem with HWFLY, you'll have a DAT0 problem with picofly. You need to fix the problem (DAT0) not replace the modchip.



[handsom_tomato]

mariko v2

I tried to solder to the RST point of the eMMC, but it was too small and in the process, the land was removed. How can I connect to the RST now? Should I jumper to the left connector?



[3CP-andres-N]

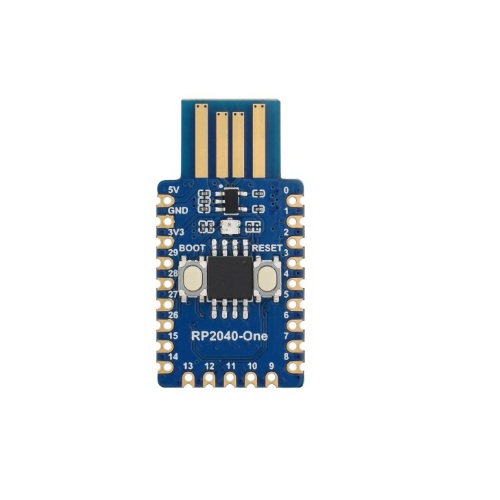

colleagues, the rp2040-one can be used to install and do the whole procedure, the size doesn't matter to me???



[LogicalMadness]

just its not very clear

• 47-50 ohm resistors - SMD 08085 or smaller isnt it easier to write it as a SMD 0805 47R Resistor
• Mosfet (IRFSH8342 MOSFET) Is actually IRFHS8342
• And which hwfly cpu flex cable? and how is it actually installed with the flex cable and not the mosfet?
• soz just trying to build myself a list of stuffs to possibly have a play

@Adran_Marit, lol, about those typos XD



[KingMo5h]

I think maybe I should modify Sx cable to fit this project, so that we could stay away completely with hwfly. The motivation behind this is I would like to prevent people from damage their APU with Mosfet and in the future, people don't have to buy spare part from hwfly.

WIP: Grab leaked sx cable design, transfer to Kicad and robust a little bit to suit with Pikofly project.
View attachment 360473

With oshpark, price is around 12$ for 3 flex cables, quite affordable right?
View attachment 360470

Where did you get the sx cable design from?



[linuxares]

Where did you get the sx cable design from?

they made it in a software?



[KingMo5h]

He wrote leaked, so i thought it would be already made and free for all.



[calishooter]

Quick question...so there's two files (fw_2.5_nw.uf2 and unlock.uf2) that need to be used. How do you use each one? Thanks!



[Donnie-Burger]

Quick question...so there's two files (fw_2.5_nw.uf2 and unlock.uf2) that need to be used. How do you use each one? Thanks!

I used the 2 file version on a v1 patched and all good - There is a combined one as well I havent tested.

All uf2s are same install - Plug zero in copy 2.5fw then repeat for unlock uf2. Just like trinket/gemma/etc
