Hacking Hardware Picofly - a HWFLY switch modchip

[jv_233]

Its not about skill, all is about tools.

A child could kill hundreds of people using automatic gun, and might only practice for 1 weeks.
But a child might not kill even single one using sword, and practice for month.

Tools matter.

That’s a weird analogy…



[abal1000x]

.



[LuigiGad]

I would kindly like to use V1 flexible cables on mariko, lite or OLED (V2) consoles. Is it possible to do this?can someone give me the pinout? Thank you



[lightninjay]

I would kindly like to use V1 flexible cables on mariko, lite or OLED (V2) consoles. Is it possible to do this?can someone give me the pinout? Thank you

Search the thread, has been asked MANY times, in MANY variants (Can I use V1 cable on V2? Can I use V2 cable on V1? Can I use mosfets off HWFLY cable?) PLEASE, search for this information.



[K-20]

Well it's done, with huge success.

First picofly install for testing in my own switch lite. I preferred make myself the mosfet glitcher. The soldering process is painful, same in microscope.


I was in doubt if was better start the installation test in my v2 or lite. How is basically for learning, I guess the micropoints solders of lite are a good teacher about difficulty with micro soldering. Next phase is try a oled installation from zero, included homemade mosfet glitcher

I confess: the micropoints of switch lite board for clock/cmd/dat0/ dive me in a frequent conspiracy about shortcut. I was made the soldering points near of 20 times, to certificate about the things are completely well done.

I'm Sorry !! What i need items, Can i do it ? rp2040-zero m and flex cable hwfly , My english very bad



[Adran_Marit]

Search the thread, has been asked MANY times, in MANY variants (Can I use V1 cable on V2? Can I use V2 cable on V1? Can I use mosfets off HWFLY cable?) PLEASE, search for this information.

People using a search function? ya kidding right?



[jam_tac_cool]

Any chance to add firmware support for waveshare RP2040-Tiny board?



[1337_Ninja]

Any chance to add firmware support for waveshare RP2040-Tiny board?

It's apparently working after replacing a few resistors.



[raksmey1231]

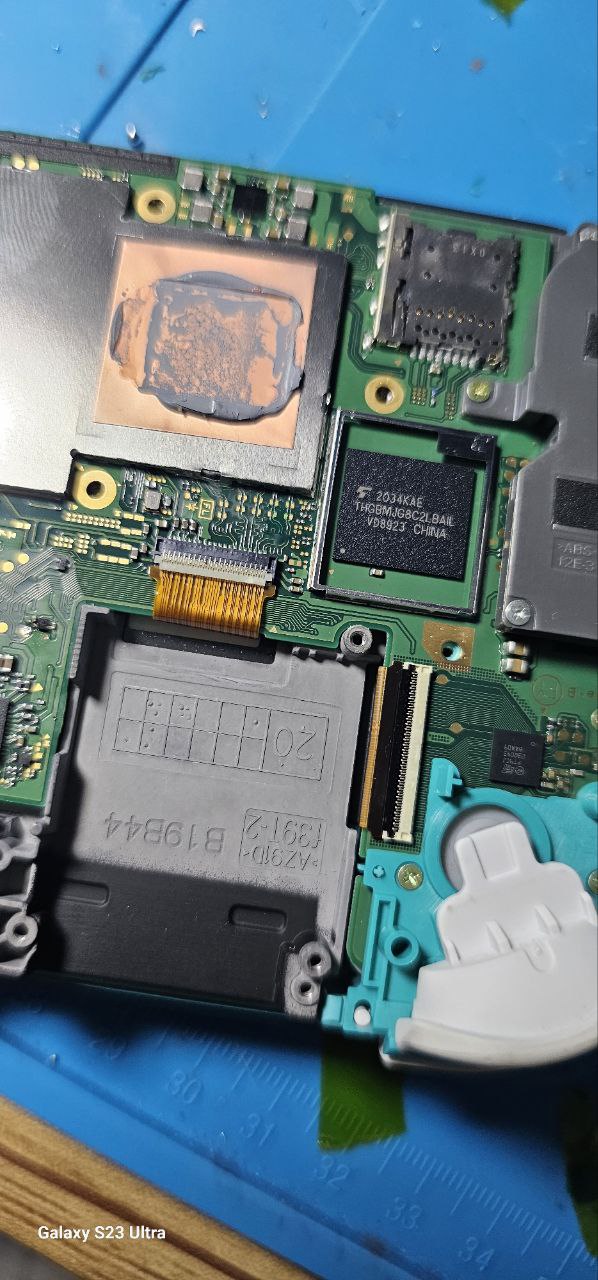

is this kioxia emmc support picofly ?



[ppeach]

Production of waveshare RP2040-Tiny appears to be delayed.
It was said here that it might be because they used a 470 ohm resistor instead of 47 ohms lol.

Post automatically merged: May 13, 2023

is this kioxia emmc support picofly ?
View attachment 371074

Toshiba's emmc is supported and works fine.



[QuiTim]

is this kioxia emmc support picofly ?
View attachment 371074

Kioxia=Toshiba
Toshiba=It works, no problem



[bilalhassan341]

I have the blue screen switch. I did the reflow to switch APU but switch turn on shows Nintendo logo and charging sign. Now, no blue screen but stuck after Nintendo logo or black screen. I try to install picofly on this switch to see what error light it will give. Picofly gives the pink light. Should I try to reflow the Emmc chip? But I also have two switches with picofly install.



[Browbon]

I've just finished my picofly installation. Now im struggling at this screen. What should i do next? Or where i can find some guides? i have 128gb samsung microsd card and have no idea to do with it.



[rsilveira1991]

Hi guys.
Is it normal the boot take about 10s glitchin sometimes?

Actually I changed the wires. Using AWG38 for RST, CLK, DAT and CMD. Others using AWG30



[noyes173]

help
what this problem
system 16.0.3
pico
0mV
Battery 00.0%
temperature 00.0C
cant control cant touch
cant in to system



[abal1000x]

.



[juanvlc]



[Modi]

how much you pay for it



[Dee87]

Installing pico on V2 or lite is not that difficult.
It is a matter of prior preparation and not using the proper tools and parts.

if u dont know how to solder u should not try this yourself if u do not want to break ur console if u dont GAF if the console breaks then try chances are 50/50.

in ur second sentence u say u dont need proper tools and parts
then u say u need

proper soldering iron tip, good quality flux, low-melting solder wire and hwfly flex cable.

what now ??

u also dont need a hwfly flex cable u only need the mosfets not the flex them self

if ur trying to give tips then please do it the proper way



[ppeach]

if u dont know how to solder u should not try this yourself if u do not want to break ur console if u dont GAF if the console breaks then try chances are 50/50.

in ur second sentence u say u dont need proper tools and parts
then u say u need


what now ??

u also dont need a hwfly flex cable u only need the mosfets not the flex them self

if ur trying to give tips then please do it the proper way

We apologize that the machine translation is not working.
I think it is coming across incorrectly.
I am trying to say that the problem is that you are not using the necessary tools.
Do not recommend MOSFET unreservedly.
It only increases the probability of failure and is meaningless for beginners and the general public.
