On v1 , V2 after remove port and buttons you can put the board on top of the shield after you pass it through the fan hole just like the hwfly core ,,

IMO, that sounds fine for a chip that can easily be disconnected and has highly secured flex cables. For these manual PFly installs, though, that could interfere with further disassembly AND be more susceptible to needing said disassembly.

Again IMO, you should always think about how you're going to work on the machine again, and make sure your 'install' has an 'uninstall path'. I have an idea for how to do this with PFlys, but I need parts. Send me all your broken joycons that have dead sticks AND *dead* batteries ;)

Switchs (Switches?) break a lot, they're portables, and now you've manually soldered wires to it as well. We're not corporations with machines, we can't GUARANTEE our solder joints will hold up to the abuse these things usually take, and now said connections are being fished through a hole and possibly pinched as well. The ability to easily remove parts and troubleshoot is priceless, HIGH chance you'll want\need to open it up again.

Interference shielding IS important, but I believe that is handled best by all the individual shields for the emmc\APU\RAM\WiFi. It seems the metal backplate doesn't really do much. So, since SOMETHING MUST be cut\removed (if even just RP2040 parts\board) to make room for MORE equipment to fit in a PORTABLE, my main target on any Switch is this plate. Sometimes the RP2040 board gets more removed and sometimes it's this shield (search the forums to figure out which I mean for which).

If anyone does a PFly install and now has all these tools that you don't plan to use again, idk what ur doing in the 1st place. Get back in there and upgrade the internal storage, or think of case swaps (don't buy cheap!), or, if it's a Lite, think about replacing the joysticks (hall effect?).

*Jimmy Valmer* I mean, come on...

*Edit*

  • Like
Reactions: QuiTim

QuiTim

Well-Known Member
Member
Joined
Mar 30, 2023
Messages
198
Trophies
0
XP
225
Country
Albania
can you post a picture
Same place just don't cut the shield and route the wires through top left corner
Post automatically merged:

In order to NOT cut the shield and fit the Picofly RP2040-Zero board:
  • For OLED --> USB + buttons removed and RP2040-zero on top of RAM heatsink (where HWFLY usually sits) --> there's at least 0.5mm distance between the shield and the RP2040 board upon final assembly.
  • For Lite --> USB + buttons removed and RP2040-zero on top of eMMC shield --> it's a perfect pocket when closing the shield, fits well and no pressure to RP board. (If you keep it on top of RAM heatsink, it will create a bump and force the assembly).
  • For V1/V2 --> don't know, will let others to comment.
You can get even a slimmer install if you remove as well the LDO on the back of RP2040.

Always remember to insulate everything (including the sides of the RP2040) with polyimide or similar tape.
I think this info is worth including in the next Definitive Guide update (with addition of the comment from @d.b)


Attachments

  • 20230421_102913.jpg
    1.3 MB · Views: 1
Last edited by QuiTim,

angelC992

Active Member
Newcomer
Joined
Mar 26, 2023
Messages
34
Trophies
0
Age
30
XP
60
Country
Spain
any idea to how do this without a dremel
Scissors. I have made it
Yes ir cyna problem with mosfer.Make now over 30 + oled check install
Post automatically merged:


oooo for me some problem :
hello dear, thanks for your order, but sorry to tell you that RP2040-Tiny-Kit has small quality problem, factory has recalled the products and reproduce. it need about another 1 month. Could you please extend the delivery time by another 1 month? if you need the products urgently, please cancel the order. Sorry for any inconvenience caused. regards, Gintech team

Same here.

I asked them if there's a SMD value resistors issue near of 26-27-28 points hahaha


QuiTim

Well-Known Member
Member
Joined
Mar 30, 2023
Messages
198
Trophies
0
XP
225
Country
Albania
CLEAN CUTS! You did that with an exacto-blade?
With a cheap box cutter. First time I applied little presure (to make a dent/path) then did another 2 passes through the same line with alot of pressure. Once you see the marks on the oposite side, just wiggle it 2-3 times and it snaps clean off leaves almost no residue.


LogicalMadness

Well-Known Member
Member
Joined
Nov 3, 2014
Messages
165
Trophies
0
Age
40
XP
296
Country
United States
With a cheap box cutter. First time I applied little presure (to make a dent/path) then did another 2 passes through the same line with alot of pressure. Once you see the marks on the oposite side, just wiggle it 2-3 times and it snaps clean off leaves almost no residue.

*Borat* Ah-very niceuh!

Derp, obvious when think about it.

Approach it just like...
sheet...
metal...


nico77

Well-Known Member
Newcomer
Joined
Apr 6, 2023
Messages
91
Trophies
0
Age
32
XP
114
Country
Indonesia
:mthr:
hello guys...

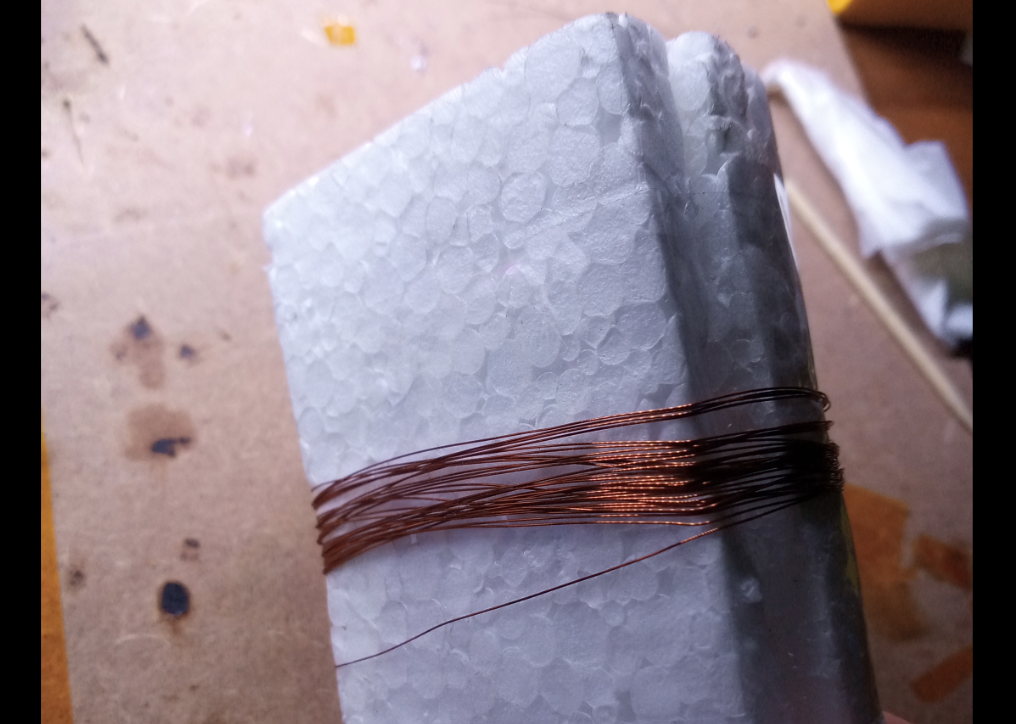

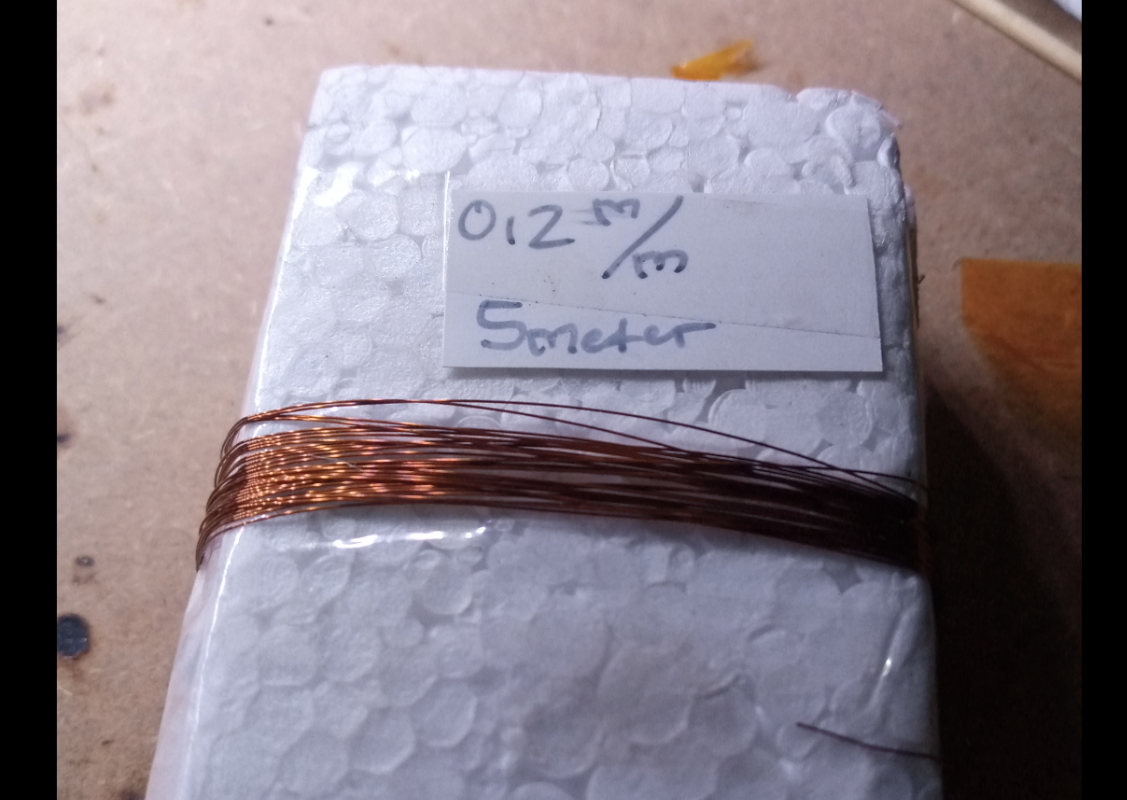

so im about to resolder back my mosfet, now im using enameled 0.2mm
Annotation 2023-05-09 193350.png

Annotation 2023-05-09 193406.png
but i got problem.

i cant melt the solder lead to the tip enameled
i wanted the lead solder melt and stick properly to the enameled point
mmmn.... any tips how to melt it ?

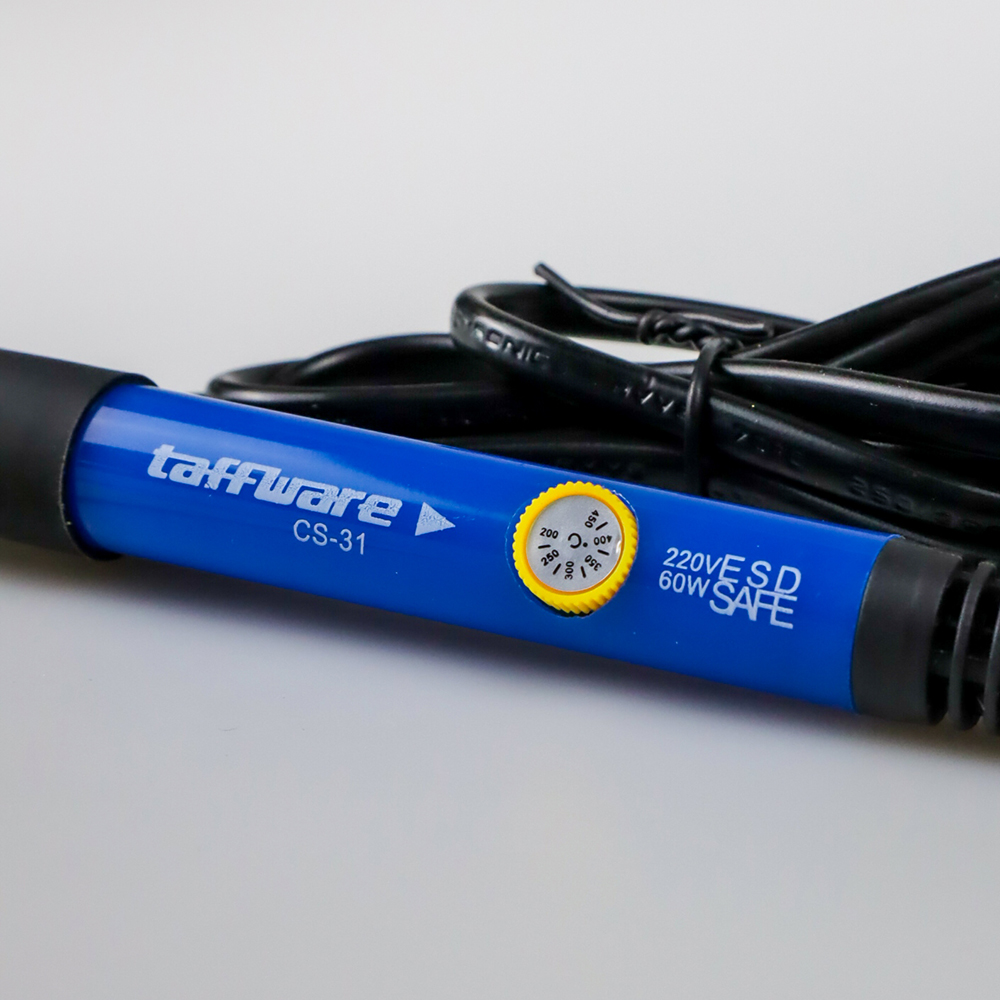

im using 300-350 heat

i follow this video :
SolderJS #135 - The BEST Way to Tin Enameled Wire

but still wont sticky:gun::gun::whip::shit:

help
thx:ninja::ninja::ninja::wacko:


(the purpose , so i can easily solder it to the cpu caps resistor from the mosfet D(drain) to the cpu caps.
Annotation 2023-05-12 015200.png

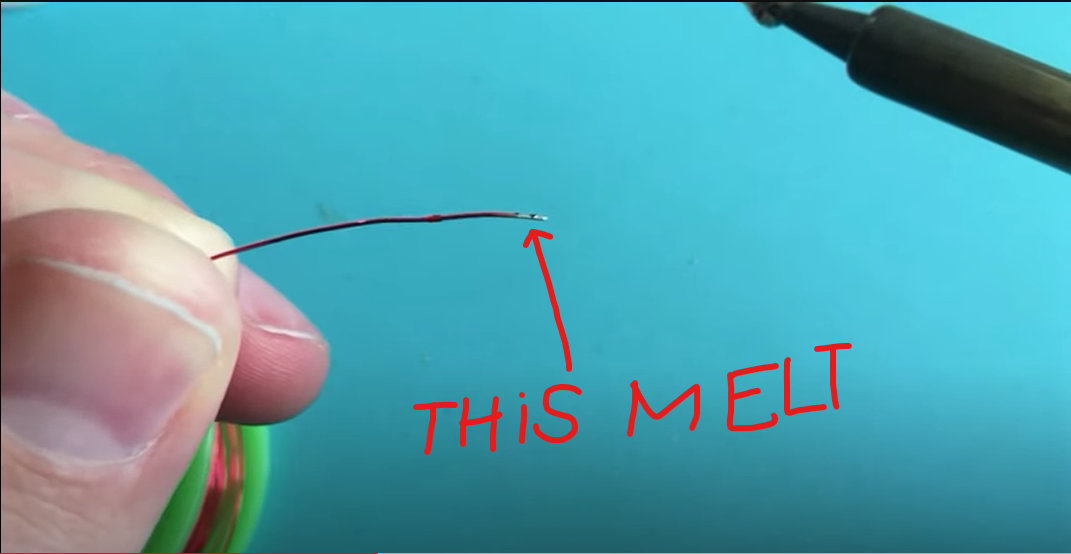

*this picture, i want my enamaled 0.2mm cable can be soldered melt like this !
(but ignore me, for other soldering i can do properly without no problem, my main help , just for the two cables to the tip cpu caps , help pls.)


QuiTim

Well-Known Member
Member
Joined
Mar 30, 2023
Messages
198
Trophies
0
XP
225
Country
Albania
:mthr:
hello guys...

so im about to resolder back my mosfet, now im using enameled 0.2mm
but i got problem.

i cant melt the solder lead to the tip enameled
i wanted the lead solder melt and stick properly to the enameled point
mmmn.... any tips how to melt it ?
im using 300-350 heat

i follow this video :
SolderJS #135 - The BEST Way to Tin Enameled Wire

but still wont sticky:gun::gun::whip::shit:

help
thx:ninja::ninja::ninja::wacko:


(the purpose , so i can easily solder it to the cpu caps resistor from the mosfet D(drain) to the cpu caps.
View attachment 370769
*this picture, i want my enamaled 0.2mm cable can be soldered melt like this !
(but ignore me, for other soldering i can do properly without no problem, my main help , just for the two cables to the tip cpu caps , help pls.)
You can scratch the insulation off the wire and then apply flux and solder.
You can create a small ball of melted solder on top if the iron and then put the wire in it and hold it for a couple of seconds until the insulation melts. Use temp above 350 for this. Also the ball of solder needs to be "wet" from flux because if the flux has already burned off then it will be much more difficult so you have to be quick about it.

  • Love
Reactions: LogicalMadness

nico77

Well-Known Member
Newcomer
Joined
Apr 6, 2023
Messages
91
Trophies
0
Age
32
XP
114
Country
Indonesia
You can scratch the insulation off the wire and then apply flux and solder.
You can create a small ball of melted solder on top if the iron and then put the wire in it and hold it for a couple of seconds until the insulation melts. Use temp above 350 for this. Also the ball of solder needs to be "wet" from flux because if the flux has already burned off then it will be much more difficult so you have to be quick about it.
if soldering succeed melt to the point(*when the insulation off), is it gonna fall off again ? the solder lead? or gonna sticky good ?
Annotation 2023-05-12 015200.png

Last edited by nico77,

Mgt

Member
Newcomer
Joined
Sep 2, 2021
Messages
12
Trophies
0
Age
23
XP
37
Country
Spain
Ok, i understand.
But why microSD after install pico not working?
If your sd cards don't work, you may have done some damage somewhere or directly your card slot is not working correctly.
Post automatically merged:

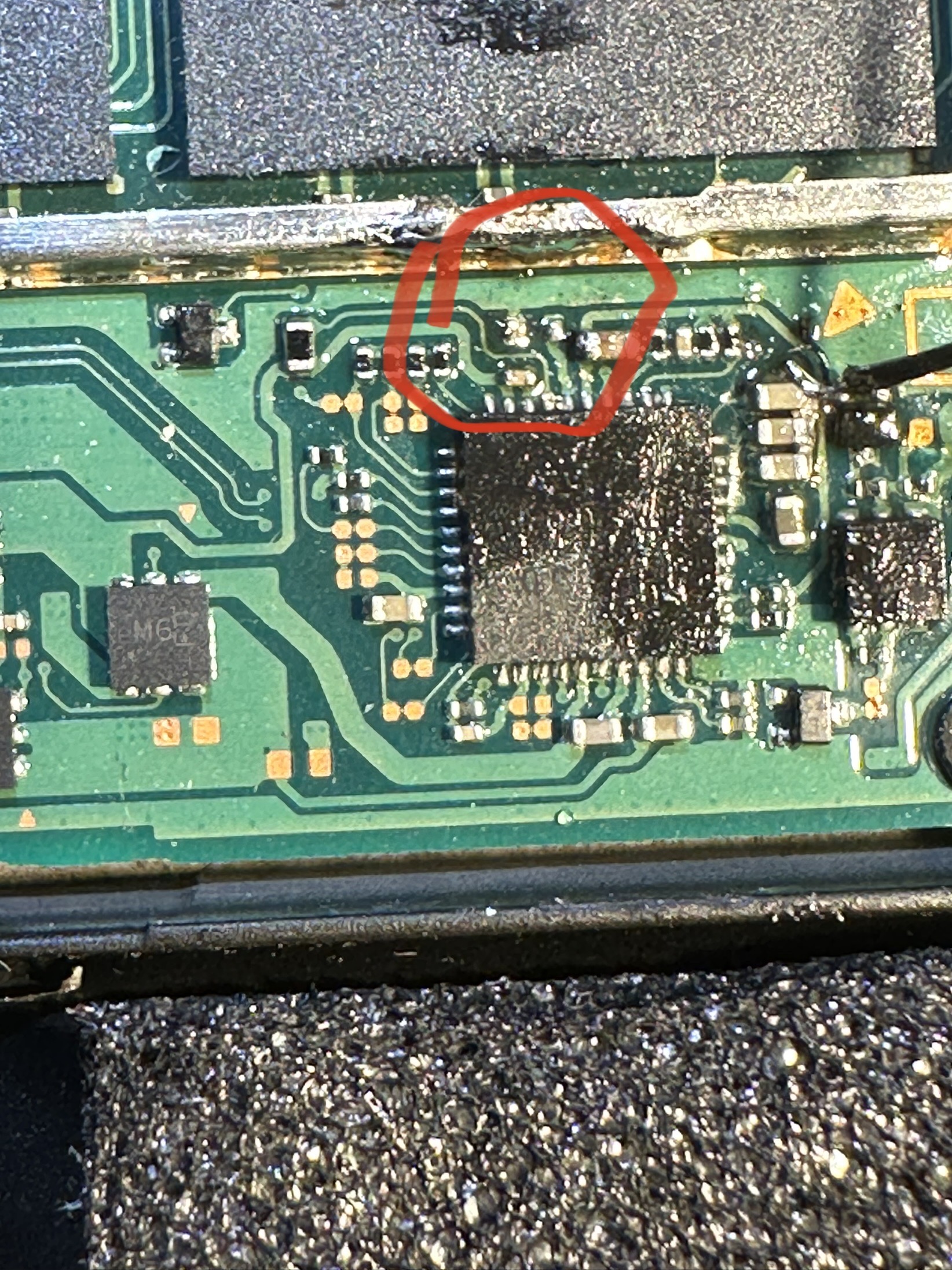

Can everyone say me How much Ohm here are at 3,3v loose mine :(
value of a capacitor from 1uf to 2.2 uf 6.3v size 0402

Last edited by Mgt,

Adran_Marit

Walküre's Hacker
Member
Joined
Oct 3, 2015
Messages
3,659
Trophies
1
Location
42*South
XP
4,251
Country
Australia
Just got an update from seller of RP2040Tiny "thanks for your order, but sorry to tell you that RP2040-Tiny-Kit has small quality problem, factory has recalled the products and reproduce. it need about another 1 month."
And now my wait begins...
Post automatically merged:


From the guide: "might be caused by not cleaned flux, bad soldering, lack of resistors, too long wires or too thin wires"
Had the same situation 3 days ago (on V1 unpatched switch). One additional 47R resistor on dat0 line solved the problem.
Maybe it was the wire (38awg single core) but I was too lazy to swap the wire so I tried the resistor first and it worked.
Small quality problem? translation; we misread the guide and are fixing these to have the correct resistors

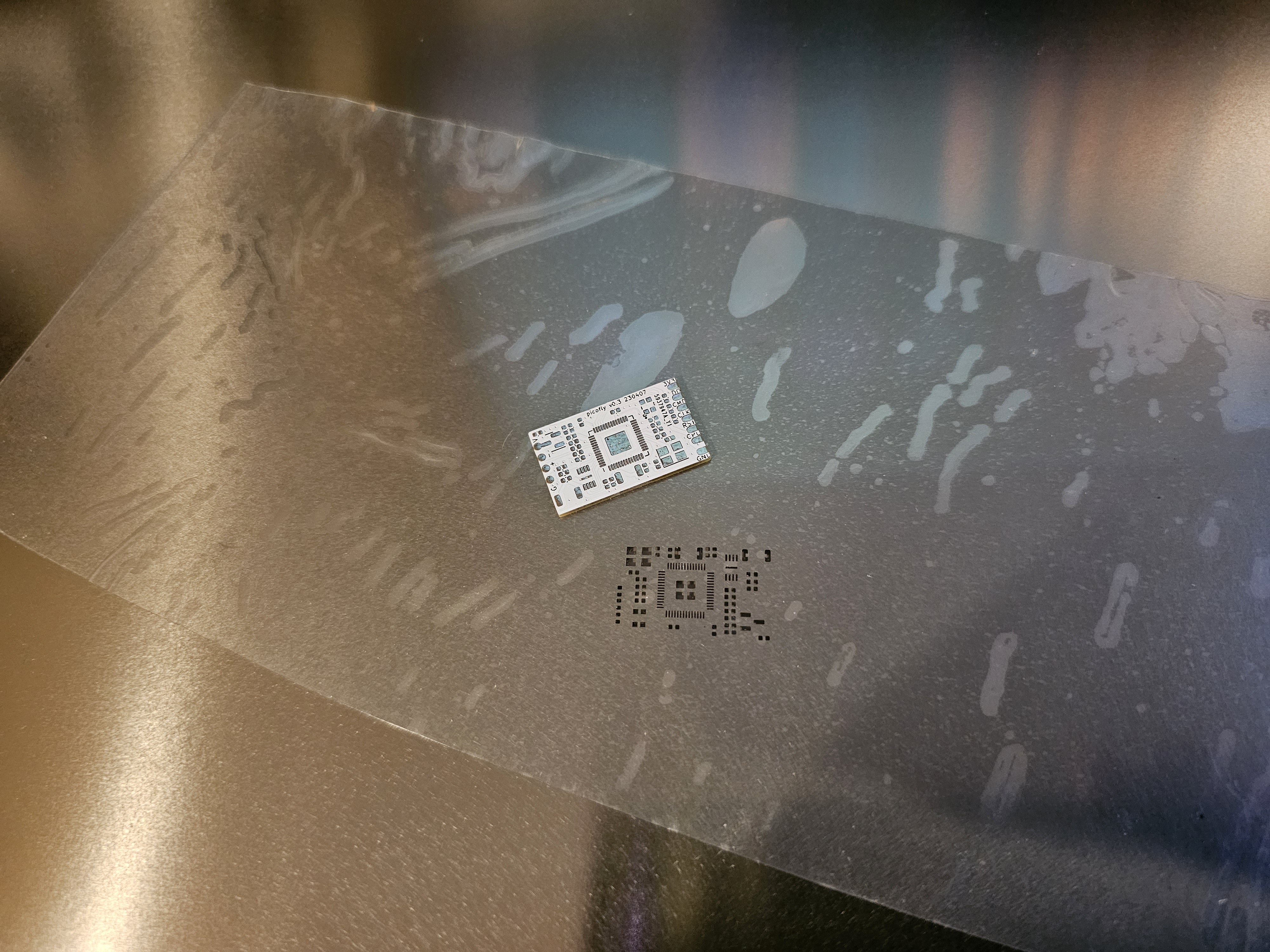

Sheet metal?
Now I'm curious
more or less thin sheets of metal, like no more than Id say half a mm thick


lightninjay

Well-Known Member
Member
Joined
Mar 28, 2023
Messages
241
Trophies
0
Age
30
XP
463
Country
United States
Again, just answer his question. It will make him learn.
Just as he is free to ask a question, we are free to answer it as we wish. If an answer involves telling someone to take it to a professional, it may not be the answer the person wanted to hear, but it is still an answer.
