ns-atmosphere injector RCM pins wrong?

[Rogerss]

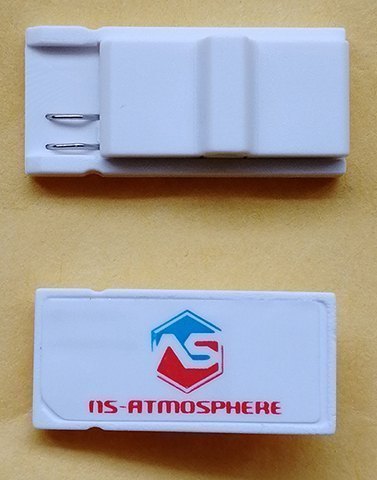

I have a ns-atmosphere injector bought years ago and it came with a RCM Jig but to me the pins look to be in the wrong place to work.



[wiiNinja]

That looks ok. I believe there are multiple ground pins on that connector. I have two jigs, one looks like yours, and another one has the two outer-most pins shorted. Both work.



[OkazakiTheOtaku]

I have a ns-atmosphere injector bought years ago and it came with a RCM Jig but to me the pins look to be in the wrong place to work.

That's fine. All that device needs to do is ground one of the pins, and there are two grounds on the joycon rail.



[Rogerss]

The newer ones are more spaced apart.



[Hayato213]

Looks the same to mine



[Draxzelex]

I have a ns-atmosphere injector bought years ago and it came with a RCM Jig but to me the pins look to be in the wrong place to work.

The pins look fine.
