Hardware Nintendo switch hardware question

Thread starter Maugereblan
Start date Oct 31, 2019
Views 2,549
Replies 3

M

Maugereblan

New Member

OP

Newbie

Oct 31, 2019

#1

Nintendo switch what is the component 7c above usb c?

French
[Nintendo switch quel est le composant 7c au-dessus de usb c]

MaxiBash

Your Local Random Internet Geek

Member

Oct 31, 2019

#2

That is not a tutorial. And this is a question I cannot understand. Can you explain in detail what your question is?

x65943

pronouns big/pingus

Supervisor

Oct 31, 2019

#3

You might have luck asking here

https://gbatemp.net/threads/compone...stly-the-motherboard-and-main-console.525026/

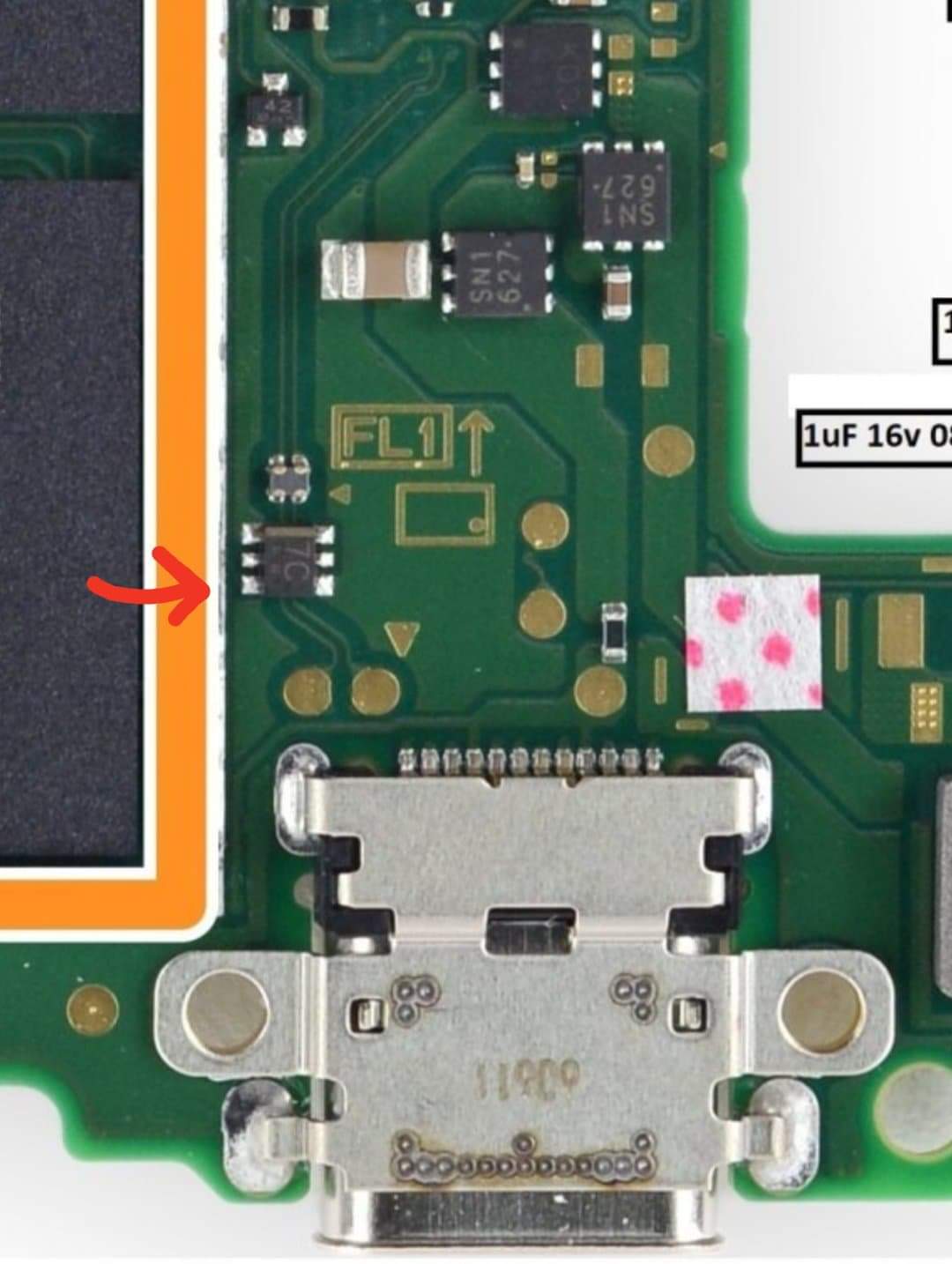

This is what he is asking about

Agilato

Well-Known Member

Member

Oct 31, 2019

#4

TPD2E1B06Dual-ChannelHigh-SpeedESD Protection Device for USB Interfaces
https://ro.mouser.com/ProductDetail/Texas-Instruments/TPD2E1B06DRLR?qs=/ha2pyFadujfVVo4QvQjnfZrM6kov8t4mcvTQtueJns=

It can work without it, some board revisions doesn't have them at all, if you have short between middle pin and others on the same side just remove it. (RED)
It should have continuity between middle pin and corner grounded pin on other side. (GREEN)

Last edited by Agilato, Oct 31, 2019

Reactions: MaxiBash and FXDX
