Hardware N3DS micro sd card reader broken?

chatregla

Member
OP
Newcomer
Joined
Aug 13, 2018
Messages
19
Trophies
0
XP
278
Country
Austria
Hello.
So my problem is that my N3ds can't read the micro sd card anymore. I disassembled my 3ds to fix the NFC and after that my micro sd card doesn't work. Now i can't start my 3ds. When the sd card is in and if i turn it on, the screens stay black and the blue light and if i boot the 3ds without the sd card then this error comes:
An error has occurred: Failed to apply 1 Firm patch(es).
Press any button to shutdown.
i can acces Godmode9, Luma configuration but without the sd card in it!
My sd card is fine. I really hope the sd card reader is broken and not the connction on the mainboard.
If you have any tips pls help me!


Robika

Well-Known Member
Member
Joined
Mar 14, 2010
Messages
382
Trophies
0
Age
30
Location
Spain
XP
1,474
Country
Hey there!
Bad luck ma men!
Here what you can do! Look onto the slot if you can and see if any pins are bent, this happened to my EZ Flash IV on the GBA and I was able to fix it. Also if you have compressed air spray or something you can give it a blow but after that let it dry a little since the sprays always come with some water in them.
Other than that re-solder the connector or a new one.
Good luck and don't...fuck it up!


chatregla

Member
OP
Newcomer
Joined
Aug 13, 2018
Messages
19
Trophies
0
XP
278
Country
Austria
Try taking the 3DS apart again and reconnect the microsd card reader
I did but with no success :(

--------------------- MERGED ---------------------------

Hey there!
Bad luck ma men!
Here what you can do! Look onto the slot if you can and see if any pins are bent, this happened to my EZ Flash IV on the GBA and I was able to fix it. Also if you have compressed air spray or something you can give it a blow but after that let it dry a little since the sprays always come with some water in them.
Other than that re-solder the connector or a new one.
Good luck and don't...fuck it up!

Yeah spray didn't helped either :(
If i have to solder it iam fucked up haha.
Here some pictures of the connection:

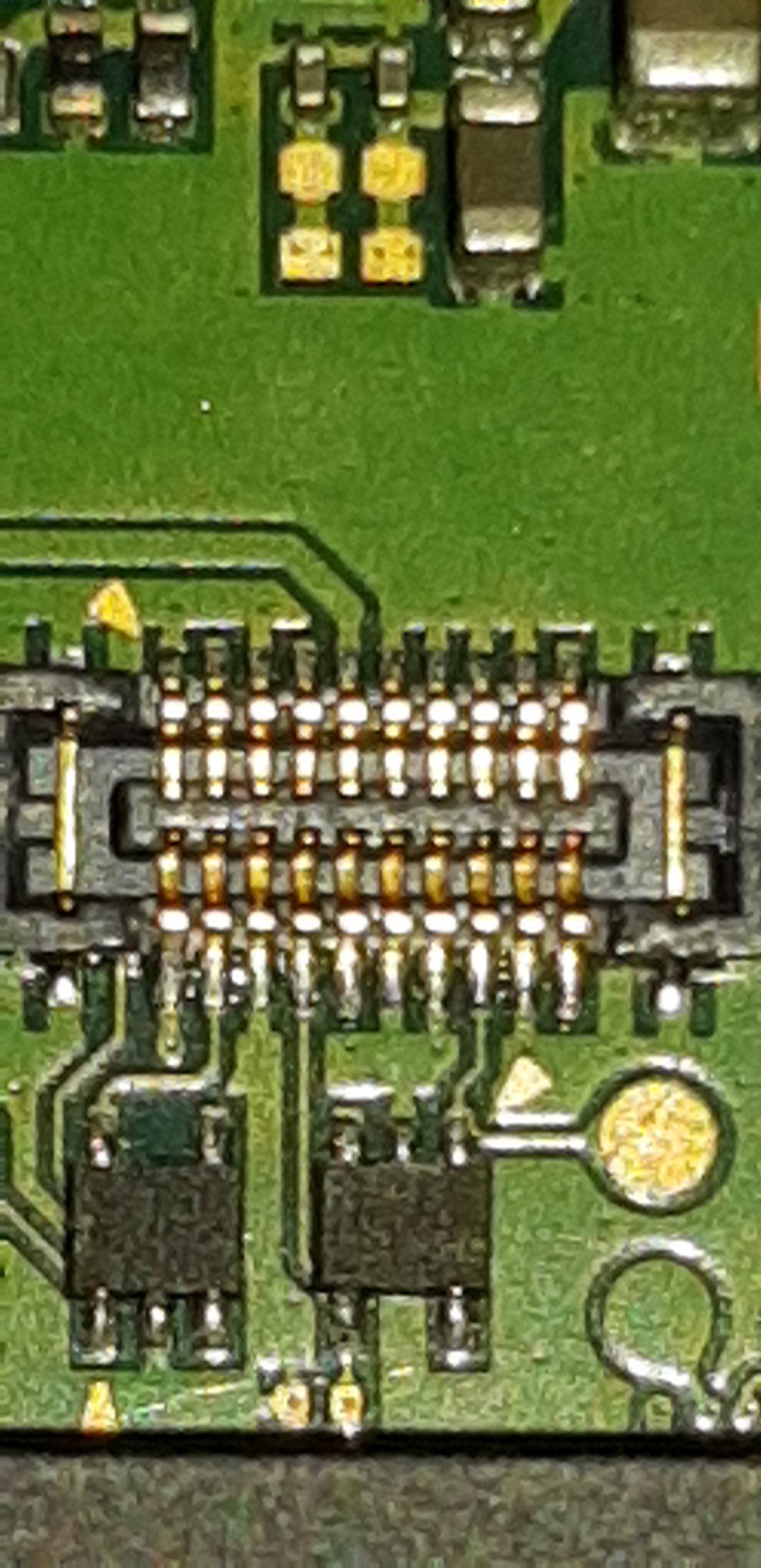

The connection on the board

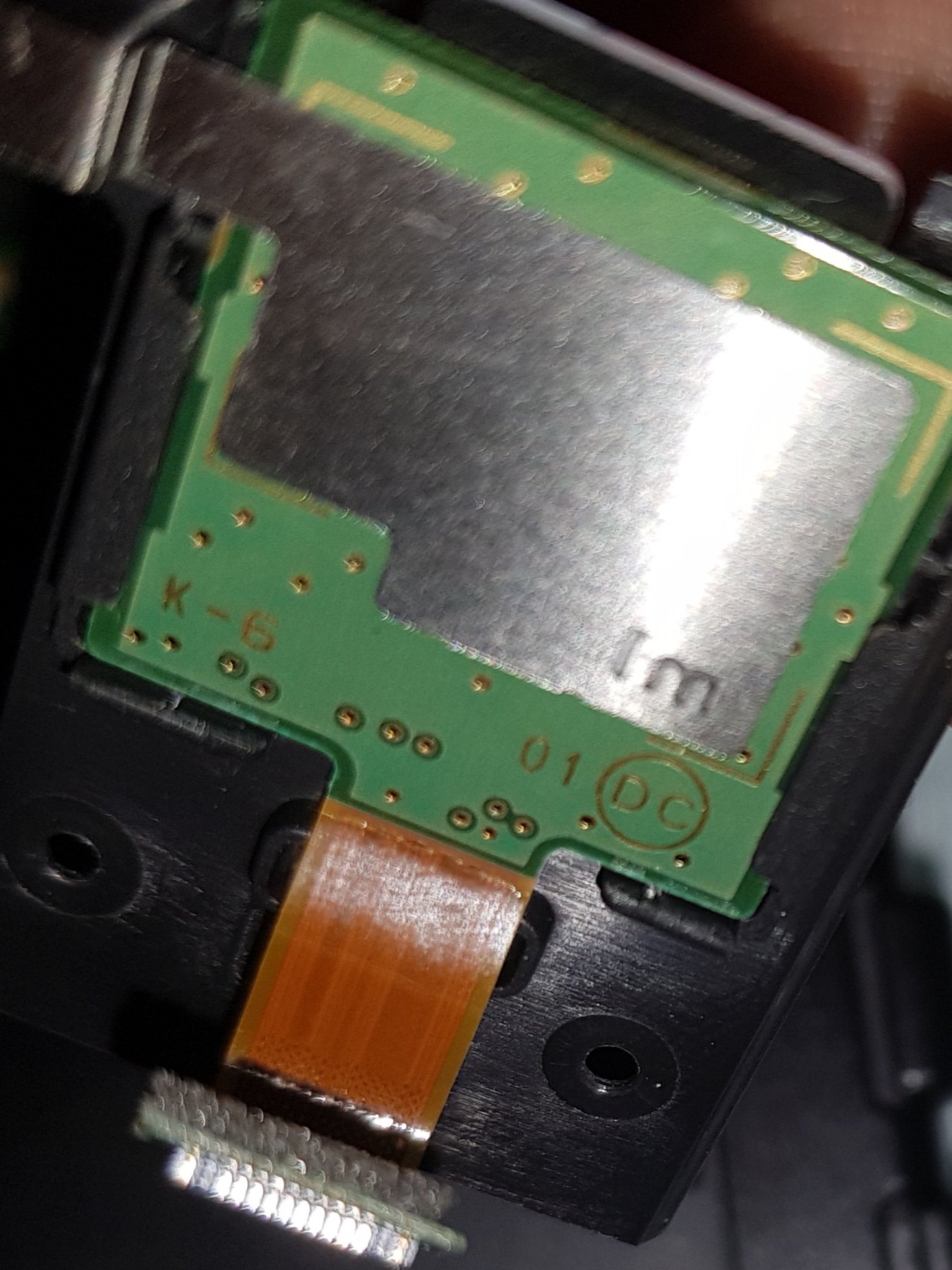

The sd card reader connection.

--------------------- MERGED ---------------------------

If reconnecting the SD card adapter to the board doesn't work, you can try to get a replacement one on ebay.
Yeah I ordered one today. I hope it will work.

Last edited by chatregla,

Hayato213

( -_・) ︻デ═一' * (/❛o❛)/
Member
Joined
Dec 26, 2015
Messages
10,585
Trophies
1
Location
Vector Industry
XP
5,481
Country
United States
Your connection looks fine, so probably just the adapter since you never done any soldering, the contact point doesn't look burned.

--------------------- MERGED ---------------------------

Your connection looks fine, so probably just the adapter since you never done any soldering, the contact point doesn't look burned.

Did you check that the cable of the adapter is connected to the board when attempting to connect it?

  • Like
Reactions: chatregla

chatregla

Member
OP
Newcomer
Joined
Aug 13, 2018
Messages
19
Trophies
0
XP
278
Country
Austria
Your connection looks fine, so probably just the adapter since you never done any soldering, the contact point doesn't look burned.

--------------------- MERGED ---------------------------



Did you check that the cable of the adapter is connected to the board when attempting to connect it?

Yes of course.

Your SD reader looks fried.


This isn't the board.

Joined
Jan 1, 2018
Messages
7,292
Trophies
0
XP
5,813
Country
United States

chatregla

Member
OP
Newcomer
Joined
Aug 13, 2018
Messages
19
Trophies
0
XP
278
Country
Austria
  • Like
Reactions: TurdPooCharger

Xalusc

Well-Known Member
Member
Joined
Apr 7, 2013
Messages
139
Trophies
0
Location
Zhōngguó 中国
XP
655
Country
China
and if i boot the 3ds without the sd card then this error comes:
An error has occurred: Failed to apply 1 Firm patch(es).
Press any button to shutdown.

You probably didn't update Luma on the CTRNAND. That's easy to fix.
About the SD, try inserting it on your PC with a microSD to SD adapter and see if your PC can read it.
