    I have a Kiosk model n2DS XL Kiosk model.
    Kiosk models will not power on without being plugged into a wall. So I have to have it plugged in at all times. I tried to do my search for a way to rewire this thing. I was able to find a link on to reddit of a someone who has a n2DS XL kiosk and cut a wire and supposedly fixed it. I was able to find the same wire in mine and I cut it. However this has made no change in how the device functions. It still will not stay powered on without being plugged in.

    Does anyone have any other fixes for this? I'm okay with the idea if I have to solder anything. I have the technology lol.

    I was able to find two images online. Image on left has the wire and is the kiosk model and the one on the right is a retail version. So in removing this wire should have fixed it but it didnt. Any other ideas?
    n2dsxl.jpg kUU8ZpO.jpg

  2. TurdPooCharger

    Member

    Joined:
    Jan 1, 2018
    Messages:
    7,292
    Country:
    United States
    Put that kiosk n2DSXL's battery in another 3DS/2DS system. Check if the battery takes a charge.

  3. Silvian

    OP Silvian Newbie
    Newcomer

    Joined:
    Apr 17, 2020
    Messages:
    5
    Country:
    United States
    Been a while but finally updating, Battery is receiving charge. Also we noticed that just below the wire in the picture there is 1 empty spot for a resistor, and 2 resistors next to in, meanwhile in image on the right there is 3 resistors.

    So new question. Would we need to get our hands on another resistor and solder it? And if so what kind of resistor.

  4. Silvian

    OP Silvian Newbie
    Newcomer

    Joined:
    Apr 17, 2020
    Messages:
    5
    Country:
    United States
    Been a while but finally updating, Battery is receiving charge. Also we noticed that just below the wire in the picture there is 1 empty spot for a resistor, and 2 resistors next to in, meanwhile in image on the right there is 3 resistors.

    So new question. Would we need to get our hands on another resistor and solder it? And if so what kind of resistor.

  5. KleinesSinchen

    KleinesSinchen GBAtemp's Backup Reminder + Fearless Testing Sina
    Member

    Joined:
    Mar 28, 2018
    Messages:
    2,013
    Country:
    Germany
    Which resistor is missing? Can't find it.

    Please mark it on the picture. I have a retail N2DSXL motherboard at hand for trying to measure the resistor.

  6. Silvian

    OP Silvian Newbie
    Newcomer

    Joined:
    Apr 17, 2020
    Messages:
    5
    Country:
    United States

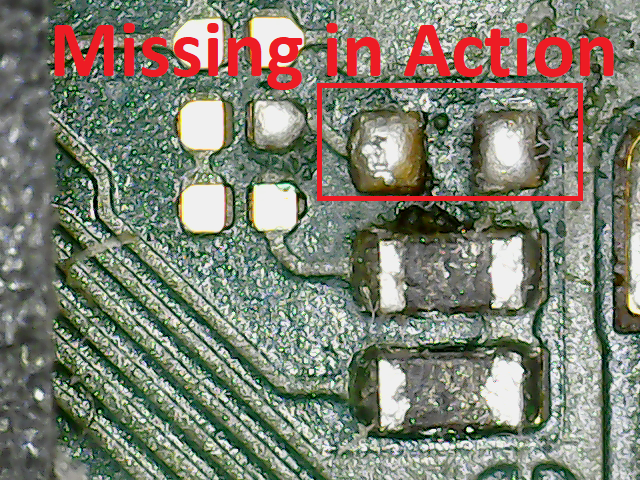

    You may have to zoom in but there it is. The one on left is Retail version. The one on right is a zoomed in version of our Demo model.


    Attached Files:

    Last edited by Silvian, Nov 24, 2020
    KleinesSinchen likes this.
  7. KleinesSinchen

    KleinesSinchen GBAtemp's Backup Reminder + Fearless Testing Sina
    Member

    Joined:
    Mar 28, 2018
    Messages:
    2,013
    Country:
    Germany
    Got a value of roughly 10kΩ on each of those three resistors.

    No idea if this missing piece is the problem. Good luck with micro-soldering. Looks HARD.

    TurdPooCharger likes this.
  8. Silvian

    OP Silvian Newbie
    Newcomer

    Joined:
    Apr 17, 2020
    Messages:
    5
    Country:
    United States
    Thank you for checking for us. I say us as in my BF and I. We been planning if we can figure out what resistor it is we can attempt to get it on there. We have the tools. lol "We have the Technology."

    KleinesSinchen likes this.
