Hardware How I fixed 160-0103 system memory error

Ysecond

Well-Known Member
Member
Joined
Apr 27, 2023
Messages
187
Trophies
0
Age
26
XP
498
Country
China
It doesn't appear like you have any corrupted files at all, yet there are MEDIA ERRORS.
Huh.
I really have no idea about media errors.
I tried to modify cafe.xml to initiate factory reset, but it will freeze in the factory reset too.
I realize the media errors, but I don't know what it means.


SDIO

Well-Known Member
OP
Member
Joined
Feb 13, 2023
Messages
2,471
Trophies
0
Age
28
XP
1,732
Country
Germany
Could still be a mlc problem. Maybe the error is just in some fs metadata, that isn't used when the mlc check runs runs. The error seems to only convern this one LBA: 131072

Also it methions only
Code:
path:/
so the root directory and not a file.

There is a procedure to format the mlc through the recovery. I mentioned it somewhere but there is no real tutorial and everything has to go right on the first try.
@Lazr1026 did this procedure a few times I think.


Ysecond

Well-Known Member
Member
Joined
Apr 27, 2023
Messages
187
Trophies
0
Age
26
XP
498
Country
China
The error seems to only convern this one LBA: 131072
Perhaps I can try blindly installing all titles.
I mentioned it somewhere
Yes, I have already read it. It requires de_ Fuse, and more pi pico. To welcome it, I designed a PCB,and the PCB looks very stupid, It hasn't been finalized yet.
Thank you for everything.


Attachments

  • 91206f08ef5494a14a624d920543701.png
    61.2 KB · Views: 52

SDIO

Well-Known Member
OP
Member
Joined
Feb 13, 2023
Messages
2,471
Trophies
0
Age
28
XP
1,732
Country
Germany
No you can do it without defuse if the recovery works.
It's basicly launching the recovery with wupserver early enough (before display inits) and then using a custom wupclient to format the mlc, create essential folders and reinstalling all the mlc titles.


SDIO

Well-Known Member
OP
Member
Joined
Feb 13, 2023
Messages
2,471
Trophies
0
Age
28
XP
1,732
Country
Germany
Do a backup using the modfied recovery.

For the format part I don't have capacity right now to guide you through it. Especially as there is no room for errors.


SDIO

Well-Known Member
OP
Member
Joined
Feb 13, 2023
Messages
2,471
Trophies
0
Age
28
XP
1,732
Country
Germany
that's with the code optimized for hynix.
For this console I would use the older one, without the hynix optimizations


Ysecond

Well-Known Member
Member
Joined
Apr 27, 2023
Messages
187
Trophies
0
Age
26
XP
498
Country
China
Do a backup using the modfied recovery.

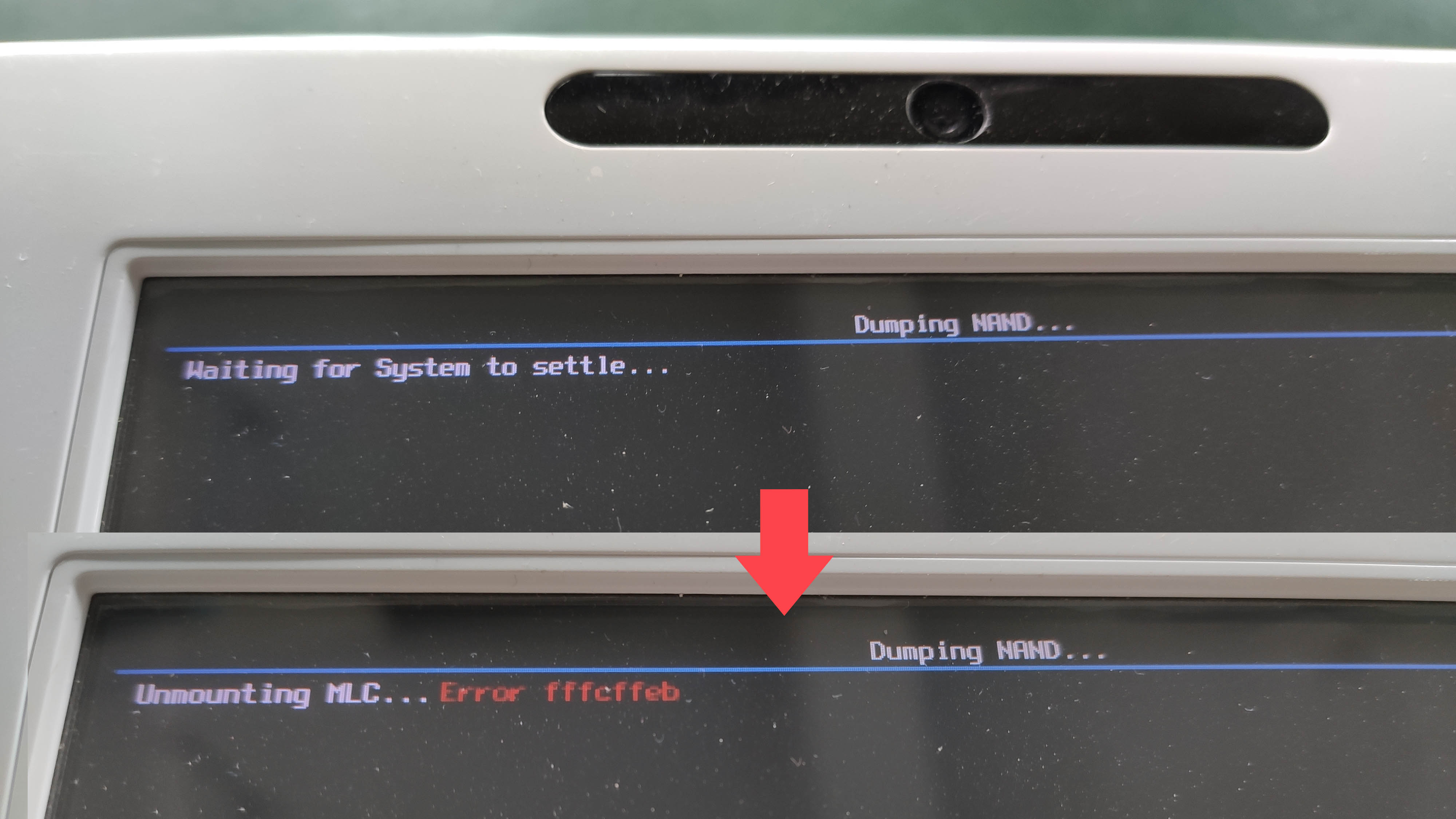

I used the old modfied recovery for dumping and received this reply, and the console will get stuck.
I can't waste too much of your time, SO I'll put this console aside for now, maybe well try using de_ Fuse rebuild MLC later.
Thanks ! :lol:


Attachments

  • 123.jpg
    490.5 KB · Views: 61
Last edited by Ysecond,

SDIO

Well-Known Member
OP
Member
Joined
Feb 13, 2023
Messages
2,471
Trophies
0
Age
28
XP
1,732
Country
Germany
Just wait a little longer till you start the dump. Maybe the mlc was still accessed and thus preventing the unmount


Ysecond

Well-Known Member
Member
Joined
Apr 27, 2023
Messages
187
Trophies
0
Age
26
XP
498
Country
China
I just successfully dumped MLC ,have no errors(errors 0,bad sectors 0).
I tried using wupclient to delete some titles,like :
Code:
delete_title("/vol/storage_mlc01/usr/title/00050000/10105700")
delete_title("/vol/storage_mlc01/usr/title/00050000/10136100")
Then enter “ w.ls( ) ” confirms that they have been successfully delete, but when I restarted the console, those titles appeared again, as if they had never been deleted.
I am trying to install some title, SLC title successfully installed, but MLC title never succeeded.
I think MLC is read-only state.


Ysecond

Well-Known Member
Member
Joined
Apr 27, 2023
Messages
187
Trophies
0
Age
26
XP
498
Country
China
flush_mlc()
I do it everytime,super sure.
I can't delete a sys title:
Code:
>>> delete_title("/vol/storage_mlc01/sys/title/00050030/1001600A")
0x152044
delete title : 0xfffbfffbL
0x0
>>> flush_mlc()
0x153044
0x0
0x0
>>> w.ls("/vol/storage_mlc01/sys/title/00050030")
     10010009/
     1001000a/
     10011009/
     1001100a/
     100110ff/
     1001200a/
     1001300a/
     1001400a/
     1001500a/
     1001600a/
     10017009/
     1001700a/
     1001800a/
     1001900a/
     1001a10a/
     1006d00a/
>>> w.ls("/vol/storage_mlc01/sys/title/00050030/1001600A")
     code/
     content/
     meta/
>>>


SDIO

Well-Known Member
OP
Member
Joined
Feb 13, 2023
Messages
2,471
Trophies
0
Age
28
XP
1,732
Country
Germany
this block probably holds some important fs metadata. I don't think this can be solved without formatting the mlc.
Maybe if you overwrite that LBA, the eMMC won't report an error, but then I would expect the wfs to produce a DATA CORRUPTION error.

For now we have the tutorial for using defuse with stroopwafel to format and rebuild the mlc, but it can also be done from recovery. It just needs some good preparation or else it will brick and you would need to defuse anyway.

Maybe the ISFShax, that exists for years, but was released todays publicly would be a good alternative to defuse for your usecase, but there isn't a installer for it that you can use right now. It is thinkable to add that to the recovery but it would need some work.
