1. mikefor20

    OP mikefor20 GBAtemp Advanced Fan
    Member

    Joined:
    Jan 12, 2009
    Messages:
    975
    Country:
    United States
    Good news everyone! I decided to make a

    [​IMG]

    The Switch brew page has information on theming the homebrew menu.
    https://switchbrew.org/wiki/Homebrew_Menu

    I figured I would write up a way to just change the Background and asset images, For full theming see above link.

    REQUIREMENTS
    1. HBtheme PAK Zip (Attatched Below) I included My Skeletal theme. And 2 .bat files to make this easier!
    2. Download latest HACTOOL! Used to extract and repack the theme you are altering. This tutorial uses this version. The switchbrew tutorial uses a different tool.
    3. Images to replace the existing ones! I believe JPG is supported however, the wiki says if you want transparency use PNG images.The files and types I typically see are:
      • background.png. It's the wallpaper, It should be PNG in Size:720 x 1280
      • icon.jpg - This is what appears in HBmenu's Theme Menu Size: 256 x 256
      • wifi1_icon.png. wifi2_icon.png and wifi3_icon.png These are the different connection levels for the WIFI indicator.(3 bars, 2 bars, 1 bar respectively) PNG format to support transparencies and 50 x 50 resolution.
    PREPARATION
    1. Make a working directory. I like it easy type so I go for C:\hbtheme
    2. Extract the hactoolnet archive in to the hbtheme directory
    3. Extract hbtheme stuff.zip in to the hbtheme directory
    4. Place your source.romfs (Skeletal v420 white.romfs from the zip or whatever you have!) in the hbtheme directory
    Now that everything is there lets extract the source theme.

    EXTRACT THE SOURCE

    I INCLUDED AN EXTRACTED FOLDER IN THE ZIP. CONTAINING THE FILES FOR MY SKELETAL THEME. YOU CAN USE THAT AND SKIP TO "BUILD YOUR NEW THEME" OR EXTRACT YOUR OWN THEME!.....

    1. Drag the theme .romfs file you are extracting on to the "Extract Theme - Drop Theme Romfs Here.bat"
    • Type a directory name in to extract the Theme to and press ENTER. Leave blank to extract to a folder named EXTRACTED in the current directory
    Your Theme Is EXTRACTED Joy!

    The theme files that will be used to build your new theme are all in the EXTRACTED folder or wherever you told it to put them. Editing these files will change your theme.

    You can change any of the image files by replacing them with any image named the same and the same size!

    Edit the CFG file to alter theme elements color and positioning. Instructions at SwitchBrew



    Make sure your replacement images are the same size, file name and type as the original ones and overwrite the originals!.
    If you use a different name or image type the CFG file MUST be altered to reflect the new name and type Best to stick with what's there.

    BUILD YOUR NEW THEME

    Once you have swapped out the desired images in the C:\hbtheme\extracted\ and C:\hbtheme\extracted\assets\ folders (and altered the CFG if you are brave and or knowledgeable.) Do the following to build your theme!:

    1. Drag N Drop the entire Theme Folder on to "Build Theme - Drop Theme Folder Here.bat" (Theme folder is the folder you changed the pictures in..hbtheme/extracted if you left defaults)
    2. Type in a Name for your new theme's romfs file. (example new.romfs)
    3. Type a path to the folder you want the new theme file to output to. Leave it blank to put file in to current folder! (HBtheme if you are following) Then press ENTER.
    This should pack all the files back in to a romfs file.

    INSTALLING YOUR NEW THEME
    1. Put your theme.romfs in to SD "\config\nx-hbmenu\themes\
    2. Put the SD in your Switch, boot and open HBMenu
    3. Press Minus Button (-) to open the "Theme Menu"
    4. Select your new theme!
    That's about it! If you want to get more in depth please check out the original tutorial on Switchbrew. There are many other customization possible. I was just writing this so you can change the background. Please let me know if there is anything I can help with. I will try.

    CHEERS!

    Preview
    [​IMG]
    Good news everyone! I decided to make a quick and dirty...

    HOMEBREW MENU THEME CUSTOM IMAGES GUIDE!!!
    The Switch brew page has information on theming the homebrew menu.
    https://switchbrew.org/wiki/Homebrew_Menu

    I figured I would write up a way to just change the Background and asset images, For full theming see above link.

    REQUIREMENTS

    HACTOOLNET https://github.com/Thealexbarney/LibHac/releases/download/v0.11.3/hactoolnet-0.11.3-win.zip Used to extract and repack the theme you are altering. This tutorial uses this version. The switchbrew tutorial uses a different tool,
    An existing theme in .romfs format. (rename it source.romfs for the tutorial) Here's a link to my Skeletal Theme to match the theme I posted on reddit. https://paste.c-net.org/RealmDownload The Zip includes an extracted version of the theme. I edited an existing theme made by NSX (I think it was the PS4 one IDK...) NOTE: Keep in mind that whatever theme you choose for your source will dictate the style of your custom theme. Unless you manually edit the CFG file you'll have the same color text, same placement of any UI elements etc. Also if the theme you alter doesn't have an element,like a wallpaper or a custom WiFi icon there will be nothing to edit in the extracted theme, All these elements must be pre-defined in the CFG file. We are just changing the images, The Switchbrew link at the top is very detailed all the UI elements.
    Images to replace the existing ones! I believe JPG is supported however, the wiki says if you want transparency use PNG images. The files and types I typically see are:
    background.png. It's the wallpaper, It should be PNG in 720 x 1280
    icon.jpg - This is what appears in HBmenu's Theme Menu Also 720 x1280
    wifi1_icon.png. wifi2_icon.png and wifi3_icon.png These are the different connection levels for the WIFI indicator.(3 bars, 2 bars, 1 bar respectively) PNG format to support transparencies and 50 x 50 resolution.

    PREPARATION

    Make a working directory. I like it easy type so I go for C:\hbtheme
    Inside the "hbtheme" directory make an "extracted" directory
    Extract the hactoolnet archive in to the hbtheme directory
    Place your source.romfs in the hbtheme directory

    Now that everything is there lets extract the source theme.

    EXTRACT THE SOURCE

    Open a command prompt (Press Windows+R to open “Run” box. Type “cmd” and then click “OK”)
    Then change to the working directory
    Code:

    cd c:\hbtheme

    Run this command:
    Code:

    hactoolnet -t romfs source.romfs --romfsdir C:\hbtheme\extracted

    That should extract your source.romfs in to the \hbtheme\extracted folder. Take a look in the folder.

    You can change any of the image files by replacing them with any image named the same and the same size!

    The C:\hbtheme\extracted\Assets folder contains all images except icon.jpg.

    Make sure your replacement images are the same size, file name and type as the ones in C:\hbmenu\extracted\assets\ and overwrite the original ones. If you use a different name or image type the CFG file MUST be altered to reflect the new name and type Best to stick with what's there.

    BUILD THE NEW THEME

    Once you have swapped out the desired images in the C:\hbtheme\extracted\ and C:\hbtheme\extracted\assets\ folders (and altered the CFG if you are brave and or knowledgeable.) Do the following to build your theme!:

    Open a command prompt if not already open (Press Windows+R to open “Run” box. Type “cmd” and then click “OK”)
    Change to the working directory
    Code:

    cd c:\hbtheme

    Run this command:
    Code:

    hactoolnet -t romfsbuild C:\hbtheme\extracted --outfile NewTheme.romfs

    This should pack all the files back in to a file named NewTheme.romfs

    INSTALLING YOUR NEW THEME

    Put newtheme.romfs in to SD "\config\nx-hbmenu\themes\
    Put the SD in your Switch, boot and open HBMenu
    Press Minus Button (-) to open the "Theme Menu"
    Select your new theme!

    That's about it! If you want to get more in depth please check out the original tutorial on Switchbrew. There are many other customization possible. I was just writing this so you can change the background. Please let me know if there is anything I can help with. I will try.

    CHEERS!

    Preview



    /|/|ike



    SPECIAL THANKS:To TheAlexBarney for Hactoolnet, to the people at reswitched and all the devs for HBMenu., Also reswitched, qcean and the rest of discord for putting up with the questions and thanks to the great NSX for getting me in to theming again and all his contributions to the scene. Sorry man, I know I am an asshole ;P Thanks for everything!


    Attached Files:

    Last edited by mikefor20, Jul 26, 2020
  2. chronoss

    chronoss GBAtemp Addict
    Member

    Joined:
    May 26, 2015
    Messages:
    2,295
    Country:
    Congo, Republic of the
    U need to share one theme for exemple to see how it work.

    mathew77 likes this.
  3. mathew77

    mathew77 Lovin' life.
    Member

    Joined:
    Jan 19, 2019
    Messages:
    378
    Country:
    Kazakhstan
    Very good! Please make some preview samples with the results in the end.

    mikefor20 likes this.
  4. Stealphie

    Stealphie GBAtemp Maniac
    Member

    Joined:
    Mar 27, 2019
    Messages:
    1,063
    Country:
    Brazil
    very nice

    mikefor20 likes this.
  5. mikefor20

    OP mikefor20 GBAtemp Advanced Fan
    Member

    Joined:
    Jan 12, 2009
    Messages:
    975
    Country:
    United States
    Done. I added a link for my Skeletal HBmenu Theme. I also included a folder containing the entire extracted theme. Just like you'll get half way through the tutorial.Ill eventually get to updating the tutorial so all the file names match the example. I'll notate the file structure. Add a screen shot or two. I really don't have all that much time lately and Paper Mario is stealing most of the free time I have ;)

    Got you covered.

    mathew77 likes this.
  6. mathew77

    mathew77 Lovin' life.
    Member

    Joined:
    Jan 19, 2019
    Messages:
    378
    Country:
    Kazakhstan
    Sorry, can't see any images / preview?!.. Where are they?

  7. mikefor20

    OP mikefor20 GBAtemp Advanced Fan
    Member

    Joined:
    Jan 12, 2009
    Messages:
    975
    Country:
    United States
    SOON, due to COVID I no longer have any alone time outside of the wee hours of the night. Last night I slept. There is a zip now with the theme file and all the assets. So you can see the background and the WiFi strength images and look at the cfg file. As far as a preview.. will this work? Thought I attatched this lol ;P

    [​IMG]


    What's a good file host you guys? One for images and one for nxtheme files, cfg files ,zip files etc?



    Over 1000 views and not 1 like for the tutorial? Ill make it prettier i guess

    Last edited by mikefor20, Jul 19, 2020
    mathew77 likes this.
  8. mathew77

    mathew77 Lovin' life.
    Member

    Joined:
    Jan 19, 2019
    Messages:
    378
    Country:
    Kazakhstan
    Thank you, it's cool!..

    Here's the hbtheme that I've created followed by your nice guide:


    Attached Files:

    Last edited by mathew77, Jul 19, 2020
    mikefor20 and chronoss like this.
  9. chronoss

    chronoss GBAtemp Addict
    Member

    Joined:
    May 26, 2015
    Messages:
    2,295
    Country:
    Congo, Republic of the
    This command dont work for me : hactoolnet -t romfsbuild C:\hbtheme\extracted --outfile NewTheme.romfs :(

  10. mikefor20

    OP mikefor20 GBAtemp Advanced Fan
    Member

    Joined:
    Jan 12, 2009
    Messages:
    975
    Country:
    United States

    • You must have the entire extracted theme in the C:\hbtheme\extracted folder.
    • hactoolnet in C:\hbtheme
    Then you must open the dos prompt in C:\hbtheme and run "hactoolnet -t romfsbuild C:\hbtheme\extracted --outfile NewTheme.romfs"

    That should output newtheme.romfs to the C:\HBTheme directory. I just did a copy and paste directly from the tutorial and it worked. I need more information. The command specifies drive letter and path to the folder. If that is different you must change the command. What does the command do for you? If I made an error I'll fix it.

    Last edited by mikefor20, Jul 20, 2020
    chronoss likes this.
  11. chronoss

    chronoss GBAtemp Addict
    Member

    Joined:
    May 26, 2015
    Messages:
    2,295
    Country:
    Congo, Republic of the
    i can extract but build dont work :(

  12. mikefor20

    OP mikefor20 GBAtemp Advanced Fan
    Member

    Joined:
    Jan 12, 2009
    Messages:
    975
    Country:
    United States
    What does it say?

  13. chronoss

    chronoss GBAtemp Addict
    Member

    Joined:
    May 26, 2015
    Messages:
    2,295
    Country:
    Congo, Republic of the
    Extract OK

    Build KO

  14. mikefor20

    OP mikefor20 GBAtemp Advanced Fan
    Member

    Joined:
    Jan 12, 2009
    Messages:
    975
    Country:
    United States
    IDK, ill look in to it

    Last edited by mikefor20, Jul 20, 2020
  15. mikefor20

    OP mikefor20 GBAtemp Advanced Fan
    Member

    Joined:
    Jan 12, 2009
    Messages:
    975
    Country:
    United States

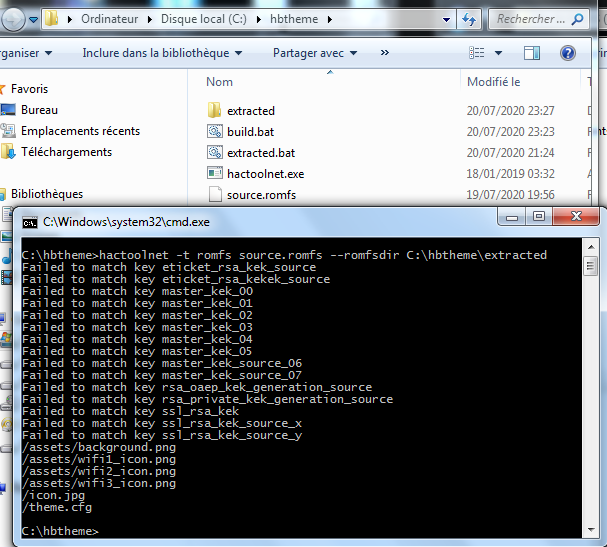

    Looks to me like you didn't follow the tutorial. The command line has the entire path. You are just saying extracted. Try it the way I wrote it. Or try your entire path E:\RTU\Switch\hbtheme\extracted because it is not the same thing as "extracted". .. Or you could just do it how it was written. Also there seems to be another issue, you are getting errors on extraction for failed to match keys.

    Put the hactoolnet file and the source .romfs in to C:\\hbtheme\ ... Run the first line of code to extract

    Code:
      hactoolnet -t romfs source.romfs --romfsdir C:\hbtheme\extracted
    OUTPUT shout look like
    Code:
    /assets/background.png
    /assets/wifi1_icon.png
    /assets/wifi2_icon.png
    /assets/wifi3_icon.png
    /icon.jpg
    /theme.cfg

    C:\hbtheme>


    . You should get no errors. I didn't have to supply keys. Maybe you did something else outside of the scope of the tutorial that caused that. We all tinker... Maybe I have a key file in path somewhere I forgot about. You might have an out of date file laying around somewhere and that's why the mismatch? There are many tutorials to acquire key files but AFAIK hactoolnet does not require it. Also perhaps .net? I don't know if it needs it either.

    Replace the images and edit the CFG if you dare in the C:\hbtheme\extracted folder. Hactool will build from this folder.

    Code:
     hactoolnet -t romfsbuild C:\hbtheme\extracted --outfile NewTheme.romfs
    WORKS

    Hopefully that works. Let me know. ill add a link to a tutorial to get the keys and what not.

    Last edited by mikefor20, Jul 20, 2020
  16. chronoss

    chronoss GBAtemp Addict
    Member

    Joined:
    May 26, 2015
    Messages:
    2,295
    Country:
    Congo, Republic of the

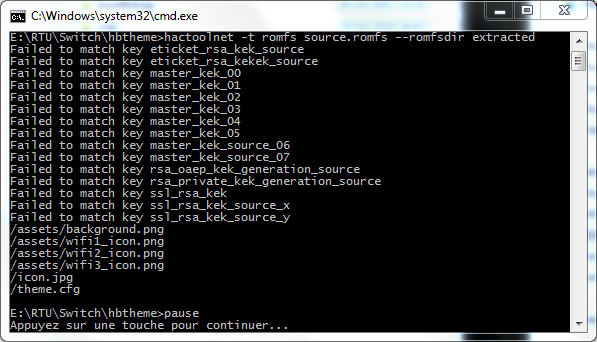

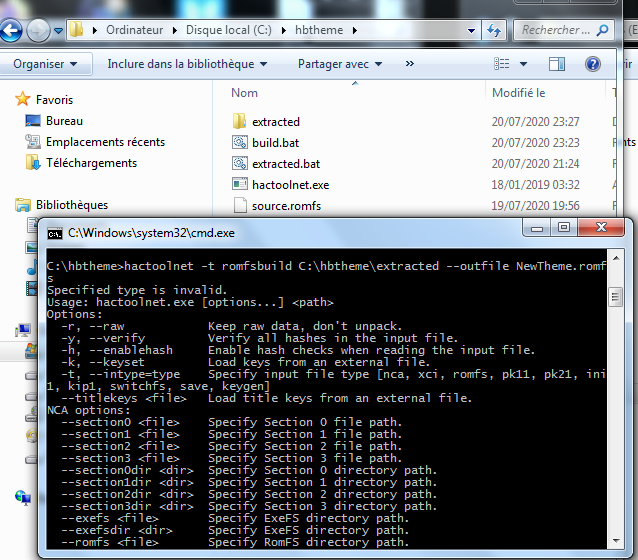

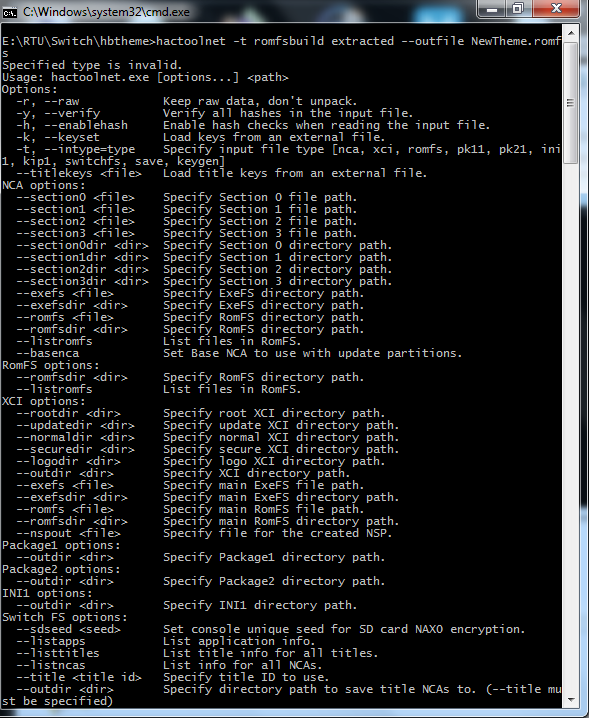

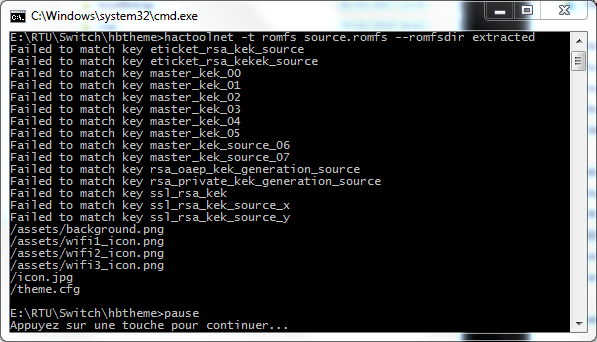

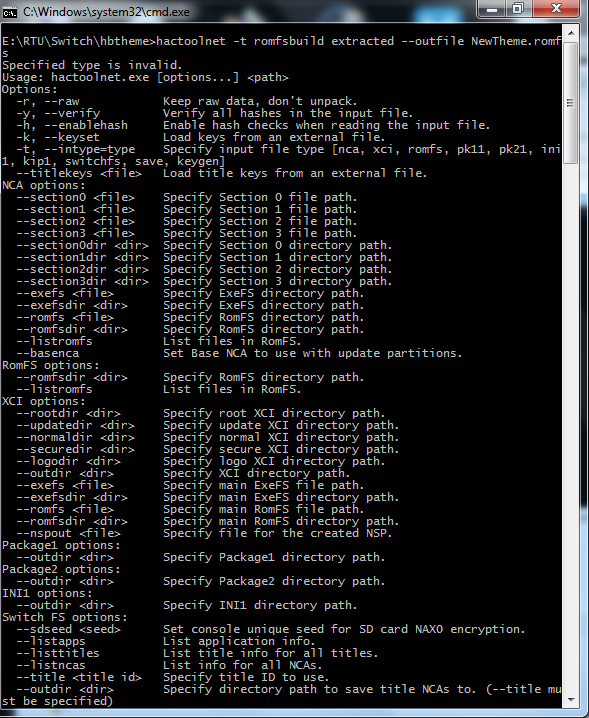

    sametyhing :(

    extract.PNG build.PNG

  17. mikefor20

    OP mikefor20 GBAtemp Advanced Fan
    Member

    Joined:
    Jan 12, 2009
    Messages:
    975
    Country:
    United States
    Dump your keys with lockpick rcm.or Google switch keys... put them in the working directory. Hope it works. Mine does without the keys. Good luck. Let me know. I want everone to have zero issues

    https://github.com/shchmue/Lockpick_RCM

    Try typing or copy and pasting the command in to the command prompt instead of using a bat file IDK

    Anyone else have issues? Details?

    Last edited by mikefor20, Jul 21, 2020
    chronoss likes this.
  18. chronoss

    chronoss GBAtemp Addict
    Member

    Joined:
    May 26, 2015
    Messages:
    2,295
    Country:
    Congo, Republic of the
    samething : key.txt and Key.dat
    same error

  19. mikefor20

    OP mikefor20 GBAtemp Advanced Fan
    Member

    Joined:
    Jan 12, 2009
    Messages:
    975
    Country:
    United States
    I took chronoss in to a chat so the thread would not get a bunch of the troubleshooting posts. He needed the newest version of hactoolnet. Turns out the link in the tutorial to hactoolnet was an old version. I assumed GBATemp kept the newest one up. They don't. I apologize to anyone who might have experienced any issues. I guess I fucked up.

    [​IMG]

    Anyway, updated the link. All is right in the shire.

    chronoss likes this.
  20. mathew77

    mathew77 Lovin' life.
    Member

    Joined:
    Jan 19, 2019
    Messages:
    378
    Country:
    Kazakhstan
    No issues for me, thanks!

    chronoss and mikefor20 like this.
