Hardmod Broke N3DS XL? Please help me :(

Discussion in '3DS - Console, Accessories and Hardware' started by xxtrueforcexx, Dec 8, 2016.

  1. xxtrueforcexx
    OP

    xxtrueforcexx Newbie

    Newcomer
    7
    1
    Dec 8, 2016
    Romania
    I attempted a hardmod following the video posted here:


    When I put my 3DS back together, before even getting to connect it to my PC I tried to turn on the console to no effect. Pressing the power button didn't do anything, connecting it to a power source does nothing as well, not even LEDs light up. There is no pop sound, no flashes of the screen and the LEDs do not turn on at all. I removed the hardmod and tried to see if maybe it was messing with the console somehow, again to no effect.

    Any ideas on what to do next? The board looks fairly clean, with no solder splashes that I can observe. There may be a small bridge that is sitting in the area of the CLK, connecting some of the four dots, could this be an issue?

    I tried taking the board out and putting it back in three times to make sure the ribbon cables are connected properly, and it seems that they are. Should I re-check? I doubt one could be upside down but I am unsure.

    Lastly, I don't know if I connected the battery upside down when I tried to boot for the first time, I don't think I did but I can't be sure.

    Should I buy a new board? Any ideas on what to try next before I throw this console out of a 5 story window?

  2. Imacaredformy2ds

    Imacaredformy2ds Smartass

    Banned
    931
    611
    Nov 17, 2016
    Mexico
    That's because you're using yakara's tutorials dood.

    — Posts automatically merged - Please don't double post! —

    Don't be a newb ECKSSS DEE

    — Posts automatically merged - Please don't double post! —

    Also, it may be because you turned it on BEFORE proceeding like Yakara did? I haven't watched the video, maybe it's that. Contact him on twitter
    Also congrats on the possible brick

    Last edited by Imacaredformy2ds, Dec 8, 2016
  3. swabbo

    swabbo Wot u doin readin dis m8?

    Member
    611
    240
    Mar 9, 2011
    East Yorkshire/ A Bin
    I'd try the 3DSHacking Discord there is a section on hardware, someone may be able to tell you what has happened and/or if it is fixable or not :)
    [​IMG]

    Last edited by swabbo, Dec 8, 2016
    Imacaredformy2ds likes this.
  4. Imacaredformy2ds

    Imacaredformy2ds Smartass

    Banned
    931
    611
    Nov 17, 2016
    Mexico
    Shit, let me fix that real quick before I get banned

    swabbo likes this.
  5. Dennis G

    Dennis G GBAtemp Advanced Fan

    Member
    671
    205
    Jan 4, 2016
    Netherlands
    please don't tell me you've tried to solder 8 wires just for a single downgrade? this video guide is idiotic, all you need is 4 wires, the other 4 will just increase speed while downgrading but the risk of fkn up the hard mod are so much higher with soldering those 8 wires, i only use 4 and i get 5.8mb a second if that's not fast enough you have some issues :s, all you needed was, clk, cmd, gnd and dat0. nothing more. also there is a clk on the other side of the board which is 10x easyer to solder to. this guide is really bad...

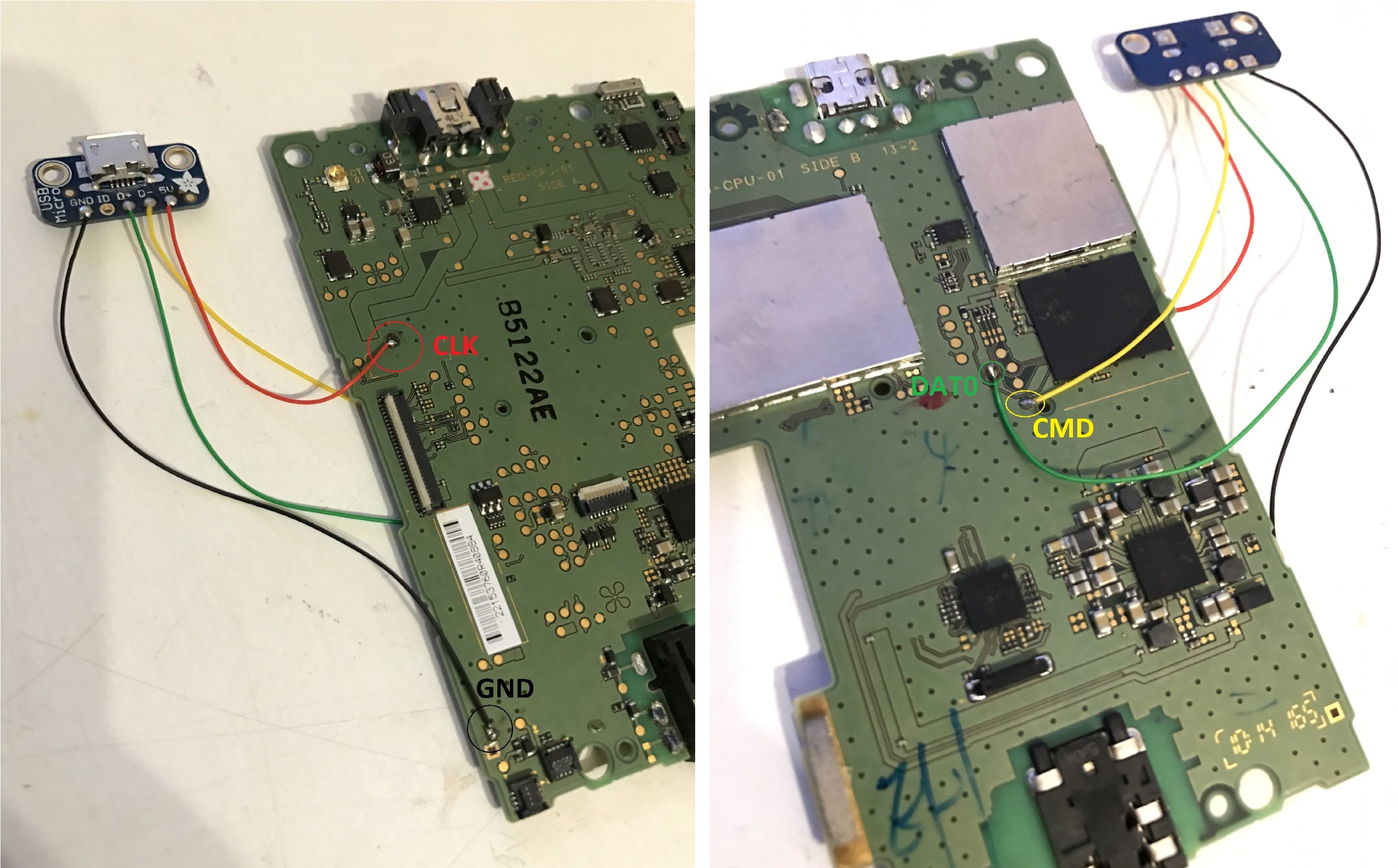

    this is how you should have done it:
    the usb port is not needed, but those 4 spots were all you needed

  6. Imacaredformy2ds

    Imacaredformy2ds Smartass

    Banned
    931
    611
    Nov 17, 2016
    Mexico
    ^^^^^^^ what this guy said. You see why yakara isn't reliable?

  7. invaderyoyo

    invaderyoyo invader

    Member
    807
    402
    Mar 17, 2014
    United States
    Southern California
    Yakara mentions that you only need 4. He says the rest are optional and only improve read/write speed.

    Nvm, just watched that part again and he says he usually has trouble reading the NAND when he only uses 4 points. Yeah, that's bs.

    Last edited by invaderyoyo, Dec 8, 2016
  8. xxtrueforcexx
    OP

    xxtrueforcexx Newbie

    Newcomer
    7
    1
    Dec 8, 2016
    Romania
    I only mounted the four wires needed. I initially mounted the GND where he had it but it would not hold, and after four attempts to solder it where he had it I just stuck it to the outside casing of the cartridge slot (metal). Would mounting the wires even matter though? I never even got to the next step, my DS just stopped working after I took the wires off.

    Edit: I also want to mention that I tried to mount the CLK on the back of the board, where the four little pins are located and failed that a few times, so I had to re-mount on the alternate CLK, on the front. Could damage to the CLK points cause the unit not to turn on at all, including not having any LEDs work?

    Last edited by xxtrueforcexx, Dec 8, 2016
  9. Imacaredformy2ds

    Imacaredformy2ds Smartass

    Banned
    931
    611
    Nov 17, 2016
    Mexico
    Brick master race 2016. I'm sorry

  10. xxtrueforcexx
    OP

    xxtrueforcexx Newbie

    Newcomer
    7
    1
    Dec 8, 2016
    Romania
    But why would that even matter? I never connected the wires to the PC at all.

  11. vb_encryption_vb

    vb_encryption_vb That hardmod guy....

    Member
    1,882
    901
    Nov 21, 2015
    United States
    Acworth, GA
    Post photos of your soldering , don't worry about the clown screaming master brick race.


    Prefer the clk, you think is damaged .

  12. Dennis G

    Dennis G GBAtemp Advanced Fan

    Member
    671
    205
    Jan 4, 2016
    Netherlands
    Edit:fixed

    Last edited by Dennis G, Dec 8, 2016
  13. Imacaredformy2ds

    Imacaredformy2ds Smartass

    Banned
    931
    611
    Nov 17, 2016
    Mexico
    Dude I was joking :bow:

  14. xxtrueforcexx
    OP

    xxtrueforcexx Newbie

    Newcomer
    7
    1
    Dec 8, 2016
    Romania


    Attached Files:

  15. Dennis G

    Dennis G GBAtemp Advanced Fan

    Member
    671
    205
    Jan 4, 2016
    Netherlands
    why can't people focus pictures proper?

    vb_encryption_vb likes this.
  16. xxtrueforcexx
    OP

    xxtrueforcexx Newbie

    Newcomer
    7
    1
    Dec 8, 2016
    Romania
    I am poor, and this is the best camera I could afford. It's not out of focus, it just sucks.

  17. Dennis G

    Dennis G GBAtemp Advanced Fan

    Member
    671
    205
    Jan 4, 2016
    Netherlands
    Sucks but this is really hard if you want help, we can't really see anything

    vb_encryption_vb likes this.
  18. gamesquest1

    gamesquest1 Nabnut

    Member
    GBAtemp Patron
    gamesquest1 is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    14,150
    9,502
    Sep 23, 2013
    iirc if you put the battery in backwards it blows the board, not 100% sure but I seem to remember someone else did that and their board was dead even after replacing fuses

    EDIT: nvm I see someone dug up another thread on this and it was just the fuse on the daughter board :) good luck

    Last edited by gamesquest1, Dec 8, 2016
  19. cheesylard

    cheesylard Member

    Newcomer
    33
    10
    Jan 2, 2015
    United States
    I'll buy your N3DS if it's bricked. PM if you're interested
