GameCube sd2sp2 hardwire

[Crung]

Hi. I could not find a section for Game Cube so im going to post it here since i remember wii u also using a sd2sp2? (may be wrong about it)

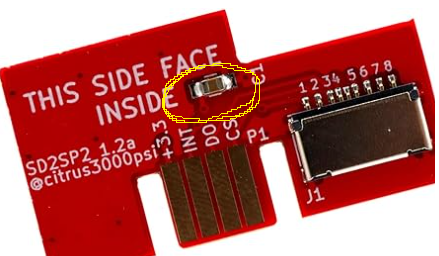

I do not have a sd2sp2 adapter on my hands and its going to take a while for it to reach from china. I ve looked at the board and it looks like it only has a capacitor on it and the rest is straight wire.
I want to hardwire a micro sd reader to the port where you would plug the sd2sp2 adaptor into. Anybody has any ideea what the value of that capacitor is?

Post automatically merged: Nov 24, 2023

found the dyi solution:
https://gbatemp.net/threads/diy-sd2...-sd-adapter-to-gamecube-serial-port-2.550301/



[SDIO]

I guess the cap is just a bypass for the SD card. So you should probably look at the SD spec.
You would probably e fine with a wide variaty of caps an probably even without it.
https://resources.altium.com/p/how-...without-destabilizing-on-board-voltage-supply
