error 2110-1118 after ripping off component. Can you identify them?

[sacha16]

I ripped off these two components (white circle)

Can you help me identify it? Do you have guides on how to replace them?

Thanks.



[l7777]

Those are the wifi capacitors. They prompted me to buy a microscope and hot air station.

Do you still have them?



[sacha16]

Those are the wifi capacitors. They prompted me to buy a microscope and hot air station.

Do you still have them?

nope, can you tell me the exact model to buy?

Post automatically merged: May 29, 2025

I think i found them with this reddit post:

https://www.reddit.com/r/consolerep...intendo_switch_capacitor_identification_left/

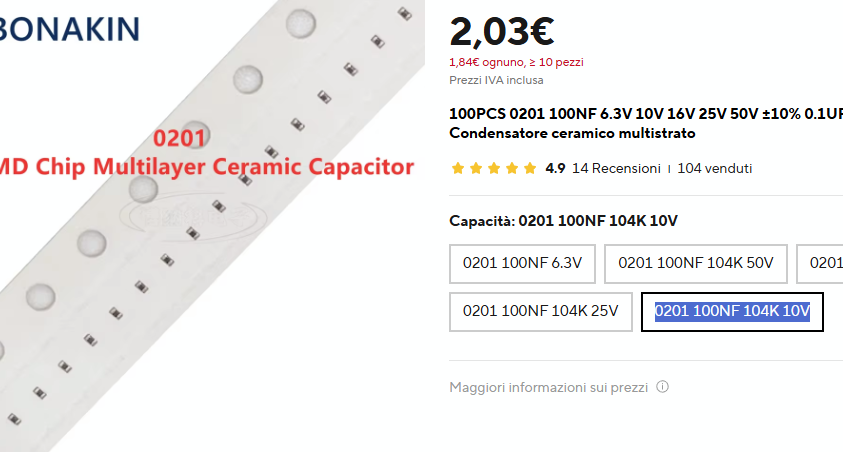

Should be SMD 0.1uF 10V 0201

i bought some i'll update you.
https://it.aliexpress.com/item/1005008499718166.html
https://it.aliexpress.com/item/1005002965247740.html
https://it.aliexpress.com/item/1005005961370114.html



[l7777]

Yes I know they're 201 size but not sure of the capacitance. There is a component thread here on GBATemp somewhere that likely has them identified.



[jkyoho]

https://gbatemp.net/threads/compone...stly-the-motherboard-and-main-console.525026/



[sacha16]

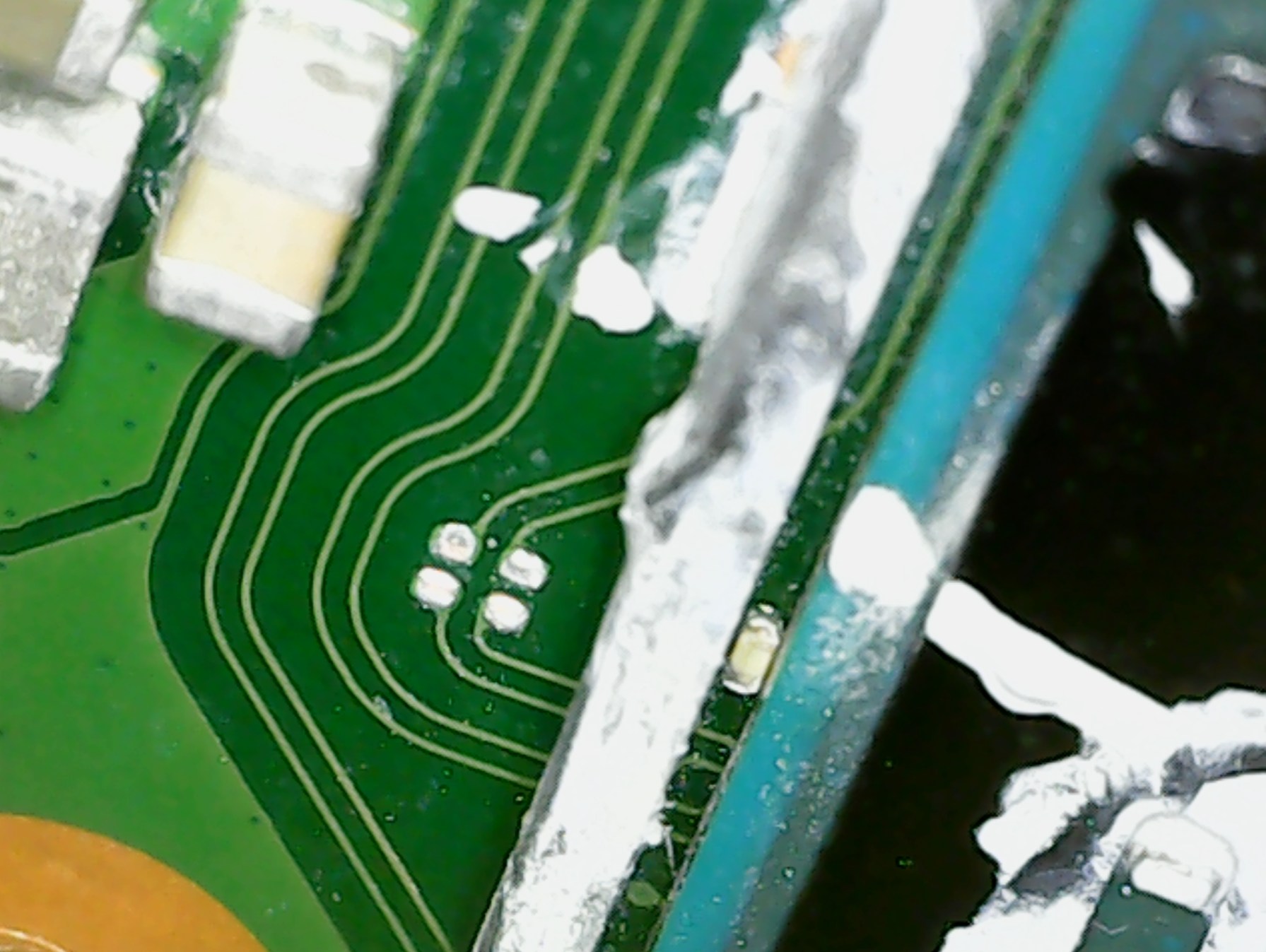

The damage, you can even see the ripped off capacitor, lol.
Waiting for the 0201 to arrive.



[sacha16]

SUCCESS!!!

After 5-6 hours i finally did it.
I used soldering paste and hot air (350°) to solder the capacitors. As you can see from the scratch on the board it took me maaaaany tries, at some point i was ready do call it a defeat but now is working!
Thank you for your support!
