cheap xbox hdmi mod

Discussion in 'Microsoft Xbox' started by scroeffie, May 8, 2018.

  1. scroeffie
    OP

    scroeffie GBAtemp Fan

    Member
    4
    Aug 1, 2017
    Netherlands

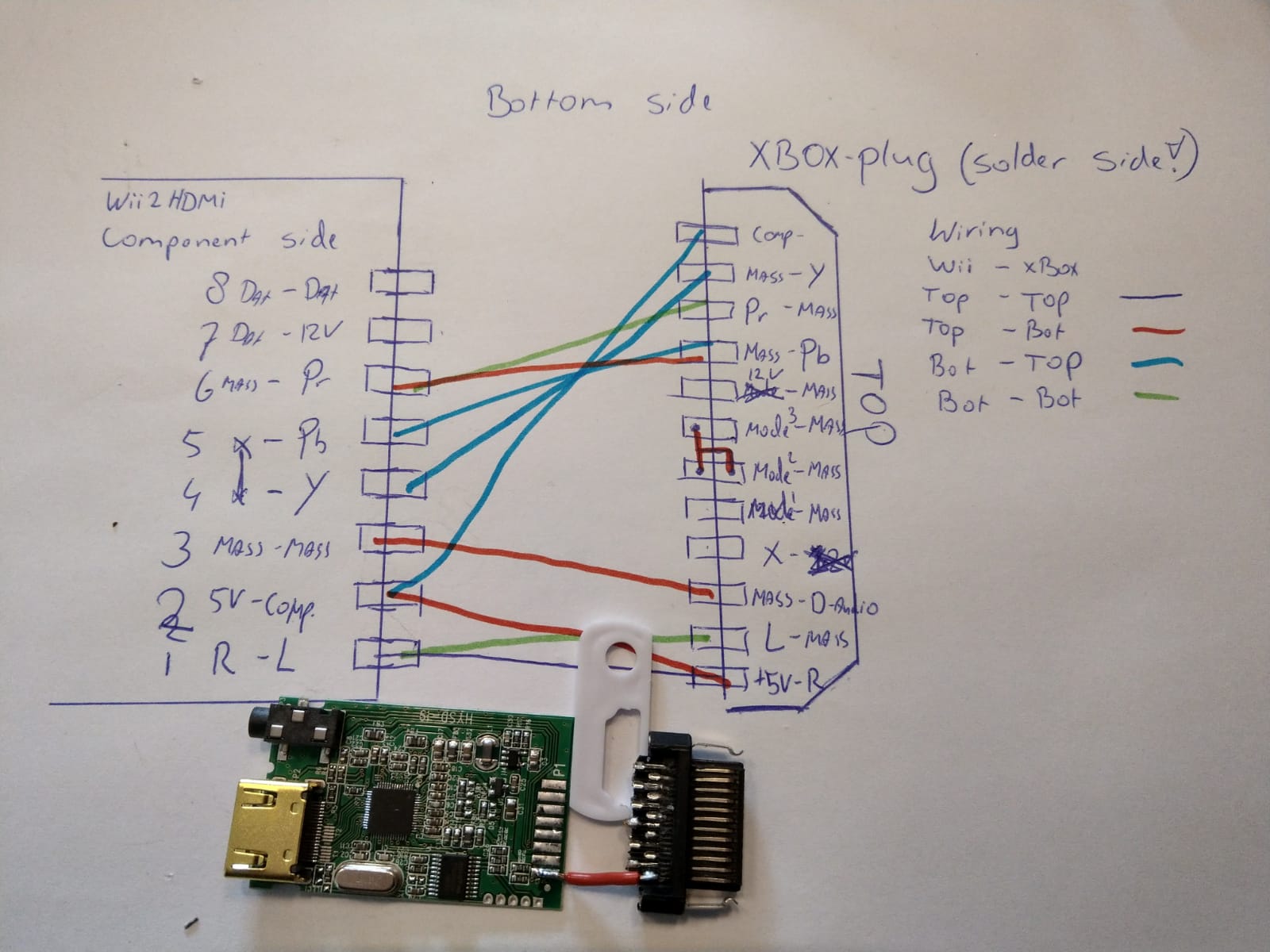

    not my idea pics are not mine found them on another forum
    iam using cheap chinese component cables now they work but have allot of interference
    xbox hd av pack is uncommen and expensive ,so is the monster cable uncommen and expensive
    the pound hdmi cable is good but sold out ,the n64freak xbox to hdmi kit is very good but expensive
    wii2hdmi adapter hack to xbox maybe a better cheaper option

    Reminder, the wii2hdmi boards are very sensitive to static electricity


    Attached Files:

    Last edited by scroeffie, May 9, 2018
  2. Jayro

    Jayro MediCat USB and Mini Windows 10 Developer

    Member
    14
    GBAtemp Patron
    Jayro is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    Jul 23, 2012
    United States
    Octo Canyon
    That's really nice TBH... Any noticeable input lag?

    I bet a 3D printer could make that look flush inside the Xbox too.

  3. scroeffie
    OP

    scroeffie GBAtemp Fan

    Member
    4
    Aug 1, 2017
    Netherlands
    i just orderd the wii 2 hdmi adapter thing from ebay to try out my self :)
    n64freak has a xbox to hdmi adapter to but its to expensive 70 euros


  4. Jayro

    Jayro MediCat USB and Mini Windows 10 Developer

    Member
    14
    GBAtemp Patron
    Jayro is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    Jul 23, 2012
    United States
    Octo Canyon
    So just to be clear, this takes a 480p inputted signal, and upscales it to 1080p?

  5. scroeffie
    OP

    scroeffie GBAtemp Fan

    Member
    4
    Aug 1, 2017
    Netherlands
    no the wii2hdmi is not a upscaled 480p in 480 out or somegames do support 720p or 1080i
    i read that some adapters do upscale to 720p or 1080p but they are hard to find

  6. scroeffie
    OP

    scroeffie GBAtemp Fan

    Member
    4
    Aug 1, 2017
    Netherlands
    found one that can upscale to 720p or 1080p https://www.ebay.nl/itm/Wii-to-HDMI...019356?hash=item2aa6ea9adc:g:muUAAOSwtida2p5~

    Features:
    The Wii to HDMI converts your Wii video and audio output to full digital HDMI format.
    It supports all Wii display modes including: NTSC 480i, 480p, PAL 576i automatically, and upscales them to HDMI 720P or 1080P.
    The HDMI output is either 720P (default) or 1080P, please make sure your TV can support 720P or 1080P.
    The extra3.5mm audio socket brings your convenience to connect headphone or speaker. So you can enjoy games in night without worrying to disturb others.
    To switch between 720P and 1080P outputs, use a needle to push and hold for 1 second then release

  7. luke9511

    luke9511 GBAtemp Regular

    Member
    2
    Sep 10, 2012
    United States
    has anyone tried this by desoldering the original xbox av port from the xbox motherboard and wiring one of these adapters in its place?

  8. Memoir

    Memoir Just a Memory

    Member
    19
    Jun 24, 2007
    United States
    Somewhere, over there!
    Not to further bump the thread, but why not buy an actual pound or Hyperkin HDMI adapter?

  9. luke9511

    luke9511 GBAtemp Regular

    Member
    2
    Sep 10, 2012
    United States
    cheap alternative and i like to tinker

    scroeffie1984 likes this.
  10. kumikochan

    kumikochan GBAtemp Addict

    Member
    10
    Feb 4, 2015
    Belgium
    Tongeren
    Overpriced plus the pound ones are even worse then a regular compoment cable

    scroeffie1984 and luke9511 like this.
  11. luke9511

    luke9511 GBAtemp Regular

    Member
    2
    Sep 10, 2012
    United States
    well i went ahead and ordered one and i am also going to see about ordering a desoldering tool to desolder the av port on the xbox and then wire up the adapter and see what happens

  12. Memoir

    Memoir Just a Memory

    Member
    19
    Jun 24, 2007
    United States
    Somewhere, over there!
    They really aren't... Seen it firsthand. If you're referring to the green tint, that's been fixed. If $30 is overpriced then I don't know what to tell you.

  13. kumikochan

    kumikochan GBAtemp Addict

    Member
    10
    Feb 4, 2015
    Belgium
    Tongeren
    There have been countless of comparison videos with the pound cables and they def are worse then most standard component cables.
    As you can see here and also in the comparison videos that it has more a composite upscaled quality instead of a vga or component like quality. From what i have seen pound cables are more like an upscaled composite video instead of a true 480p or 720p image.

    luke9511 likes this.
  14. luke9511

    luke9511 GBAtemp Regular

    Member
    2
    Sep 10, 2012
    United States
    not much but i fixed the pinout diagram
    [​IMG]

  15. MrCokeacola

    MrCokeacola GBAtemp Regular

    Member
    3
    Feb 26, 2018
    Canada
    I prefer my HDMI solution. It looks great on a HDTV as the official box outputs a great picture so you only need a dumb cable to turn the signal to digital. I made it "self powered" too.
    IMG_20190208_150539380.

    kumikochan likes this.
  16. luke9511

    luke9511 GBAtemp Regular

    Member
    2
    Sep 10, 2012
    United States

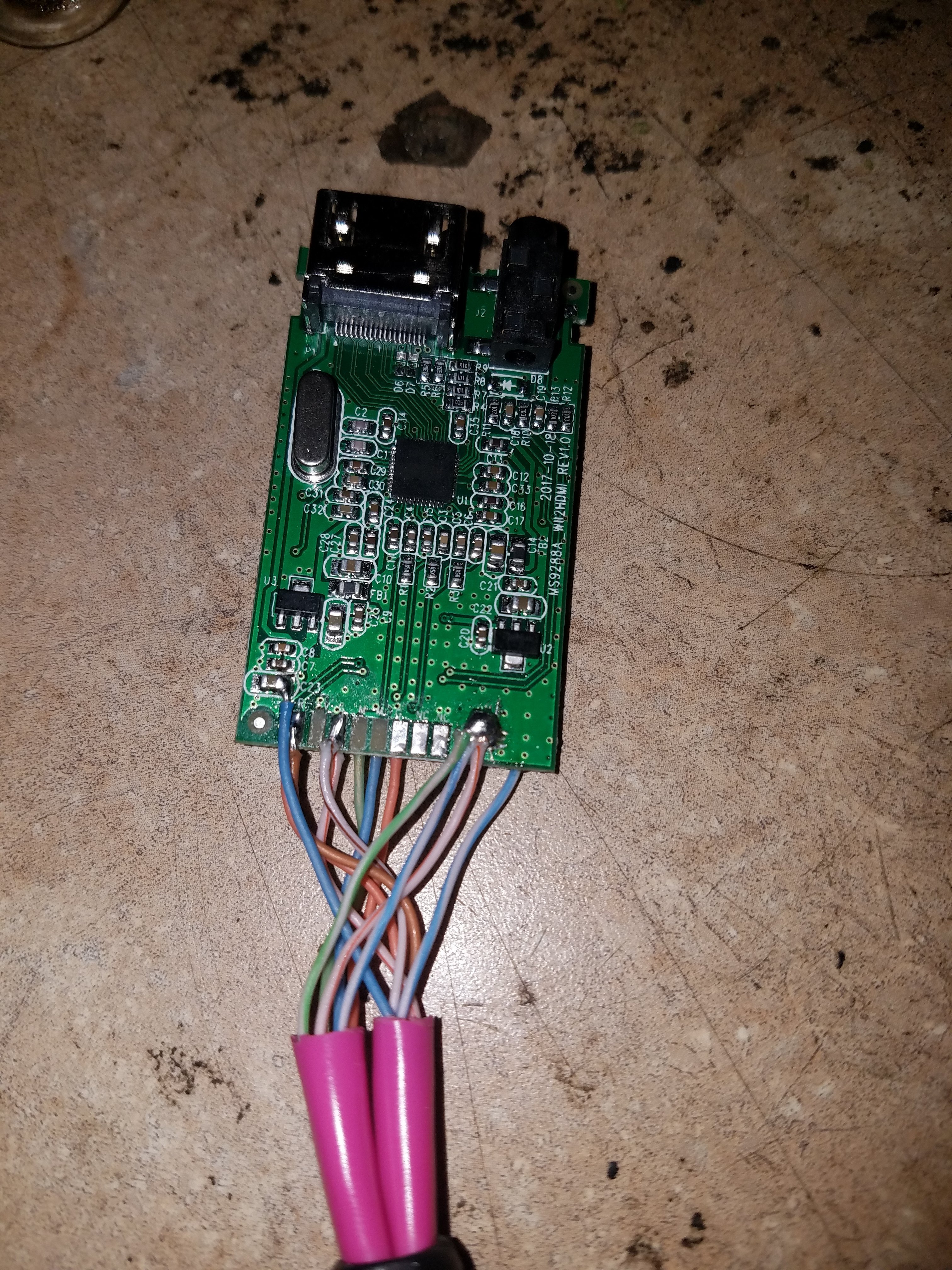

    quick update, i wired up the adapter to an xbox without removing the onboard av port and i got good audio and video!

    MrCokeacola likes this.
  17. luke9511

    luke9511 GBAtemp Regular

    Member
    2
    Sep 10, 2012
    United States

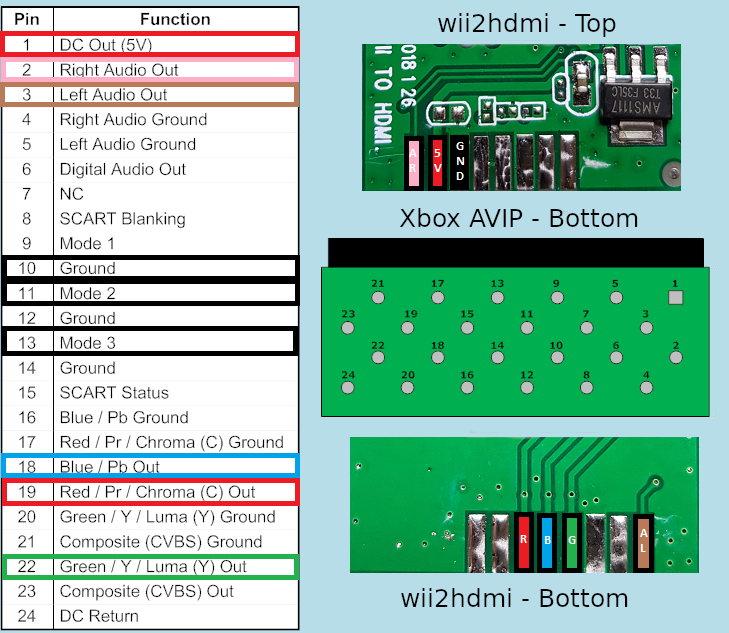

    this diagram was found by
    Reo Au In in the xbox discord i am in


    Attached Files:

  18. luke9511

    luke9511 GBAtemp Regular

    Member
    2
    Sep 10, 2012
    United States

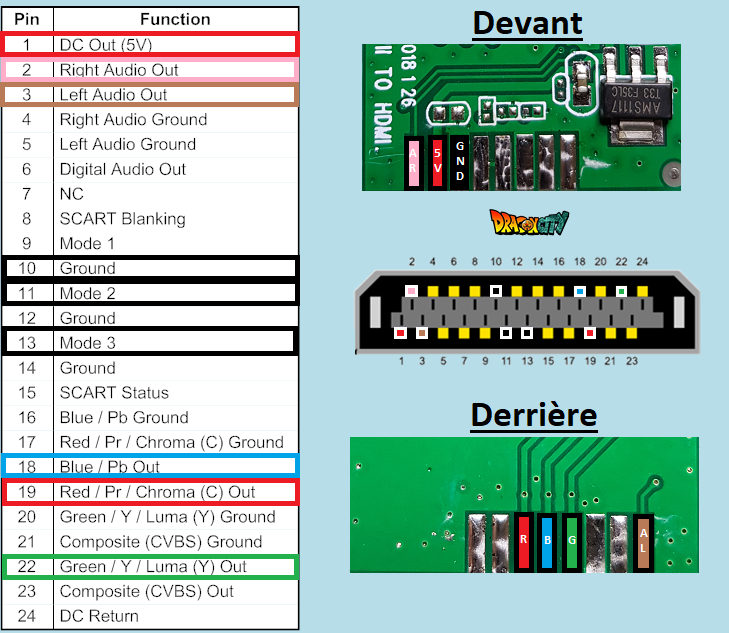

    heres some edited version if you are wiring the adapter to the xbox motherboard also i did some twitch streams which werent very good cause of my connection but in person it looks way better than composite, the one with the top assumes you have desoldered the xbox av port from the xbox motherboard and the one with the bottom of the xbox motherboard assumes you have left the av port in there and are just soldering the adapter to the pins with wires


    Attached Files:

    Last edited by luke9511, Feb 9, 2019
  19. thetechbros

    thetechbros Member

    Newcomer
    1
    Jan 21, 2019
    United States
    i love the pound one and i have no problems with it
