After Remove HWFL Chip Switch Oled Still on Rcm (APX) Mode

[ANIL007]

i try install to nintendo switch oled hwfly chip v5.
i had a few issues and i removed the chip.
My switch oled wont turning on.
i connect to pc with usb type c and i see my switch APX mode.
i install TegraRcmGui and i can see switch on rcm mode.
My switch can not exit rcm mode and not turning on with payloads.
is my switch brick? What can i do?



[Hayato213]

Check your motherboard for any damage from soldering.



[ANIL007]

Check your motherboard for any damage from soldering.

i think i will buy an chipped motherboard on aliexpress.



[Hayato213]

i think i will buy an chipped motherboard on aliexpress.

I don't think they sell those on Aliexpress.



[leerz]

i think i will buy an chipped motherboard on aliexpress.

whats the led light on the hwfly?
my guess is you killed cmd resistor or grounded dat0 point or even the clk



[ANIL007]

I don't think they sell those on Aliexpress.

They have but so expensive. indont know what am i doing.

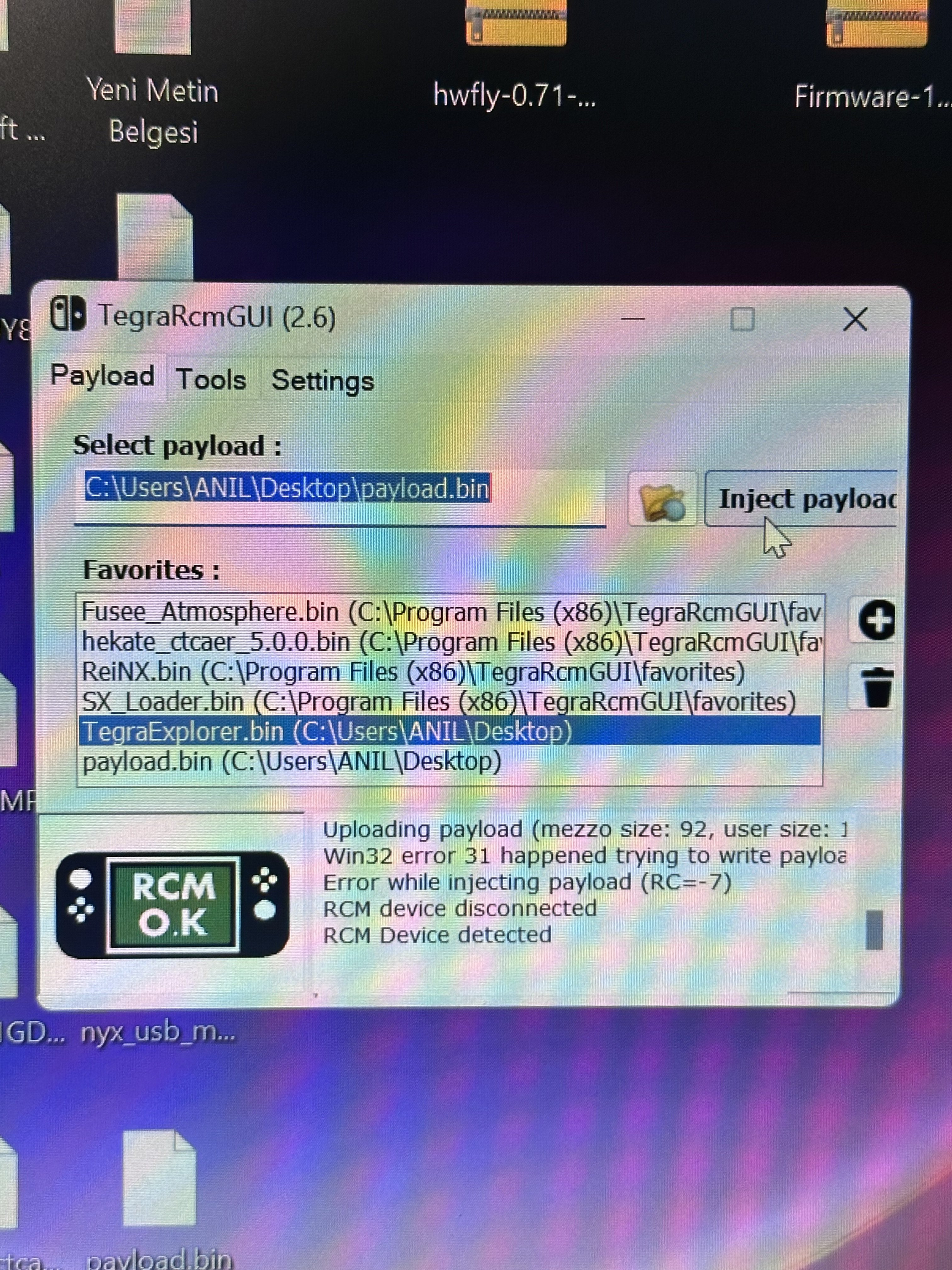

i try run payload with tegrarcmGUİ but nothink there…



[Hayato213]

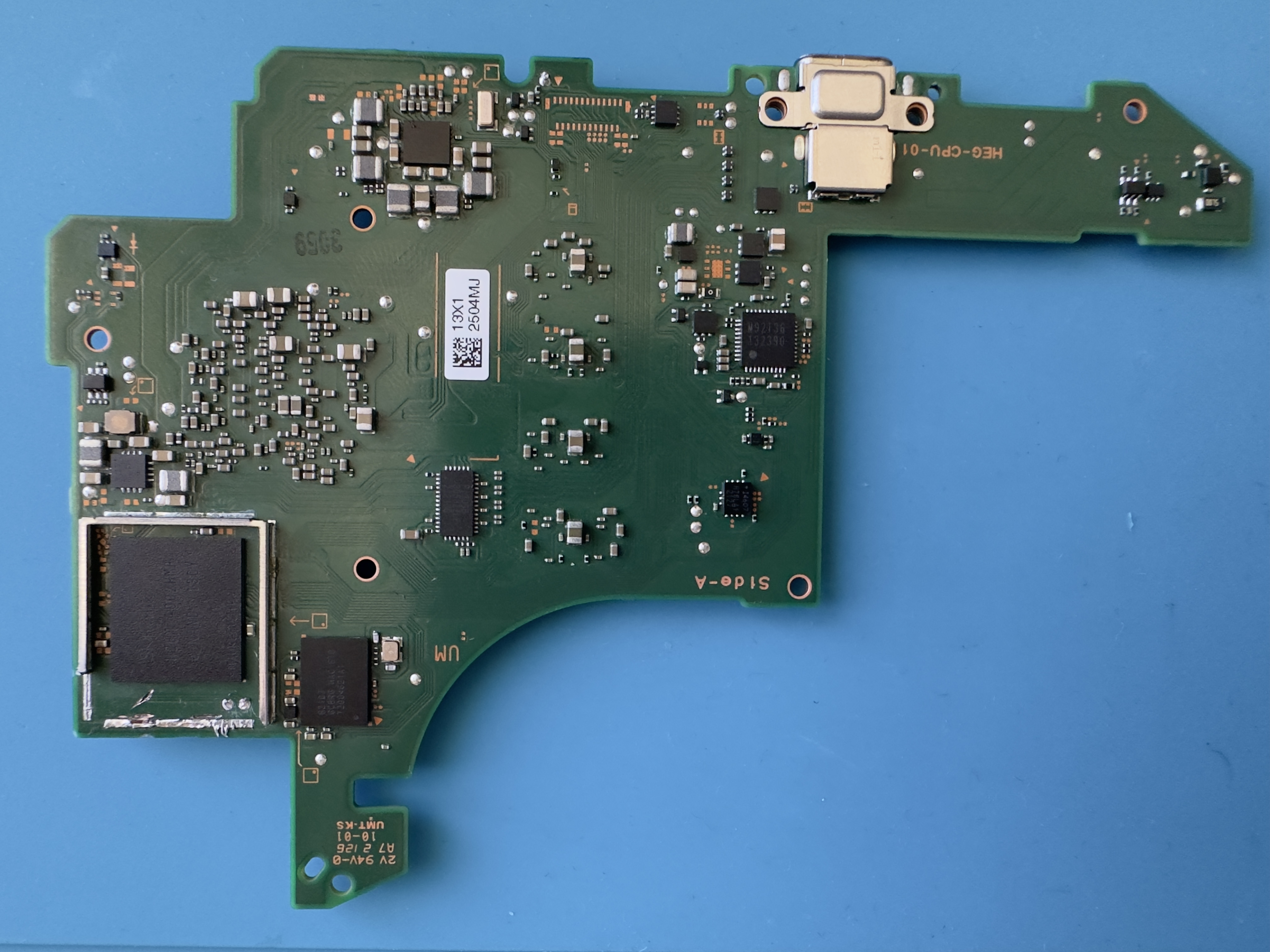

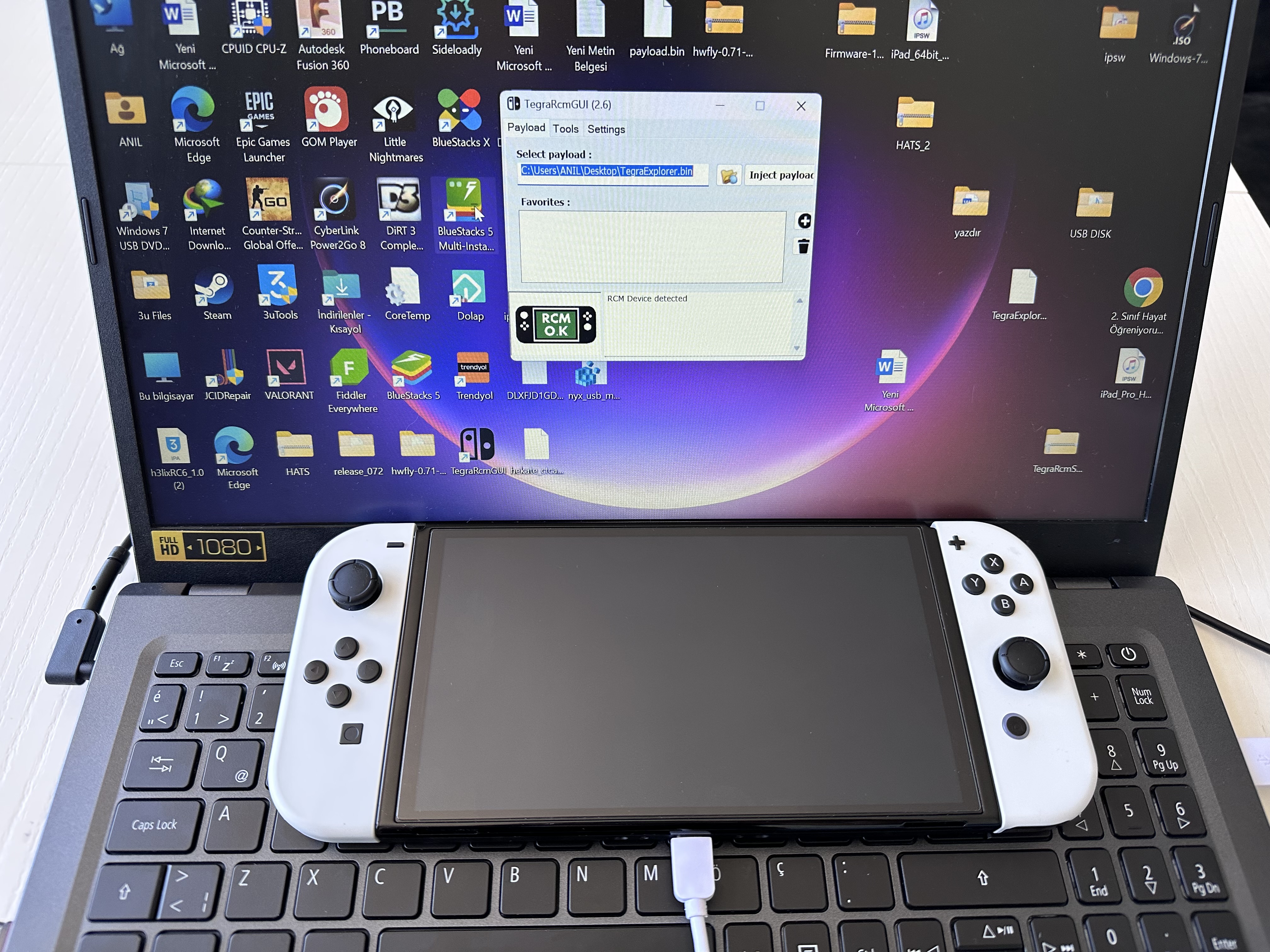

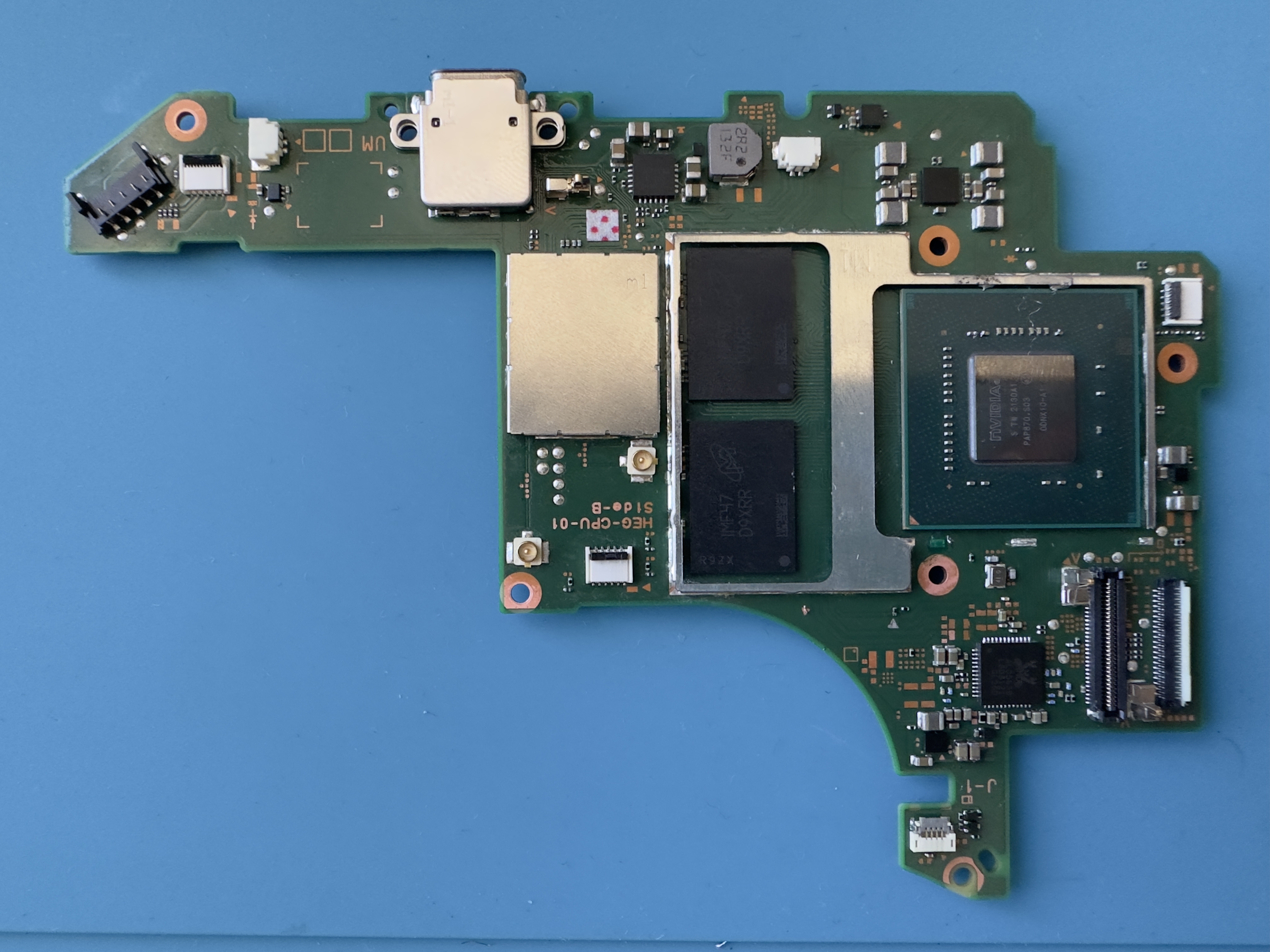

They have but so expensive. indont know what am i doing. View attachment 368850View attachment 368851

i try run payload with tegrarcmGUİ but nothink there…

You should inspect the board for damage from soldering, no point of using tegragui.



[ANIL007]

whats the led light on the hwfly?
my guess is you killed cmd resistor or grounded dat0 point or even the clk

before removing the chip…

After remove device gone RCM mode.

Post automatically merged: May 4, 2023

You should inspect the board for damage from soldering, no point of using tegragui.

i will check. Is it possible it's an emmc error?



[Hayato213]

i will check. Is it possible it's an emmc error?

I would guess you killed some component probably.



[daenamgo]

did you use heatgun to fix adaptor on eMMC? I suspect that there is a problem with the eMMC. Anyway I have a board that has the same issue right now so I'll keep checking and let you know



[ANIL007]

did you use heatgun to fix adaptor on eMMC? I suspect that there is a problem with the eMMC. Anyway I have a board that has the same issue right now so I'll keep checking and let you know

No i not use heatgun. Thank you so much.



[leerz]

before removing the chip…

View attachment 368860

After remove device gone RCM mode. And i know now i bricked oled socked.

Post automatically merged: May 4, 2023

i will check. Is it possible it's an emmc error?

yes i would check the cmd resistor, it should be 4.7k it's easy to kill and misalign, it moves even with just a few jabs at 380



[Hassal]

They have but so expensive. indont know what am i doing. View attachment 368850View attachment 368851

i try run payload with tegrarcmGUİ but nothink there…

Check the caps on your CPU you may have chipped them when you removed the ribbon.



[112c]

Im having the same issue on a Lite, where is the cmd resistor?
