A9LH choose bin file to load?

Discussion in '3DS - Flashcards & Custom Firmwares' started by Keylogger, Jun 10, 2016.

  1. Keylogger
    OP

    Keylogger GBAtemp Advanced Maniac

    Member
    1,712
    364
    May 3, 2006
    France
    Hello,

    I don't want to autoboot my N3ds to Luma but I want a bootloader that let me choose wich .bin file to load from my SD card.

    Is it possible to do that?



  2. Temptress Cerise

    Temptress Cerise Miss Magic~ <3

    Member
    2,181
    1,416
    May 1, 2016
    United States
    Something like CTRBoptManager9? It has a GUI interface that lets you pick the file you want. I'd look into that and its many branches.

  3. Keylogger
    OP

    Keylogger GBAtemp Advanced Maniac

    Member
    1,712
    364
    May 3, 2006
    France
    I tried CTRbootmanager9 but I have a black screen on boot

  4. Temptress Cerise

    Temptress Cerise Miss Magic~ <3

    Member
    2,181
    1,416
    May 1, 2016
    United States
    Are you using v2 A9LH? I have heard it breaks CtrBootManager9.

  5. Kyojin

    Kyojin #include "brain.h"

    Member
    467
    232
    Sep 7, 2015
    France
    ^ This... or a no screen init version of A9LH?

  6. Keylogger
    OP

    Keylogger GBAtemp Advanced Maniac

    Member
    1,712
    364
    May 3, 2006
    France
    yes I'm using V2... Any alternative for V2?

  7. Kyojin

    Kyojin #include "brain.h"

    Member
    467
    232
    Sep 7, 2015
    France
    Did you install Aurora Wright's fork? She fixed that issue two days ago. If not, you'll have to use that, installing it with SafeA9LHInstaller v2.0.1.

    Remember to use the "new" firm0, not the one used for the old A9LH version (if you want to be sure you are using the correct one, you can get firm0 and firm1 from the data_input_v2.zip file from Plailect's guide, part 5).

  8. Urbanshadow

    Urbanshadow GBAtemp Maniac

    Member
    1,288
    468
    Oct 16, 2015
    Luma has it's own bootloader integrated. just name your payload "start_<anyname>.bin" and put it in the Luma/Bootloader folder.

    if you Start+boot it should automatically boot that. Luma initializes the screen so you could use that to boot ctrbootmanager9 in boot menu mode and should work.

    Last edited by Urbanshadow, Jun 11, 2016
  9. Keylogger
    OP

    Keylogger GBAtemp Advanced Maniac

    Member
    1,712
    364
    May 3, 2006
    France
    I installed the aurora wright's fork! Strange because if I put ctrbootmanager9 in SD:\luma\payloads and rename it to start_ctrboot.bin , it boots when I press START at boot.
    But if I want to autoboot it so I put it as arm9loaderhax.bin is the SD root, I won't boot and I have a black screen

  10. Kyojin

    Kyojin #include "brain.h"

    Member
    467
    232
    Sep 7, 2015
    France
    Then you installed the noscreeninit version.

    EDIT: it means that if the ARM9 binary you are trying to load does not init the screen, you won't see anything displayed (hence the black screen). Luma3DS, on the other hand, initializes the screen and that's why CTRBootManager9 works when chainloaded from Luma.

    If you want to be able to use it, you'll have to flash the screeninit version instead.

    Last edited by Kyojin, Jun 11, 2016
  11. Keylogger
    OP

    Keylogger GBAtemp Advanced Maniac

    Member
    1,712
    364
    May 3, 2006
    France
    I installed the screeninit version! My screen flashes for a second when powering ON but then the screen stays black :/

  12. Kyojin

    Kyojin #include "brain.h"

    Member
    467
    232
    Sep 7, 2015
    France
    Oh... And if you set Decrypt9 or Hourglass9 as your arm9loaderhax.bin, does it load or does it stay on a black screen too?

  13. Keylogger
    OP

    Keylogger GBAtemp Advanced Maniac

    Member
    1,712
    364
    May 3, 2006
    France
    D9, emunand9 load fine. Only CTRbootmanager and GW won't boot (black screen)

  14. Temptress Cerise

    Temptress Cerise Miss Magic~ <3

    Member
    2,181
    1,416
    May 1, 2016
    United States
    v2 A9LH broke some stuff. Either wait for those payloads to update to support v2 or switch to v1 A9LH.

  15. Keylogger
    OP

    Keylogger GBAtemp Advanced Maniac

    Member
    1,712
    364
    May 3, 2006
    France
    Yeah I want to switch to V1, do you know where can I found payload_input and data_input v1 files? They are updated in the Plailect guide

  16. Temptress Cerise

    Temptress Cerise Miss Magic~ <3

    Member
    2,181
    1,416
    May 1, 2016
    United States
    Use an older revision of the guide to find the files.
    Link: https://github.com/Plailect/Guide/wiki/Part-5-(arm9loaderhax)

    At the top, under the title, you'll see "xxx revisions" with xxx is being the number of past revisions made. Then, it'll take you to it's history page of past revisions, then look for one that has the v1 payloads.

    Be sure to use the proper SafeA9LHInstaller for v1 files, and make sure you have everything you need to use said installer. I take no responsibility if you brick.

    nintendo3dsxlfan likes this.
  17. Kyojin

    Kyojin #include "brain.h"

    Member
    467
    232
    Sep 7, 2015
    France

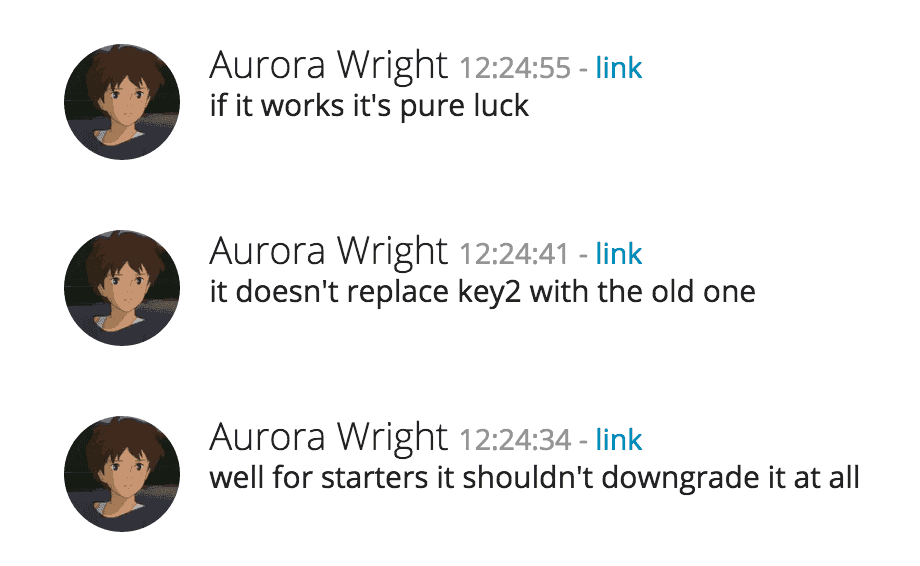

    About going back from v2 to v1 (read from bottom to top):

    Screen Shot 2016-06-12 at 11.32.13.png

    Did you already ask in the CTRBootManager9 thread to see if it is a systematic issue?

    If you are 100% sure that you installed Aurora's screeninit version from 3 days ago, and unless you really NEED to use CTRBootManager9, you could open up an issue either on Aurora's repo, or on CTRBootManager9's repo to notify about this and investigate.


    EDIT: there is already an open issue, and also a temp fix.

    Last edited by Kyojin, Jun 12, 2016
  18. Temptress Cerise

    Temptress Cerise Miss Magic~ <3

    Member
    2,181
    1,416
    May 1, 2016
    United States
    Ah, thanks for that info.

    Then one needs to go back to a Clean 9.0-9.2 sysNAND backup, then flash v1 A9LH from there, right?

    So OP needs to use Decrypt9 and flash that clean backup, then install v1 A9LH.

    Or try using the unofficial v7/v8 CTRBootManager9 if they don't want to go through that.

    Anyways, GW's a9lh.bin is also broken on v2, so I am not upgrading to v2 anytime soon. :P

  19. Kyojin

    Kyojin #include "brain.h"

    Member
    467
    232
    Sep 7, 2015
    France
    Yes, going back to 9.2 on a pre-A9LH backup should do the trick. :) And same, not updating until it's really worth it.

  20. The Real Jdbye

    The Real Jdbye Always Remember 30/07/08

    Member
    GBAtemp Patron
    The Real Jdbye is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    11,428
    4,747
    Mar 17, 2010
    Norway
    Alola
    I hear GW works with delebile's a9lh version but the install process is a bit different to SafeA9LHInstaller so I haven't bothered. Nothing wrong with staying on V1 for now.
