Continuing in my series of screw measurement posts, we come to the 2DS.

I've done screw measurement posts for several consoles (listed below) including every DS and 3DS console.

I did more deeper dives into the DSi and DSi XL, pointing out any console-to-console differences.

Other posts can be found here:
- DS (Base)
- DS Lite
- DSi
- DSi XL
- 3DS (Base)
- 3DS XL
- 2DS
- New 2DS XL
- New 3DS
- New 3DS XL

Also check out my DS and 3DS Screw Repository.

How I measured these screws.

I measured the screws on a ruler with markings down to half-millimeter increments and a digital microscope. Measurements were taken similar to this image of measuring Thread Pitch below.

(Image Sourced from Albany County Fasteners' video, How to Measure Screws & Bolts - US & Metric Sizing | Fasteners 101)

Since I do not have specialty equipment to measure screws this small, I am forced to estimate; especially on the thread pitch itself. Take the measurements with the knowledge that it was done by someone who is a novice in screw measuring.

2DS

All Screws within the 2DS have a JIS head (I assume JIS #00), but a Phillips #00 works.

Below is the list of screws and Hardware grouped by size.

I'll add links to an IFixIt Guide to match my terms to pictures (i.e. Motherboard Screw would point to the Motherboard removal step of an IFixIt guide). The screw names themselves will have a link to the image of the screw removal with another link next to it just in case that link dies.

Screws
Legend:
- Screw Length x Thread Width x Head Width.
- Recommended Driver.
- Screw Amounts, Placeholder name, and Link to IFixIt guides and images.
- Repeated previous entry as needed.
- Thread Pitch Measurement.

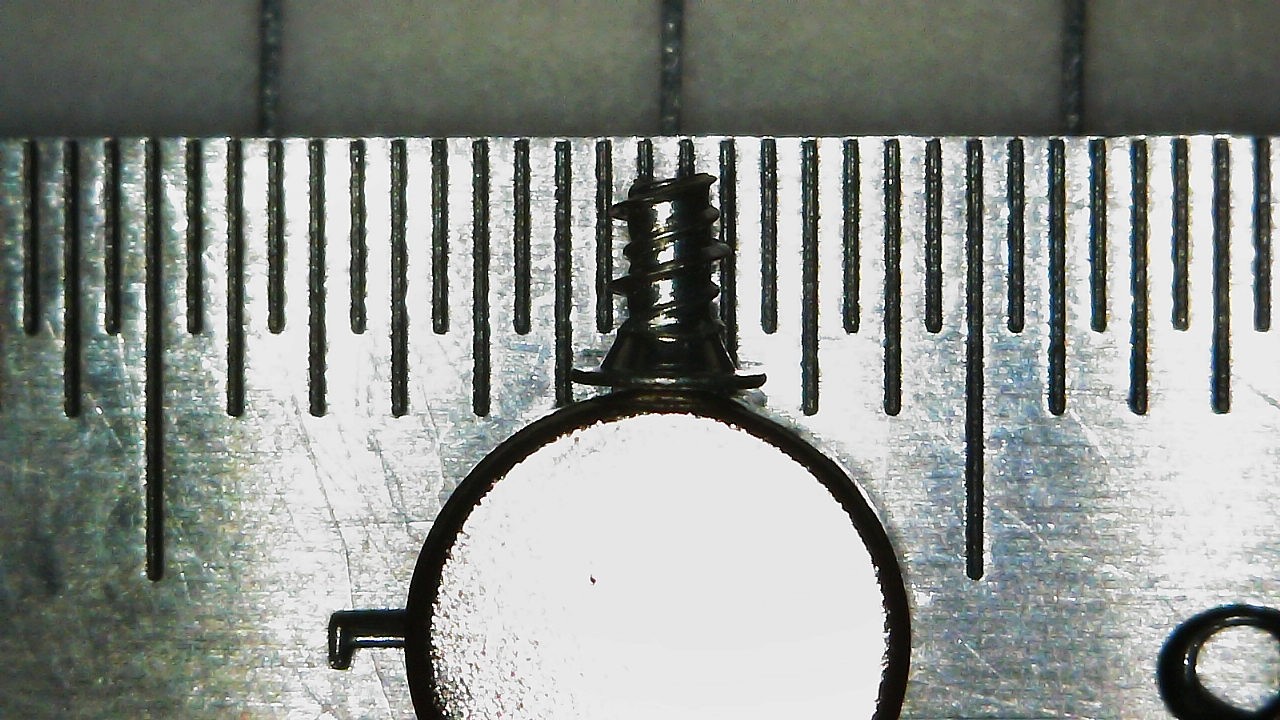

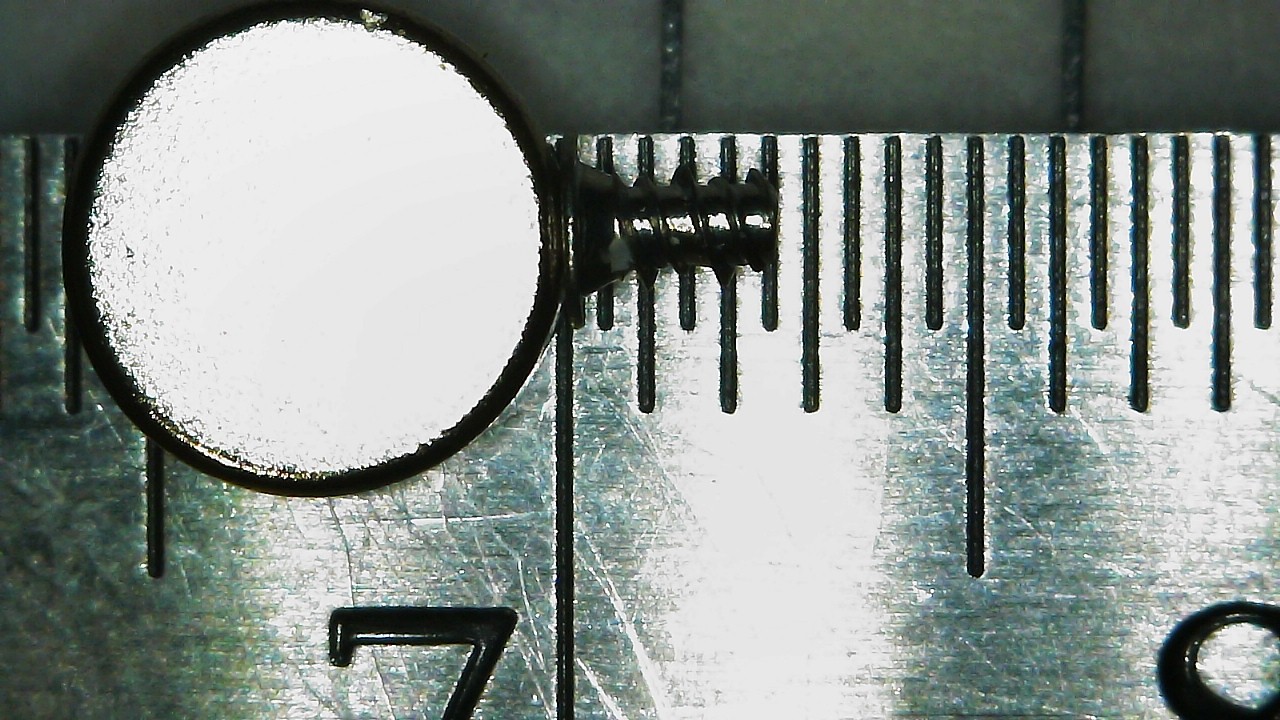

2.5mm x 1.5mm x 2.5mm
Phillips: PH #00

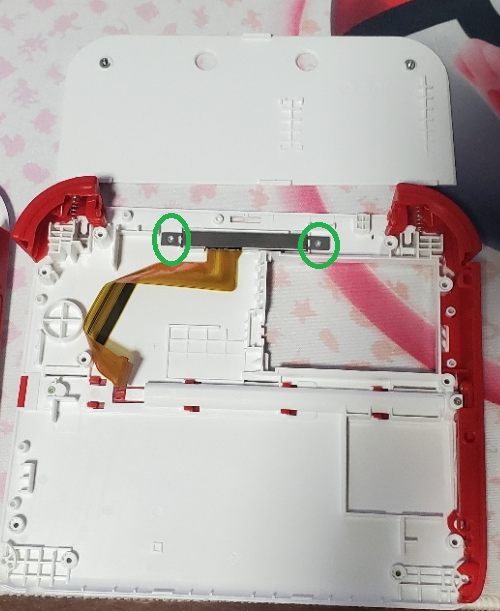

(2x) Rear Camera Screws (No Guide)
M1.4 – 0.6 x 2mm

3mm x 1.5mm x 2.5mm
Phillips: PH #00
(2x) SD Card Door Screws (No Guide)
M1.4 – 0.6 x 2.5mm

4mm length x 1.5mm x 3.5mm
Phillips: PH #00
(2x) Battery Door Screw (Step 1)
M1.4 – 0.4 x 3.5mm

4.5mm x 1.5mm x 2.5mm
Phillips: PH #00
(2x) Shell piece around Charge Port Screws (Orange Circles) (Step 9)
(2x) Stylus Cover Screws (No Guide)
M1.4 – 0.6 x 4mm

6mm x 1.5mm x 2.5mm
Phillips: PH #00
(12x) Motherboard Screws (Step 8)
M1.4 – 0.6 x 5.5mm

6.5mm x 1.5mm x 2.5mm
Phillips: PH #00
(10x) Rear Shell Screws (Step 4)
M1.4 – 0.6 x 6mm

7.5mm x 1.5mm x 2.5mm
Phillips: PH #00
(2x) Circle Pad Screw (Step 9)
M1.4 – 0.6 x 7mm

Other

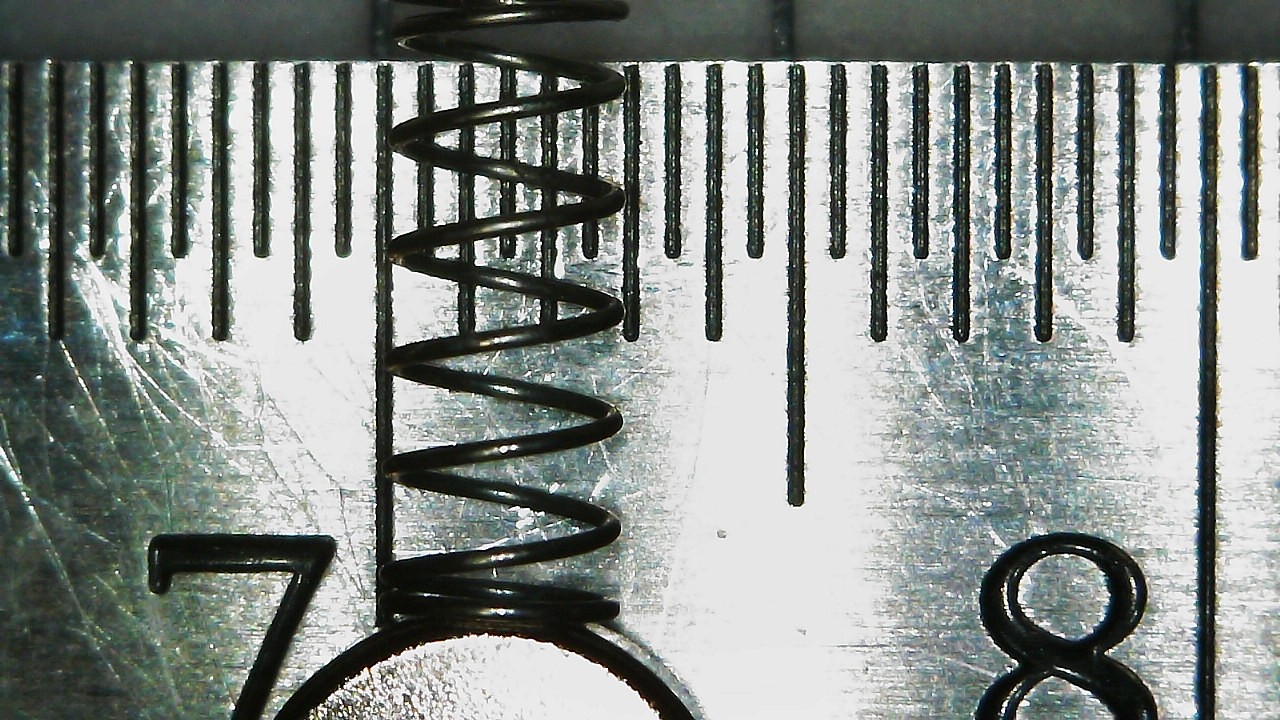

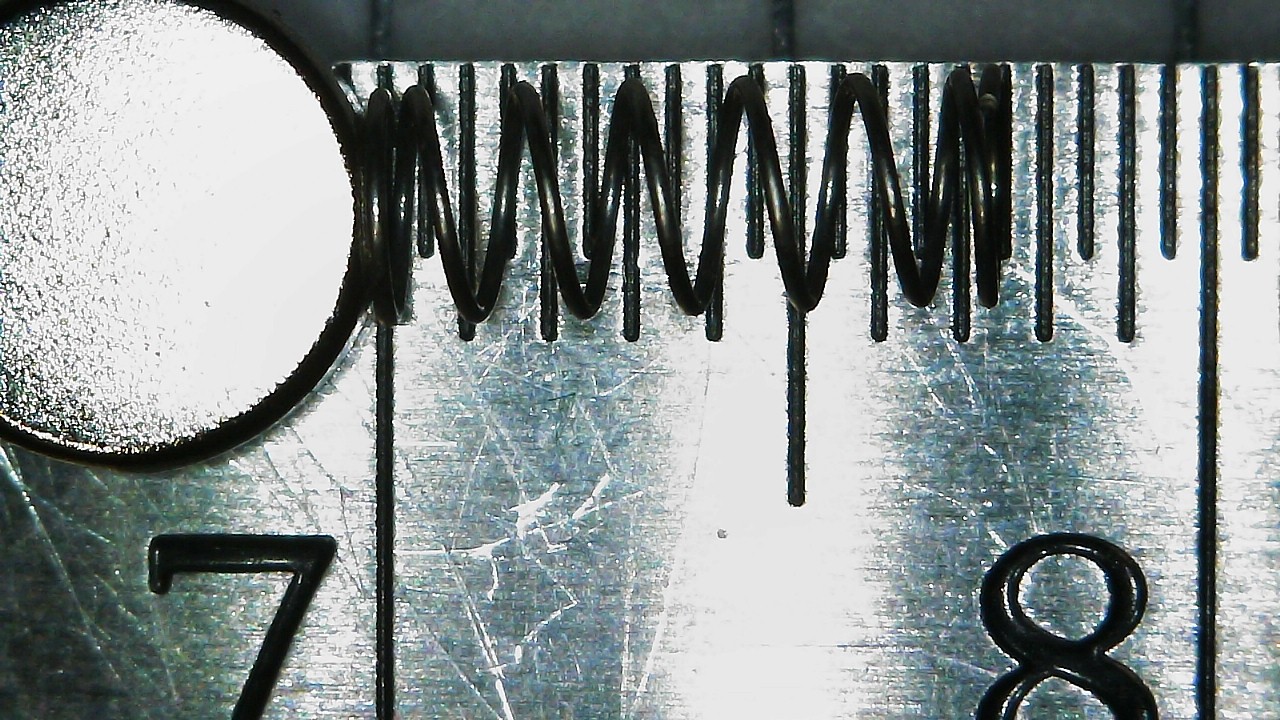

2x Shoulder Button Spring
7.5mm length x 3.5mm diameter

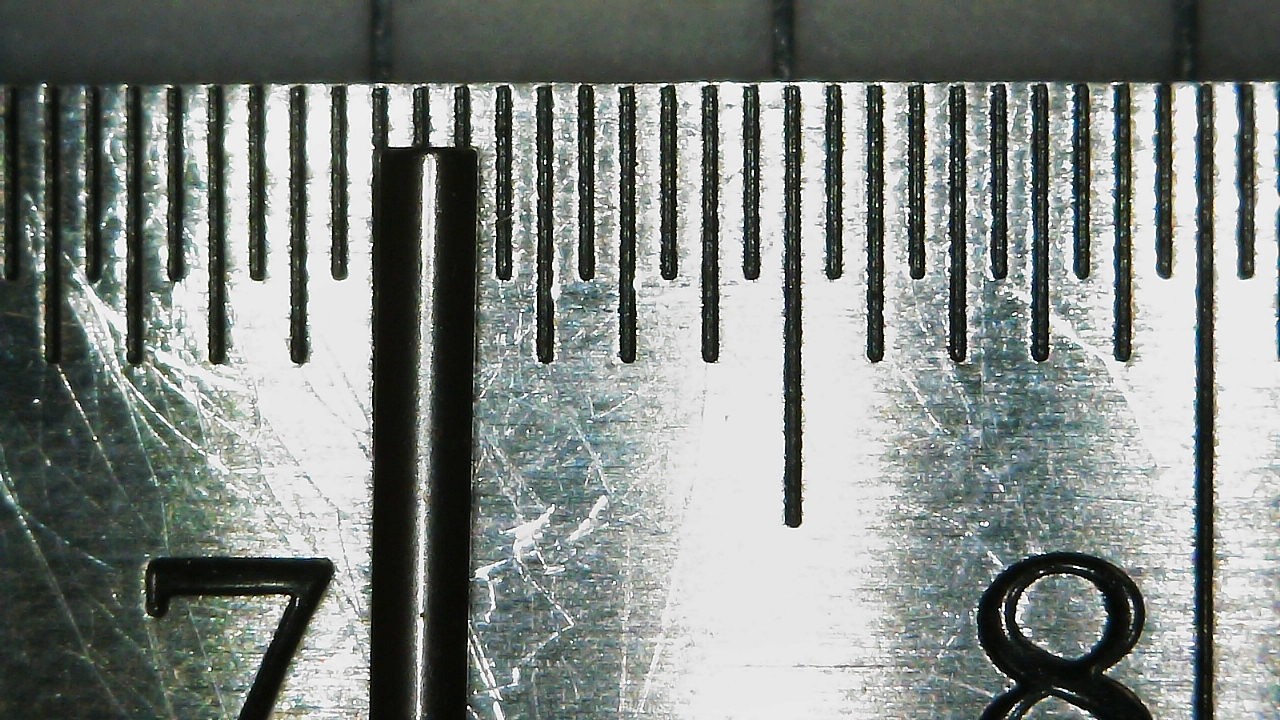

2x Corner Post
8mm Length x 1mm Diameter

2x Battery Door Nut
5 mm length x 3mm height x 1.5mm thickness

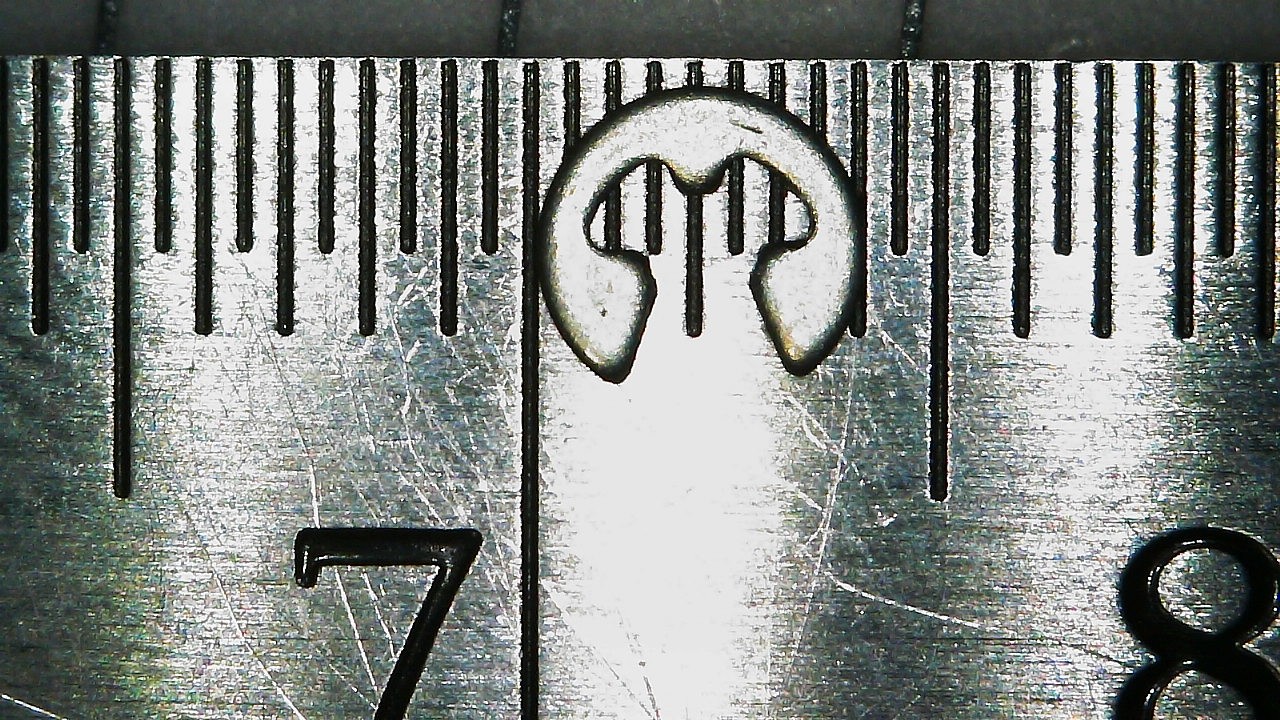

2x E-clip
4mm wide

Battery Door

Two Battery Door Screws
M1.4 – 0.4 x 3.5mm
4mm length x 1.5mm x 3.5mm
Phillips: PH #00

Two E-Clips
4mm Wide

Two Battery Door Nuts
5 mm length x 3mm height x 1.5mm thickness

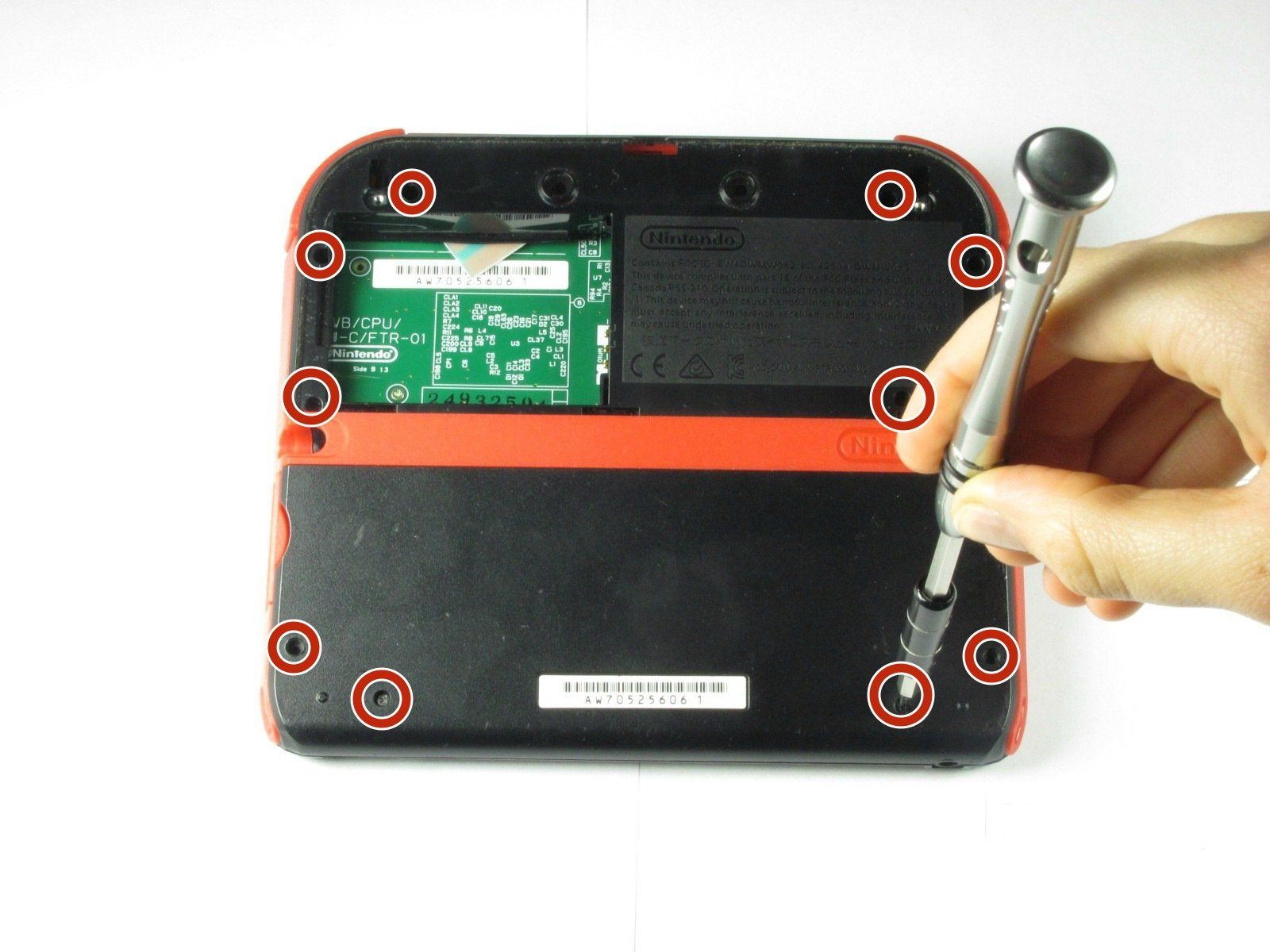

Rear Shell

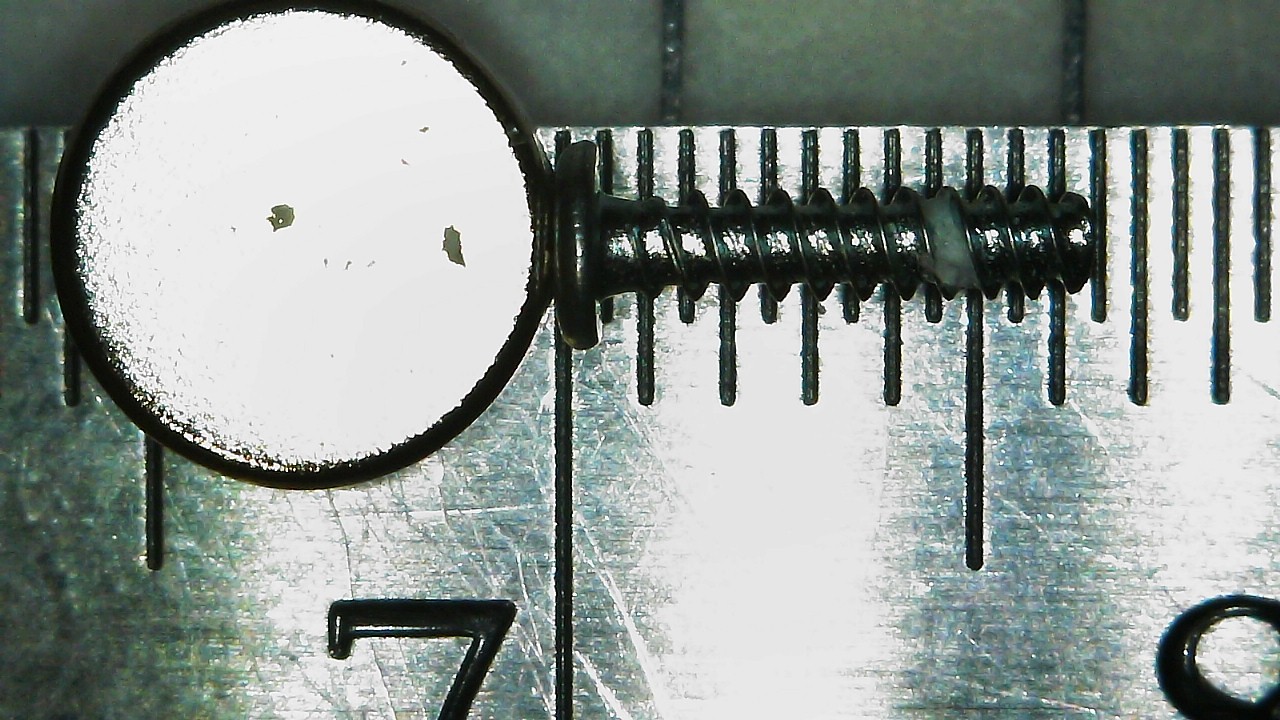

Ten Rear Shell Screws
M1.4 – 0.6 x 6mm
6.5mm x 1.5mm x 2.5mm
Phillips: PH #00

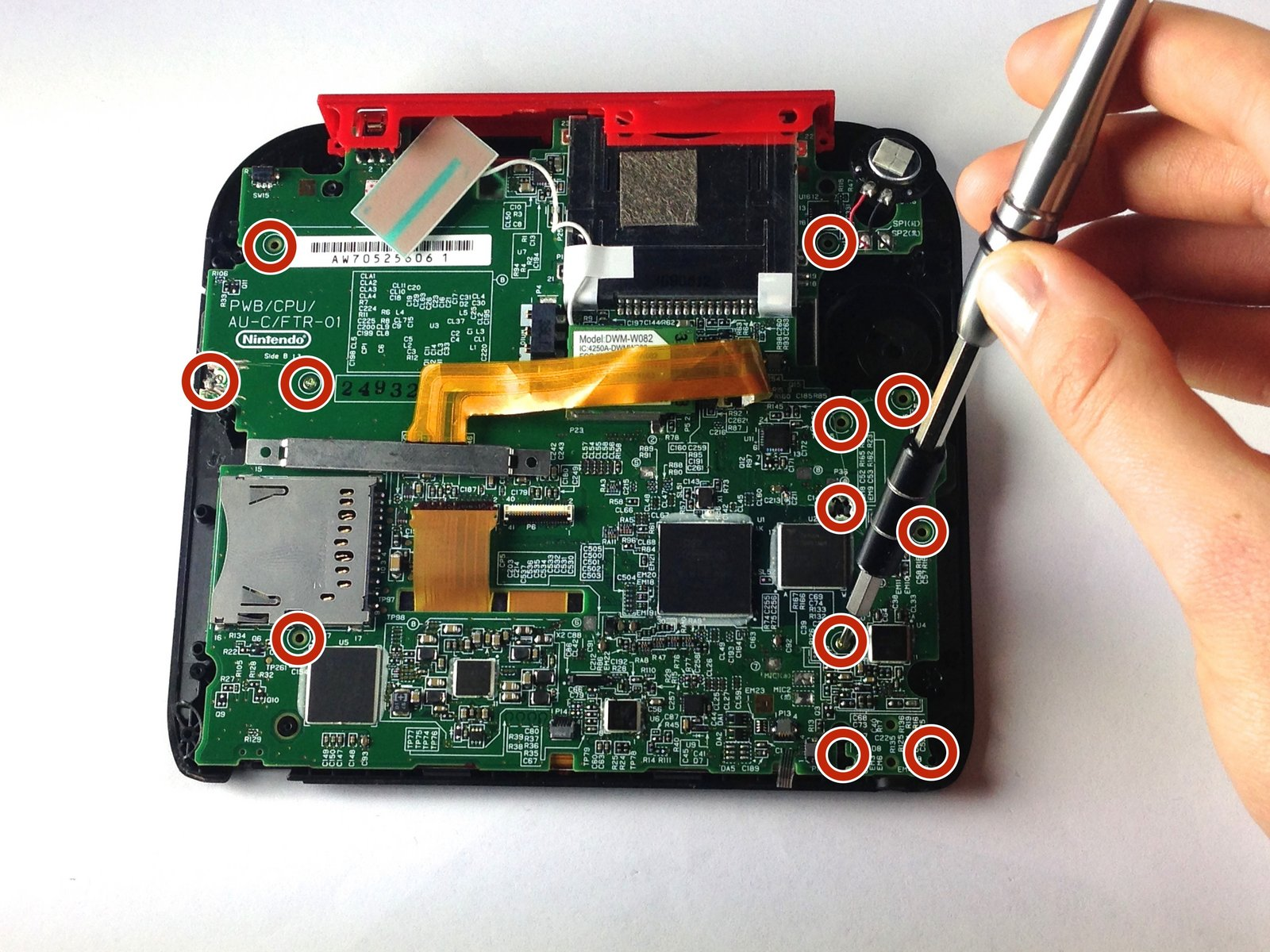

Motherboard

Twelve Motherboard Screws
M1.4 – 0.6 x 5.5mm
6mm x 1.5mm x 2.5mm
Phillips: PH #00

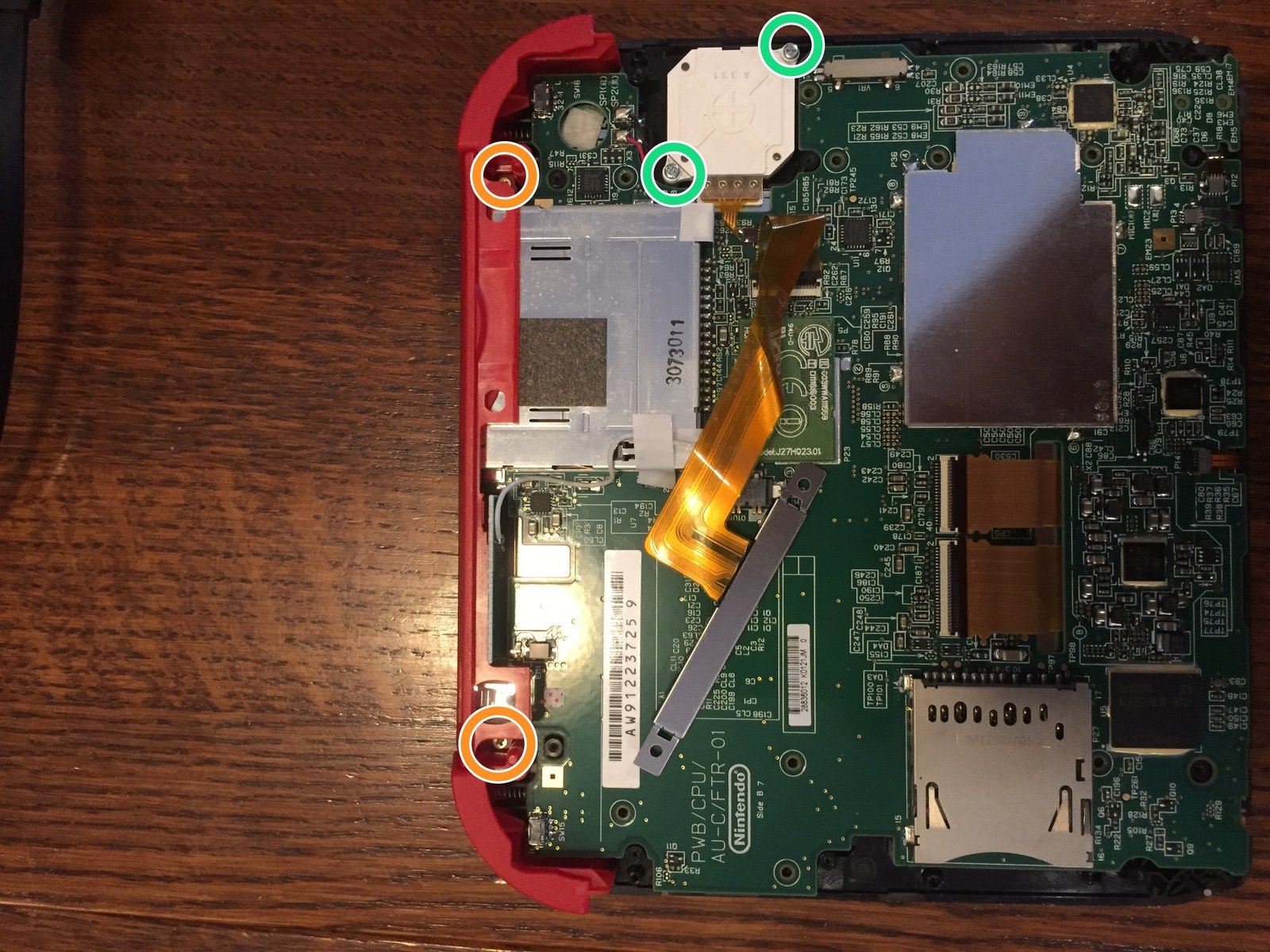

Shell Piece around Charge Port and Circle Pad

Two Screws for the Shell Piece around the Charge Port (Orange Circle) (Yeah, I didn't have a good name for them)
M1.4 – 0.6 x 4mm
4.5mm x 1.5mm x 2.5mm
Phillips: PH #00
