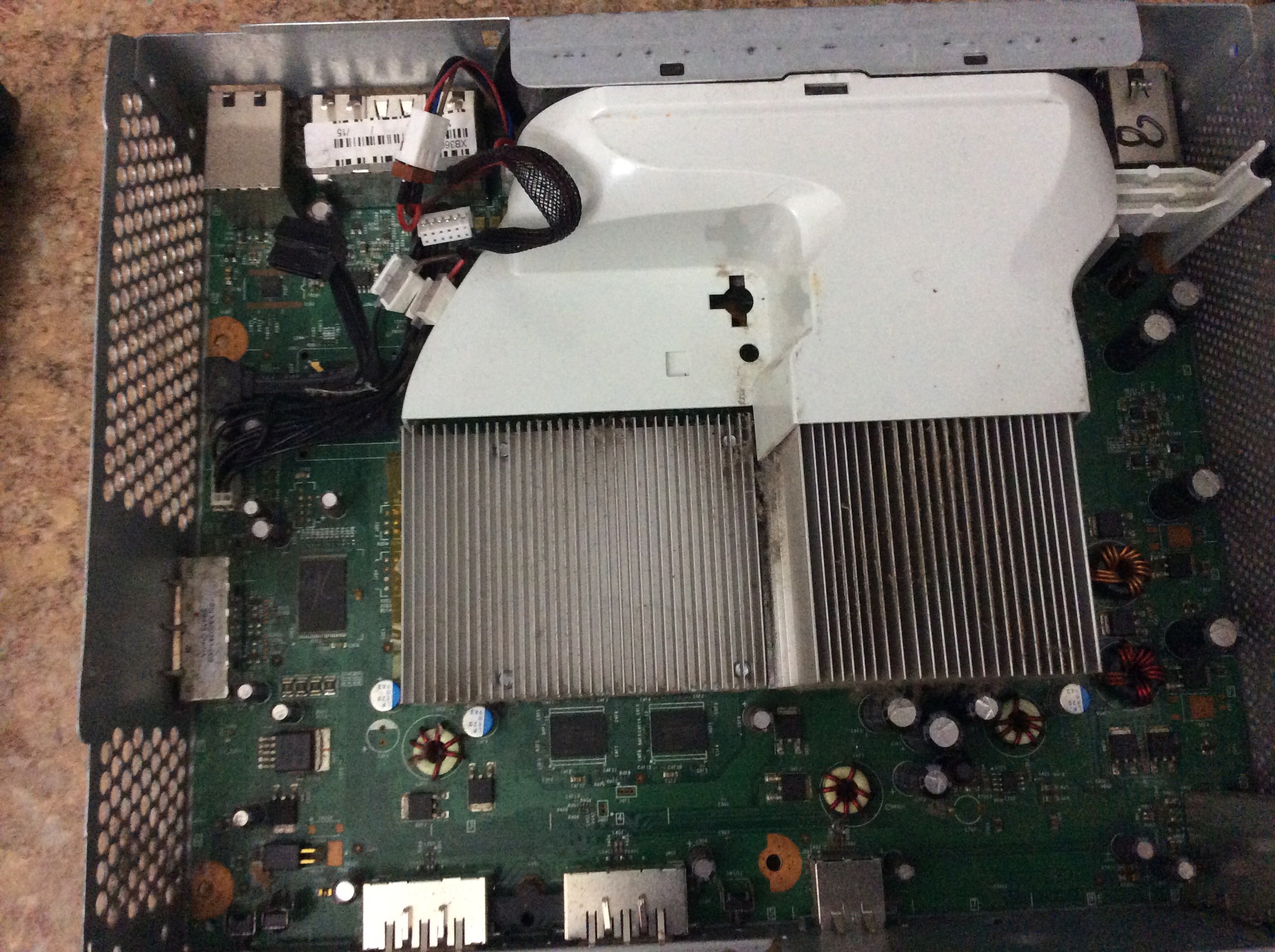

    I’ve just opened my 360 to clean dust and I’ve found out I have a fan mod and I’ve heard it’s not good so how do I fix it


    Attached Files:

  2. bob1212

    OP bob1212 GBAtemp Regular
    Member

    Joined:
    Nov 5, 2020
    Messages:
    109
    Country:
    United States
    Also it’s a jasper Kronos

  3. DinohScene

    DinohScene hail p1ngpong
    Moderator

    Joined:
    Oct 11, 2011
    Messages:
    21,214
    Country:
    Antarctica
    I'd honestly say leave it as is.

    If you 're keen on reverting the mod, you'll have to snip the fan leads from the DVD drive leads and solder everything back to the original place.
    There's a chance the previous owner ditched the fan plug, making it harder to restore it.

  4. bob1212

    OP bob1212 GBAtemp Regular
    Member

    Joined:
    Nov 5, 2020
    Messages:
    109
    Country:
    United States
    Also what about the screws and bolts on the bottom of the board

  5. godreborn

    godreborn GBAtemp Legend
    Member

    Joined:
    Oct 10, 2009
    Messages:
    18,259
    Country:
    United States
    do you mean the ones that go to the heatsinks? that's where the x clamps should've been iirc.

  6. DinohScene

    DinohScene hail p1ngpong
    Moderator

    Joined:
    Oct 11, 2011
    Messages:
    21,214
    Country:
    Antarctica
    What godreborn said.

    I'd honestly trash it, washers and bolts put way to much uneven tension on the board, microscopicly warping it and putting the BGA under strain.

    If it's all working fine then I'd say leave it as is.
    The machine likely suffered from a cold solder joint and the gamestop pillocks quickly mended it to flog it off.

  7. bob1212

    OP bob1212 GBAtemp Regular
    Member

    Joined:
    Nov 5, 2020
    Messages:
    109
    Country:
    United States
    So I shouldn’t mod it?

  8. godreborn

    godreborn GBAtemp Legend
    Member

    Joined:
    Oct 10, 2009
    Messages:
    18,259
    Country:
    United States
    not unless you know how that fan mod is installed. I've installed new fans in a xenon, didn't help it last. however, it was just in the same connector as the normal fans, so it was a very easy swap out.

    — Posts automatically merged - Please don't double post! —

    btw, the system does look pretty dirty based on that pic. the fan shroud looks disgusting. lol, like the person who owned it smoked or something. it looks like tar on it.

  9. bob1212

    OP bob1212 GBAtemp Regular
    Member

    Joined:
    Nov 5, 2020
    Messages:
    109
    Country:
    United States
    So I should replace the fans? also I don’t think my friend smokes I think it was enclosed area for a long time, he said he had it for 6 years

  10. godreborn

    godreborn GBAtemp Legend
    Member

    Joined:
    Oct 10, 2009
    Messages:
    18,259
    Country:
    United States
    only if you know what you're doing. if that's not cigarette tar, I don't know what it is. it looks pretty dirty though.

  11. bob1212

    OP bob1212 GBAtemp Regular
    Member

    Joined:
    Nov 5, 2020
    Messages:
    109
    Country:
    United States

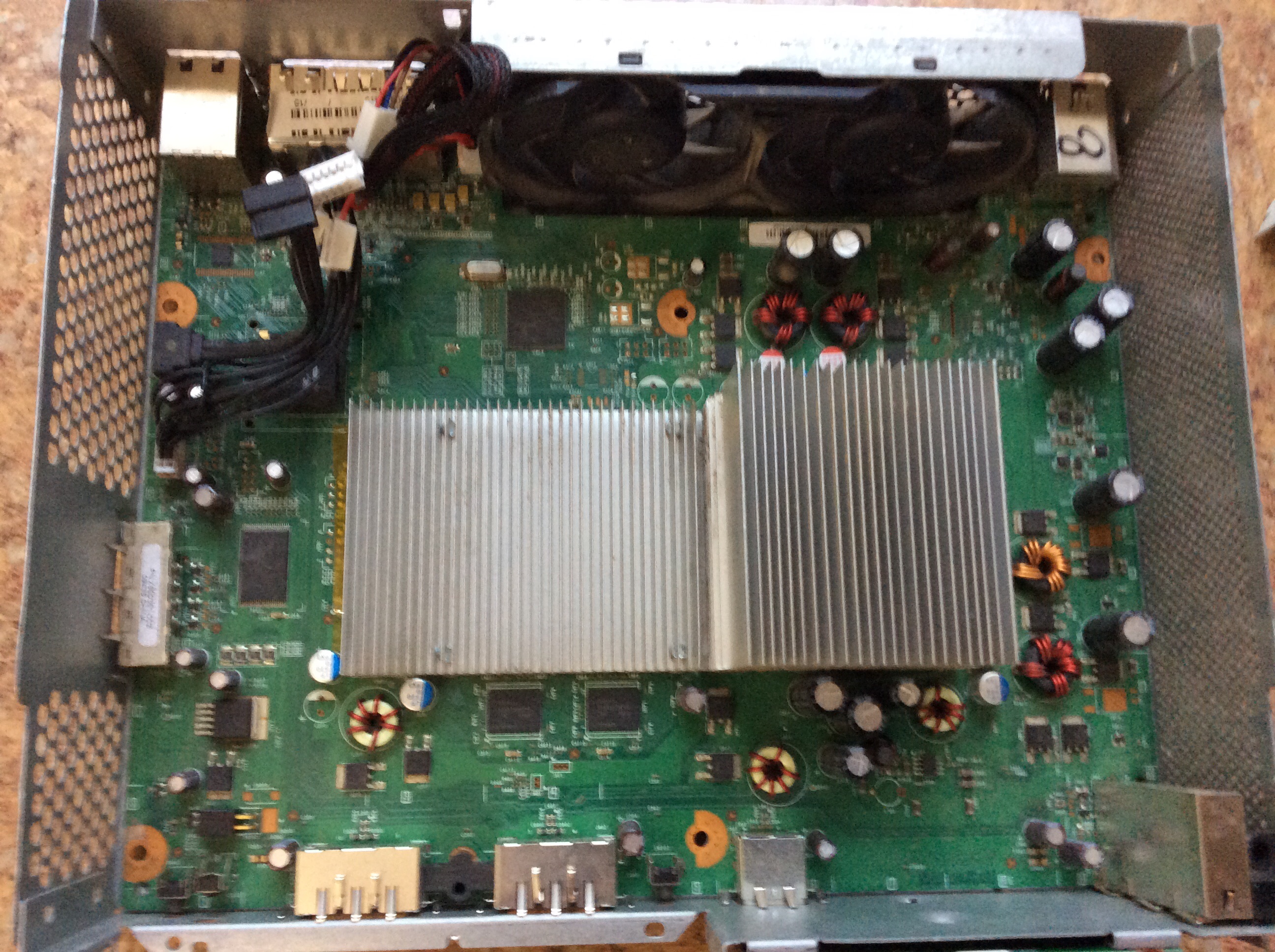

    Oh wait I will post a newer picture I just cleaned it a little last night


    Attached Files:

    Last edited by bob1212, May 14, 2021
  12. godreborn

    godreborn GBAtemp Legend
    Member

    Joined:
    Oct 10, 2009
    Messages:
    18,259
    Country:
    United States
    yeah, the heatsinks look cleaner, but one of the big things for me was the fan shroud, which is missing in that picture.

  13. bob1212

    OP bob1212 GBAtemp Regular
    Member

    Joined:
    Nov 5, 2020
    Messages:
    109
    Country:
    United States

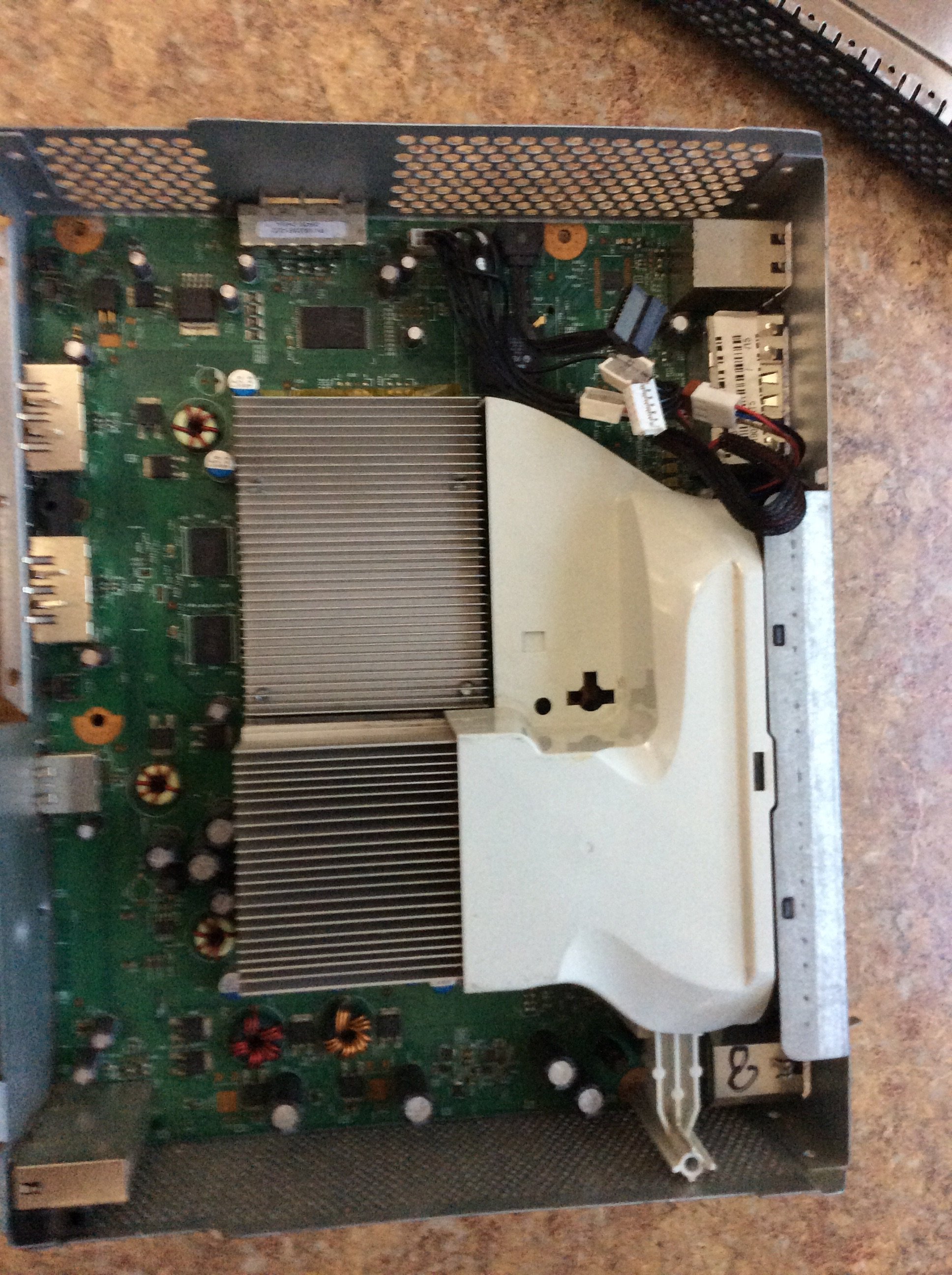

    Oh here


    Attached Files:

  14. godreborn

    godreborn GBAtemp Legend
    Member

    Joined:
    Oct 10, 2009
    Messages:
    18,259
    Country:
    United States
    it looks much better, yes.

  15. lisreal2401

    lisreal2401 GBAtemp Advanced Fan
    Member

    Joined:
    Jun 4, 2013
    Messages:
    805
    Country:
    United States
    Gamestop always uses this fan mod/bolts on any 360 they service

    It's a solid motherboard, I would replace the fan with a stock 3 pin then swap the bolts with xclamps - that's just going to break the console for a repair that likely was something different

    Last edited by lisreal2401, May 14, 2021
  16. godreborn

    godreborn GBAtemp Legend
    Member

    Joined:
    Oct 10, 2009
    Messages:
    18,259
    Country:
    United States
    it's better to use nylon washers than bolts. I'm not sure if bolts is what they originally used (probably), as I've always bought 360s used. and, the xclamps had been removed from all of them.
