Wireless charge + Bluetooth Mod Guide N3Ds XL in 4K

Discussion in '3DS - Tutorials' started by Dennis G, Oct 23, 2016.

Oct 23, 2016
  1. Dennis G
    OP

    Member Dennis G GBAtemp Advanced Fan

    Joined:
    Jan 4, 2016
    Messages:
    662
    Country:
    Netherlands
    Hello, i've made a long video about how i did the wireless charge + bluetooth mod.
    The bluetooth part is only referencial and not 100% a tutorial.
    but i linked the forum post in the description on how to do it and what you need.
    But the video shows still a big part of it, only the wiring is not 100% detailed in the video, but from 5:45 on you get the complete wireless charge tutorial.
    You can still watch the whole video to get more input =)
    i did a shell swap that's why i was able to "build" in my mods again so i could film them =)
    + also swapped out my analog stick for a majora's mask analog stick =)

    Here's the youtube Tutorial!:

    Link to the Bluetooth Audio Mod: https://gbatemp.net/threads/n3ds-xl-with-integrated-bluetooth-audio-hardware-mod.417712/

    pictures of the mods + the wiring + some of the headphone jack (forgot those in the video)
    IMG_0346.JPG IMG_0245.JPG IMG_0252.JPG


    and here are some pictures of what i ended up with =):
    IMG_0307.JPG IMG_0309.JPG IMG_0310.JPG IMG_0312.JPG IMG_0315.JPG IMG_0319.JPG IMG_0322.JPG IMG_0286.JPG

    Last edited by Dennis G, Dec 6, 2016


  2. Pecrow

    Member Pecrow GBAtemp Maniac

    Joined:
    Jun 23, 2015
    Messages:
    1,137
    Country:
    United States
    It's here, sweet!

  3. Dennis G
    OP

    Member Dennis G GBAtemp Advanced Fan

    Joined:
    Jan 4, 2016
    Messages:
    662
    Country:
    Netherlands
    Let me know if it's surficient

  4. Red9419

    Member Red9419 GBAtemp Advanced Fan

    Joined:
    Apr 17, 2014
    Messages:
    504
    Country:
    Antarctica
    Very nice mod! Do you mind if i ask where you got that analog stick?

    Last edited by Red9419, Oct 23, 2016
  5. Dennis G
    OP

    Member Dennis G GBAtemp Advanced Fan

    Joined:
    Jan 4, 2016
    Messages:
    662
    Country:
    Netherlands
    Shapeways.com

    I pwned U! and Red9419 like this.
  6. Red9419

    Member Red9419 GBAtemp Advanced Fan

    Joined:
    Apr 17, 2014
    Messages:
    504
    Country:
    Antarctica
    Thanks for the link! Did you upload your own model? I can't seem to find it.

  7. Dennis G
    OP

    Member Dennis G GBAtemp Advanced Fan

    Joined:
    Jan 4, 2016
    Messages:
    662
    Country:
    Netherlands
    Yes i uploaded a custom one

  8. Luckkill4u

    Member Luckkill4u 4 guys in a car ( ͡° ͜ʖ ͡°)

    Joined:
    Jul 13, 2008
    Messages:
    973
    Location:
    Insomnia
    Country:
    Canada
    I'm quite interested in your wireless charging mod. I have 3 wireless Qi chargers in my house for my smartphones but most of the time only one is being used. Personally I want to find a way to convert this Qi Wireless charging receiver but I dont really want to do any heavy modifications. @Dennis G Do you think it would be simple enough to convert micro-usb to the 3DS plug or is cracking open my New 3DS much simpler.

  9. Mr.ButtButt

    Member Mr.ButtButt The Cancer Of Gbatemp <3

    Joined:
    Sep 22, 2015
    Messages:
    1,461
    Country:
    United States
    mind posting the model here? ;))

    — Posts automatically merged - Please don't double post! —

    also, is there a guide out there to change the 3ds' lights like how you have there?

    I pwned U! and Red9419 like this.
  10. Dennis G
    OP

    Member Dennis G GBAtemp Advanced Fan

    Joined:
    Jan 4, 2016
    Messages:
    662
    Country:
    Netherlands
    that receiver you have is pretty much the same as i had, if you watch the video, you can see the iphone one, they are all the same, a coil with a little motherboard, if you tear the paper from yours it will be the same too, all you gotta do is solder 2 wires to it and solder those to the power connector on your 3ds, it's pretty easy, if you have 0 experience with soldering, just solder some wires to other wires first, it's reallllyyy easy, and it makes it so much easyer to have it inside the console, rather then having it on the backside, it will get lose and stuff, make the 3ds thinker + not feel as smooth in the hand. soldering a 3ds charge wire to the receiver is the same work then just soldering 2 wires to the console + charger, + if you build it in to the console, you can still use the wired charger port to charge it aswell.

    — Posts automatically merged - Please don't double post! —

    there is no need for a guide, it's pretty straight forward, you need to be quite good with a soldering iron, i've done it with mine + my girlfriends N3ds, the n3ds is a real pain, the smd led's are very close to each other + ther is a very tiny contact very close to the led and if you get some tin on that the power board won't work anymore, i had lot's of issues getting the led's swapped, i'd only recommend it if you're really experienced with soldering, + the charger led uses a low power led, i had to get a special 2v smd to get it running again :P, but if you really want to give it a go, i'd buy a second power-board (ther like 20 dollars on ebay/aliexpress) and try it on that one and if you're successful build that one in =), it's not worth it to kill your 3ds for the leds, even though the stock ones are unbelievable ugly :P

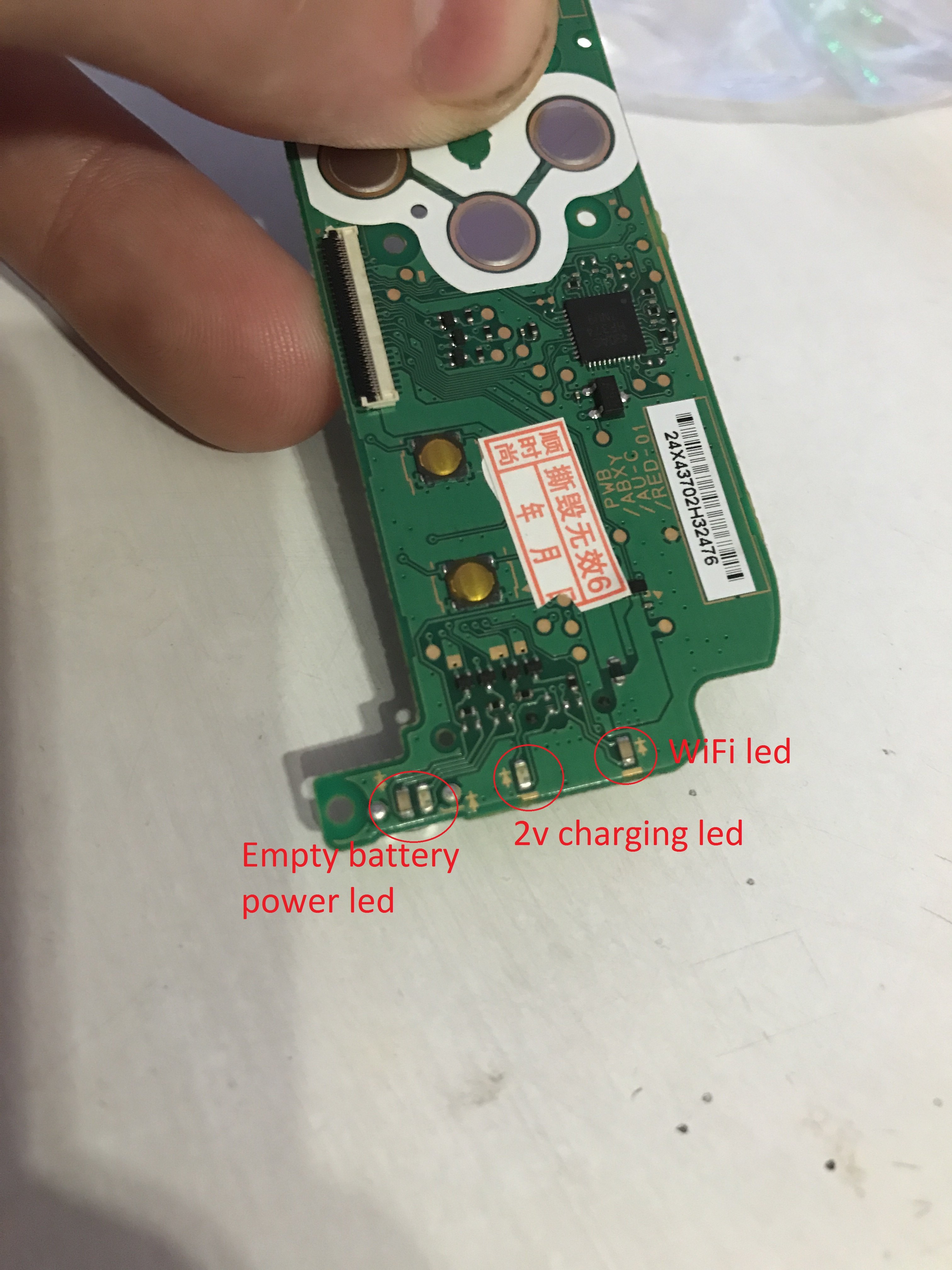

    here is the position of the led's:

    I'm not 100% sure, but i think i used this one:
    i'd recommend to think about what you like, image you like smash, google smash bro's silhouette, look though them, since they give you the option you can really get something unique =)

    Last edited by Dennis G, Oct 24, 2016
    Luckkill4u likes this.
  11. Mr.ButtButt

    Member Mr.ButtButt The Cancer Of Gbatemp <3

    Joined:
    Sep 22, 2015
    Messages:
    1,461
    Country:
    United States
    I'm not really good at all with soldering, so I won't even try that LOL
    However, when it comes to the circle pad, what model did you use? or did you use a pre existing one, and just added a design to be ingraved into it? I'd probably get an earthbound one, with veeeeery minimal details.

  12. Dennis G
    OP

    Member Dennis G GBAtemp Advanced Fan

    Joined:
    Jan 4, 2016
    Messages:
    662
    Country:
    Netherlands
    there is only one reason why you're not good with soldering, haven't done it enough yet =) i have very very shaky hands and yet i can solder with them just because i tried it a lot, trust me if you try you'll get there,ofc some stuff will die but that's part of the game =), my first mod was soldering Led's in to triggers of a psp, i was like 14, that was like 10 years ago xD.
    For the analog stick: https://www.shapeways.com/product/V...a4d9a6506c222fc2a7d&optionId=58958328&li=cart
    but you'll have to disassemble the 3ds to install it, + mine was very wobbly, it did not fit proper, i had to make spacers out of paper, stacked 3 sheets glued them with 3m tape and that way it worked.

    Mr.ButtButt likes this.
  13. Mr.ButtButt

    Member Mr.ButtButt The Cancer Of Gbatemp <3

    Joined:
    Sep 22, 2015
    Messages:
    1,461
    Country:
    United States
    thank you so much. also, you're right. I haven't done it AT ALL lol
    I tried to fix a link's awakening cartridge with soldering once. Needless to say, I was out of a Link's awakening cart that day..

  14. Dennis G
    OP

    Member Dennis G GBAtemp Advanced Fan

    Joined:
    Jan 4, 2016
    Messages:
    662
    Country:
    Netherlands
    link failed to awaken, now you have to awaken xD

    I pwned U! and Mr.ButtButt like this.
  15. PokeAcer

    Member PokeAcer Ex-GBATemp Member

    Joined:
    May 28, 2015
    Messages:
    1,179
    Location:
    North East Wales
    Country:
    United Kingdom
    Oh cool! ^~^
    Would you consider doing either of the mods for people for a fee? :P

  16. Dennis G
    OP

    Member Dennis G GBAtemp Advanced Fan

    Joined:
    Jan 4, 2016
    Messages:
    662
    Country:
    Netherlands
    yeah sure, but im from Europe though, all up to you guys =P

  17. PokeAcer

    Member PokeAcer Ex-GBATemp Member

    Joined:
    May 28, 2015
    Messages:
    1,179
    Location:
    North East Wales
    Country:
    United Kingdom
    How much would you wish to charge? I'm in UK :P

  18. Dennis G
    OP

    Member Dennis G GBAtemp Advanced Fan

    Joined:
    Jan 4, 2016
    Messages:
    662
    Country:
    Netherlands
    i'm figuring that out at the moment, supply would cost me around 32 euros and shipping varies from 9 euro up to 14.65 euros from the netherlands to the uk or most other eu countrys, 9 without shipping and 14.65 is insured up to 500 euros + needs to be signed on arrival. not quite sure what to ask for labor though haha

  19. Ace212

    Newcomer Ace212 Advanced Member

    Joined:
    Oct 23, 2016
    Messages:
    52
    Country:
    United States
    Wow, this is quite cool! I've been wanting to do something like this to my 3DS for a long while, I never got the chance to. Thanks for sharing!

  20. PokeAcer

    Member PokeAcer Ex-GBATemp Member

    Joined:
    May 28, 2015
    Messages:
    1,179
    Location:
    North East Wales
    Country:
    United Kingdom
    For just Wireless charging alone on an O3DS xL? :3
    (I wouldnt be too interested in BT module even though my headphone jack is broken)
