WiiU Solder micro sd adapter

[geray]

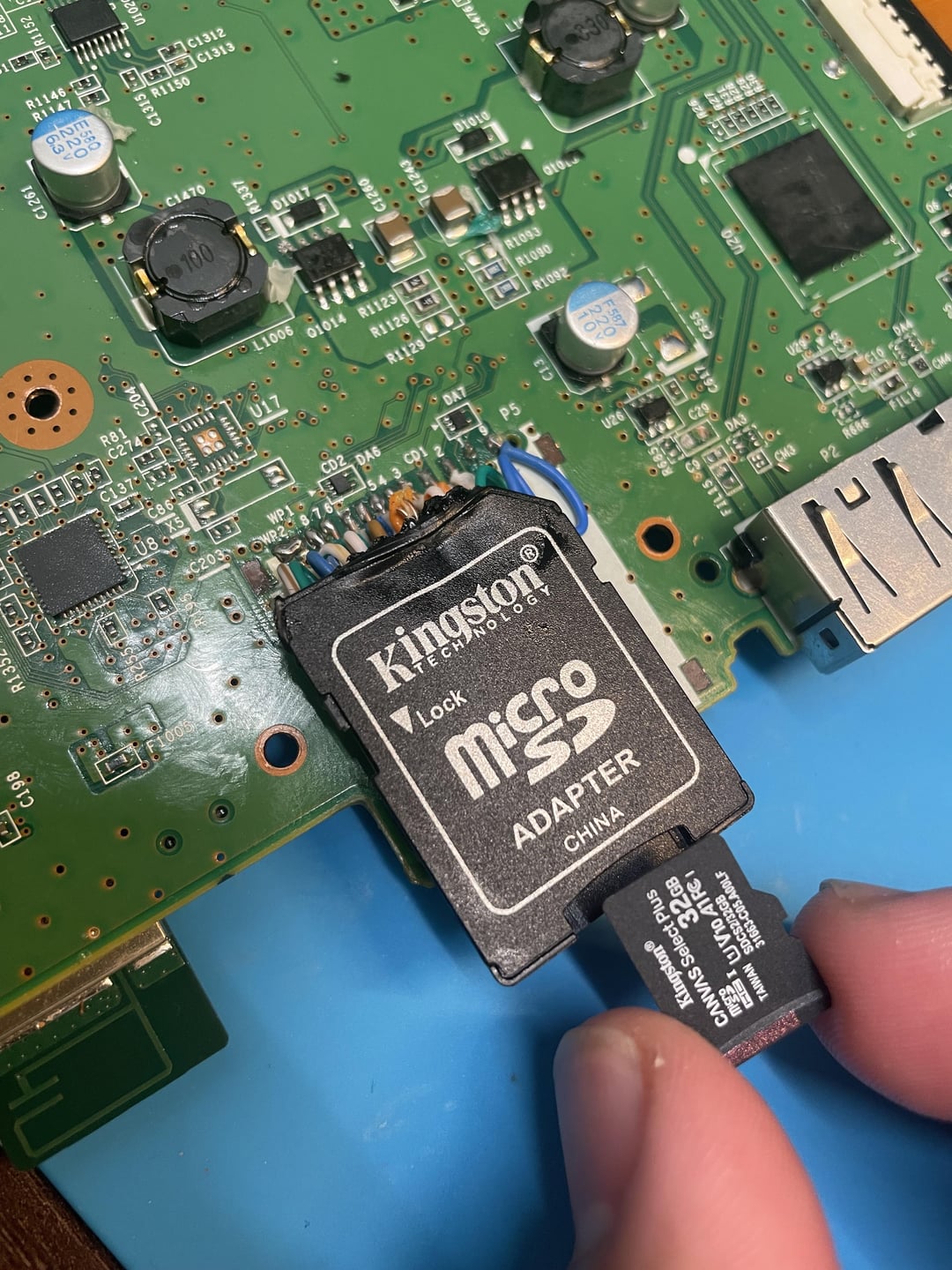

I found these photos on the internet and I would like to have a diagram of where to install each cable on the board. On the board I see 13 cables and on the adapter 9 (2 of them double). I am still missing 2 more cables. Any help?



[SDIO]

What problem are you trying to solve?

You should be able to find the pinout of the SD slot online, since that is a generic part and also of the SD adapter.

There shouldn't much surprise, as they go pretty much 1:1, with exception for the card detect and the write protect pins, which only the slot has.

They probably solder to the CD and WP pin to bridge them, so the Wii U always thinks there is a card in, which isn't write protected.



[geray]

¿Qué problema estás intentando resolver?

Deberías poder encontrar la distribución de pines de la ranura SD en línea, ya que es una parte genérica y también del adaptador SD.

No debería haber mucha sorpresa, ya que son prácticamente 1:1, con excepción de los pines de detección de tarjeta y de protección contra escritura, que solo tiene la ranura.

Probablemente se sueldan al pin CD y WP para unirlos, de modo que la Wii U siempre piensa que hay una tarjeta adentro, que no está protegida contra escritura.

Bueno tengo el slot destrozado y lo he tenido que quitar y como no tengo repuesto había pensado en usar ese adaptador con los cables, pero por más que he buscado no encuentro un diagrama de cada pin.



[SDIO]

English please.

You find the pinout and the pin numbering of the SD card here: https://sudomod.com/wp-content/uploads/2016/06/sd-card-pinout.png

For the pins on the slot on the board they are marked directly on the board. The ones marked with a number go to the pin with the according number on the SD card.
Then you have CD1 and CD2, these you just bridge together and do the same for WP1 and WP2
