Hardware USB port mod

[yifan_lu]

Nope zilch~ , gonna use a arduino and the serial monitor to see whats being sent out.

I didn't look at your photos until now but why did you solder to the modem and not the motherboard? It obviously won't work that way because you're basically taking one USB cable and putting two devices on it.



[TariqSoftDev]

I didn't look at your photos until now but why did you solder to the modem and not the motherboard? It obviously won't work that way because you're basically taking one USB cable and putting two devices on it.

I looked at the modem and noticed the USB D- and D+ is cut off , I'll do that then , solder directly to the MB now



[yifan_lu]

I looked at the modem and noticed the USB D- and D+ is cut off , I'll do that then , solder directly to the MB now

And make sure the modem isn't inserted.



[TariqSoftDev]

And make sure the modem isn't inserted.

alright , I did that cause I didn't want to risk destroy the port , also wanted to ask where did you get the MPCI-E prototype boards? , I came up with a nice idea that might be really good.



[Zukov]

This is beautifull.



[TariqSoftDev]

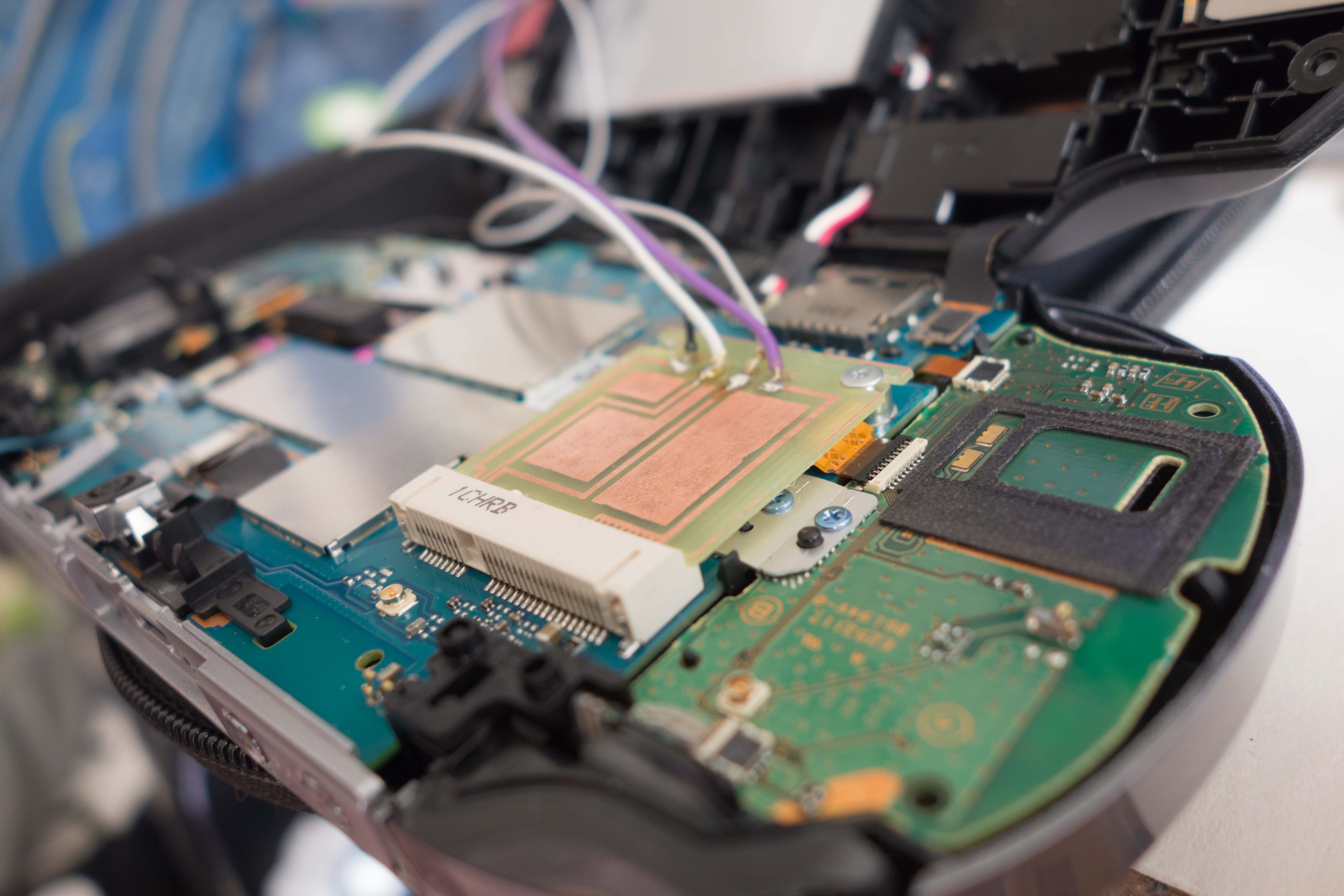

Alright soldered directly @yifan_lu updating the main thread take a look , your program told me something (give me 5 mins) and the PS Vita said "This device is not supported"

--------------------- MERGED ---------------------------

Updated ~ Read main thread section.



[yifan_lu]

Nice, that mean it's seeing something. Try VitaShell now.



[TariqSoftDev]

Nice, that mean it's seeing something. Try VitaShell now.

Already did , still doesn't recognize it in VShell



[yifan_lu]

Can you reboot the Vita, use henkaku, but don't open vitashell, launch usb_detect directly and see if you get any new output?



[TariqSoftDev]

Can you reboot the Vita, use henkaku, but don't open vitashell, launch usb_detect directly and see if you get any new output?

Alright on it rn

--------------------- MERGED ---------------------------

Can you reboot the Vita, use henkaku, but don't open vitashell, launch usb_detect directly and see if you get any new output?

Results:

Spoiler

Started!

Press X to start probing.
Press Circle to stop probing and exit.

Kernel start: 0, 0
Kernel start: 0, 0
User load & start: 4001009f, 0
taiHookFunctionExportForKernel: 0x00013FC9
ksceUsbdGetDescriptor-patched(65538, 0, 0x01): 0x0263E040
ksceUsbdGetDescriptor-patched(65538, 0, 0x01): 0x0263E040
ksceUsbdGetDescriptor-patched(65538, 0, 0x01): 0x0263E040
ksceUsbdGetDescriptor-patched(65538, 0, 0x01): 0x0263E040
ksceUsbdGetDescriptor-patched(65538, 0, 0x01): 0x0263E040
ksceUsbdGetDescriptor-patched(65538, 0, 0x01): 0x0263E040
Device found: 10002
ksceUsbdGetDescriptor-patched(65538, 0, 0x01): 0x0263E040
device found: 10002
ksceUsbdGetDescriptor-patched(65538, 0, 0x01): 0x0263E040


Previously:

Started!

Press X to start probing.
Press Circle to stop probing and exit.

Kernel start: 0, 0
Kernel start: 0, 0
User load & start: 4001009f, 0
taiHookFunctionExportForKernel: 0x000E2EC9
ksceUsbdGetDescriptor-patched(65537, 0, 0x01): 0x026B2040
ksceUsbdGetDescriptor-patched(65537, 0, 0x01): 0x026B2040
ksceUsbdGetDescriptor-patched(65537, 0, 0x01): 0x026B2040
ksceUsbdGetDescriptor-patched(65537, 0, 0x01): 0x026B2040
ksceUsbdGetDescriptor-patched(65537, 0, 0x01): 0x026B2040
ksceUsbdGetDescriptor-patched(65537, 0, 0x01): 0x026B2040
Device found: 10001
ksceUsbdGetDescriptor-patched(65537, 0, 0x01): 0x026B2040
device found: 10001
ksceUsbdGetDescriptor-patched(65537, 0, 0x01): 0x026B2040



[yifan_lu]

Alright on it rn

--------------------- MERGED ---------------------------


Results:

Spoiler

Started!

Press X to start probing.
Press Circle to stop probing and exit.

Kernel start: 0, 0
Kernel start: 0, 0
User load & start: 4001009f, 0
taiHookFunctionExportForKernel: 0x00013FC9
ksceUsbdGetDescriptor-patched(65538, 0, 0x01): 0x0263E040
ksceUsbdGetDescriptor-patched(65538, 0, 0x01): 0x0263E040
ksceUsbdGetDescriptor-patched(65538, 0, 0x01): 0x0263E040
ksceUsbdGetDescriptor-patched(65538, 0, 0x01): 0x0263E040
ksceUsbdGetDescriptor-patched(65538, 0, 0x01): 0x0263E040
ksceUsbdGetDescriptor-patched(65538, 0, 0x01): 0x0263E040
Device found: 10002
ksceUsbdGetDescriptor-patched(65538, 0, 0x01): 0x0263E040
device found: 10002
ksceUsbdGetDescriptor-patched(65538, 0, 0x01): 0x0263E040


Previously:

Started!

Press X to start probing.
Press Circle to stop probing and exit.

Kernel start: 0, 0
Kernel start: 0, 0
User load & start: 4001009f, 0
taiHookFunctionExportForKernel: 0x000E2EC9
ksceUsbdGetDescriptor-patched(65537, 0, 0x01): 0x026B2040
ksceUsbdGetDescriptor-patched(65537, 0, 0x01): 0x026B2040
ksceUsbdGetDescriptor-patched(65537, 0, 0x01): 0x026B2040
ksceUsbdGetDescriptor-patched(65537, 0, 0x01): 0x026B2040
ksceUsbdGetDescriptor-patched(65537, 0, 0x01): 0x026B2040
ksceUsbdGetDescriptor-patched(65537, 0, 0x01): 0x026B2040
Device found: 10001
ksceUsbdGetDescriptor-patched(65537, 0, 0x01): 0x026B2040
device found: 10001
ksceUsbdGetDescriptor-patched(65537, 0, 0x01): 0x026B2040

I just found a bug in my code. Can you try this?



[TariqSoftDev]

@yifan_lu Sorry about that, fell asleep , Just tried it here are the results:

Spoiler

Device found: 10002
ksceUsbdGetDescriptor_patched(65538, 0, 0x01): 0x0263E040
bLength: 0x12
bDescriptorType: 0x01
bcdUSB: 0x0200
bDeviceClass: 0x00
bDeviceSubClass: 0x00
bDeviceProtocol: 0x00
bMaxPacketSize0: 0x40
idVendor: 0x0781
idProduct: 0x5406
bcdDevice: 0x0200
iManufacturer: 0x01
bNumConfigurations: 0x01



[yifan_lu]

@yifan_lu Sorry about that, fell asleep , Just tried it here are the results:

Spoiler

Device found: 10002
ksceUsbdGetDescriptor_patched(65538, 0, 0x01): 0x0263E040
bLength: 0x12
bDescriptorType: 0x01
bcdUSB: 0x0200
bDeviceClass: 0x00
bDeviceSubClass: 0x00
bDeviceProtocol: 0x00
bMaxPacketSize0: 0x40
idVendor: 0x0781
idProduct: 0x5406
bcdDevice: 0x0200
iManufacturer: 0x01
bNumConfigurations: 0x01

Okay so it recognizes your Sandisk drive. But VitaShell doesn't for some reason. Can you try another drive formatted fat32/exfat with this and vitashell?



[TariqSoftDev]

Okay so it recognizes your Sandisk drive. But VitaShell doesn't for some reason. Can you try another drive formatted fat32/exfat with this and vitashell?

Tried it again with 2 other USB devices with the formats FAT, exFAT , FAT32 , same results and PS Vita says "This device is not supported"



[yifan_lu]

Tried it again with 2 other USB devices with the formats FAT, exFAT , FAT32 , same results and PS Vita says "This device is not supported"

Nothing with VitaShell mounting?



[TariqSoftDev]

Nothing with VitaShell mounting?

nope , I got a idea but I can put it into words , attempting to change a part of VShell for this.

--------------------- MERGED ---------------------------

Can't we use the VitaSDK serial com , usb apis to mount the USB with a separate program?



[aclearersky]

Really hope you get this to work. Im holding off on buying a memory card till i see how this unfolds. Always love tearing stuff apart and soldering



[damian12]

Hi,
could this work with a wifi only vita? soldering direct to the pads where the connector is on the 3g model or are there some other components missing?



[FX3200]

hello,

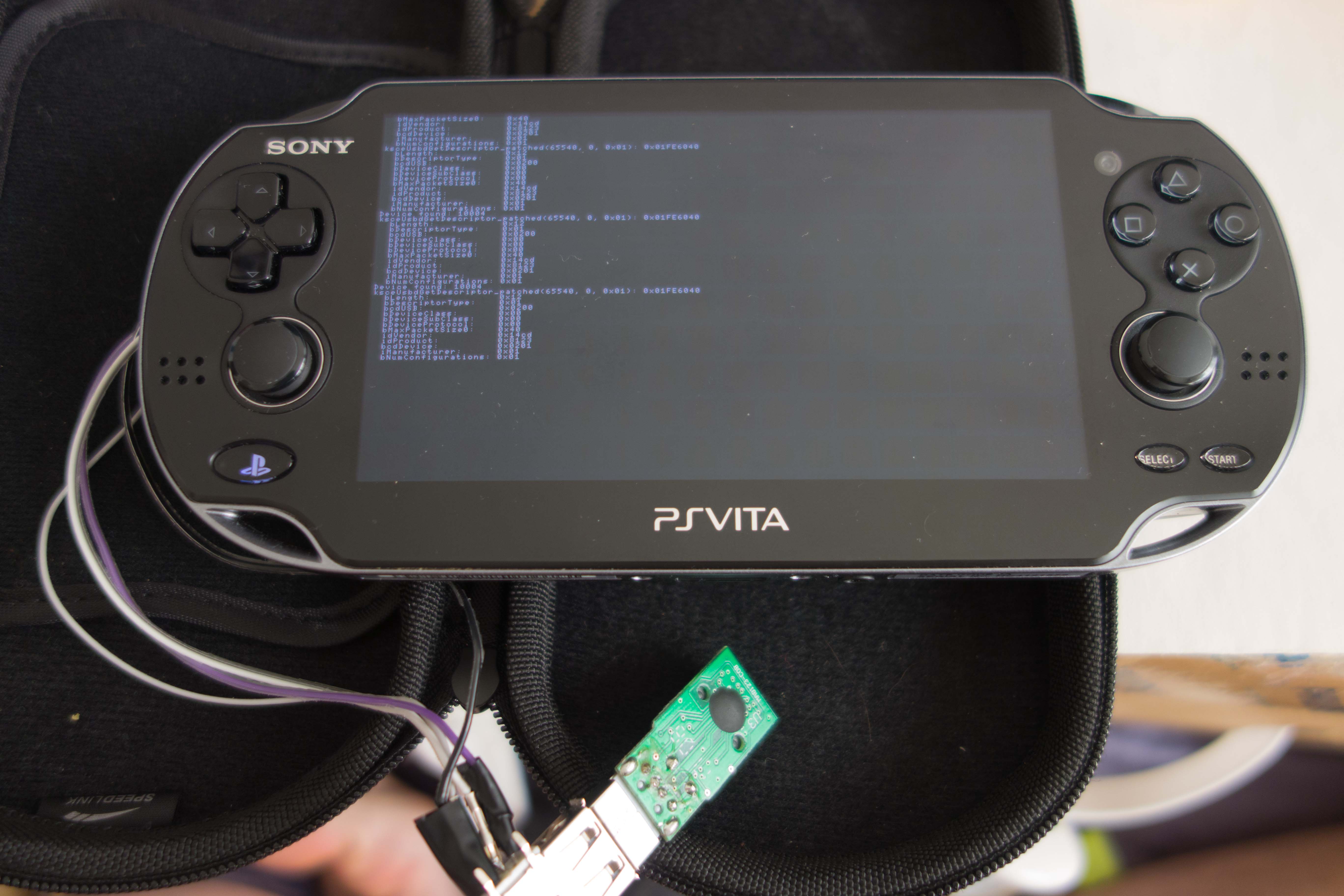

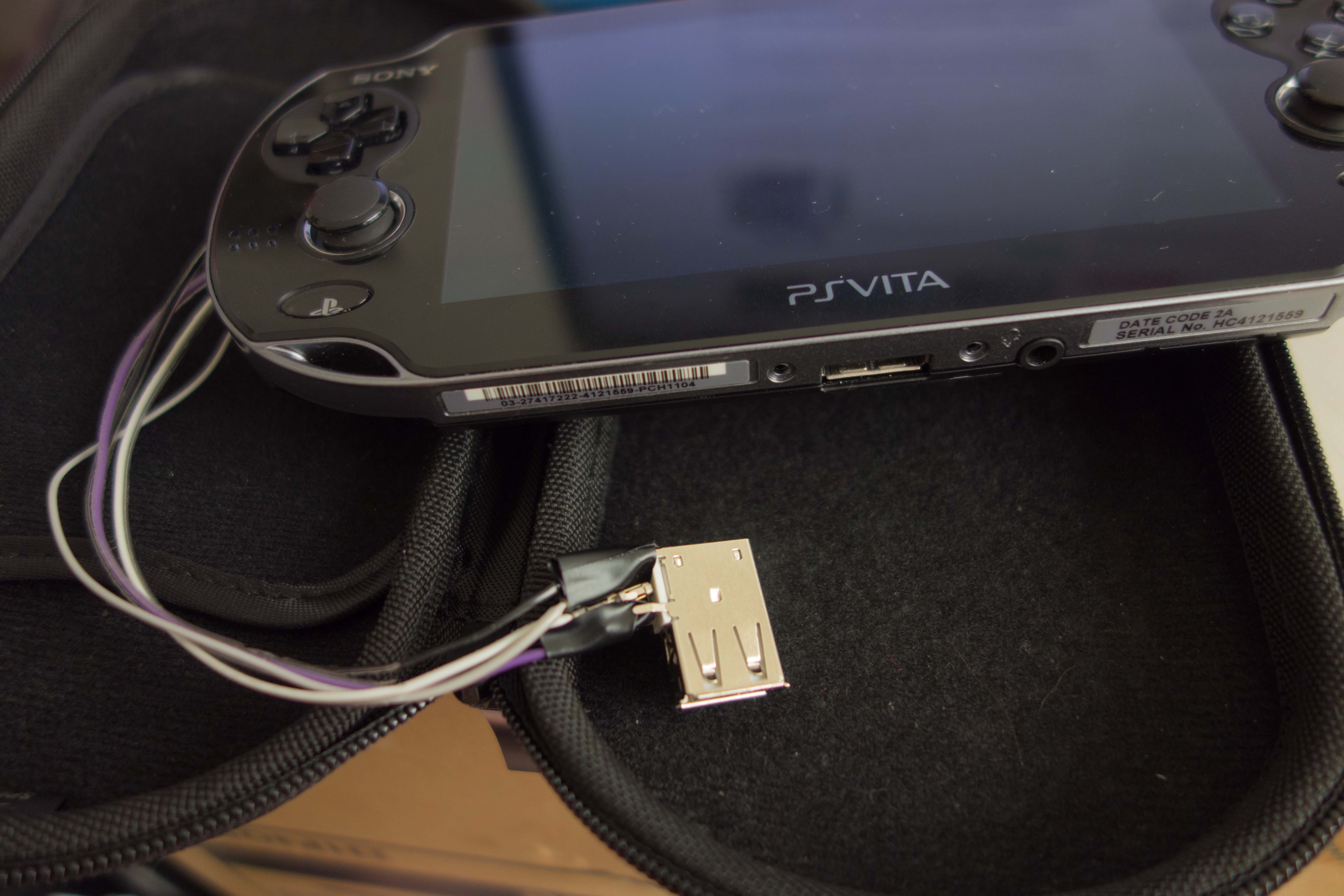

because i dont want to soldering to vita board i create simple pins out board for USB, if come to work in future i build in sd card reader to vita SIM slot. in last photo is yifan_lu usb_detect.vpk i dont no if is right result



[Darthsternie]

So... Before I do dumb stuff. If I remember correctly the Wifi Version also has those pins just not with a PCIe connector soldered to it. Anyone know if this would theoretically be possible on a Wifi Vita and can you please make a better picture of the Fixed version. I can't really see which Pins you soldered to. Thanks a lot
