USB Loader GX: Black screen when loading Wii games

Discussion in 'Wii - Backup Loaders' started by iamfearlezz, May 14, 2014.

  1. biggzsizzle

    biggzsizzle Advanced Member

    Newcomer
    2
    Feb 13, 2008
    United States
    Hey guys, been a long time member, and just picked back up into the WiiWorld after a 10+ year gap, and sooooo I posted my SysCheck below,...
    I got over 400 titles on my on a Fat32 active partition (1.75Tb) of a 2tb USB hard drive, the other partition is Fat32 as well but not used for anything other than file storage. They all load just fine in WiiFlow, I got 4 different EmuNands (NES, SNES, N64, and WiiWare) that load perfectly. A majority of the Wii titles I haven't loaded or tested but TMNT : Smash Up gives me the black error screen prompting to eject disc and power down the Wii. And it does this with every configuration I've tried. Can you look this over and tell me any irregularities you see or anything that might help?

    thanks in advvance!

    SysCheck

    alexander1970 likes this.
  2. alexander1970

    alexander1970 GBAtemp allows me to be here

    Member
    14
    Nov 8, 2018
    Austria
    Austria
    Hello.:)

    Thank you for your sysCheck,it looks good.

    A little "Adjustment" for better Game compatibility with the USBLoader:

    Please change

    IOS249[56] (rev 65535, Info: d2x-v10beta52): Trucha Bug, NAND Access, USB 2.0
    IOS250[57] (rev 65535, Info: d2x-v10beta52): Trucha Bug, NAND Access, USB 2.0

    to

    IOS249[56] (rev 21008, Info: d2x-v10beta52): Trucha Bug, NAND Access, USB 2.0
    IOS250[57] (rev 21008, Info: d2x-v10beta52): Trucha Bug, NAND Access, USB 2.0
    (You can use the d2xcIOS Installer for this):)

    Quote from the
    Wii cIOS EmuNAND Compatibility List

    cIOS d2x v10

    d2x v10-alt (r53) is said to have less compatibility with EmuNAND than v10 (r52).

    The v10-alt compatibility issue seems to be a general HDD compatibility (HDD not working at all if using v10-alt r53) and not a per-game compatibility issue. If one game works with r53 then all your games should work with r53 too, but the v10-alt column is still separated in case you encounter compatibility differences. It's still recommended to install r52 and limit your USB port use to Port 0 instead of installing r53.

    If you are on a wii, maybe v10 will take you back to the loader while v10-alt works fine.




    You can also try the Game on the Wii´s real NAND to see the ISO is ok.
    Please check it with an MD5 / CRC-32 Tool:
    http://esrg.sourceforge.net/utils_win_up/md5sum/

    and please compare the Result:
    https://www.gametdb.com/Wii/R2TE41

    Please check also of both your USBLoaders are on the latest Version.

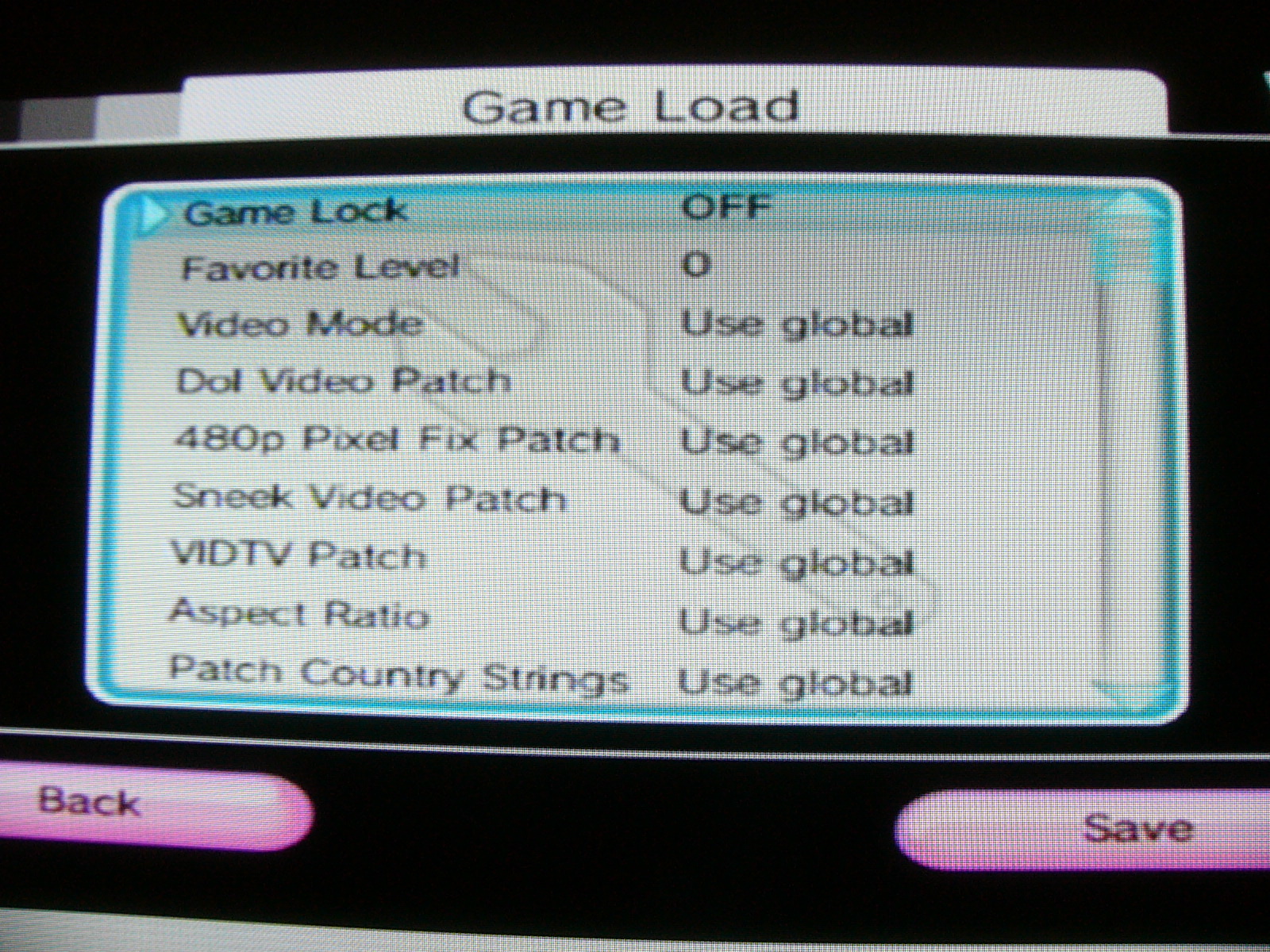

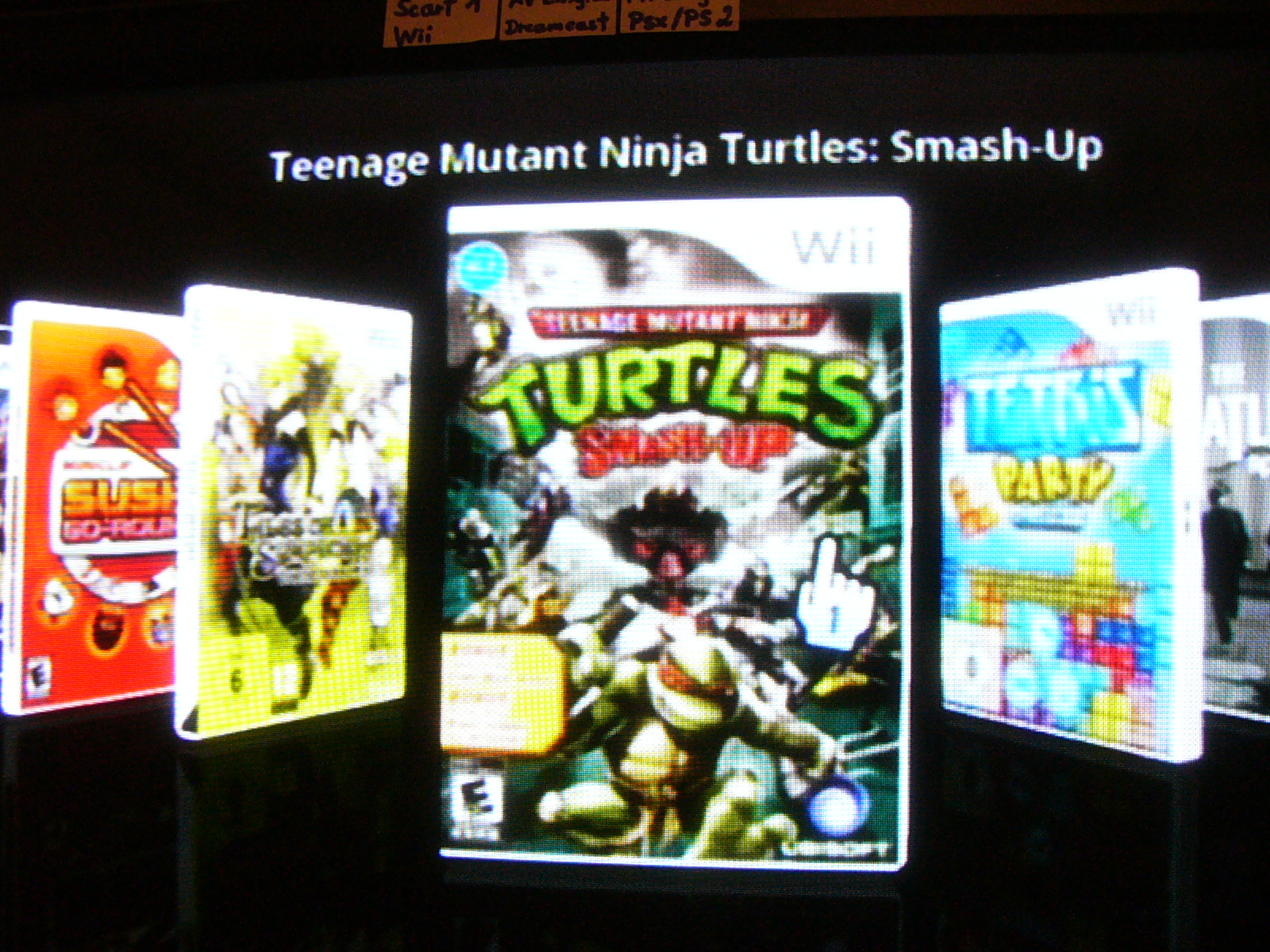

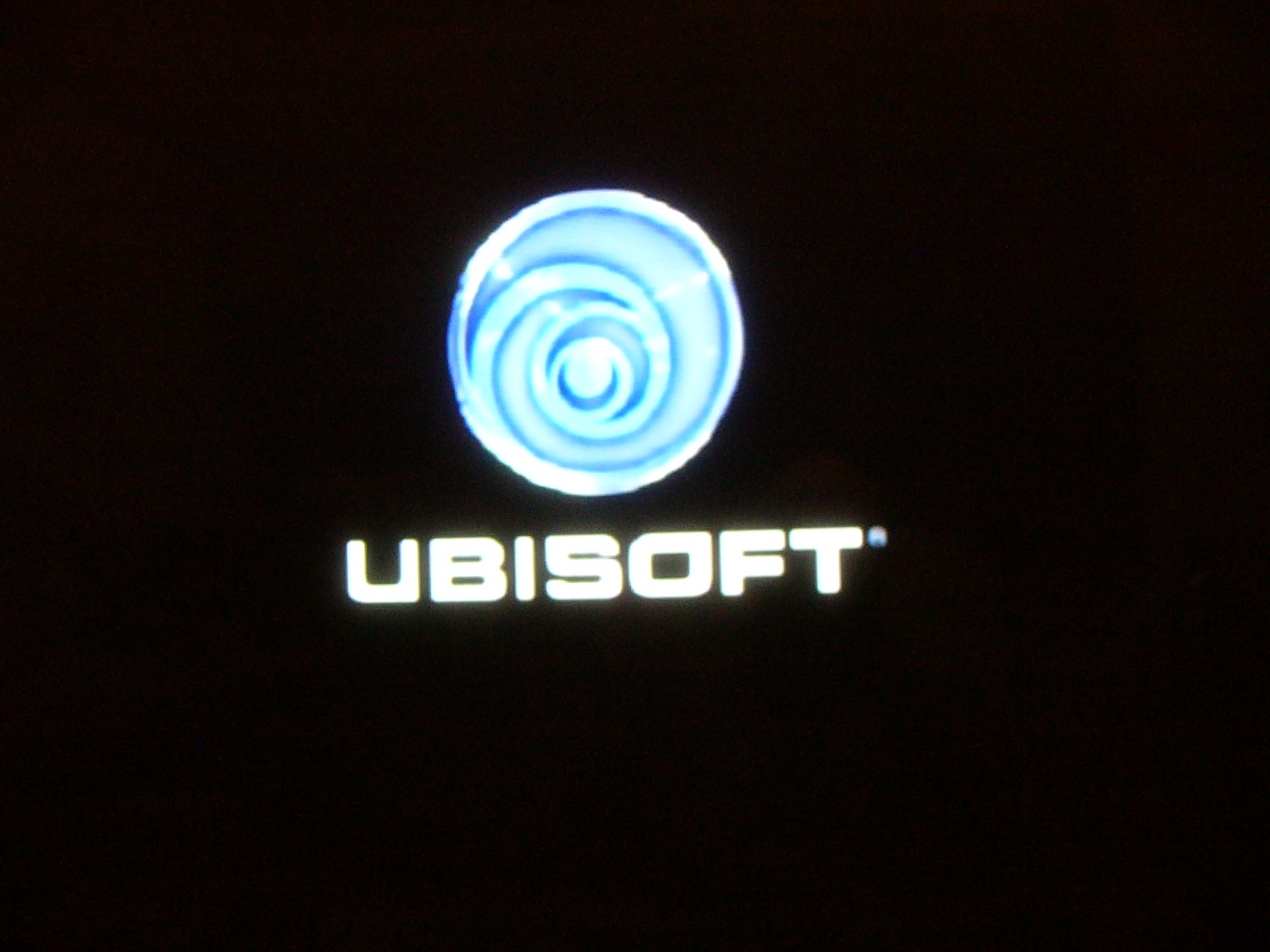

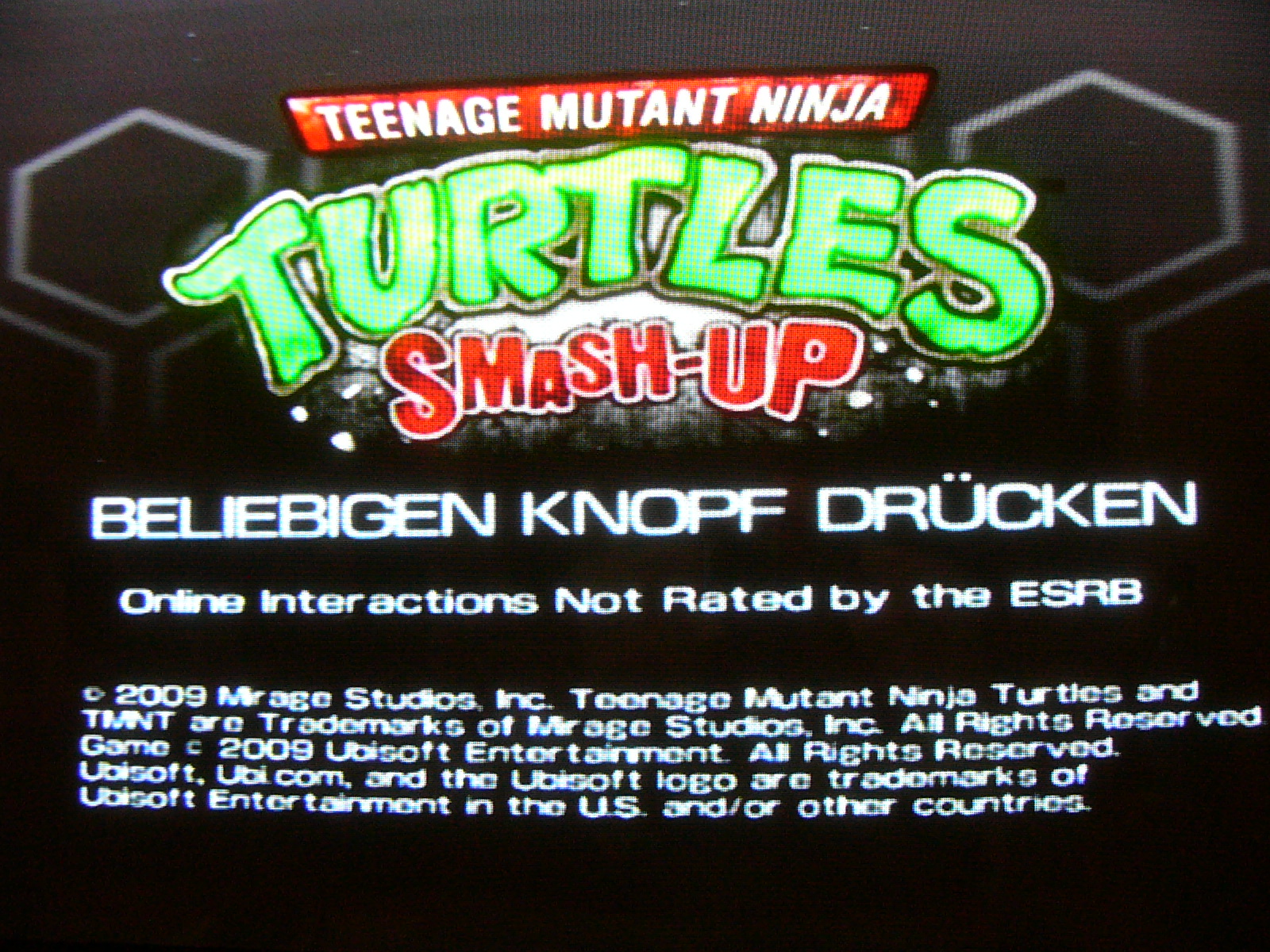

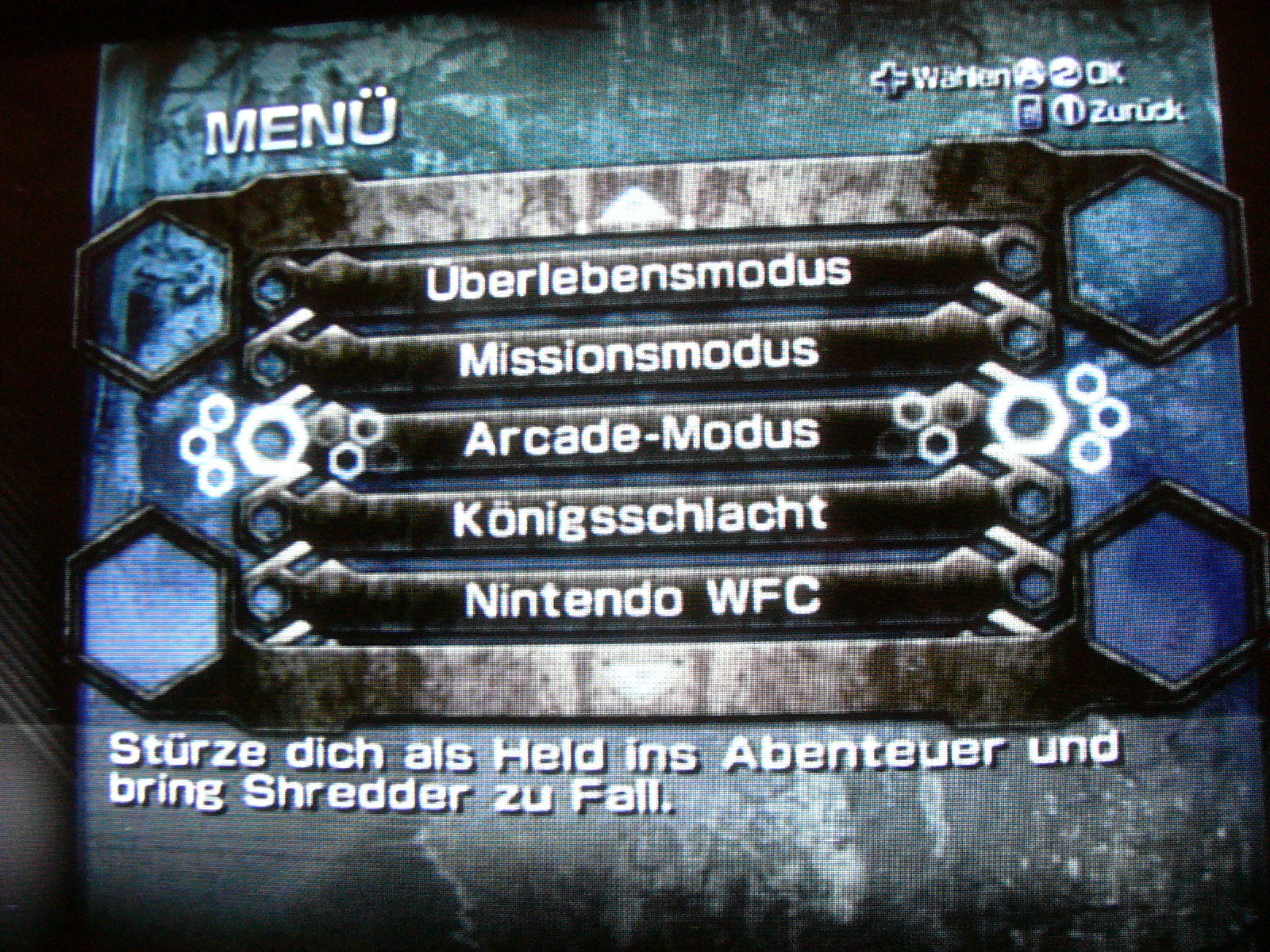

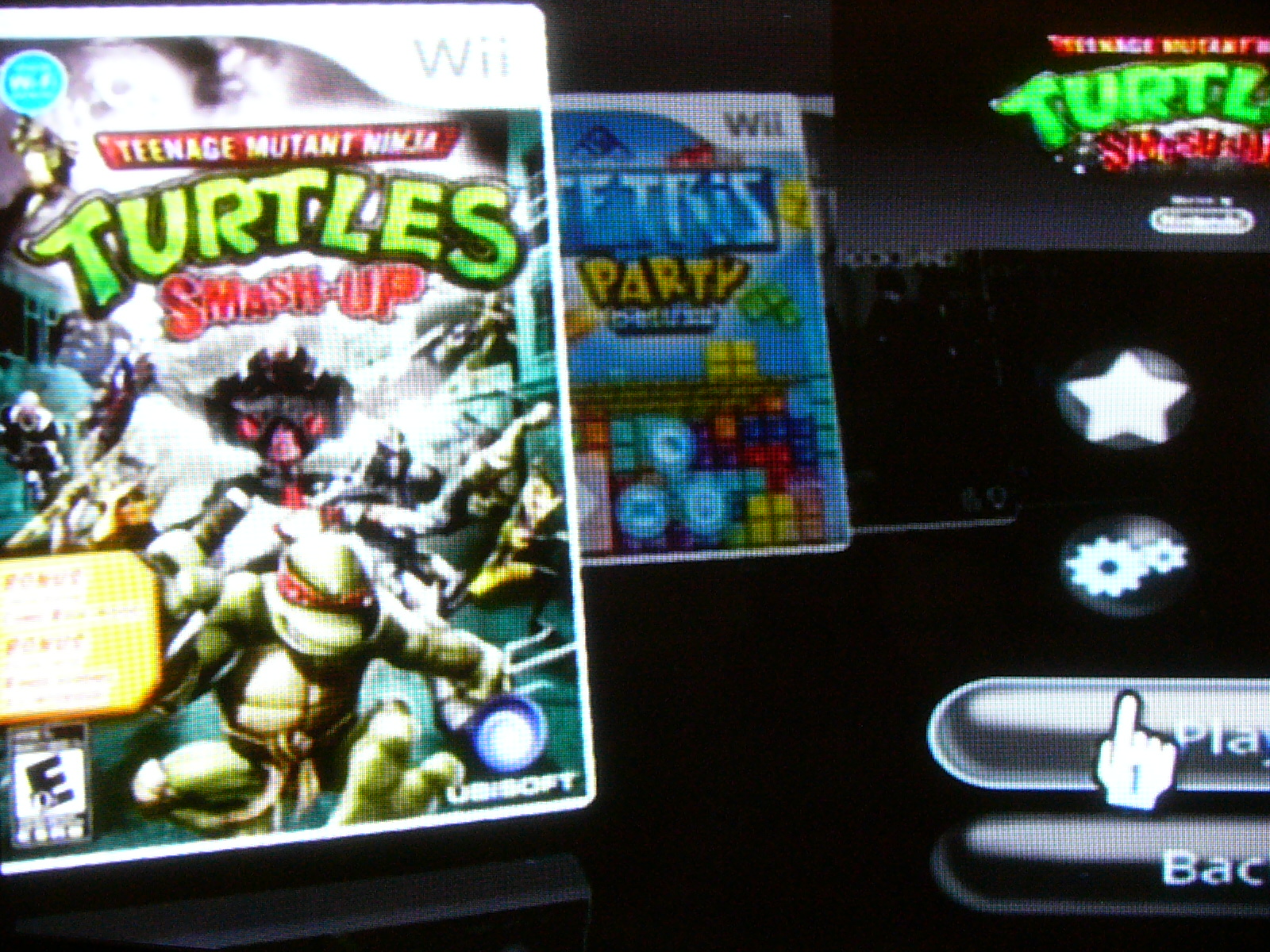

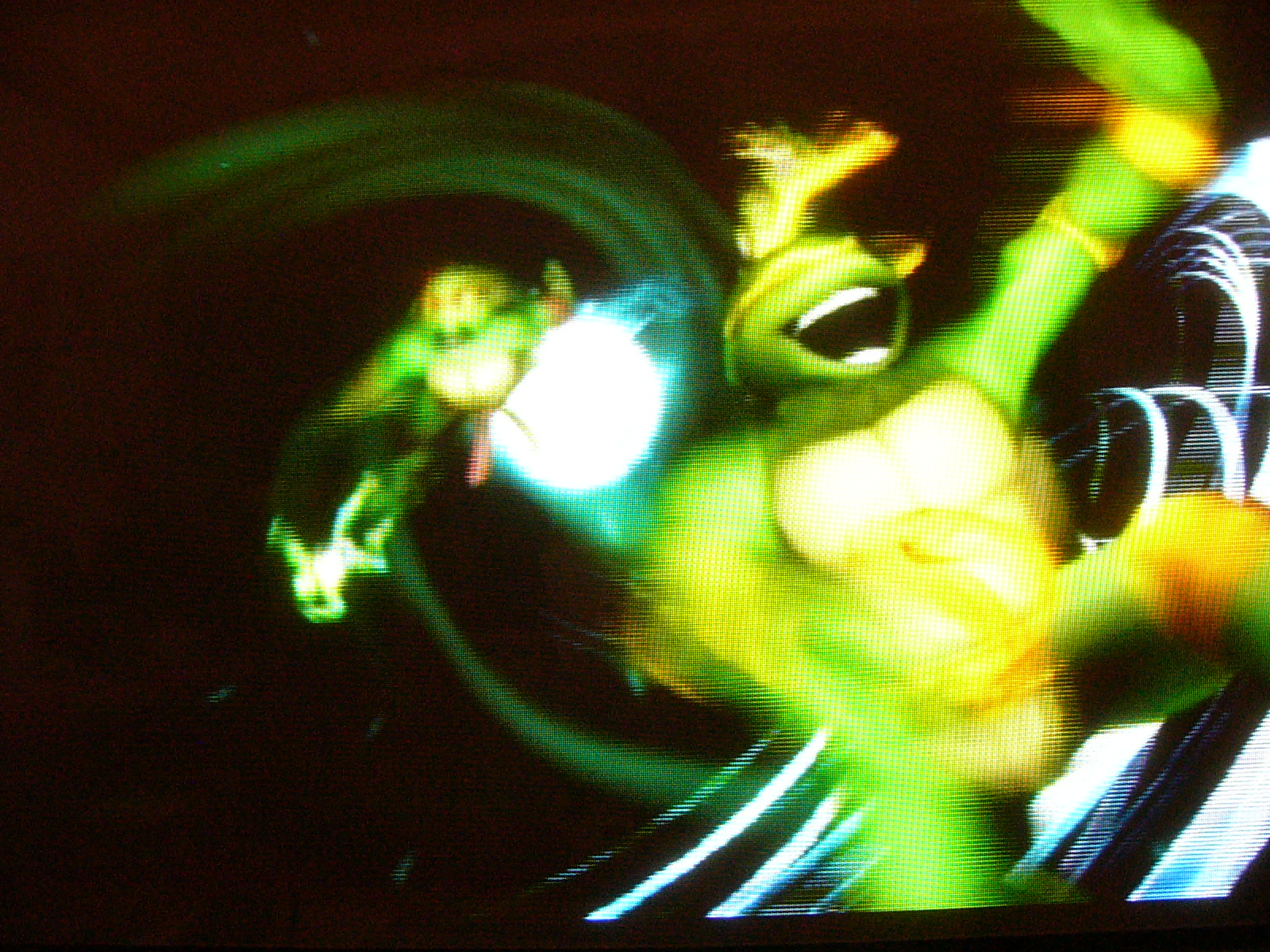

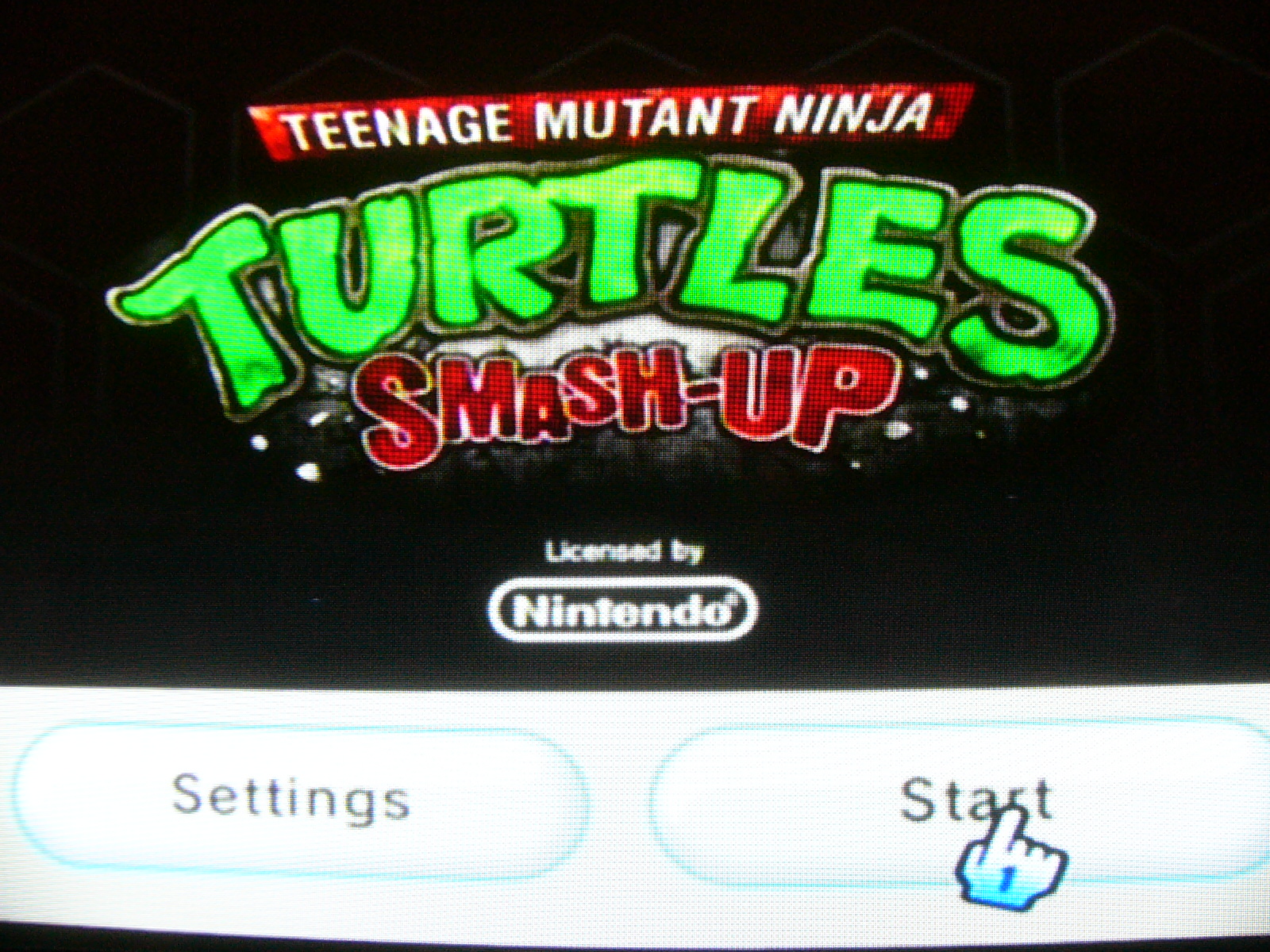

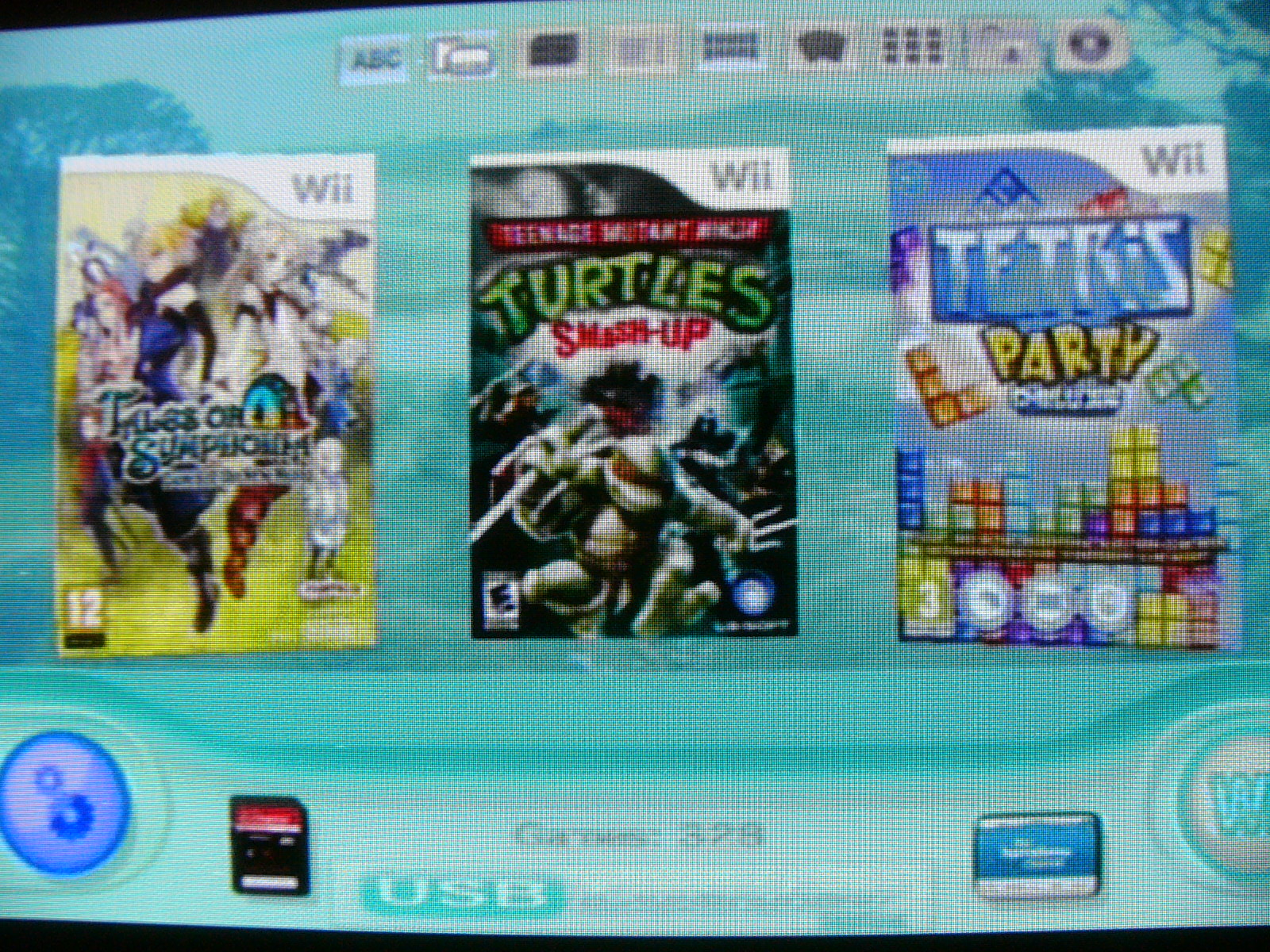

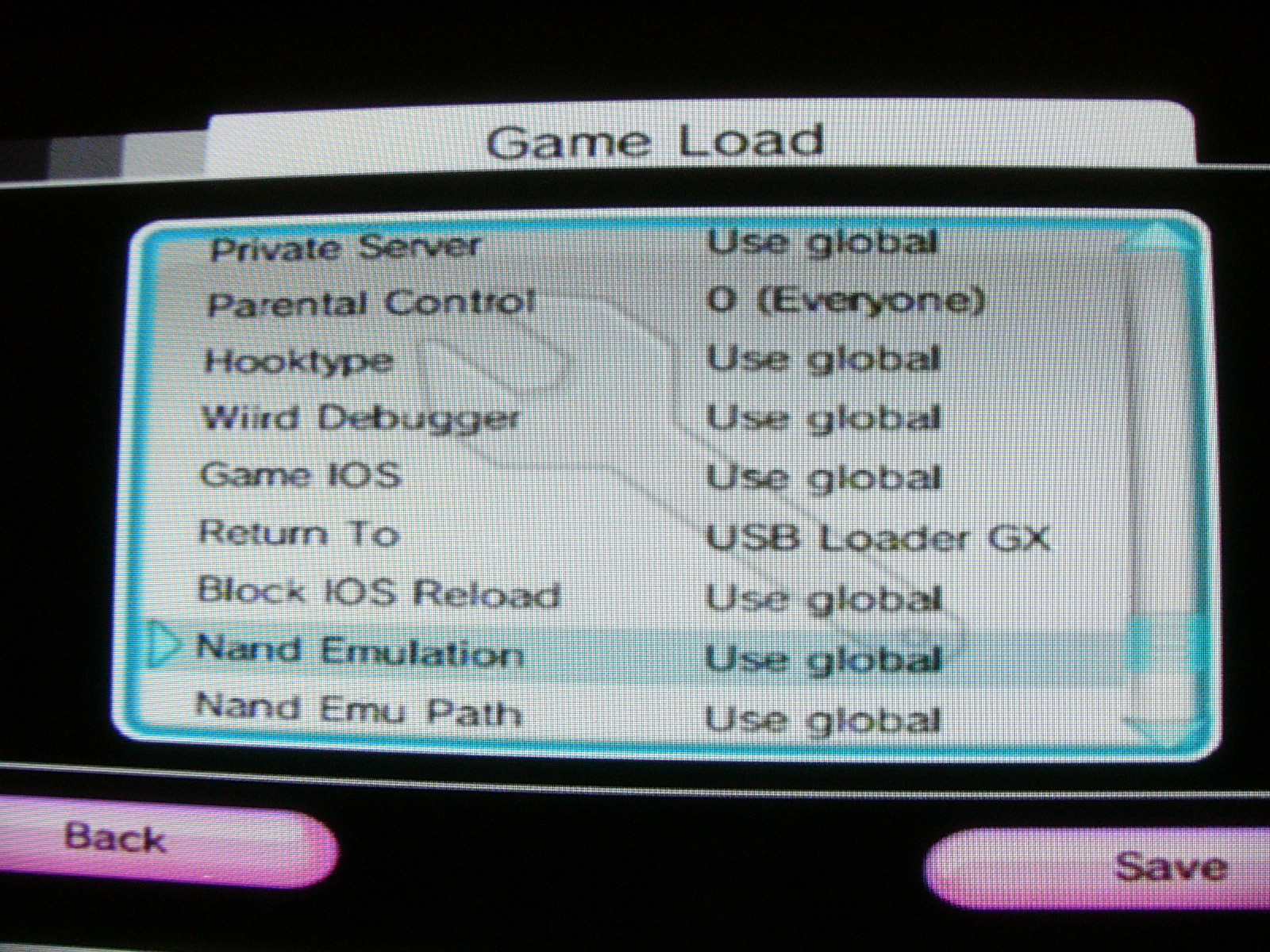

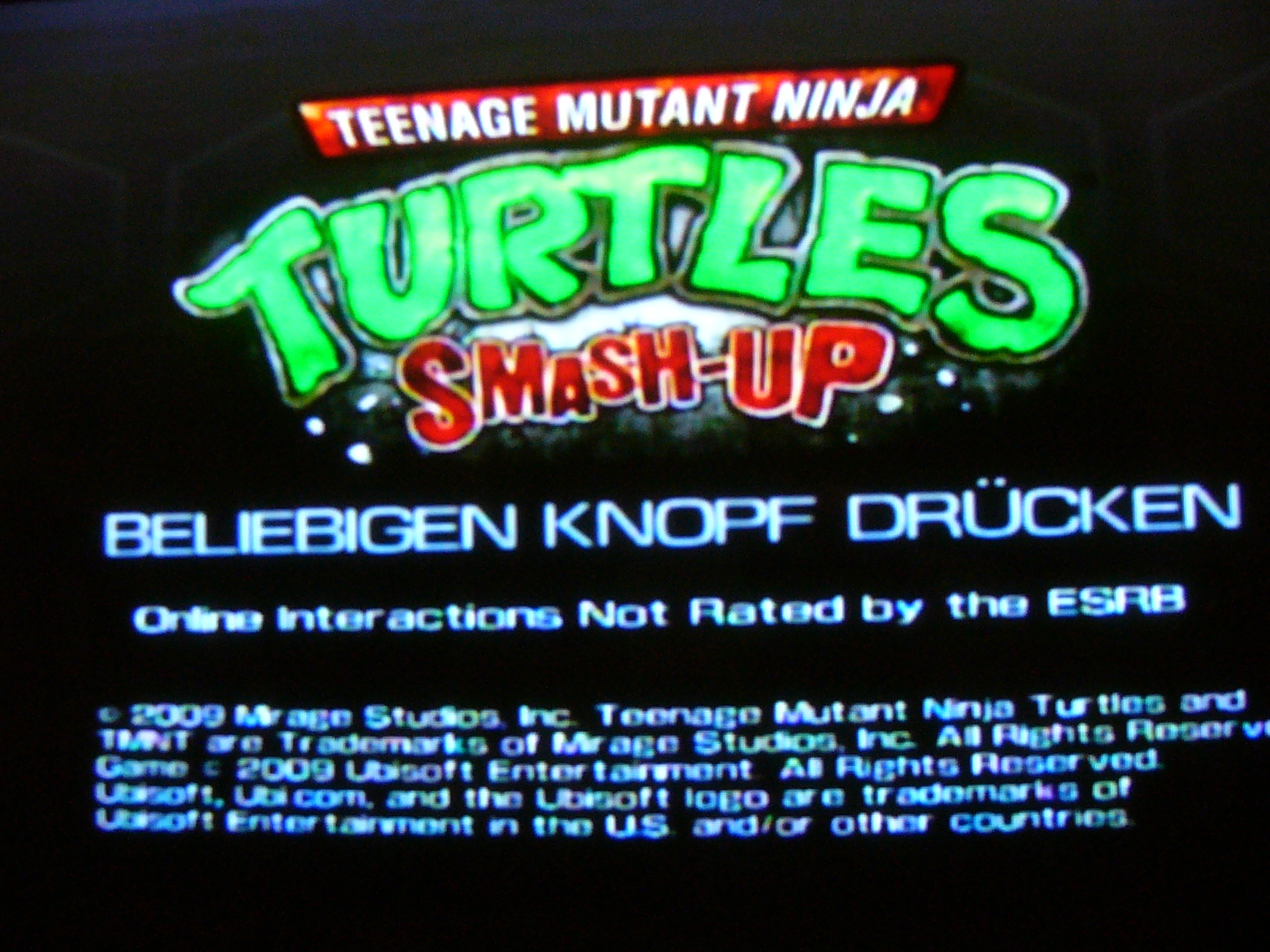

    I have tried (on the Wii´s NAND) the US Version on USBLoader GX v3.0 r1272 and WiFlow v5.2.0 and also with Configurable USBLoader v70 r78.11
    The Game works on all USBLoaders without any change of the Settings.

    P1060667.JPG P1060668.JPG P1060669.JPG P1060670.JPG P1060671.JPG P1060672.JPG P1060673.JPG P1060674.JPG P1060675.JPG P1060676.JPG P1060677.JPG P1060678.JPG P1060679.JPG P1060680.JPG P1060681.JPG


    Good Luck.
    Thank you.:)

    jeannotte and biggzsizzle like this.
  3. biggzsizzle

    biggzsizzle Advanced Member

    Newcomer
    2
    Feb 13, 2008
    United States
    thank you bud, I looked into rev 21008, but had not made that change yet.

    All my EmuNands work brilliantly as of right now, even the cheat codes load and saves are working flawlessly.

    The only thing I'm not doing is worrying with other old emulation systems, I'm only concerned with what I can get and run from Nintendo so,..
    Having a nand backup for each system separately is the greatest thing ever. i dont have to worry with emulation software like snes9xgx, or FCEUGX... I just change the nand path in WiiFlow, it reloads the cache, and my games are there.

    NES, SNES, N64, and WiiWare .... each nand has all the titles that were at one time vailable in the Wii Shop Channel

    I made this little video for a friend to kinda show him what I'm working with. Changed the music in the WiiFlow Channel, and of course there's quite a few mp3's in my music folder, lol


    Last edited by biggzsizzle, Oct 31, 2019
    alexander1970 likes this.
  4. alexander1970

    alexander1970 GBAtemp allows me to be here

    Member
    14
    Nov 8, 2018
    Austria
    Austria
    Nice Video,thank you for sharing.:)
    Looks really great your WiiFLow.:yaywii:

    biggzsizzle likes this.
  5. biggzsizzle

    biggzsizzle Advanced Member

    Newcomer
    2
    Feb 13, 2008
    United States
    Ok so, my installer only shows rev 21008 on d2x-v8-final

    and d2x-v10beta52 only allows me to select rev 21010

    do I go with 21010?

    Thoughts?? lol

    jeannotte and alexander1970 like this.
  6. alexander1970

    alexander1970 GBAtemp allows me to be here

    Member
    14
    Nov 8, 2018
    Austria
    Austria
    Yes of course it is ok too.:)
    That was my mistake,excuse me please.You can stay on 65535 for d2x v10beta52 too if you like.
    I only use the d2x-v8 Version and "forget" about this.:shy:

    Thank you.:)

    biggzsizzle and jeannotte like this.
  7. biggzsizzle

    biggzsizzle Advanced Member

    Newcomer
    2
    Feb 13, 2008
    United States
    Do you think if I go back to d2x-v8-final TMNT might load??

    I mean, you obviously got it to play,... Can you post your SysCheck possibly? That way I can print it off, mirror it, and maybe create another nand for testing

    OR, lol you think maybe you might could upload your nand backup somewhere and I could get it?? (that may be asking too much, lol)

    Last edited by biggzsizzle, Oct 31, 2019
  8. jeannotte

    jeannotte GBAtemp Advanced Fan

    Member
    6
    Jun 15, 2016
    France
    Hello,

    @ biggzsizzle:

    recover a backup nand of some wii, then reinject it into another, I'm not sure that it works (risk of brick).

    each wii has these own cios and ios (maybe I'm wrong).

    See with other members.

    You can change the cios as you want and as many times as necessary for the wii to work properly.

    the cios most often use for the wii are these two versions:

    cios d2x version 8 final or cios d2 version 10 beta 52.

    I own this version of cios d2x =

    cios d2x version 8 final, on the following cios:
    249 ==> 56 final version 8
    250 ==> 57 final version 8
    251 ==> 58 final version 8

    and everything works fine.

    With Modmii, he installs versions like this:

    249 ==> 57 final version 8
    250 ==> 56 version 8 final
    251 ==> 58 final version 8

    or
    249 ==> 57 version 10 beta 52
    250 ==> 56 version 10 beta 52
    251 ==> 58 version 10 beta 52
    And it works just as well.

    Last edited by jeannotte, Nov 1, 2019
    alexander1970 and biggzsizzle like this.
  9. biggzsizzle

    biggzsizzle Advanced Member

    Newcomer
    2
    Feb 13, 2008
    United States
    A nand backup can be edited with certain files from my own backup and be loaded in WiiFlow (if I'm not mistaken)

    But I'll try these both ways and see how it goes, I loaded v8-final into 249 and 250 and NOW, games that did work, don't,...so it's just trial and error, otherwise I'll be searching a guide to revirginize my Wii lol

    If ANYBODY can load and play TMNT : Smash Up NTSC-U (wbfs version) let me know, and post what d2x configuration you use.

    Thanks in advance

    Last edited by biggzsizzle, Nov 1, 2019
  10. R116

    R116 Member

    Newcomer
    1
    Nov 28, 2019
    United States
    Hello, I'm having trouble loading my Wii games. I already did the process of using Wii backup manager and everything. Once I load a wii game on USBLoader GX it gives me a black screen and I have to turn the Wii off. This only happens with my Wii games and my GameCube games work perfectly fine. The two Wii games I try to load are Sonic & Sega All Stars Racing and Donkey Kong Country Returns . Here is my SysCheck...
    .

    SysCheck HDE v2.4.0 HacksDen Edition by JoostinOnline Double_A R2-D2199 and Nano
    ...runs on IOS58 (rev 6176).
    Region: NTSC-U
    System Menu 4.3U (v513)
    Drive date: 12.18.2008
    Homebrew Channel 1.1.2 running on IOS58
    Hollywood v0x21
    Console ID: 139039033
    Console Type: Wii
    Shop Channel Country: United States (49)
    Boot2 v4
    Found 105 titles.
    Found 48 IOS on this console. 16 of them are stubs.
    IOS3 (rev 65280): Stub
    IOS4 (rev 65280): Stub
    IOS9 (rev 1034): No Patches
    IOS10 (rev 768): Stub
    IOS11 (rev 256): Stub
    IOS12 (rev 526): No Patches
    IOS13 (rev 1032): No Patches
    IOS14 (rev 1032): No Patches
    IOS15 (rev 1032): No Patches
    IOS16 (rev 512): Stub
    IOS17 (rev 1032): No Patches
    IOS20 (rev 256): Stub
    IOS21 (rev 1039): No Patches
    IOS22 (rev 1294): No Patches
    IOS28 (rev 1807): No Patches
    IOS30 (rev 2816): Stub
    IOS31 (rev 3608): No Patches
    IOS33 (rev 3608): No Patches
    IOS34 (rev 3608): No Patches
    IOS35 (rev 3608): No Patches
    IOS36 (rev 3608): No Patches
    IOS37 (rev 5663): No Patches
    IOS38 (rev 4124): No Patches
    IOS40 (rev 3072): Stub
    IOS41 (rev 3607): No Patches
    IOS43 (rev 3607): No Patches
    IOS45 (rev 3607): No Patches
    IOS46 (rev 3607): No Patches
    IOS48 (rev 4124): No Patches
    IOS50 (rev 5120): Stub
    IOS51 (rev 4864): Stub
    IOS52 (rev 5888): Stub
    IOS53 (rev 5663): No Patches
    IOS55 (rev 5663): No Patches
    IOS56 (rev 5662): No Patches
    IOS57 (rev 5919): No Patches
    IOS58 (rev 6176): USB 2.0
    IOS60 (rev 6400): Stub
    IOS61 (rev 5662): No Patches
    IOS62 (rev 6430): No Patches
    IOS70 (rev 6912): Stub
    IOS80 (rev 6944): No Patches
    IOS222 (rev 65280): Stub
    IOS223 (rev 65280): Stub
    IOS249[56] (rev 21010 Info: d2x-v10beta53-alt): Trucha Bug NAND Access USB 2.0
    IOS250[57] (rev 65535 Info: d2x-v10beta52): Trucha Bug NAND Access USB 2.0
    IOS251[58] (rev 65535 Info: d2x-v10beta52): Trucha Bug NAND Access USB 2.0
    IOS254 (rev 65280): Stub
    BC v6
    MIOS v10
    Report generated on 11/27/2019.

    alexander1970 likes this.
  11. alexander1970

    alexander1970 GBAtemp allows me to be here

    Member
    14
    Nov 8, 2018
    Austria
    Austria
    Hello.:)

    Thank you for your sysCheck.:yaywii:

    Your USBLoader GX is on the latest Version 3.0 r1272 ?
    Your USB Device is formatted with FAT32 ?
    Your USB Device is an HDD ? Or something like USB Stick/Pen Drive/Thumb Drive ?

    Please try to change

    IOS249[56] (rev 21010 Info: d2x-v10beta53-alt): Trucha Bug NAND Access USB 2.0
    IOS250[57] (rev 65535 Info: d2x-v10beta52): Trucha Bug NAND Access USB 2.0


    to

    IOS249[57] (rev 21008, Info: d2x-v8final): Trucha Bug, NAND Zugriff, USB 2.0
    IOS250[56] (rev 21008, Info: d2x-v8final): Trucha Bug, NAND Zugriff, USB 2.0


    Thank you.:)

    jeannotte likes this.
  12. R116

    R116 Member

    Newcomer
    1
    Nov 28, 2019
    United States
    My usb is a pen drive, I already formatted to FAT32, and yes usb loader is Version 3.0 r1272.

    how can I change the IOS to what you want me to change it to?

    alexander1970 likes this.
  13. alexander1970

    alexander1970 GBAtemp allows me to be here

    Member
    14
    Nov 8, 2018
    Austria
    Austria
    Thank you.:)

    You can use the d2x cIOs Installer.You can get it with ModMii.
    With that Tool you can easy change the cIOSes.Please Note you need an Internet Connection on your Wii.

    or

    You can use your sysCheck.csv File from your Wii´s SD Card and use it with ModMii to get the needed Files and install it with an WAD Manager like
    Mulit Mod Manager or WiiMod Lite (you can get them also with ModMii).

    If you do not have ModMii installed,please feel free to download and install it from here:
    https://gbatemp.net/threads/modmii-for-windows-official-support-topic.207126/

    Thank you.:)

    — Posts automatically merged - Please don't double post! —

    Please also check if you have PRIILOADER installed before install/changing anything please.

    -Power off your Wii.
    -Press and HOLD the RESET Button on your Wii
    - Power the Wii on

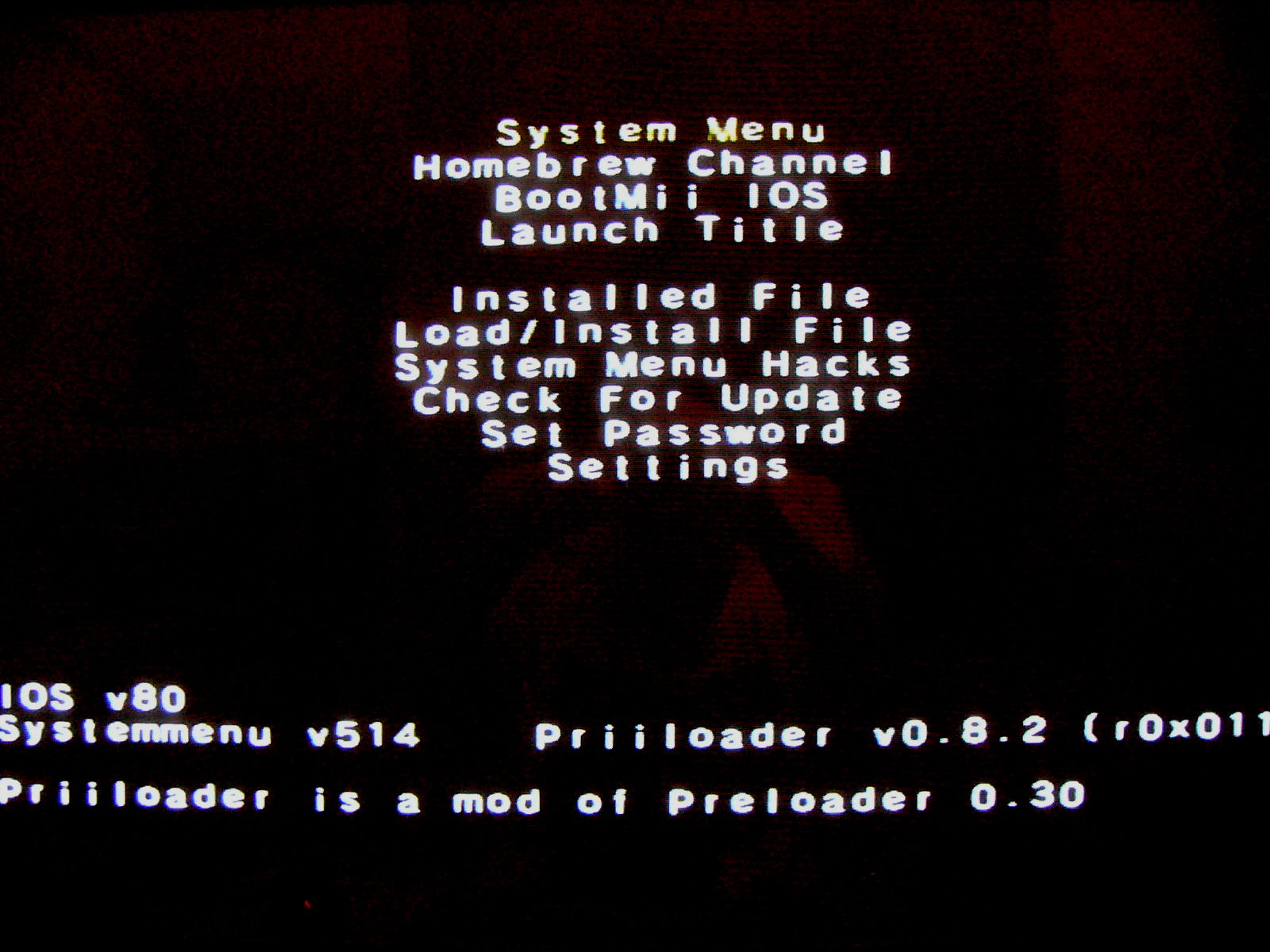

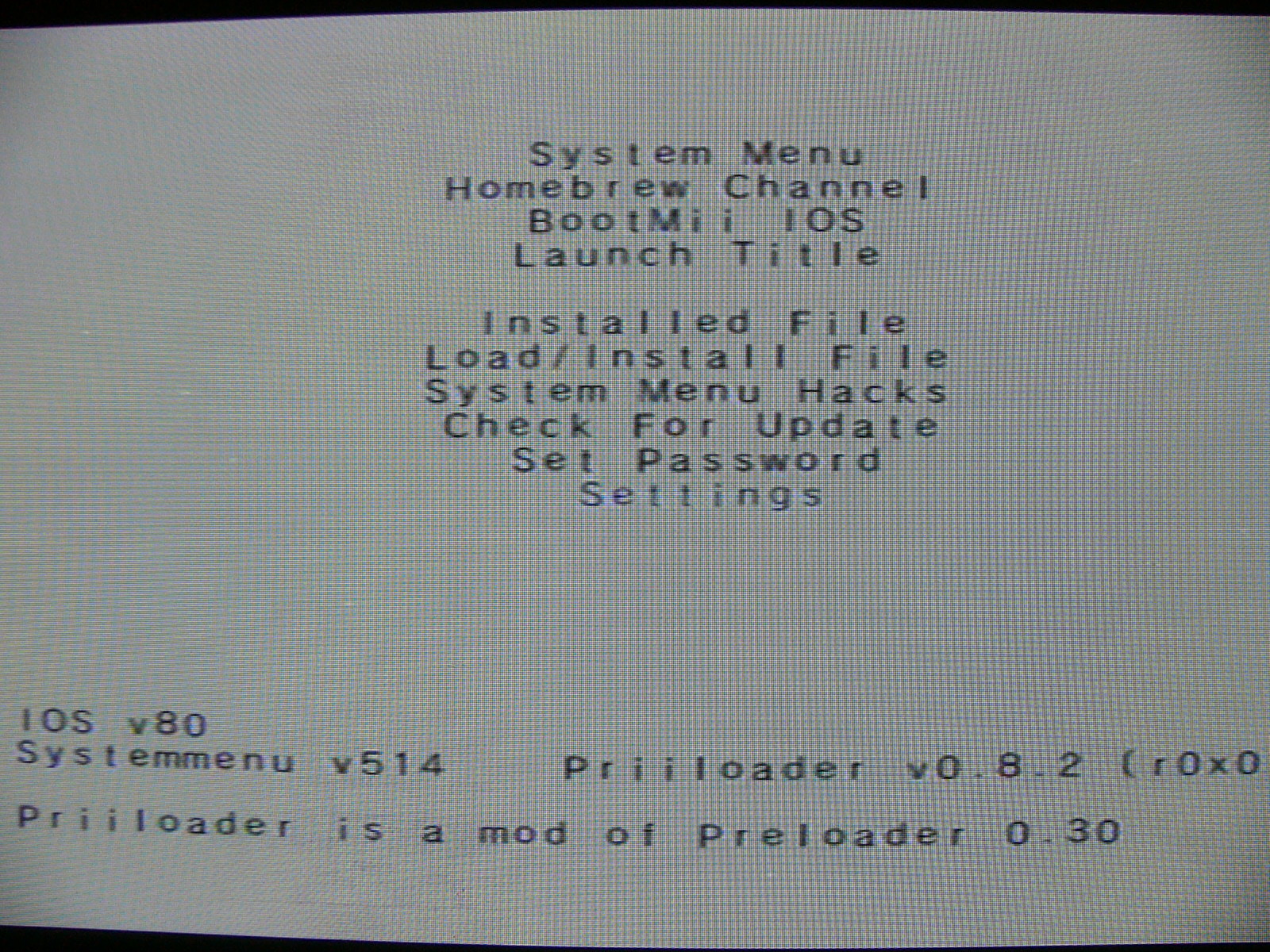

    The PRIILOADER Screen should appear after a few Seconds:

    P1060768.JPG P1060769.JPG
    (Black or White is a matter of the Priiloader Settings).:)

    Thank you.:)

    jeannotte likes this.
  14. R116

    R116 Member

    Newcomer
    1
    Nov 28, 2019
    United States
    I already have d2x cIOS installer and I can't find rev21008 and I don't have d2x-v8. I only have d2x-v4, d2x-v5, d2x-v6, v10 beta53 d2x-v10-beta53 alt, and v10 beta52 d2x-v10-beta52.

    alexander1970 likes this.
  15. alexander1970

    alexander1970 GBAtemp allows me to be here

    Member
    14
    Nov 8, 2018
    Austria
    Austria
    Ok so that means you do not have ModMii installed and do not want to use it ? :P

    Did you also checked this please ?

    Thank you.:)

    jeannotte likes this.
  16. R116

    R116 Member

    Newcomer
    1
    Nov 28, 2019
    United States
    I don't believe I have the priiloader installed, I have to install ModMii on my Wii right?

    alexander1970 likes this.
  17. alexander1970

    alexander1970 GBAtemp allows me to be here

    Member
    14
    Nov 8, 2018
    Austria
    Austria
    Thank you.:)

    Then please make a Update with your sysCheck then.

    - Install modMii
    - Drag and Drop your sysCheck.csv on the "ModMii" Shortcut on your Desktop.
    - Download the suggested Files and your personal generated Guide.
    - Please follow exact the Steps to get the Apps on the SD Card and how to install the WAD Files (includes cIOSes).

    If you have any Questions or you feel unsure please feel free to ask.:)

    Good Luck
    Thank you.:)

    jeannotte likes this.
  18. R116

    R116 Member

    Newcomer
    1
    Nov 28, 2019
    United States
    I already have the wads on my computer
    cIOS249[56]-d2x-v8-final.wad
    cIOS250[56]-d2x-v8-final.wad
    Do I go unto multi mod manager and install the wads? Or do I change it to cIOS249[57] and cIOS250[56]?

    Last edited by R116, Nov 28, 2019
    jeannotte and alexander1970 like this.
  19. alexander1970

    alexander1970 GBAtemp allows me to be here

    Member
    14
    Nov 8, 2018
    Austria
    Austria
    Hello.:)

    Thank you for your Reply.

    Very good.Please use the Multi Mod Manager to install the WAD Files..:)

    Thank you.:)

    jeannotte likes this.
  20. R116

    R116 Member

    Newcomer
    1
    Nov 28, 2019
    United States
    I already went to Multi Mod Manager and I clicked on my wads folder and I selected both wads to be installed and it says [#] Final Status - 2 did not complete. Ticket (-2011) I've also tried to install channel forwarders and it says the same thing.

    Last edited by R116, Nov 28, 2019
    alexander1970 and jeannotte like this.
