    Hello all,

    I have recently installed a SX Lite on my Switch lite and all is working well aside from the right button on my D-Pad (other three directions work fine). Is anyone familiar if this can be caused by a potentially bent "power" (as referred to by installation manual) ribbon cable, or would it be more likely to be from soldering? I am certainly not new to soldering and I verified the work a few times with macro-photography, but who knows. If anyone else has had this issue please let me know. Thanks!

  2. squee666

    squee666 Advanced Tech Pleb
    Member

    Joined:
    Sep 17, 2010
    Messages:
    2,068
    Country:
    United Kingdom
    could be damaged ribbon cable only way to check is replacing it

    if not your shorted it

    Modificatorul likes this.
  3. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    250
    Country:
    Romania

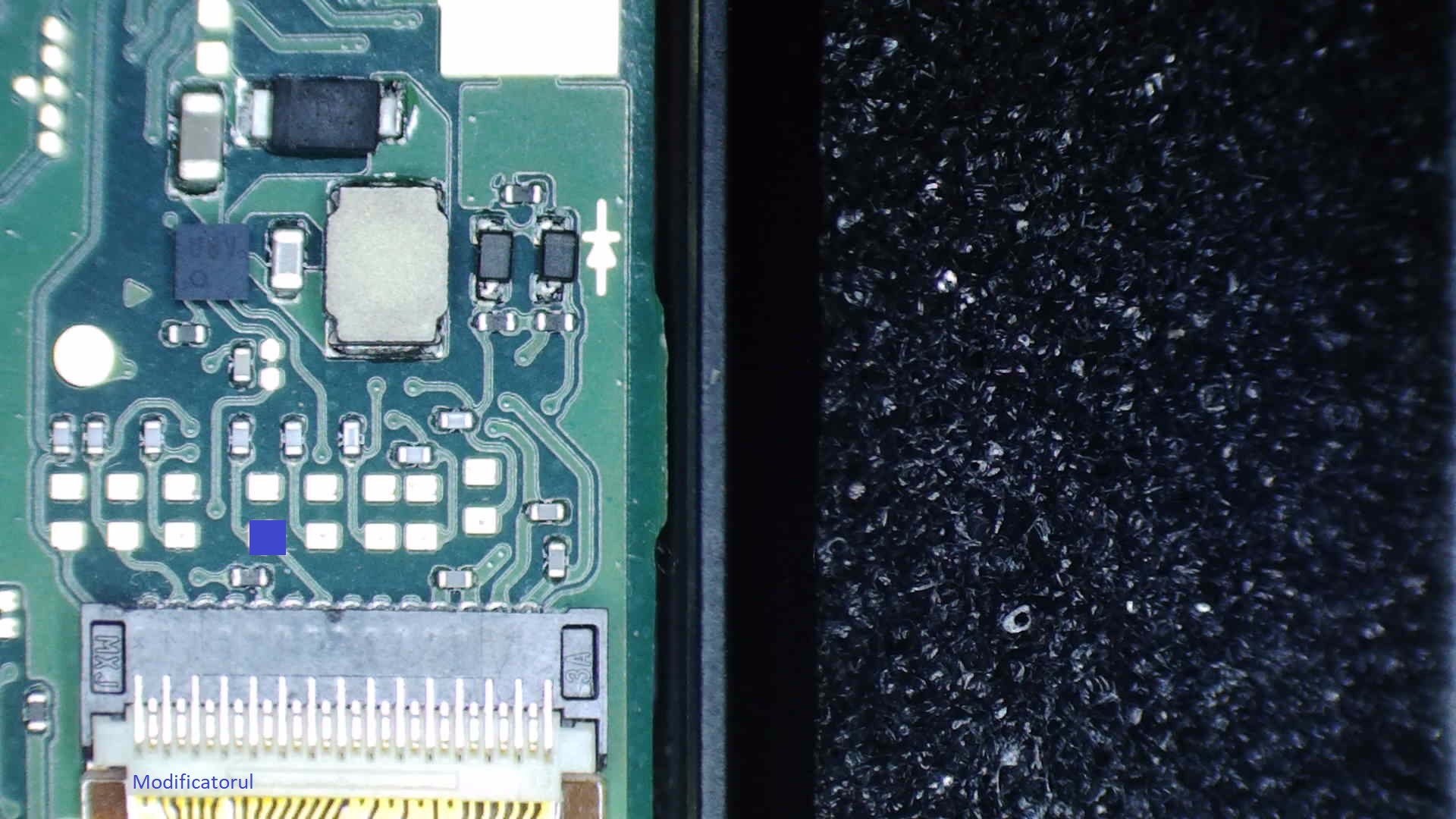

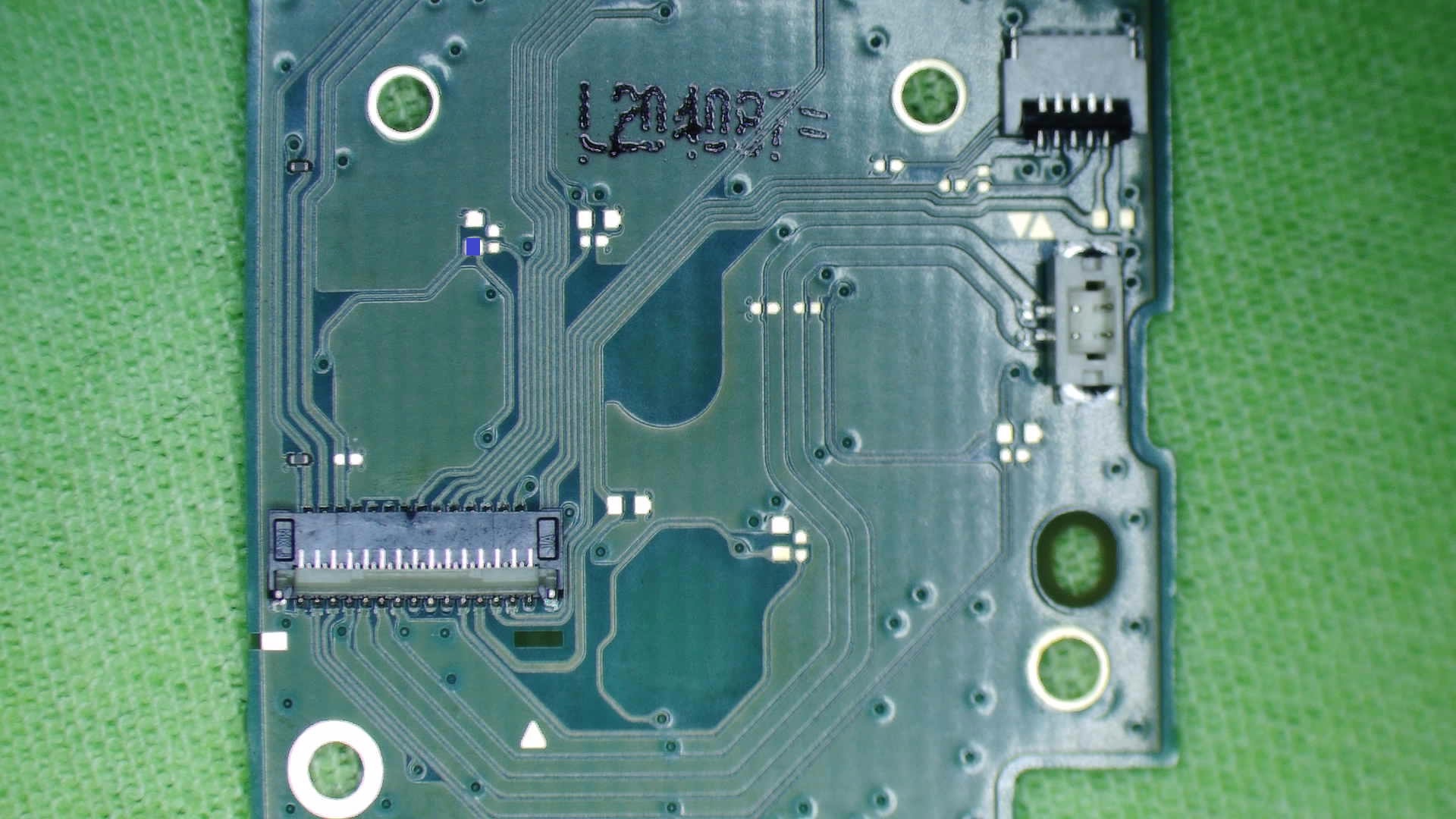

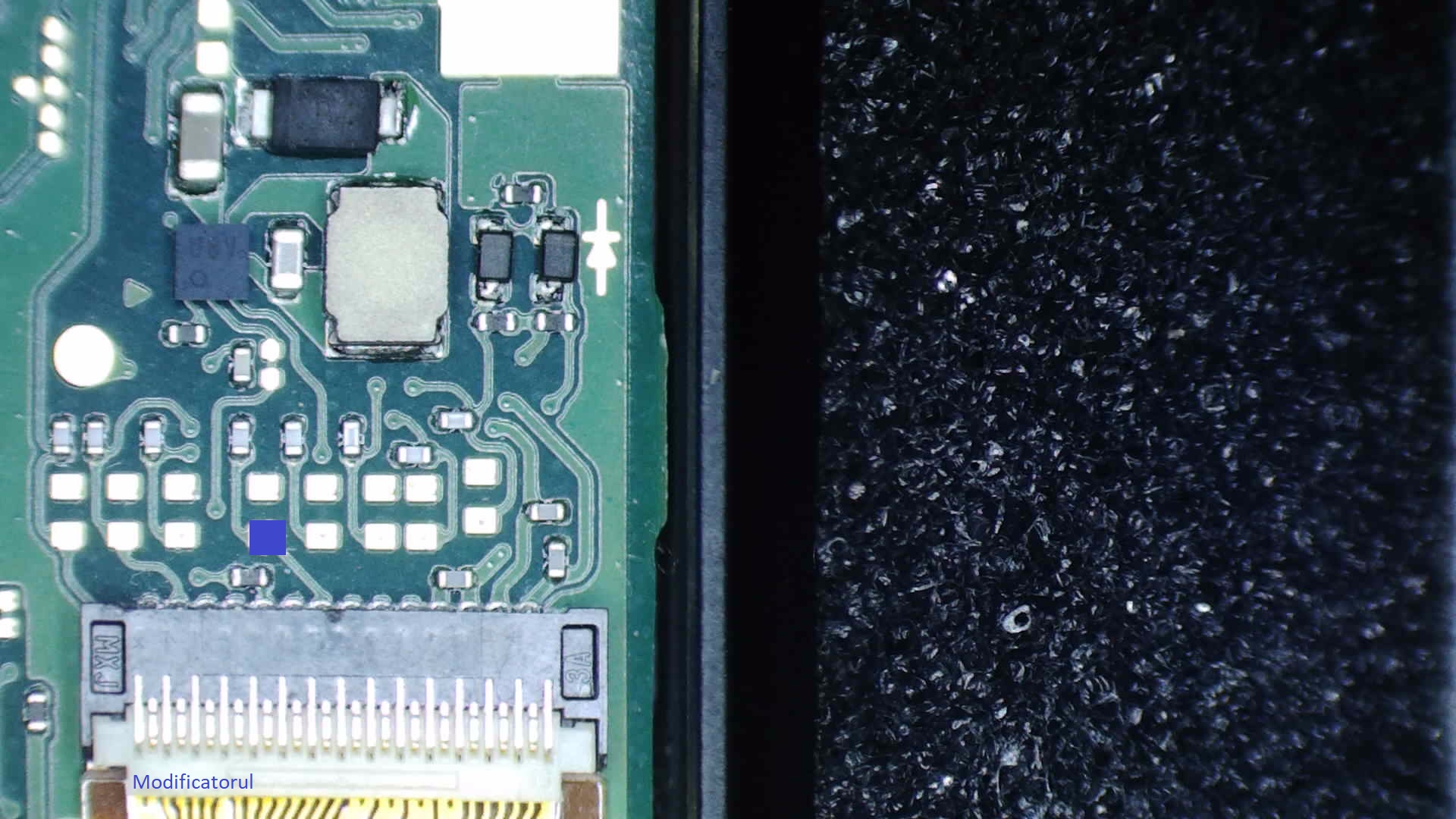

    alternate top secondary mb.jpg main mb.jpg


    Inspect the cap on the line with blue point in last picture,if is present and not damaged, you can use a wire to connect blue point on top sec mb, to the blue point on main mb .

    Last edited by Modificatorul, Sep 27, 2020
    0reo likes this.
  4. 0reo

    OP 0reo Member
    Newcomer

    Joined:
    Jul 30, 2012
    Messages:
    23
    Country:
    United States
    I don't see any damage to the cap, unfortunately my multimeter/tester is not the best right now so haven't been able to actually test it (my good one got stolen). I just ordered a new set of ribbon cables I found for cheap and if they don't work, I'll try connecting the test points with some wire. Might be a month or more for shipping though. Thanks!
