    This small soldering project caused me to loose on of the caps that the SX Core is supposed to attach to. The Switch works fine without it. Do I need to solder the chip to the cap or can I use the solder points left? Where would I even find a cap? Is there anyone that has the capability of adding a SMD cap? I was told these caps just control electrical noise.

    Deleted User likes this.
  2. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    257
    Country:
    Russia
    Last edited by Modificatorul, Aug 9, 2020
    inkstreme, Emeraldu and Deleted User like this.
  3. Deleted User

    Deleted User Newbie

    Put up some pictures.

    Modificatorul likes this.
  4. Emeraldu

    Emeraldu Advanced Member
    Newcomer

    Joined:
    Aug 14, 2019
    Messages:
    55
    Country:
    Romania
    @mrrgreene
    Stop ! Hammer time.
    For real man, don't touch anything else and send it to a pro to install it

    Last edited by Emeraldu, Jul 25, 2020
    Deleted User and Modificatorul like this.
  5. Kill-bill61

    Kill-bill61 Newbie
    Newcomer

    Joined:
    Jul 26, 2020
    Messages:
    3
    Country:
    United States
    I need help message me please my switch just sx core just keeps blinking blue constantly I think my emmc is dead

  6. The Real Jdbye

    The Real Jdbye Always Remember 30/07/08
    Member

    Joined:
    Mar 17, 2010
    Messages:
    20,818
    Country:
    Norway
    I don't know much about the SX Core/SX Lite install other than what I've seen in pictures, but from what I've gathered, as part of the install you bridge the 2 sides of the cap. Right?
    If it's supposed to be bridged, then it's completely bypassed anyway and serves no purpose.
    Someone please correct me if I'm wrong.

    But some pictures would be nice anyway so we can make sure the rest of it looks good.

  7. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    257
    Country:
    Russia

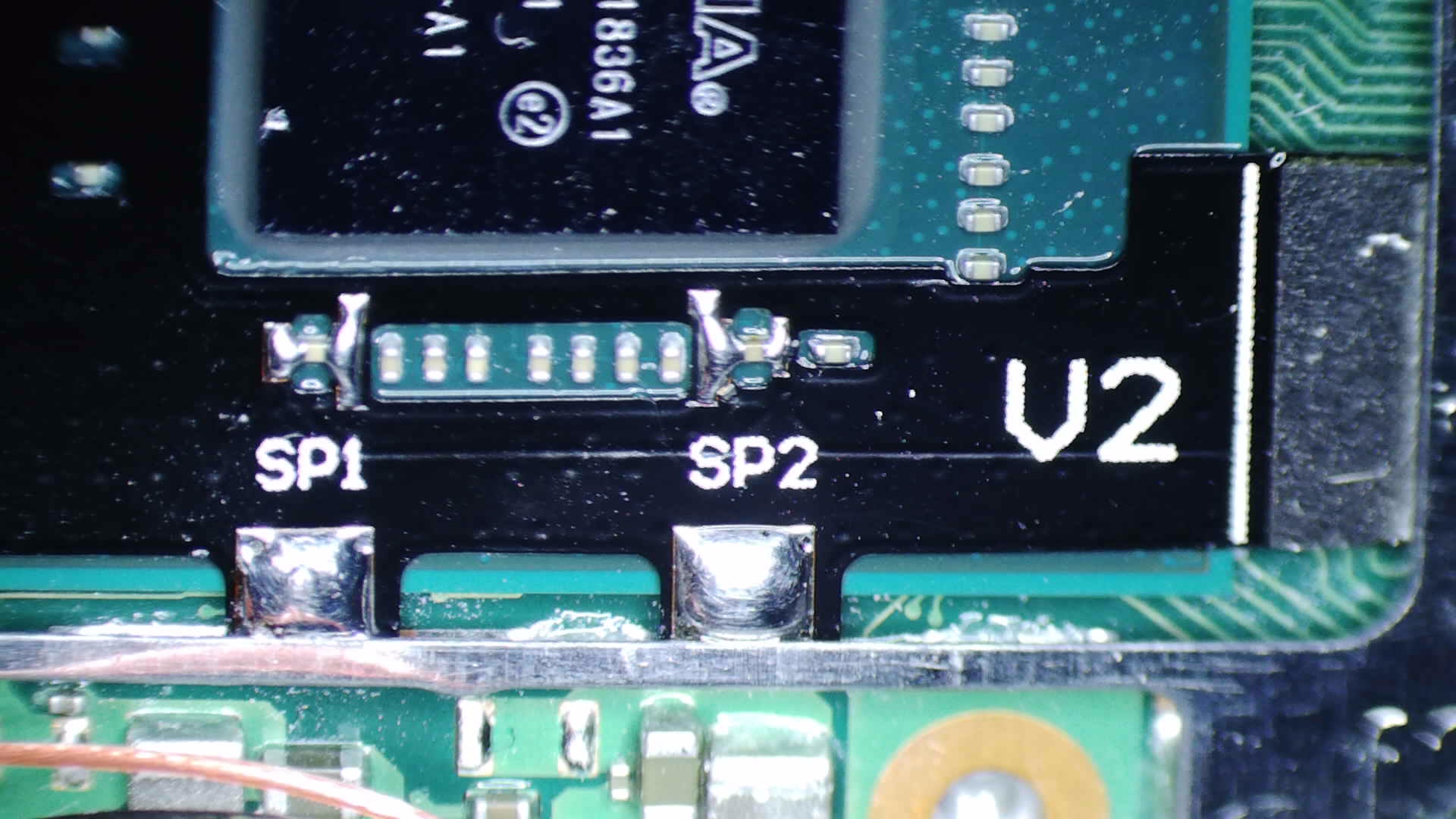

    View attachment 219045

    Bridge one side of the qsb pad to left side of the cap and so on.

    Some people bridge everyting or remove caps, or remove the pads on the cpu.


    Attached Files:

    • 1.jpg
      File size:
      469.7 KB
      Views:
      263
    Last edited by Modificatorul, Aug 15, 2020
    The Real Jdbye likes this.
  8. BigDuncsRightHook

    Newcomer

    Joined:
    Jul 16, 2020
    Messages:
    5
    Country:
    United Kingdom
    They are not supposed to be bridged by solder or removed. Otherwise the install would be much easier!

    "Test units recieved" thread has links to new capacitors in there somewhere. Someone with more knowledge can follow up to tell you how important they are. Good luck

    Last edited by BigDuncsRightHook, Jul 30, 2020
  9. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    257
    Country:
    Russia
    And this thread has them, but now is more clear,first i just posted the link with no explanation.

  10. BigDuncsRightHook

    Newcomer

    Joined:
    Jul 16, 2020
    Messages:
    5
    Country:
    United Kingdom
    Nice one. Much easier to find here than in the huge thread over there ::)
