    Hi there.

    I have a Switch Lite with a lost resistor next to the FT9CJ touchscreen control chip after sx lite installation.

    Could anyone tell me the right resistor to buy. I understand that it is a 0201 resistor, but don't know the value.

    Thanks a lot Condensador.jpg IMG_20200926_104909.jpg

  2. laotoulyh

    laotoulyh Member
    Newcomer

    Joined:
    Jul 8, 2020
    Messages:
    27
    Country:
    China
  3. Layer3

    OP Layer3 Member
    Newcomer

    Joined:
    Sep 25, 2020
    Messages:
    12
    Country:
    Spain
    Sorry for the question... you mean a 1kohm resistor right? Thank you very much!!

    Last edited by Layer3, Sep 27, 2020
  4. laotoulyh

    laotoulyh Member
    Newcomer

    Joined:
    Jul 8, 2020
    Messages:
    27
    Country:
    China
    yes

    Layer3 likes this.
  5. Layer3

    OP Layer3 Member
    Newcomer

    Joined:
    Sep 25, 2020
    Messages:
    12
    Country:
    Spain

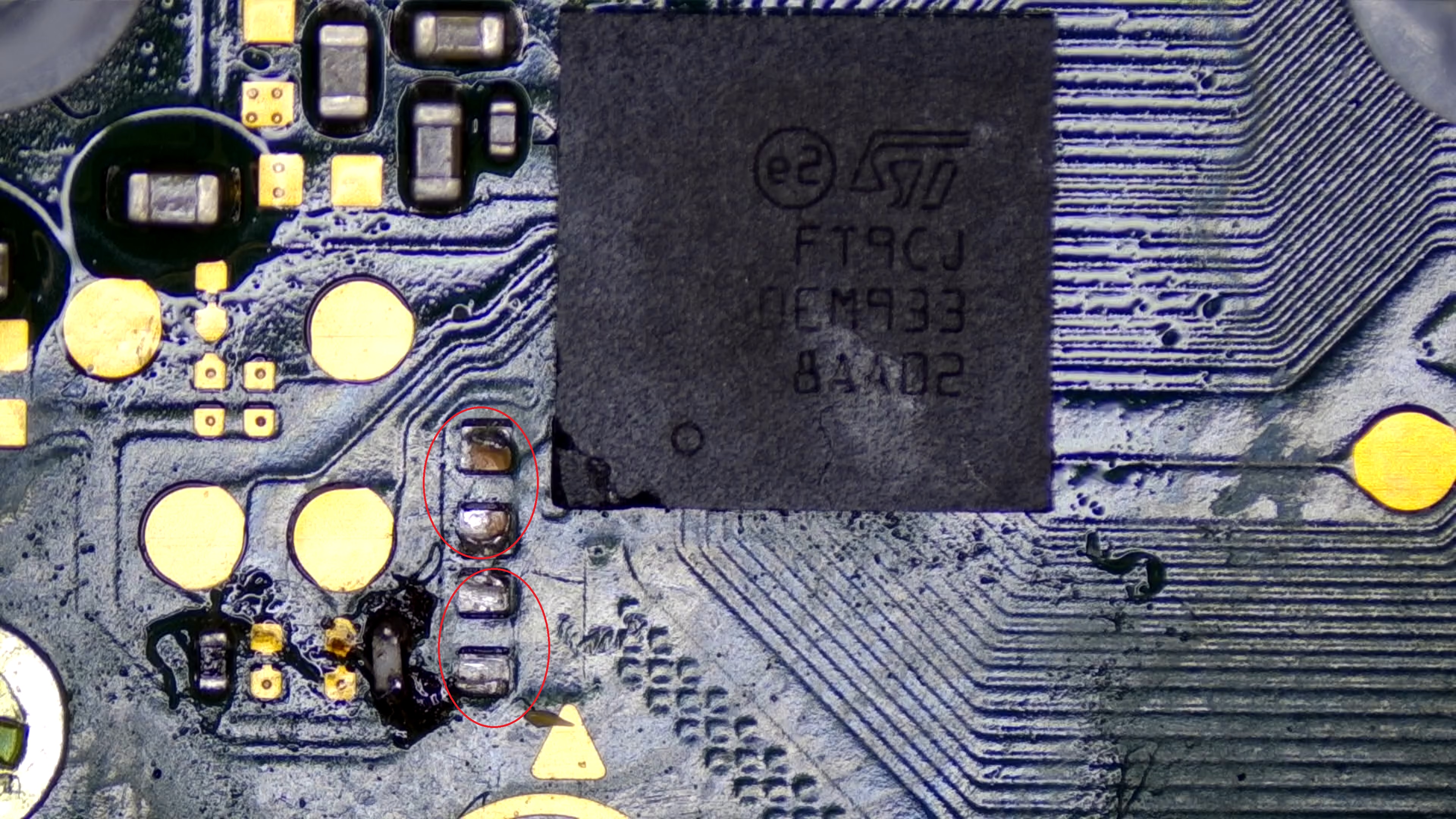

    And I have another question about caps.

    Do you know which type of caps are these two?

    [​IMG]
    [​IMG]

    Thank you very much.

  6. Layer3

    OP Layer3 Member
    Newcomer

    Joined:
    Sep 25, 2020
    Messages:
    12
    Country:
    Spain
    Could you help me with my last question please?

    Than you!!

  7. laotoulyh

    laotoulyh Member
    Newcomer

    Joined:
    Jul 8, 2020
    Messages:
    27
    Country:
    China
    0201 1uf 6.3V

  8. emuboarding

    emuboarding Member
    Newcomer

    Joined:
    May 15, 2008
    Messages:
    26
    Country:
    Brazil

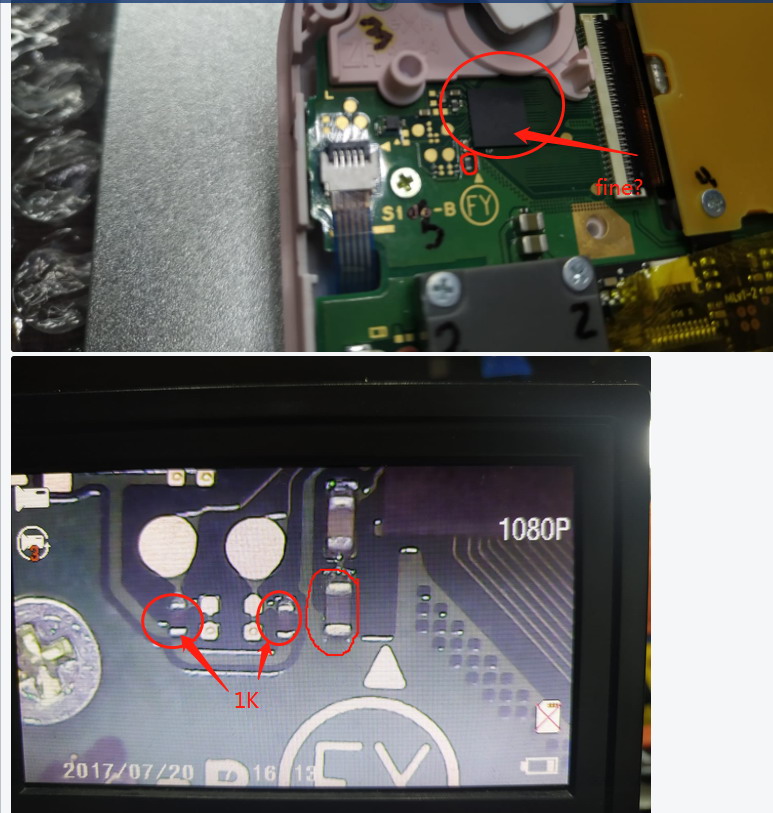

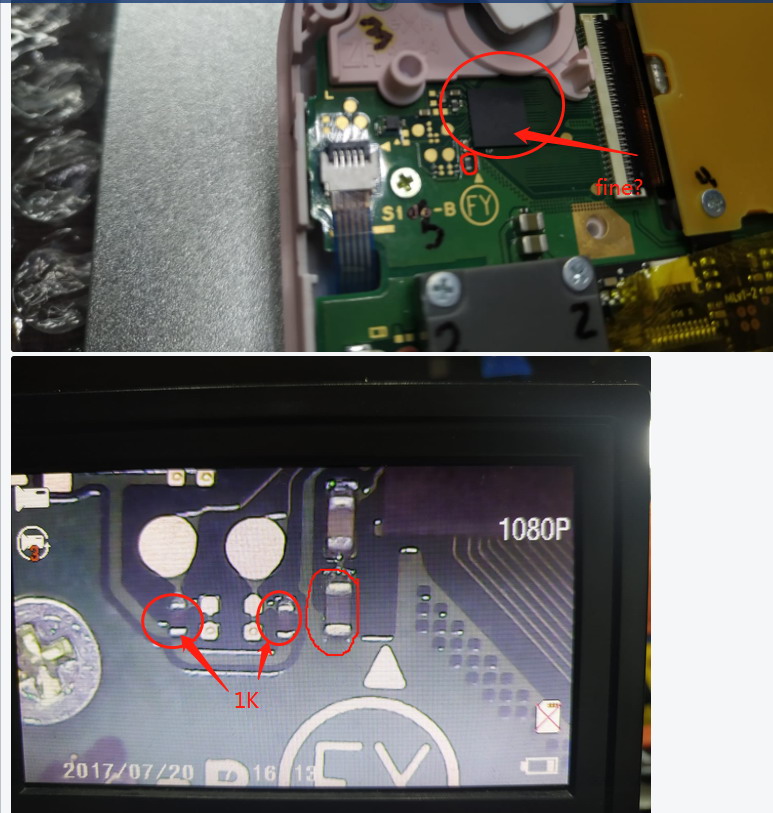

    Laotoulyh,,,

    please... in Nintendo Switch Lite motherboard...
    what is the value of this capacitor in this photos.

    on the left side of the FT9CJ chip


    [​IMG]
    [​IMG]


    Attached Files:

  9. laotoulyh

    laotoulyh Member
    Newcomer

    Joined:
    Jul 8, 2020
    Messages:
    27
    Country:
    China
    This should be an inductor or insurance, 0 ohms.

  10. laotoulyh

    laotoulyh Member
    Newcomer

    Joined:
    Jul 8, 2020
    Messages:
    27
    Country:
    China
    If the touch fails, you can look at the two 1K resistors. If it is normal, it may be a problem with the touch chip and you can try to reball.
