Hardware switch dont boot(black screen),memloader stopped and shorts

[pit12]

hey, i hope someone could help me:

i try to make it as short as i can,

-unpatched switch,
-dont used for long time,
-started fifa20,clicked on update,
-during the update the switch shutted down,
now it cant boot anything(blackscreen) exept hekate, i can start lockpicker but if i start to lockpick it crash,
i tried to restore the nand with memloader,unfortunately memloader hangs on mtc switching 665600 , and if i start it with TegraRcmGUI and goes to tools it shows the problem with 246400. win10 found some usb but no apx

if i put it in the dock, it only blink once and thats it.

and i had yesterday the moment that it showed 103% bat

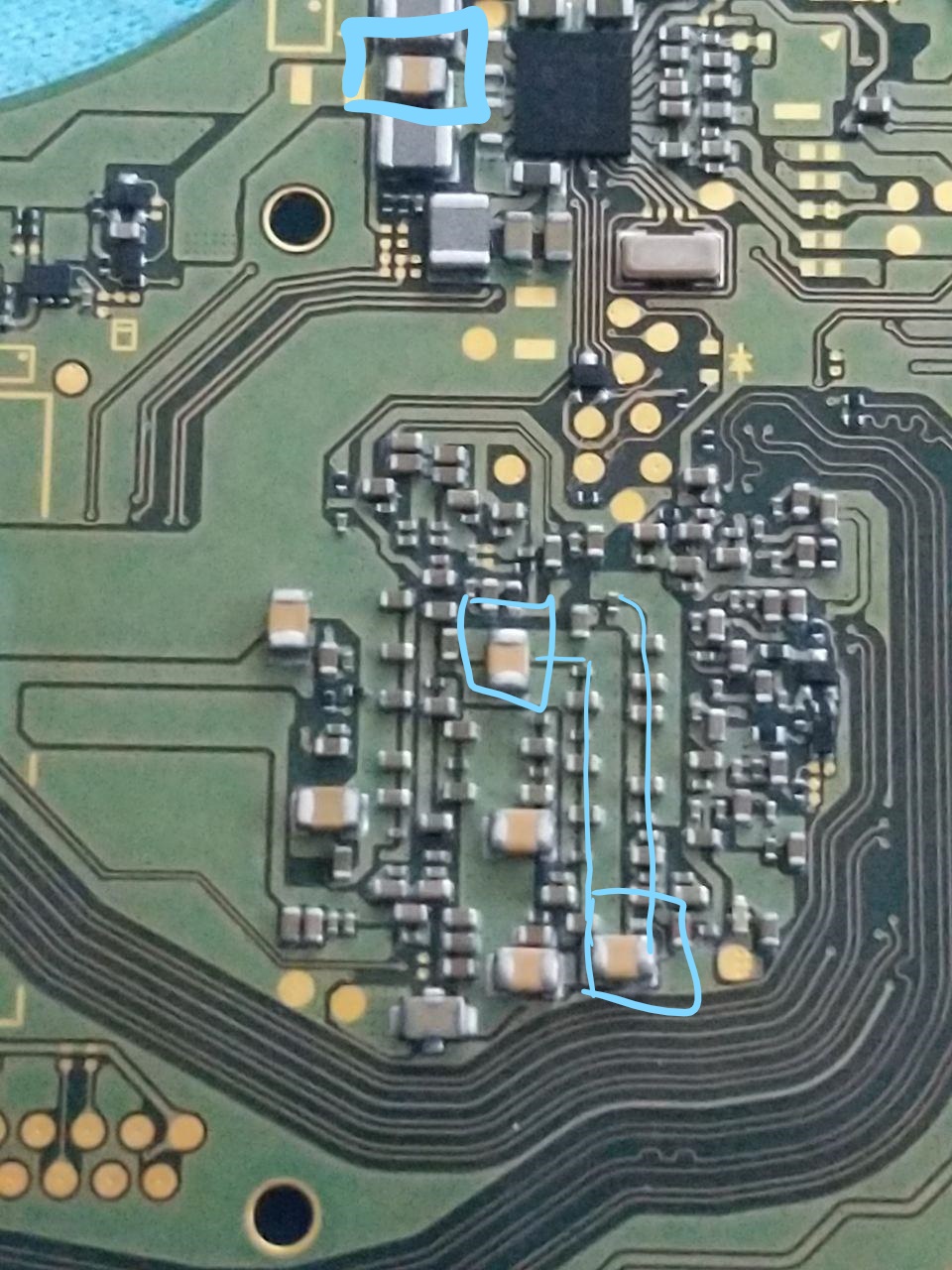

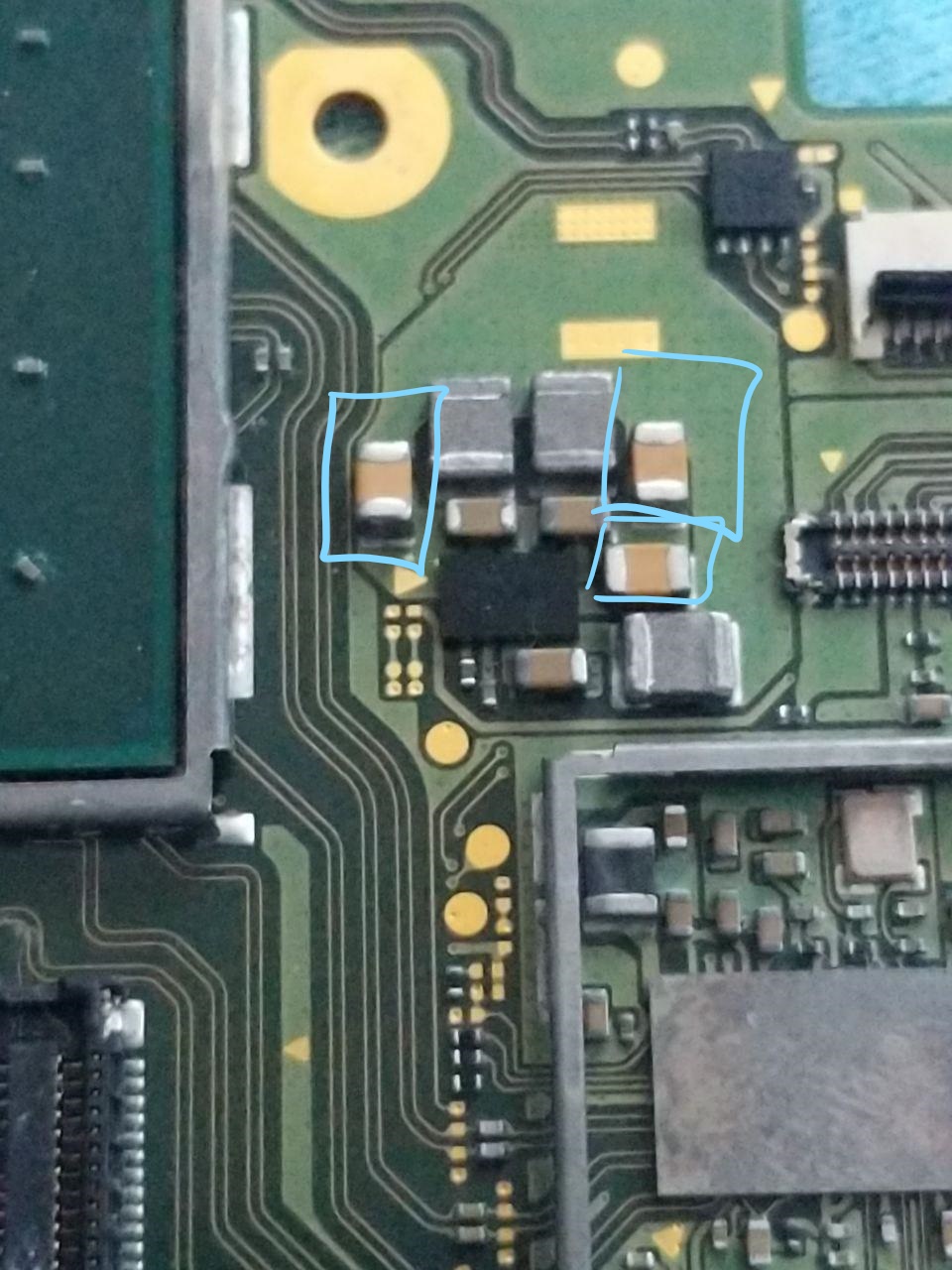

i looked up the main board and found shorts on these caps


have anyone any ideas what can be faulty?



[ds34]

well, hardware damage obviously. Are the shorts still there when you remove the mmc chip? can you get any decryption keys? warranty?
