    Hi,

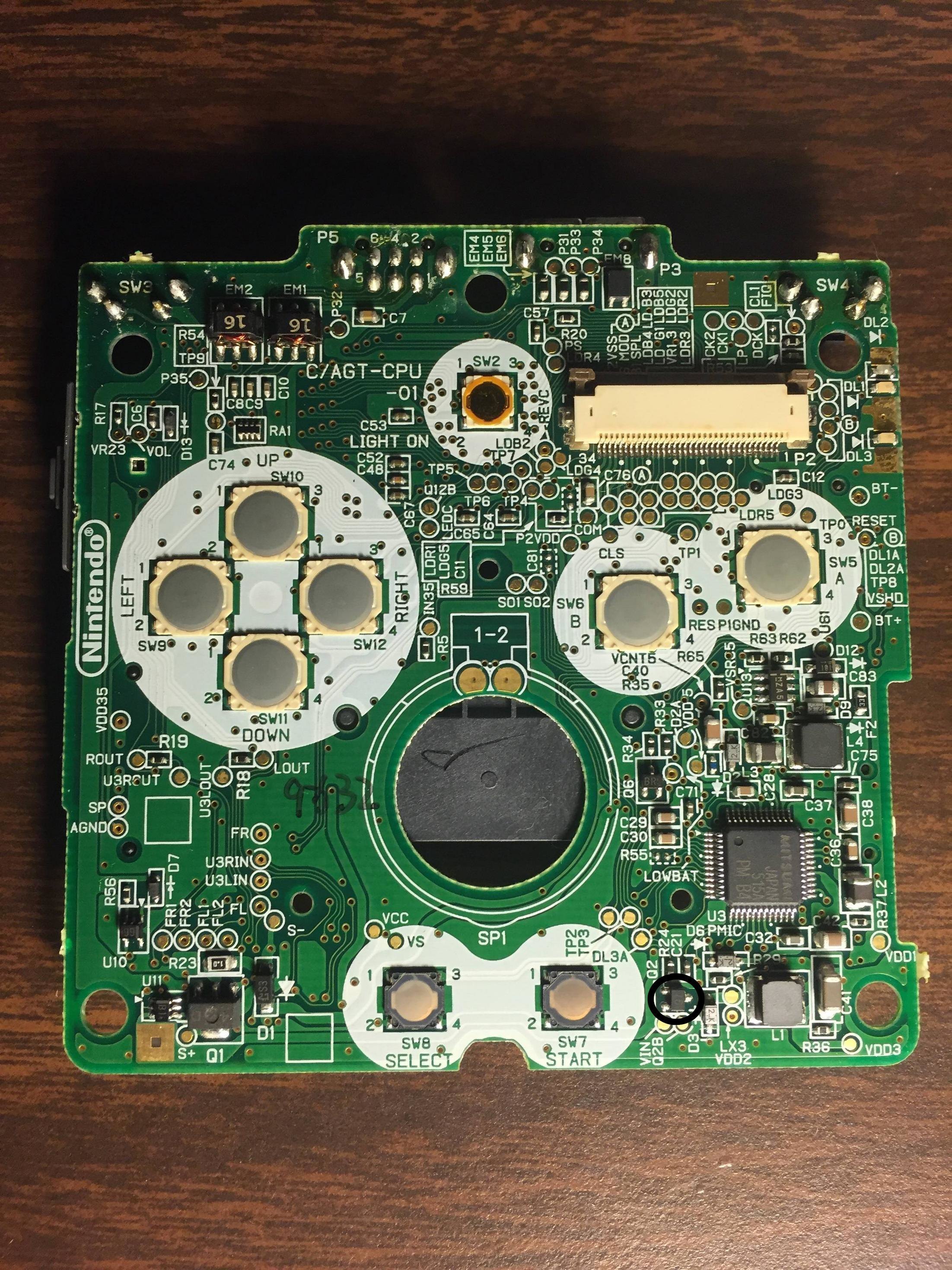

    I bought a GBA SP 101 and it does not charge. When you plug it, the orange light turns on but the battery does not charge and, even without the battery, the orange light stays on. If you leave the battery, it is drained. I checked the components of the board with a multimeter and it seems that the Q2 component is failing.

    I searched it and it seems that the component is a "Schottky Barrier Diode 200 mWatt" (device type: BAS70-06). I want to confirm this information with you to look for a replacement. I attached some images.


    Attached Files:

  2. JS7777

    JS7777 Advanced Member
    Newcomer

    Joined:
    Aug 2, 2017
    Messages:
    58
    Country:
    France
    Hello,

    These aren't so expensive : fr.aliexpress.com/item/McIgIcM-100pcs-SOT-23-1SS181-1SS184-1SS226-2SC1623-BAS19-BAS40-BAS70-BAS70-04-BAS70-05-BAS70/32827167336.html

    Or you could buy a defective gba sp on ebay or other sites.

  3. diegopalacio

    OP diegopalacio Newbie
    Newcomer

    Joined:
    Feb 27, 2018
    Messages:
    8
    Country:
    Colombia
    Hi again,
    The diode arrived, but it was a little bit bigger than the one on the board. So, I still wonder if someone knows which type of SMD is this.

  4. Darktreivor

    Darktreivor Newbie
    Newcomer

    Joined:
    Jul 19, 2021
    Messages:
    5
    Country:
    Brazil
    Hi, you can make charge again swapping q2?
