    Hi,
    i got an switch ac adapter with the usbc plug cut off.(original plug wasn't included)
    Should it be possible to solder another cut usb c cable with plug onto it?
    I've heard Nintendo isn't using the usb standard here and i don't want to fry my switch when I try this charger.

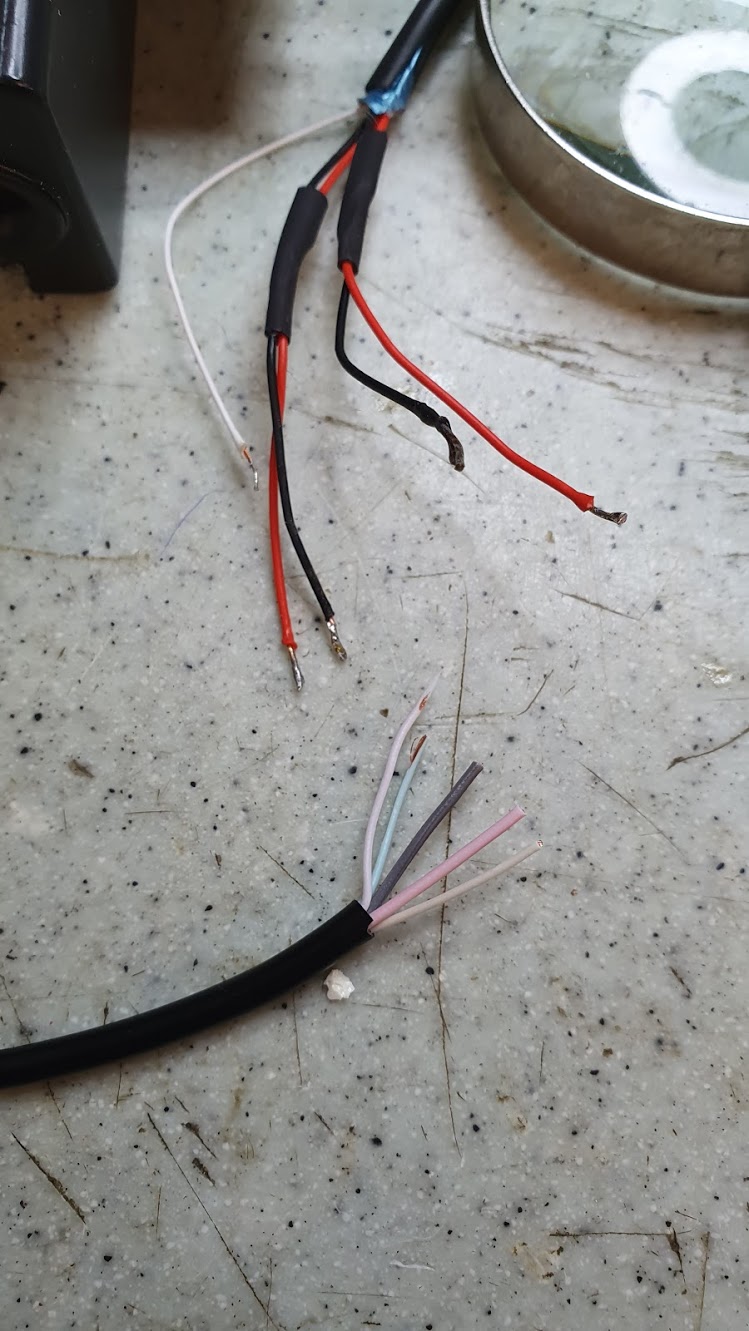

    Picture:

    Would be nice if someone has done this before and can give me some advice.

    cheers

  2. Gronbar

    Gronbar Member
    Newcomer

    Joined:
    Dec 18, 2018
    Messages:
    22
    Country:
    Poland
    Don't trust people in internet who says that not original charger will fry your switch, I'm using Aukey 65W PD charger with not original dock for about year and everything is ok.

  3. Slothinger

    OP Slothinger Member
    Newcomer

    Joined:
    Dec 31, 2019
    Messages:
    12
    Country:
    Austria
    Good to know but your Aukey charger costs almost twice then the original charger :D
    Couldn't find much about the Nintendo charger and his usb c wires.

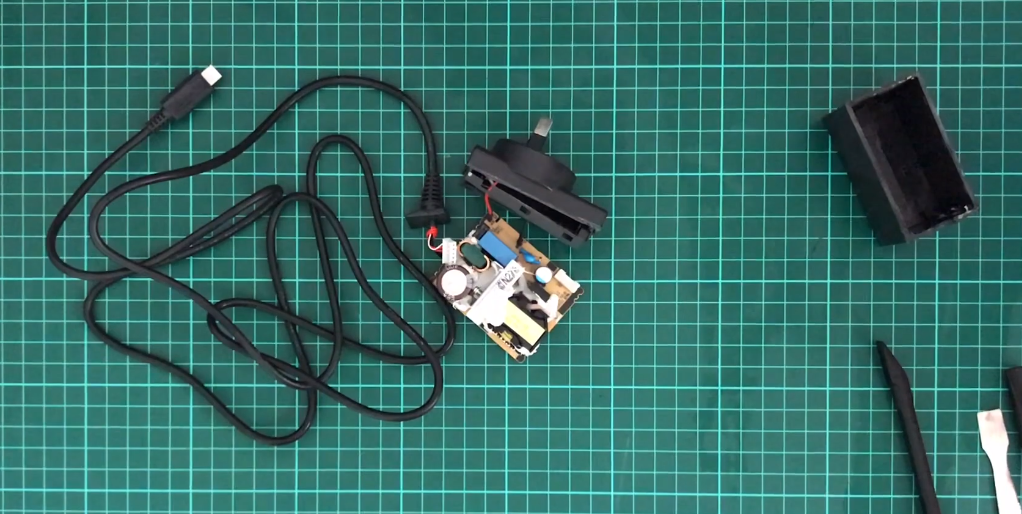

    edit: except this image from an YouTube video (Michaelblog456):


    Last edited by Slothinger, Jan 18, 2021
  4. Gronbar

    Gronbar Member
    Newcomer

    Joined:
    Dec 18, 2018
    Messages:
    22
    Country:
    Poland
    Year ago it was on promo (21€) Aukey PA-Y12, now it's 50€. Anyway you cant find cheaper and proven switch charger on https://switchchargers.com/

  5. CHTechRepair

    CHTechRepair Member
    Newcomer

    Joined:
    Jan 13, 2021
    Messages:
    41
    Country:
    United States
    You should be completely fine wiring another end to this cable, nothing is special about the switch the voltage in is on the same pins and data is carried on the same pins. I do a lot of work on Macbooks, which nowadays use 20v USB-C. Turns out their PSUs can negotiate 9v too for iPads and iPhones, which is enough to let the switch do it's thing and I use them all the time since I only have one switch charger. If you want my suggestion I would harvest from a similar cable that was designed to handle over 5V but I really don't think it will matter.

    Last edited by CHTechRepair, Jan 21, 2021
  6. BigOnYa

    BigOnYa Sofa King Special
    Member

    Joined:
    Jan 11, 2021
    Messages:
    806
    Country:
    United States
    I'd say go for it, just replace to new USB C plug, and if you worried and want to check it first before plugging into switch, get a cheap USB C device, or adapter, to plug into first., example: USB C to USB micro adapter, n try charging old phone, or a battery pack, etc

  7. The Real Jdbye

    The Real Jdbye Always Remember 30/07/08
    Member

    Joined:
    Mar 17, 2010
    Messages:
    20,443
    Country:
    Norway
    The Switch doesn't accept 9V, only 5V and 15V (docked mode specifically needs 15V)

  8. CHTechRepair

    CHTechRepair Member
    Newcomer

    Joined:
    Jan 13, 2021
    Messages:
    41
    Country:
    United States
    I'll post a pic of one on 9V if I can, off til Friday. Maybe I'm just imagining the voltage from doing too many iPhones, but I know they will nego with Macbook blocks no issues not 5v. Those blocks are supposed to only do 5v, 9v, 20v. I have no idea of the technical specs of M92, just what my meter reads out when connected inline between PSU and Switch.

    Last edited by CHTechRepair, Jan 21, 2021
  9. BigOnYa

    BigOnYa Sofa King Special
    Member

    Joined:
    Jan 11, 2021
    Messages:
    806
    Country:
    United States

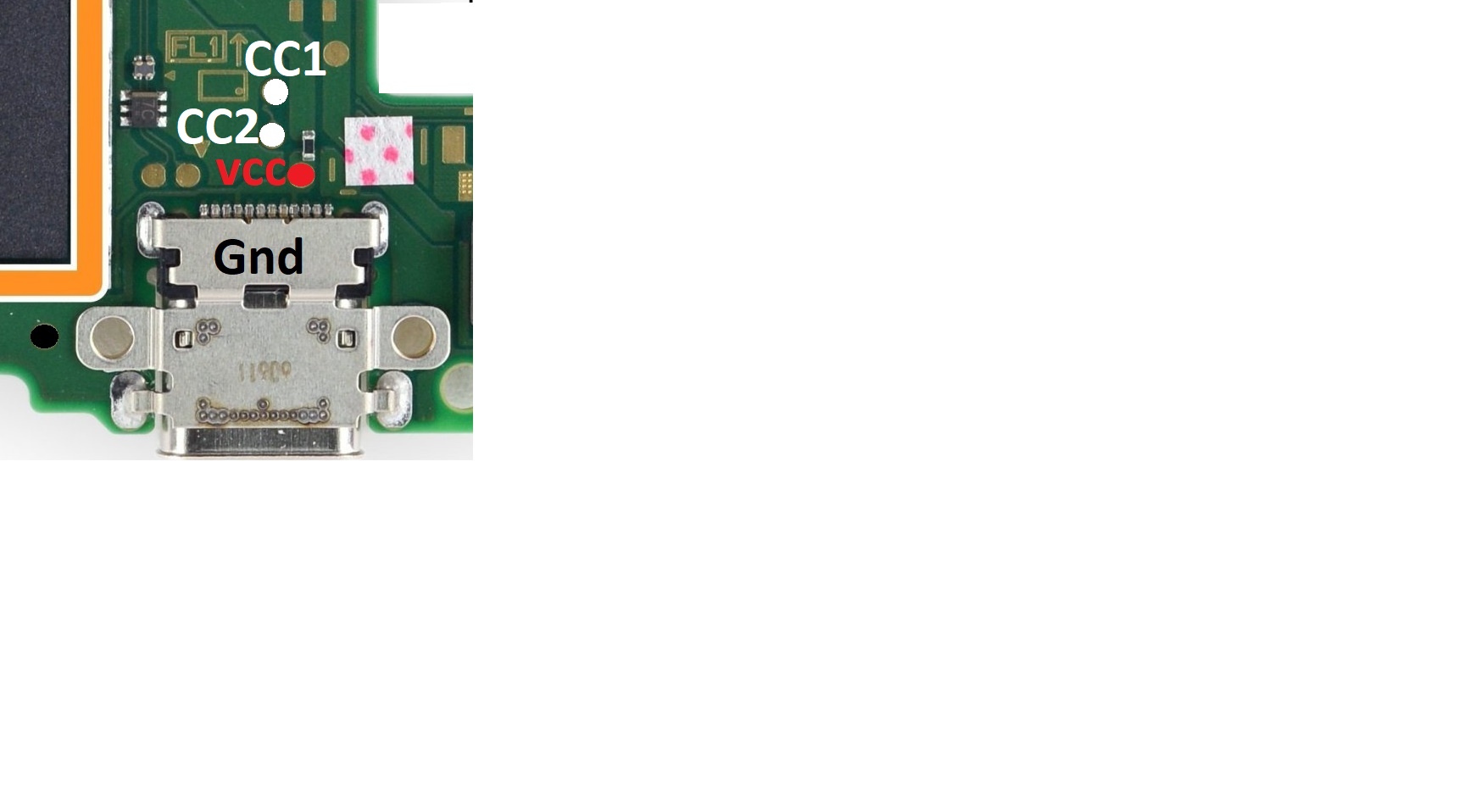

    Do you by chance have a Pinout diagram of sorts for? Maybe that will help him...:grog:

  10. The Real Jdbye

    The Real Jdbye Always Remember 30/07/08
    Member

    Joined:
    Mar 17, 2010
    Messages:
    20,443
    Country:
    Norway
    No. But the cable you have there is an USB-OTG cable, it has extra hardware in it that tells one side to act as USB host, due to that it might not be suitable for what you want to do, you should find a plain cable (either an extension cable or a normal charging cable) to use.

    BigOnYa likes this.
  11. Slothinger

    OP Slothinger Member
    Newcomer

    Joined:
    Dec 31, 2019
    Messages:
    12
    Country:
    Austria
    Hm so the charging cable for my samsung s10e should have the right wires inside?
    sry I'm an electrical noob but with the power metre i got the following specs:
    5V 1,5A
    15V 2,6A

  12. The Real Jdbye

    The Real Jdbye Always Remember 30/07/08
    Member

    Joined:
    Mar 17, 2010
    Messages:
    20,443
    Country:
    Norway
    Best if you use a cable that has only the power wires, otherwise you will have a lot of unused cut off wires and an unnecessarily thick cable, seems a bit of a waste of a perfectly good cable. The cable for your phone probably has data wires.

  13. CHTechRepair

    CHTechRepair Member
    Newcomer

    Joined:
    Jan 13, 2021
    Messages:
    41
    Country:
    United States
    Just wanted to show this is valid. A switch can and will negotiate 9V charging properly I would assume from any quality USB-C power supply device. This photo is showing not a 20v Apple Macbook USB-C PSU but an 18W USB-C Apple Lightning block. Moral of the story: good design is good design don't buy cheap stuff and your switch is going to be fine. Anyone who finds this good luck!


    Attached Files:

    The Real Jdbye likes this.
  14. The Real Jdbye

    The Real Jdbye Always Remember 30/07/08
    Member

    Joined:
    Mar 17, 2010
    Messages:
    20,443
    Country:
    Norway
    Maybe I was wrong, I'm sure TV out requires 15V though.

  15. CHTechRepair

    CHTechRepair Member
    Newcomer

    Joined:
    Jan 13, 2021
    Messages:
    41
    Country:
    United States
    I will get back to you shortly


    Attached Files:

  16. CHTechRepair

    CHTechRepair Member
    Newcomer

    Joined:
    Jan 13, 2021
    Messages:
    41
    Country:
    United States
    This is 100% true the switch actually complains about AC input if it's asked to put display port out under 15v.


    Attached Files:

    The Real Jdbye likes this.
  17. Slothinger

    OP Slothinger Member
    Newcomer

    Joined:
    Dec 31, 2019
    Messages:
    12
    Country:
    Austria
    hey guys thx for the information so far. i'll try to find a cheap usbc cable now and let you know if it worked.
    but i think all usbc cables on amazon are with data wires... the best solution would be another broken switch ac adapter. :D

  18. Gronbar

    Gronbar Member
    Newcomer

    Joined:
    Dec 18, 2018
    Messages:
    22
    Country:
    Poland
    or just buy official nintendo usb-c cable that is with pro controller
