Hacking [RCM Payload] Hekate - CTCaer mod

[Alklas]

How do we mount the nand and decrypt it? I forgot what program we needed.

HacDiskMount

https://switchtools.sshnuke.net



[wicksand420]

HacDiskMount

https://switchtools.sshnuke.net

Thanks



[CTCaer]

hello

is there any CRC calculations to check that all files are OK, and that the final resulting big file is also ok ?

if not, it could really be a good improvement
( i have issues with write errors on my SD so i fear to end with a bad dump )

That's not a bad idea, not bad at all!
Maybe after writing every 512 blocks (256KB) we can read back the sd card and check if everything is ok. That way we can have a 1:1 verification.

How do I dump Boot0 and Boot1 with memloader?

I don't know. I haven't used it yet.
rajkosto provides support for his memloader though, at his thread.



[Johannee]

Can't wait until we start seeing the unused files inside the Switch



[wicksand420]

I 7z my nand and it made it 706MB, very convenient for storage.



[hudhair]

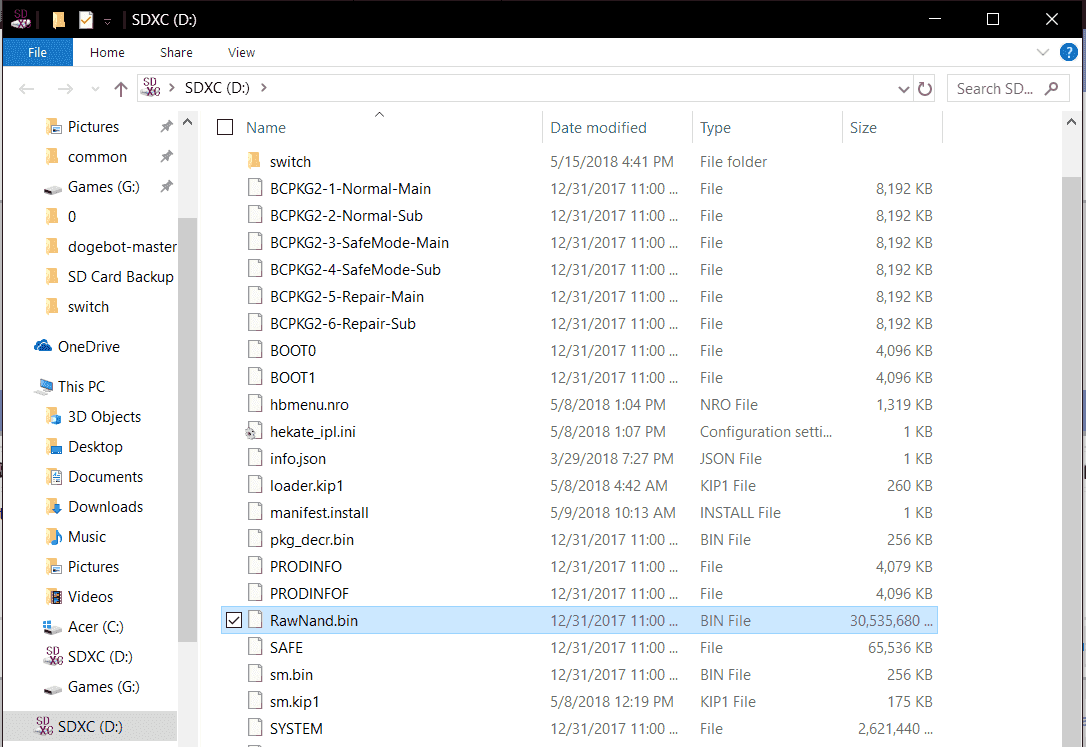

@CTCaer I ended up backing up the sd card and formatting it to exfat from fat32. Put the files back on and it seems to have dumped. This look right?

Spoiler: Image



[wicksand420]

@CTCaer I ended up backing up the sd card and formatting it to exfat from fat32. Put the files back on and it seems to have dumped. This look right?

Spoiler: Image

View attachment 123622

looks like it went fine.



[hudhair]

I 7z my nand and it made it 706MB, very convenient for storage.

What were your settings when you clicked on add to archive?



[wicksand420]

What were your settings when you clicked on add to archive?

Not sure, I just right clicked on my rawnand.bin and went to 7-zip and went to add to 7z file



[fagnerkof]

Nice, got that "fatal error" at first but chkdsk /f /r /x E: fixed it (there wasn't any error in the card tho)



[CTCaer]

Hello all.

We need some help testing some changes in hekate in all Switch update versions.
The changes are about adding 3.0.0 support. But all versions should be checked.
The test is about launching the Switch OS either in Normal or CFW mode.
In CFW launching of hbmenu through album is also needed.

The update versions that need testing

• 1.0.0 (?)
• 2.x.x (?)
• 3.0.0 (New, this should work now)
• 3.0.1-.2 (This probably wont work, missing SE patches)
• 4.x.x (This should still work, like before)
• 5.x.x (This should still work, like before)

You can find the testing payload attached.

EDIT:
Current results:
3.0.0
3.0.1 Needs SE patches
5.x.x Still works



[wicksand420]

Hello all.

We need some help testing some changes in hekate in all Switch update versions.
The changes are about adding 3.0.0 support. But all versions should be checked.
The test is about launching the Switch OS either in Normal or CFW mode.

The update versions that need testing

• 1.0.0 (?)
• 2.x (?)
• 3.0.0 (New, this should work now)
• 3.0.1 (This probably wont work, missing SE patches)
• 4.x (This should still work, like before)
• 5.x (This should still work, like before)

You can find the testing payload attached.

I'll test it out.

on 5.0.2 CFW works good, allows booting of homebrew
Launching stock works aswell



[wicksand420]

Most importantly, sleep mode now works on 5.0.2
oops, it worked once, now it don't

ok, after messing around a bit I found out that sleep mode works as long as you are not in a homebrew



[Stoned]

Hello all.

We need some help testing some changes in hekate in all Switch update versions.
The changes are about adding 3.0.0 support. But all versions should be checked.
The test is about launching the Switch OS either in Normal or CFW mode.

The update versions that need testing

• 1.0.0 (?)
• 2.x (?)
• 3.0.0 (New, this should work now)
• 3.0.1 (This probably wont work, missing SE patches)
• 4.x (This should still work, like before)
• 5.x (This should still work, like before)

You can find the testing payload attached.

3.0.1 Blackscreen after Boot Stock and Cfw



[CTCaer]

Most importantly, sleep mode now works on 5.0.2
oops, it worked once, now it don't

ok, after messing around a bit I found out that sleep mode works as long as you are not in a homebrew

Thank you for testing.
Yeah, sleep mode works on stock only.
But this specific feature is not about hekate. It's atmosphere and the support will come eventually. Atmosphere development is pretty fast.

3.0.1 Blackscreen after Boot Stock and Cfw

Thank you for testing.
It was expected for 3.0.1. Code wise it is ready to launch it. It just needs the security engine patches.



[Stoned]

Thank you for testing.
Yeah, sleep mode works on stock only.
But this specific feature is not about hekate. It's atmosphere and the support will come eventually. Atmosphere development is pretty fast.


Thank you for testing.
It was expected for 3.0.1. Code wise it is ready to launch it. It just needs the security engine patches.

Can i Help you? Need you files from my 3.0.1 for the Se Patches?



[CTCaer]

Can i Help you? Need you files from my 3.0.1 for the Se Patches?

Yes, of course.
I need package1.
You can dump it directly with version hekate CTCaer mod v1.3. Tools->Dump Package1.

When done, do a zip/7z with the newly created pkg_decr.bin, sm.bin and warmboot.bin.
Send them by email (check my github profile), not through pm here.
Thanks



[Neo_007]

CTCaer,
I'm on 5.0.2, and Hbmenu can't find the switch directory with my Samsung 128 GB SDXC Card, no problems with my Sandisk 32 GB SD card.



[CTCaer]

CTCaer,
I'm on 5.0.2, and Hbmenu can't find the switch directory with my Samsung 128 GB SDXC Card, no problems with my Sandisk 32 GB SD card.

Have in mind, that this has nothing to do with hekate - ipl.

Other than that, what's the Filesystem and the cluster size for each of your SD cards.
(Cluster size should always be 32KB, to have maximum compatibility in all non-Microsoft OS.)



[Stoned]

Yes, of course.
I need package1.
You can dump it directly with version hekate CTCaer mod v1.3. Tools->Dump Package1.

When done, do a zip/7z with the newly created pkg_decr.bin, sm.bin and warmboot.bin.
Send them by email (check my github profile), not through pm here.
Thanks

Done.
I Hope it Help you
