Hello,
I have a PS5 EDM-020 with the UART error codes 80810001 and C00D0002.

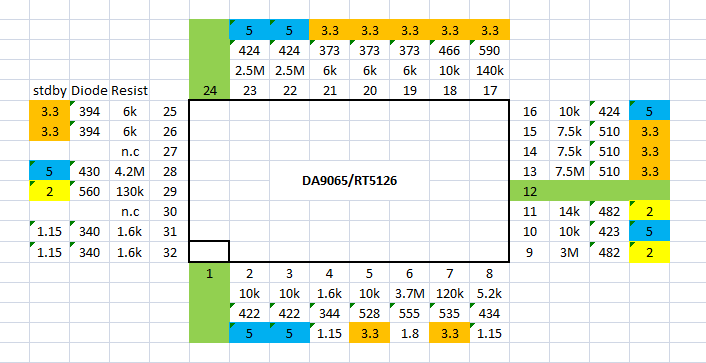

The 5V and 1.8V standby voltages are present, and 3.3V is available at the power button. However, when pressing the power button, the 1.1V rail does not come up. The PS5 shows no beep and no LED light.
Has anyone experienced this before?
I was also unable to find any short circuits. The SSD controller measures 32 ohms — is that too low?
Thank you very much
Best regards
