PS5 CFI-1116 short around APU

Can anyone tell me this resistor value EDM-020 PS5?

alfsss · 2024-03-28T22:19:08+00:00

I am working on a EDM-020 PS5 and this resistor is missing. Can anyone tell me the value? TPS53219A buck controller power DDR6 1. 0R? 2. ? 3. ? 4. ?

Thread starter waterchill
Start date Mar 4, 2024
Views 876
Replies 0

waterchill

New Member

Newbie

Level 1

Mar 4, 2024

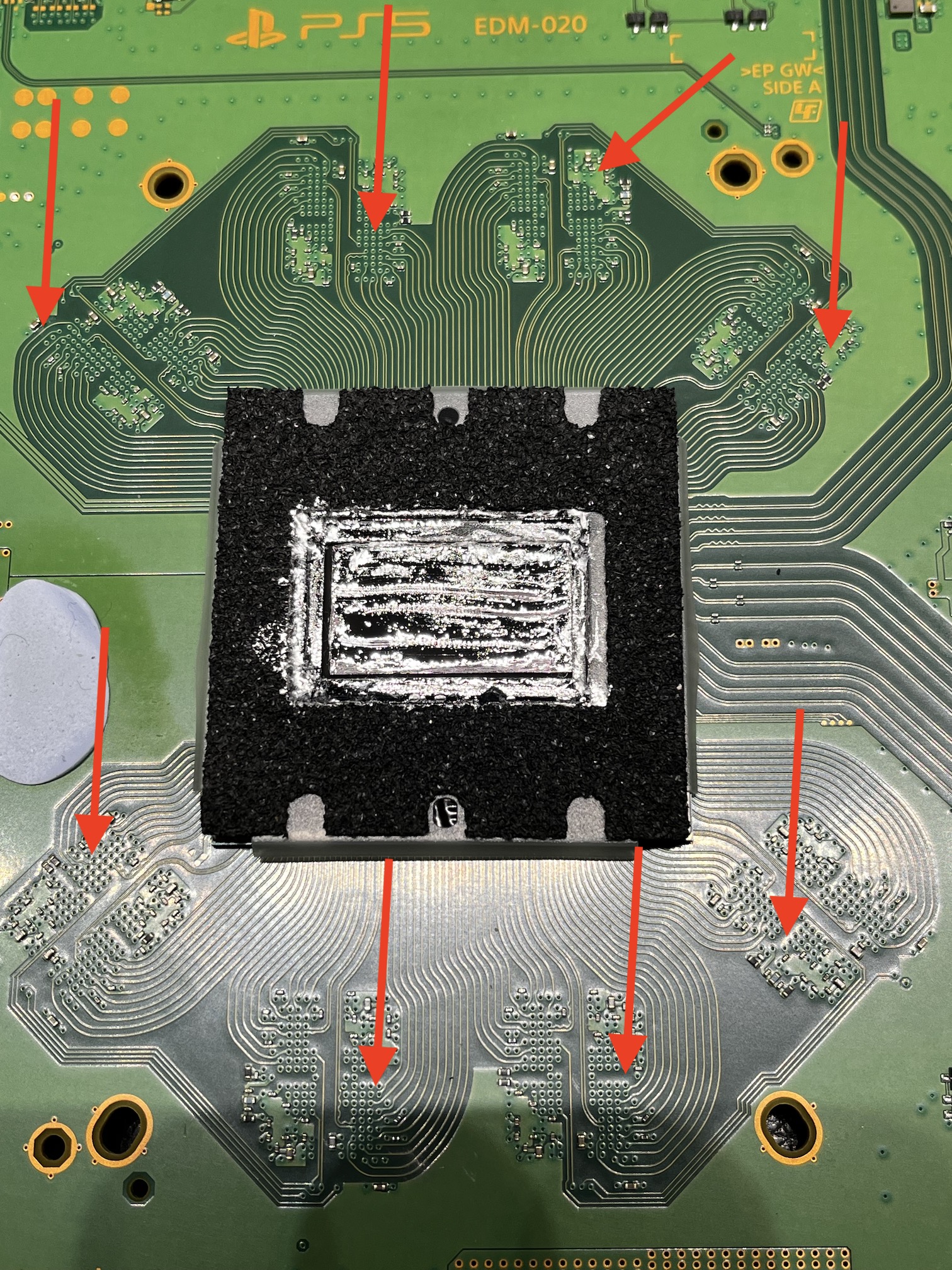

Hi everyone. I hve this board here and the whole area in th APU is shorted. Just for confirmation, is this normal or is the APU fried? Literally everyone cap is shorted to ground
