Hacking Hardware Picofly - a HWFLY switch modchip

[binkinator]

0.45mm on my oled one

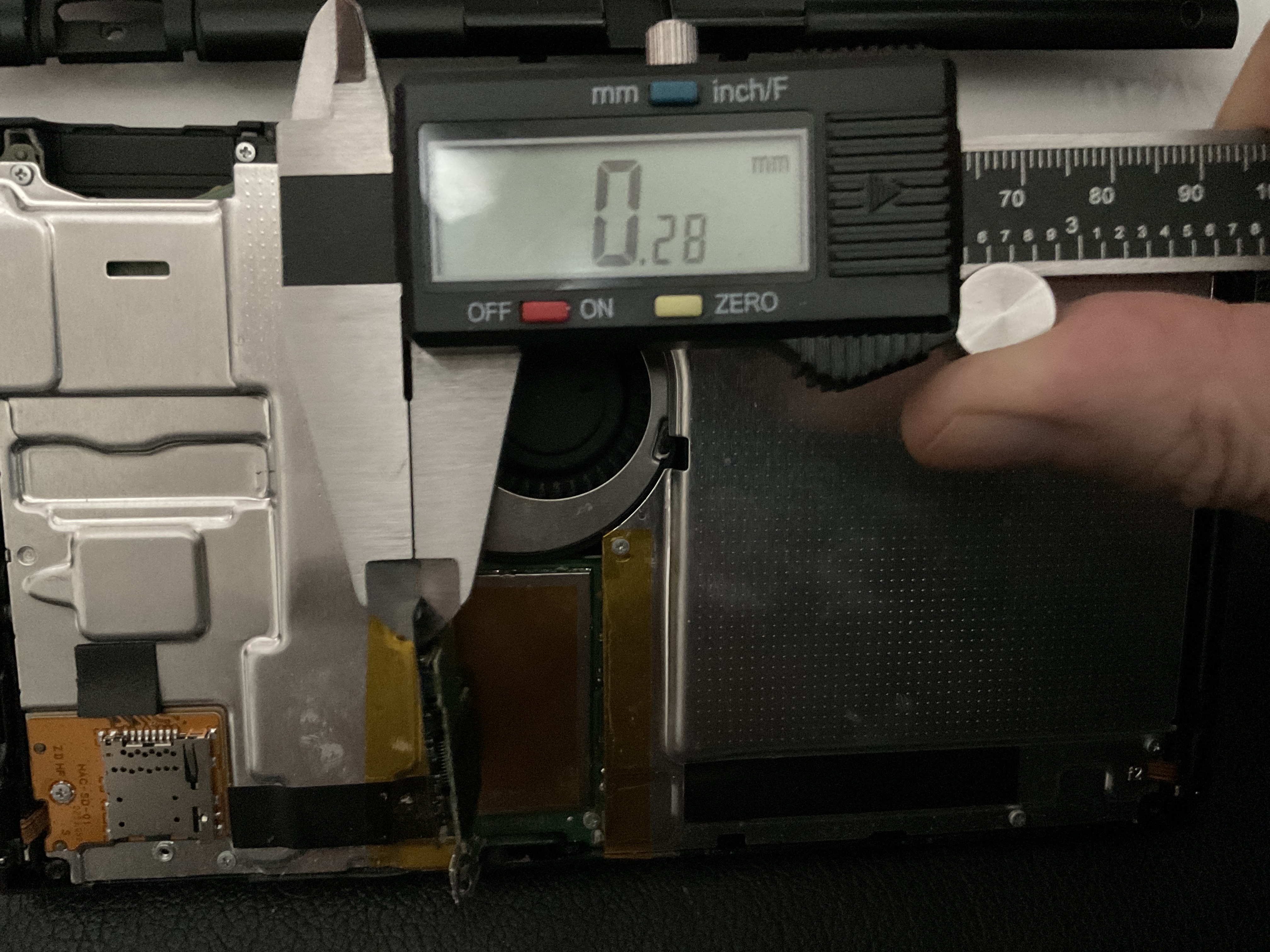

Interesting…the one I put in my regular V2 Mariko comes in at .28mm



[Shadow_The_Hedgehog82]

Interesting…the one I put in my regular V2 Mariko comes in at .28mm

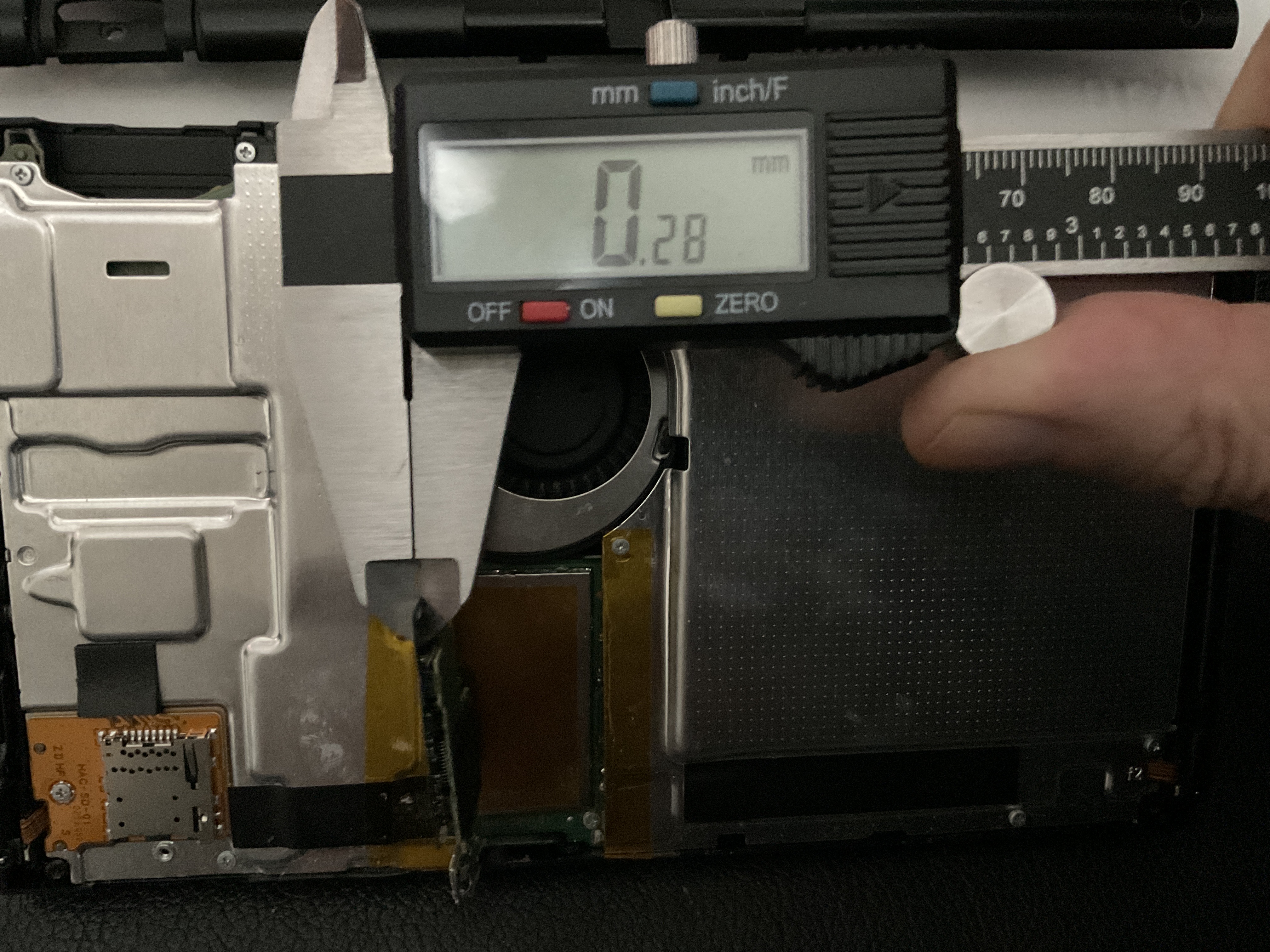

View attachment 350076

that pcb deffo looks thinner



[binkinator]

that pcb deffo looks thinner

Are you suggesting there’s no governing body or quality control for grey market devices coming out of China?



(ya…it definitely feels more flimsy than most PCBs I have laying around.)



[FruithatMods]

I had a suspicion that the HWfly boards were less than 0.4mm.

They are not made using a "normal" pcb manufacturing process I don't think.



[shaunsingh0207]

firmware.bin is the raw dump. Flash firmware.uf2, do a

picotool save --all

and you'll find it's identical to firmware.bin.

We don't need to decompile it if we can make it run. At that point someone could just reverse engineer it, as long as it's functioning (or use it as-is). Otherwise, you're just trying to reimplement the FPGA's functionality from scratch, and we don't have the bitstream or its source. If someone with one of these chips shares their dump AND their serial (also called unique ID) then we can move forward with this. Otherwise, there's nothing to be done, someone would have to determine exactly how the HWFLY FPGA works and write an RP2040 sketch that does the same thing.

Decompiling certainly isn't a requirement, but I'd rather not run untested (and likely old) proprietary code on my switch, the important thing is now we know that this glitch is possible with an rp2040, and in my opinion it would be easier to implement it from scratch.
The easiest way to approach it would be to create a firmware for the rp2040 based off of the pikofly mcu code, then reverse engineer and emulate the fgpa with the rpi's PIO.



[impeeza]

Does anybody have a dump of the rp2040 bootloader of that firmware? May be some code on that bootloader what can help with the creation of the glitch



[saladus]

it's in the archive mansi sent



[Soggytoast111]

Decompiling certainly isn't a requirement, but I'd rather not run untested (and likely old) proprietary code on my switch, the important thing is now we know that this glitch is possible with an rp2040, and in my opinion it would be easier to implement it from scratch.
The easiest way to approach it would be to create a firmware for the rp2040 based off of the pikofly mcu code, then reverse engineer and emulate the fgpa with the rpi's PIO.

The issue is that it's not really public knowledge how to sync the chip with the switch to perform the glitch with the correct timing. If it was so easy then it would have been done years ago.

That's why people are trying so hard to decrypt this dump to be disassembled - we simply don't fully understand what it's doing.



[vittorio]

someone with pikofly should measure the voltage of the various pinouts on startup



[saladus]

ok so the bootloader does the decryption, from 0x2C00 until almost the end firmware.bin has max entropy so it's either compressed or encrypted, but considering it doesn't do the voltage glitching I'd assume it's the latter

Post automatically merged: Jan 30, 2023

maybe we should be focusing on the uf2 instead
edit: just realized binwalk says encrypted data, not that it found an encryption program, sorry

Post automatically merged: Jan 30, 2023

someone with pikofly should measure the voltage of the various pinouts on startup

someone on the other thread hooked up a logic analyzer to their hwfly but i don't think it's a massive discovery



[thesjaakspoiler]

The issue is that it's not really public knowledge how to sync the chip with the switch to perform the glitch with the correct timing. If it was so easy then it would have been done years ago.

The learning process which determines the glitch timing has been described in the Spacecraft-NX code :
https://github.com/Spacecraft-NX/firmware

Glitching something with a RP has also been described :
https://github.com/ensingerphilipp/airtag-glitch-dump-improved
All that electronic stuff is on the ribbon cable.

What the pikofly solved was how to inject alternative data without the help of a dedicated FPGA.
The raspberry-pi has all kinds of cool things on board like a dma controller and other high speed data transfers from/to it's GPIO ports. So I presume they just use the emmc clock to sync the timings.
But maybe there is even a more ingenious way to accomplish that.



[saladus]

the flash's id isn't changeable. here are the docs for anyone interested



[Piorjade]

The learning process which determines the glitch timing has been described in the Spacecraft-NX code :
https://github.com/Spacecraft-NX/firmware

Glitching something with a RP has also been described :
https://github.com/ensingerphilipp/airtag-glitch-dump-improved
All that electronic stuff is on the ribbon cable.

What the pikofly solved was how to inject alternative data without the help of a dedicated FPGA.
The raspberry-pi has all kinds of cool things on board like a dma controller and other high speed data transfers from/to it's GPIO ports. So I presume they just use the emmc clock to sync the timings.
But maybe there is even a more ingenious way to accomplish that.

Time to read myself into the whole SpaceNX code and draw diagrams to understand the whole procedure lmao

Too bad that I'm too dumb to actually be able to write the FPGA part.
Nevertheless, it's actually amazing how the whole hack works and how annoying it is to install it.

EDIT:
After reading a bit I wish the devs would've documented the code a bit better lmao, lots of cryptic stuff and "magic numbers".
Anyway, I've found the following file: https://github.com/hwfly-nx/firmware/blob/master/firmware/src/glitch.c
And as far as I understood the code, the FPGA doesn't actually search for the correct offsets and pulse widths for the glitch, it just uses the given offset + pulse width and returns whether the glitch was successful or not and if not then the microcontroller resets the CPU and sends a different config and retries, am I right?
I'm just trying to learn from this whole thing here..

So my current understanding is that the FPGA uses the given pulse width + offset to start the glitch and afterwards reads data on either the DAT0 or CMD line (or both?) to see if there's a specific pattern and returns "success" or not based on what it has read, right?



[ByteFun]

Time to read myself into the whole SpaceNX code and draw diagrams to understand the whole procedure lmao

Too bad that I'm too dumb to actually be able to write the FPGA part.
Nevertheless, it's actually amazing how the whole hack works and how annoying it is to install it.

EDIT:
After reading a bit I wish the devs would've documented the code a bit better lmao, lots of cryptic stuff and "magic numbers".
Anyway, I've found the following file: https://github.com/hwfly-nx/firmware/blob/master/firmware/src/glitch.c
And as far as I understood the code, the FPGA doesn't actually search for the correct offsets and pulse widths for the glitch, it just uses the given offset + pulse width and returns whether the glitch was successful or not and if not then the microcontroller resets the CPU and sends a different config and retries, am I right?
I'm just trying to learn from this whole thing here..

So my current understanding is that the FPGA uses the given pulse width + offset to start the glitch and afterwards reads data on either the DAT0 or CMD line (or both?) to see if there's a specific pattern and returns "success" or not based on what it has read, right?

I also studied this firmware before. There is a presentation of how the switch glitching. As I understand it, the success flag is a request to read a specific address from memory. The FPGA is just for eMMC r/w and mosfet control based on pulse width and offset relative to something that are passed from the microcontroller to the FPGA.



[binkinator]

I also studied this firmware before. There is a presentation of how the switch glitching. As I understand it, the success flag is a request to read a specific address from memory. The FPGA is just for eMMC r/w and mosfet control based on pulse width and offset relative to something that are passed from the microcontroller to the FPGA.

Is it this guy?

https://arxiv.org/pdf/2108.06131.pdf



[marhalloweenvt]

Is it this guy?

https://arxiv.org/pdf/2108.06131.pdf

Or this?

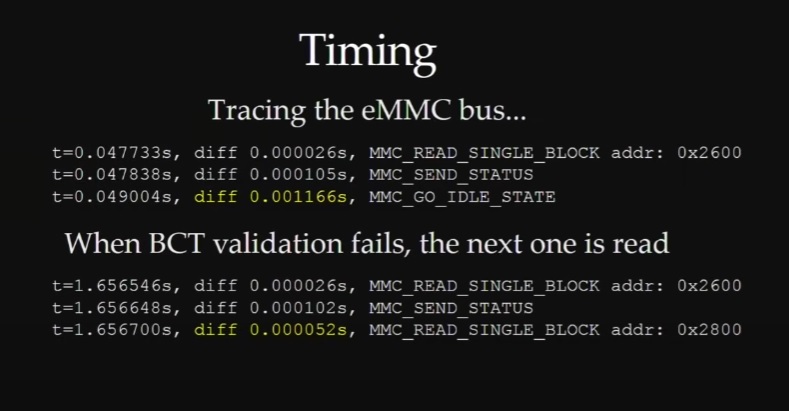

https://media.ccc.de/v/c4.openchaos.2018.06.glitching-the-switch



[FruithatMods]

ok so the bootloader does the decryption, from 0x2C00 until almost the end firmware.bin has max entropy so it's either compressed or encrypted, but considering it doesn't do the voltage glitching I'd assume it's the latter

Post automatically merged: Jan 30, 2023

maybe we should be focusing on the uf2 instead
edit: just realized binwalk says encrypted data, not that it found an encryption program, sorry

Post automatically merged: Jan 30, 2023

someone on the other thread hooked up a logic analyzer to their hwfly but i don't think it's a massive discovery

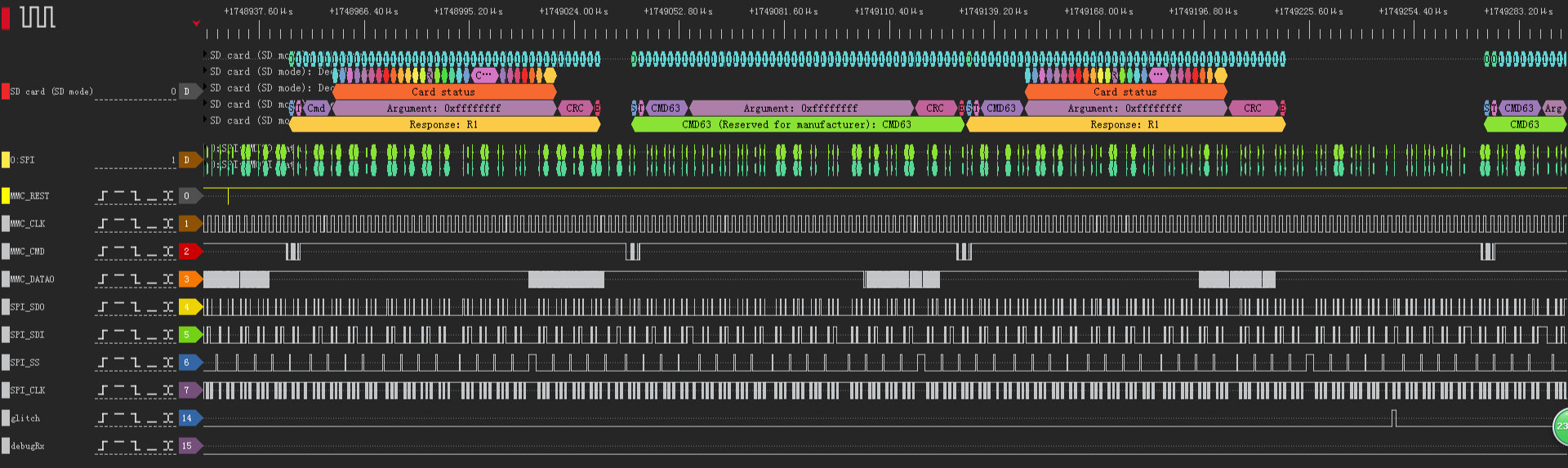

Hold on. Let's go back to this image. I think we got something here. Is it possible to get rid of all the unnecessary signals and enhance the rest?

Let's just focus on the important signals. Can we further analyse known behaviours like emmc initialisation and tag those so we can split standard signal behaviour to non standard behaviour?

I think we need to enhance!

Post automatically merged: Jan 30, 2023

Is the reset line missing? Can you ask the person who analysed the signals if he also recorded the reset signal line?

Post automatically merged: Jan 30, 2023

Ideally the analysis has to be taken after a factory reset to allow the HWfly to write the modified bootloader.



[ByteFun]



[Mansi]

Okay, even if the dump is partially decrypted, does anyone know how to write in C? To create firmware for rp2040.
I was thinking, what if I make a glitch without a chip, using only a programmer...
I did a full emmc dump before installing the glitch and did a re-dump after installing and got different data.
Boot1 is mostly patched. And boot2 is not touched.
I was thinking of trying to flash the patched boot1 manually and check if the console works.
And if the console turned on normally, installing the glitch would not be needed.
It would be possible to read the boot1 section as a programmer and patch it manually and everything would work.
I can throw off the files tomorrow before the installation and after the installation of the glitch.
Maybe this will help? I'm not afraid to share them, because.

I sold my console witch chip(erista). And instead I bought a (mariko) oled)))



[TheSynthax]

Okay, even if the dump is partially decrypted, does anyone know how to write in C? To create firmware for rp2040.
I was thinking, what if I make a glitch without a chip, using only a programmer...
I did a full emmc dump before installing the glitch and did a re-dump after installing and got different data.
Boot1 is mostly patched. And boot2 is not touched.
I was thinking of trying to flash the patched boot1 manually and check if the console works.
And if the console turned on normally, installing the glitch would not be needed.
It would be possible to read the boot1 section as a programmer and patch it manually and everything would work.
I can throw off the files tomorrow before the installation and after the installation of the glitch.
Maybe this will help? I'm not afraid to share them, because.

I sold my console witch chip(erista). And instead I bought a (mariko) oled)))

You can't glitch without a chip, that's what the chip does. If you write a patched bootloader without glitching the check, it will refuse to boot it. Can you share the serial of your RP2040 you took the dump from? Here's the instructions on how to do that, use the Arduino IDE method if you don't want to have to program the Pico again. https://gbatemp.net/threads/pikofly-a-probably-fake-hwfly-modchips-or-not.622701/post-10059815

At least a handful of us here know C and C++, those who do will know what to do once they're able to decrypt the binary with that serial.
