Hacking Nintendont Controller-Configurations

[Rockohoward]

Verify all 8 dpad directions work in HIDTest v.6
If they do work attach the actual controller.ini to your reply.

Yup all work in the HID Test app. Attached ini



[Howard]

Yup all work in the HID Test app. Attached ini

You made changes to the file from your origonal.
DPAD must be set to 1 if any of the DPAD masks are 0. I put back what you origonally posted for dpad values. Their is no way dpad up could have worked.
Check every control in HIDTest v.6 . In the file you sent RAnalog probably didnt work. which may have caused your problem.
The sticks should go from 00 (left/up) to FF (down/right) with the center being 80.
The triggers should go from 00 (not pressed) to FF (fully pressed) with the center being 80.



[Rockohoward]

Crap. I forgot that I changed it back to DPAD=0 and removed the diagonals so i could play a game and never adjusted it again. I'll test with the original and post again.



[Rockohoward]

You made changes to the file from your origonal.
DPAD must be set to 1 if any of the DPAD masks are 0. I put back what you origonally posted for dpad values. Their is no way dpad up could have worked.
Check every control in HIDTest v.6 . In the file you sent RAnalog probably didnt work. which may have caused your problem.
The sticks should go from 00 (left/up) to FF (down/right) with the center being 80.
The triggers should go from 00 (not pressed) to FF (fully pressed) with the center being 80.

Thank you. This seemed to fix the dpad issue and now im not getting the DSI error anymore. Thanks again



[Flame]

did any one do one for Wii remote with classic controller



[MassiveRican]

R u trolling lol. WiiMote is Bluetooth so in no way is it HID compliant so a controller.ini is not only unnecessary but impossible to create at the moment. Get yourself an USB adapter with aGC remote or use a PS3 controller if u want to use Nintendont.



[kobi-wan]

Hi,

i've created a controller.ini for the Logitech Cordless Rumblepad 2 :

Its based on settings of the F510 controller.
A,B,X,Y buttons are located in the way of the wii u gamepad / pro controller.



[Oak]

Hi,

i've created a controller.ini for the Logitech Cordless Rumblepad 2.

How did you get it to work with Bluetooth? I'm considering buying a wireless controller.



[markehmus]

How did you get it to work with Bluetooth? I'm considering buying a wireless controller.

• plug the 2.4 GHz wireless receiver into the usb port and batteries in the controller



[kobi-wan]

Yes, the Cordless Rumblepad 2 has it's own wireless receiver (don't know if it's 2,4 GHz). But indeed, it's not bluetooth.
Nintendont sees it as a "normal" USB HID. And for me it's wireless playing.



[Oak]

Can someone update my controller.ini for the latest update?

[Logitech Dual Action]
VID=046D
PID=C216
Polltype=1
DigitalLR=1
DPAD=1
A=4,20
B=4,10
X=4,40
Y=4,80
Z=5,03
L=5,04
R=5,08
Power=5,10
S=5,20
Left=4,06
Down=4,04
Right=4,02
Up=4,00
RightUp=4,01
DownRight=4,03
DownLeft=4,05
UpLeft=4,07
StickX=0
StickY=1
CStickX=2
CStickY=3
LAnalog=0
RAnalog=0



[Deleted User]

Yes, the Cordless Rumblepad 2 has it's own wireless receiver (don't know if it's 2,4 GHz). But indeed, it's not bluetooth.
Nintendont sees it as a "normal" USB HID. And for me it's wireless playing.

Would that be the only solution for wireless gaming unless I use Devolution?
If so, I may just get a pad like yours since my couch is a way too far away from the console.



[Oak]

Would that be the only solution for wireless gaming unless I use Devolution?
If so, I may just get a pad like yours since my couch is a way too far away from the console.

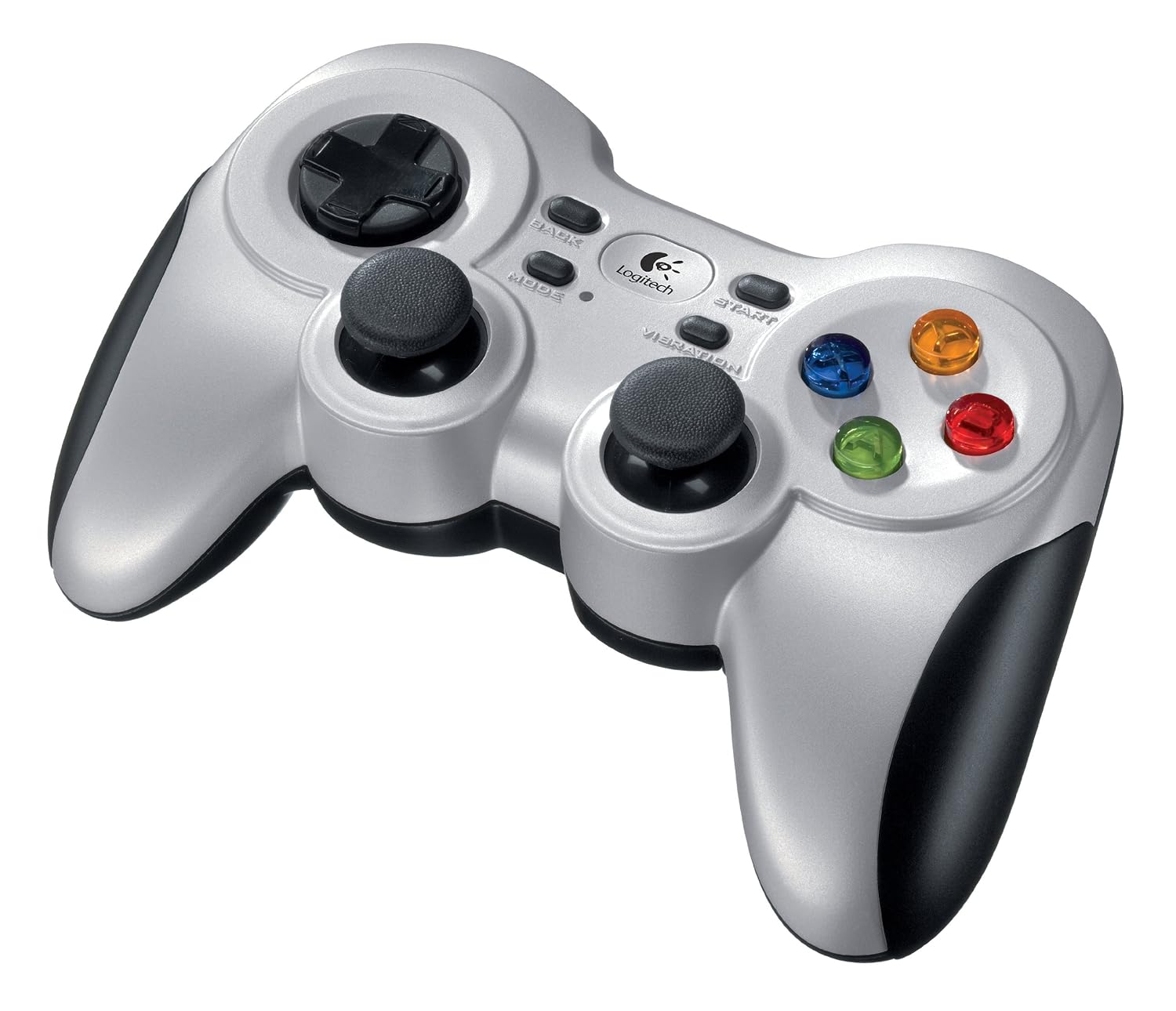

You should get the Logitech F 710 instead. It has a better build quality.

http://www.amazon.com/Logitech-940-000117-Gamepad-F710/dp/B0041RR0TW



[TheChield]

Is the hidtest dol source code available ?



[GamerzHell9137]

Here's what i posted on nintendont tread.

Can someone explain me how to configure a controller?
On HID test i cna see the numbers changing but idk how to make it in the controller.ini correct.
I tried but in Mario Kart Double Dash nothing works.

The ini i made http://puu.sh/90zMv/8c874e7d55.ini

And yes, its called controller.ini and i have set it in the root of the SD card.

The things that i have changed are

VID=0810
PID=0003
A=5,2F
B=5,4F
X=5,1F
Y=5,8F
Z=6,02
L=6,04
R=6,08
S=6,20
Left=5,06
Down=5,04
Right=5,02
Up=5,00
RightUp=5,01
DownRight=5,03
DownLeft=5,05
UpLeft=5,07

Idk how to edit the other controlls.

And this is how i did

http://puu.sh/90AkY/4b54377bfa.jpg

Down below there are 8 pairs of 2 numbers

I guess the 1st one is ignored so from it u start to number the pairs

The 0F is being changed and when i press the Circle ( My A button ) it changes to 2F so A button is A=5,2F


VID and PID are correct i think 0810 and 0003 ( you can't see the PID clearly in the picture)

Idk how to setup the controller, can someone help?



[LightyKD]

Any chance we will see support for this adapter...

http://www.amazon.com/dp/B0089NVTDM...UTF8&colid=4R0JQZTMP9XI&coliid=I18BALKTSLE4X2

-or for the wired XBox 360 controller?



[anon3536]

im about to have to start using nintendont on my wii u as i wont have my wii anymore and was wondering if nyko ps3 controllers worked well or not if not whats the best option for me to choose?



[Howard]

Can someone update my controller.ini for the latest update?

[Logitech Dual Action]
VID=046D
PID=C216
Polltype=1
DigitalLR=1
DPAD=1
A=4,20
B=4,10
X=4,40
Y=4,80
Z=5,03
L=5,04
R=5,08
Power=5,10
S=5,20
Left=4,06
Down=4,04
Right=4,02
Up=4,00
RightUp=4,01
DownRight=4,03
DownLeft=4,05
UpLeft=4,07
StickX=0
StickY=1
CStickX=2
CStickY=3
LAnalog=0
RAnalog=0

What problemes are you having that you are trying to fix that worked previously?



[andy1602]

Hey guys, i need help to solve this problem... i am going crazy after hours trying with no success.

Objective: Be able to walk/run and use FLUDD at the same time
Problem: Analog triggers don't work properly (DualShock 3).
Question: HOW can i configure this thing right ?

Here are a few pictures to illustrate the problem:
01: L fully pressed.
02: R fully pressed.
03: L and R fully pressed.
04: controller.ini (for DualShock 3) that i am using.
05: When R is softly pressed, Mario holds both Fludd arms and can't walk.
06: When R is softly pressed until the max possible Mario still can't move but Fludd squirt water (without difference in water pressure).

I've already tried to change L and R analog values to 18 and 19 but the result is the same of picture 05, Mario holds both fludd arms and can't walk, no water going out fludd no matter how much the analog buttons are pressed... i also have a DualShock 4 and the behavior was the same using another controller.ini, the only exception was rumble, which is working fine with DS3 but not with DS4.
Does anyone knows what is wrong with my controller.ini ?



[Goku Junior]

http://www.seisatek.com/index.php?kk_seccion=producto&id=102
I just bought this gamepad, it is Plug and Play, and works with Windows without any driver, could it work with Nintendont? I'm asking because I can't get my money back if I use the controller.
