Hardware Nintendo Switch motherboard losing a component

sthetix

Active Member
OP
Newcomer
Joined
Dec 25, 2015
Messages
41
Trophies
0
Age
44
XP
659
Country
Indonesia

Anybody knows the component marked in red? @mattytrog

Thanks


SolidSnakeUk89

Well-Known Member
Newcomer
Joined
Jul 20, 2019
Messages
94
Trophies
0
Age
31
Location
Around the world
Website
www.google.com
XP
165
Country
United Kingdom
Hi, I've missed component as well, somebody con tell me what is it, looks a coil, can anyone confirm it and the value?

https://imgur.com/wrLpyTS
https://imgur.com/c1ead9h
wrLpyTS

c1ead9h


Thanks in advance.

Hola Juan!
parece un capacitador - 0805 quizas.. puede que mas grande, lo que no se es el valor... te dejo una foto de como se ve

looks like a capacitor - maybe 0805 or bigger but not sure of its value (could be 100nF) below a pic of how it looks like:



--------------------- MERGED ---------------------------

it looks to me like a DC~DC converter tho.. @mattytrog we need ya! lol


TMS32010

New Member
Newbie
Joined
Aug 27, 2019
Messages
2
Trophies
0
Age
25
XP
28
Country
Chile
It's extremely possible that it's a custom version of the Toshiba one, in the Switch is labeled as "PP5 636" without a brand on it.

So close to the battery power manager ROHM M92T36 and as said probably a power manager IC (DC to DC).

Sorry, I'm new, so I can't post Links for more info.

Sent from my LG-K430 using Tapatalk

  • Like
Reactions: SolidSnakeUk89

JuanIssa

Member
Newcomer
Joined
Aug 28, 2019
Messages
15
Trophies
0
Age
41
XP
40
Country
Spain
Hola Juan!
parece un capacitador - 0805 quizas.. puede que mas grande, lo que no se es el valor... te dejo una foto de como se ve

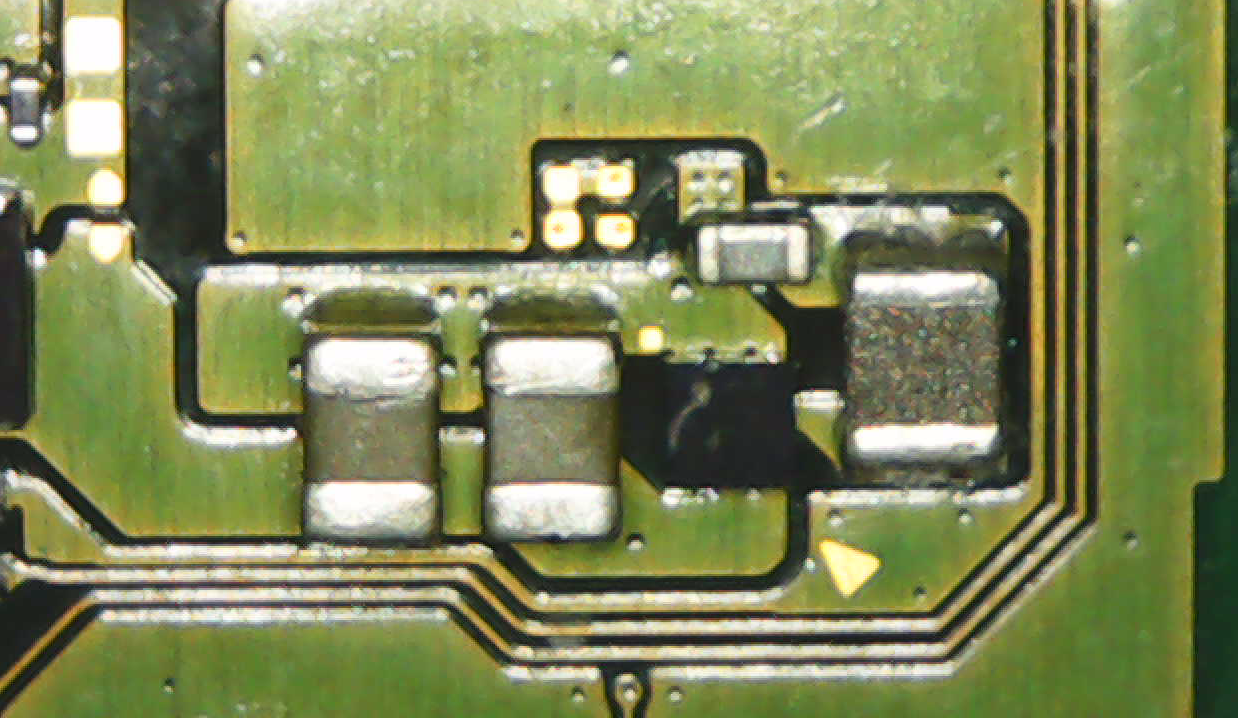

looks like a capacitor - maybe 0805 or bigger but not sure of its value (could be 100nF) below a pic of how it looks like:

View attachment 177767

--------------------- MERGED ---------------------------


it looks to me like a DC~DC converter tho.. @mattytrog we need ya! lol

Thanks for reply, shot helps a lot. If is a capacitor, isn't the most common one, for support, because no one of the sides lands to ground, like the 3 at their left

P.D. 99% is a coil by the picture, looks the difference in the middle, darker side like granulated, then at side to get solderer is thinner than capacitors
granulated

Last edited by JuanIssa,

SolidSnakeUk89

Well-Known Member
Newcomer
Joined
Jul 20, 2019
Messages
94
Trophies
0
Age
31
Location
Around the world
Website
www.google.com
XP
165
Country
United Kingdom
Thanks for reply, shot helps a lot. If is a capacitor, isn't the most common one, for support, because no one of the sides lands to ground, like the 3 at their left

P.D. 99% is a coil by the picture, looks the difference in the middle, darker side like granulated, then at side to get solderer is thinner than capacitors
granulated

youre right it could be an inductor! check this out -==- https://www.aliexpress.com/item/32771547217.html

I have 2 boards but they now have more holes than a colander so everything is giving me a short lol but I will measure as soon as I get another switch to fix :)


JuanIssa

Member
Newcomer
Joined
Aug 28, 2019
Messages
15
Trophies
0
Age
41
XP
40
Country
Spain
Thanks again for your help, I try to find one with same value from a mobile donner board. I had in other post a problem don't switch on now, maybe is the culprit?, you know which circuit belong/relationated it?

  • Like
Reactions: Pintglass

Dartz150

Yet another Onii-chan
Member
Joined
May 5, 2010
Messages
2,202
Trophies
1
Age
29
Location
Over your head
XP
3,576
Country
Mexico
I recommend to watch these series of videos:


There, a lot of switch components are explained and the process to replace them is detailed, I believe that the component you are looking for is the power management chip, which is easy to replace if you hace experience with electronics and wathc how is done in this video.


SolidSnakeUk89

Well-Known Member
Newcomer
Joined
Jul 20, 2019
Messages
94
Trophies
0
Age
31
Location
Around the world
Website
www.google.com
XP
165
Country
United Kingdom
I recommend to watch these series of videos:


There, a lot of switch components are explained and the process to replace them is detailed, I believe that the component you are looking for is the power management chip, which is easy to replace if you hace experience with electronics and wathc how is done in this video.
bear in mind this guy was very lucky in those videos... LOL he didn't came across partially shorted boards, bricked nands and blown pads & traces on the board tho... he must have a very reliable source of "faulty" equipment when it comes to buy a joblot like that, I guarantee you try to buy one of those joblots from eBay and you will lose a lot of money because usually.. the "faulty" switches we would have access to wont be "virgin" anymore but they would have been opened already and sometimes... sodomised by some brute.. unless you have a shop where people will walk in with 1st hand issues of course!

nevertheless, yes you can learn a lot by watching his videos and not only on switches so make sure you subscribe because the guy uses a lot of common sense to troubleshoot and I really like how "clean" he is with flux and soldering :)

  • Like
Reactions: lpoolm and Agilato

Agilato

Well-Known Member
Member
Joined
Jun 21, 2019
Messages
361
Trophies
0
Age
33
XP
626
Country
United States
bear in mind this guy was very lucky in those videos... LOL he didn't came across partially shorted boards, bricked nands and blown pads & traces on the board tho... he must have a very reliable source of "faulty" equipment when it comes to buy a joblot like that, I guarantee you try to buy one of those joblots from eBay and you will lose a lot of money because usually.. the "faulty" switches we would have access to wont be "virgin" anymore but they would have been opened already and sometimes... sodomised by some brute.. unless you have a shop where people will walk in with 1st hand issues of course!

nevertheless, yes you can learn a lot by watching his videos and not only on switches so make sure you subscribe because the guy uses a lot of common sense to troubleshoot and I really like how "clean" he is with flux and soldering :)

Story of my life... my first lot: 7 out of 10 had way more complex issues than this guy.... at least now i have donors ;-)


Attachments

  • 20190831_231554.jpg
    493.6 KB · Views: 431
  • Like
Reactions: SolidSnakeUk89

SolidSnakeUk89

Well-Known Member
Newcomer
Joined
Jul 20, 2019
Messages
94
Trophies
0
Age
31
Location
Around the world
Website
www.google.com
XP
165
Country
United Kingdom
Story of my life... my first lot: 7 out of 10 had way more complex issues than this guy.... at least now i have donors ;-)

ohh I feel it for you :( although those boards may become handy one day!!

I got a lot of 5.. managed to fix 4 and 1 I sold for parts (like separate parts)

then I been buying.. in total about 10 from shpock (bit like a posh version of craiglist but in the UK), Facebook MkPlace and eBay when I can see clear pics and the console has the serial code + all screws visible

I ended up with 3 consoles that I have problems with.. which I made a thread here about them but I still trying to work them out and although 2 of them could be (saleable) like saying (digital only.. or handheld only) there is a high risk they will come back home lol

anyway... is not my primary business (thankfully) :D:D

  • Like
Reactions: Agilato

JuanIssa

Member
Newcomer
Joined
Aug 28, 2019
Messages
15
Trophies
0
Age
41
XP
40
Country
Spain
Hola Juan!
parece un capacitador - 0805 quizas.. puede que mas grande, lo que no se es el valor... te dejo una foto de como se ve

looks like a capacitor - maybe 0805 or bigger but not sure of its value (could be 100nF) below a pic of how it looks like:

View attachment 177767

--------------------- MERGED ---------------------------


it looks to me like a DC~DC converter tho.. @mattytrog we need ya! lol

At the end take one of this coil from a mobile phone with same value. After solder it and assembly the switch connect the power lead, show the icon battery but then black screen an the fun start working at high revolutions. Not sure if that coil/circuit is the culprit, anybody know whats about this line or have a dissasembly board and can try it if removing it happens the same :shy:
